TP-Link

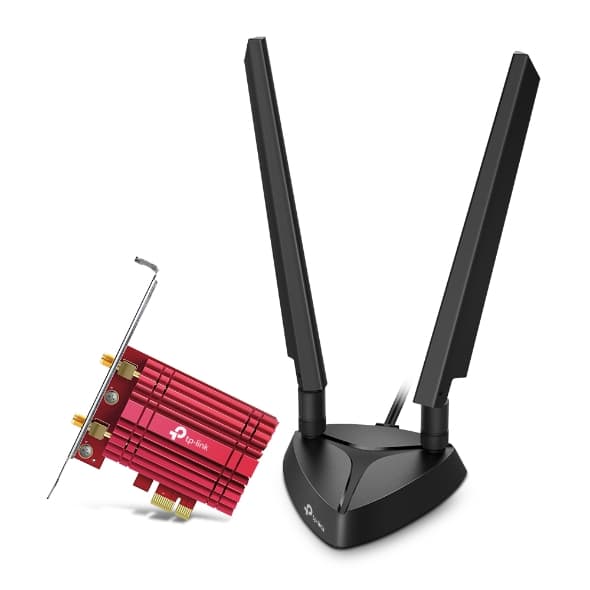

ARCHER TXE75E - AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter

0,00 ₼

Unparalleled Tri-Band Speed — Boost your overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
WiFi 6E Standard — Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds
Reliable Connections — The latest Intel® Wi-Fi 6E chipset’s reduced latency and improved reliability unlocks your Wi-Fi 6E router’s full potential
Wider Signal Coverage — Two multi-directional antennas with a magnetized base are designed for optimal signal reception
Bluetooth 5.3 — The latest Bluetooth technology achieves faster speeds and broader coverage
Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
Reliably Engineered — The specialized heatsink and gold plating improve stability and performance even at high CPU temps
Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards

Low stock

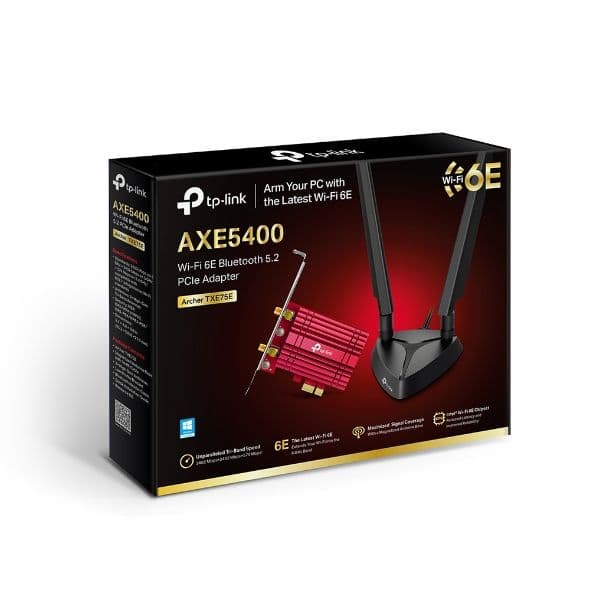

Package Content

Archer TXE75EMagnetized Antenna Base with 1m RF Cable2× High-Gain AntennasLow-Profile BracketBluetooth Header CableQuick Installation GuideResource CD

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

System Requirements

Supported operating systems include Windows 10, 11(64-bit)

Dimensions ( W x D x H )

3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm)

Antenna

2× High-Gain Tri-Band Antennas

Certification

FCC, CE, RoHS

Wireless Standards

IEEE 802.11a/b/g/n/ac/ax

Wireless Security

WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

Accessories Specifications

Extension Cable Length: 1 mBluetooth Header Cable Length: 0.3 m

WLAN Signal Rate

6 GHz:11ax: Up tp 2402Mbps5 GHz:11ax: Up to 2402 Mbps(dynamic)11ac: Up to 1732 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11a: Up to 54 Mbps(dynamic)2.4 GHz:11ax: Up to 574 Mbps(dynamic)11n: Up to 400 Mbps(dynamic)11g: Up to 54 Mbps(dynamic)11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity

6 GHz:11ax HE160 MCS0:-8611ax HE160 MCS11:-565 GHz:11ax HE80 MCS0: -90 dBm11ax HE80 MCS11: -59 dBm11a 54Mbps: -77 dBm11ac VHT80 MCS0: -92dBm11ac VHT80 MCS9: -64dBm2.4 GHz:11ax HE40 MCS0: -91 dBm11ax HE40 MCS11: -60 dBm11g 54Mbps: -76 dBm11n HT40 MCS7: -72dBm

WLAN Transmit Power

5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP)2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP)6 GHz: 12dBm(FCC)

WLAN Modes

Infrastructure mode
