DECO BE85 - BE19000 Tri-Band Whole Home Mesh WiFi 7 System

Standards and Protocols

Wi-Fi 7IEEE 802.11be/ax 6 GHzIEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11be/ax/n/b/g 2.4 GHz

WiFi Speeds

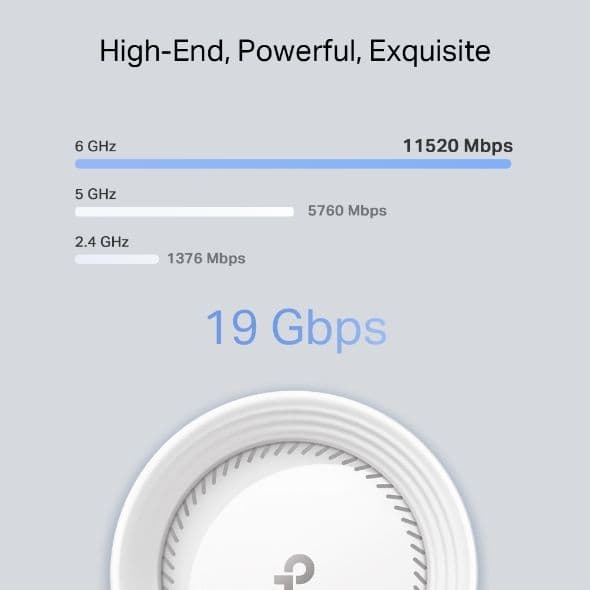

BE190006 GHz: 11530 Mbps (802.11be)5 GHz: 5765 Mbps (802.11be)2.4 GHz: 1376 Mbps (802.11be)

WiFi Range

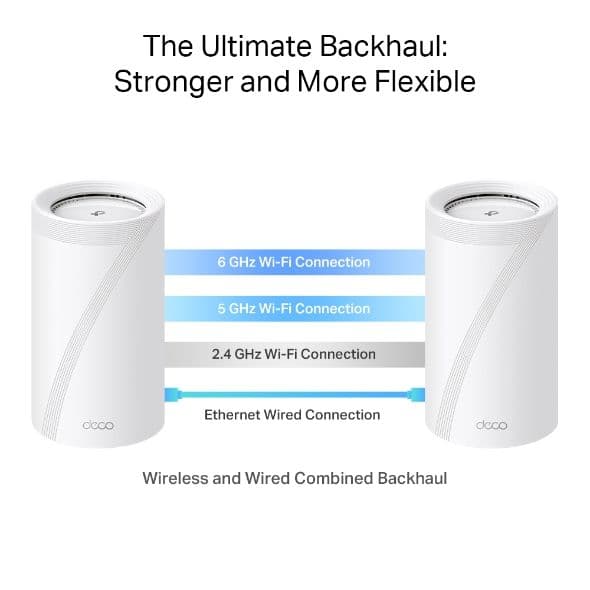

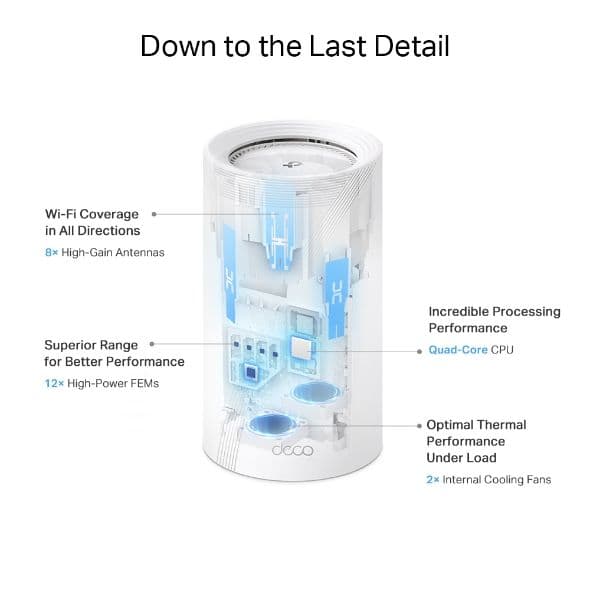

Broader Whole Home CoverageTP-Link Mesh TechnologyOptional Ethernet backhaul work together to link Deco units to provide seamless coverageAI-Driven MeshIntelligently learns the network environment to provide ideal Wi-Fi unique to your home8× High-Gain Antennas (Internal)Multiple antennas form a signal-boosting array to cover more directions and large areasTri-BandThe greenfield 6 GHz band brings more bandwidth and faster speeds

WiFi Capacity

Very HighTri-BandDistribute devices to different bands for optimal performance4×4 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsOFDMASimultaneously communicates with multiple WiFi 7 clients12 StreamsMore than enough bandwidth for connected devices

Working Modes

Router ModeAccess Point Mode

Advanced Features

• Reboot Schedule• Tapo/Kasa Onboarding• IoT network & Device Isolation• Static Route Function• Node/Band Connection Preference

Network Security

SPI FirewallAccess ControlHomeShield SecurityReal-Time IoT ProtectionMalicious Site BlockerIntrusion Prevention SystemDDoS Attack PreventionHome Network Scanner

Guest Network

1× 6 GHz Guest Network1× 5 GHz Guest Network1× 2.4 GHz Guest NetworkEffective TimeBandwidth Control

VPN Server

• OpenVPN Server• PPTP VPN Server• L2TP/IPSec VPN Server

VPN Client

• OpenVPN Client• PPTP VPN Client• L2TP/IPSec VPN Client

WiFi Encryption

WPA-PersonalWPA2-PersonalWPA3-Personal

Ethernet Ports

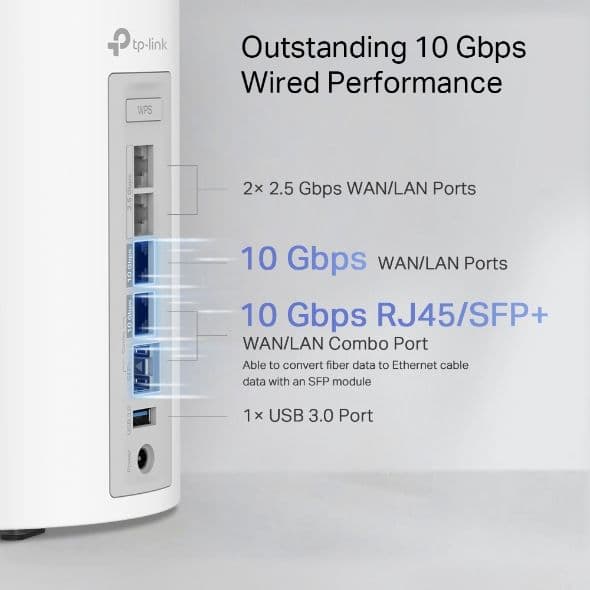

• 1× 10 Gbps• 1× 10 Gbps SFP+/RJ45 Combo• 2× 2.5 Gbps*Per Deco UnitSupports WAN/LAN auto-sensing

USB Support

1× USB 3.0 PortFTP ServerMedia ServerSamba Server

Buttons

1× Reset Button1× WPS

Protocols

IPv4 IPv6

Service Kits

HomeShieldLearn More>

Parental Controls

HomeShield Parental ControlsYoutube RestrictionSafeSearchCustom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Reports

WAN Types

Dynamic IPStatic IPPPPoEPPTPL2TP

Quality of Service

HomeShield QoSQoS by Device

Cloud Service

OTA Firmware UpgradeTP-Link ID DDNS

NAT Forwarding

Port ForwardingUPnP

IPTV

IGMP ProxyIGMP SnoopingBridge Tag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

TP-Link

Management Features

Deco App

Network Services Enabled by Default

Web Server Manage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCP DNS DNS• Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP)• Port: 67 Protocol: UDP App management Manage and configure device through app• Port: 22 Protocol: TCP• Port: 20001 Protocol: TCP• Port: 30001 Protocol: TCP• Port: 20002 Protocol: UDP

Dimensions (W×D×H)

5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm)

Package Content

Deco BE85 (2-pack)2 Deco BE85 units1 RJ45 Ethernet cable2 Power adaptersQuick Installation GuideDeco BE85 (1-pack)1 Deco BE85 unit1 RJ45 Ethernet cable1 Power adapterQuick Installation Guide

Certifications

CE, FCC, RoHS

Environment

Operating Temperature: 0°C~40°C (32 °F~104 °F)Storage Temperature: -40°C~60°C (-40 °F~140 °F)Operating Humidity: 10%~90% RHStorage Humidity: 5%~90% RH
