TP-Link

DECO X10 4G - 4G+ AX1500 Whole Home Mesh WiFi 6 Gateway (Availability based on region)

0,00 ₼

Internet Everywhere with 4G+ Speed – Provides WiFi 6 Mesh coverage through 4G+ CAT6 access.
AX1500 Dual-Band WiFi – 1201 Mbps (5 GHz) and 300 Mbps (2.4 GHz) dual band WiFi with WiFi 6 technology.†
Seamless Roaming – Walk through your home and stay connected with the fastest possible speeds.‡
Ultra-Low Latency – Greater reduction in latency enables more responsive gaming and video chatting.
Gigabit Wired Speeds – 3× Gigabit ports provide sufficient connectivity.**
Parental Controls – Limit online time and block inappropriate websites according to unique profiles you create for each family member.

Low stock

Standards and Protocols

Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AX15005 GHz: 1201Mbps (802.11ax)2.4 GHz: 300 Mbps (802.11n)

WiFi Range

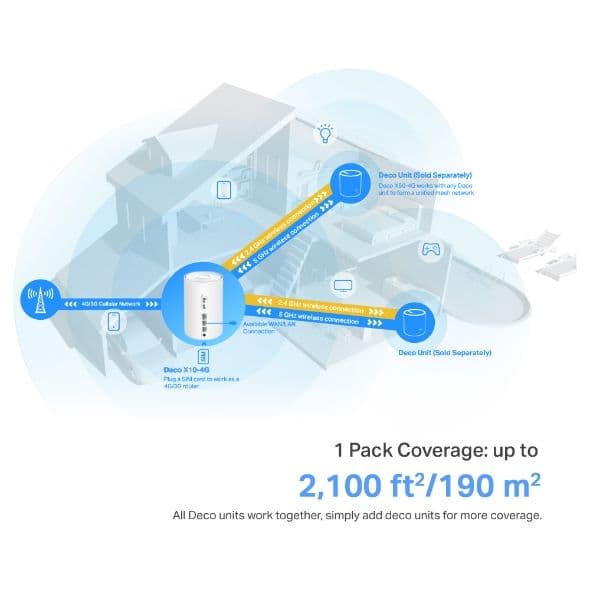

1-2 Bedroom Houses (1-pack)TP-Link Mesh TechnologyOptional Ethernet backhaul work together to link Deco units to provide seamless coverage2 LTE antennas, 2 Wi-Fi antennas (Internal)Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity

HighDual-BandDistribute devices to different bands for optimal performance2×2 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsOFDMASimultaneously communicates with multiple WiFi 6 clients4 StreamsMore than enough bandwidth for connected devices

Working Modes

3G/4G, Router, Access Point

Network Security

SPI FirewallAccess Control

Guest Network

1× 5 GHz Guest Network1× 2.4 GHz Guest Network

WiFi Encryption

WPA-PersonalWPA2-PersonalWPA3-Personal

Ethernet Ports

3× Gigabit PortsSupports WAN/LAN auto-sensing

Buttons

RESET Button

Protocols

IPv4IPv6

Parental Controls

Custom ProfilesProfessional Content Filter LibraryFamily TimeBedtimeOff TimeTime RewardsFamily Online Time RankingPause the InternetWeekly and Monthly Report

WAN Types

Dynamic IPStatic IPPPPoEL2TPPPTP

Quality of Service

QoS by Device

Cloud Service

OTA Firmware UpgradeTP-Link IDDDNS

NAT Forwarding

Port ForwardingUPnP

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLAN

DHCP

Address ReservationDHCP Client ListServer

DDNS

TP-Link

Management Features

Deco App

Network Services Enabled by Default

Web Server Manage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCP DNS DNS• Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP)• Port: 67 Protocol: UDP App management Manage and configure device through app• Port: 22 Protocol: TCP• Port: 20001 Protocol: TCP• Port: 30001 Protocol: TCP• Port: 20002 Protocol: UDP

Dimensions (W×D×H)

4.13 × 4.13 × 6.57 in (105 × 105 × 167 mm)

Package Content

1-pack1 Deco X10-4G unit1 RJ45 Ethernet Cable1 Power Adapter2 SMB to SMA AdaptersQuick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~60°C (-40°F~140°F)Operating Humidity: 10%~90%RHStorage Humidity: 5%~90%RH

WiFi Transmission Power

CE: ≤20 dBm (2.4GHz)≤23 dBm (5GHz)

Certification

CE, RoHS

Ports and Connections

2× 3G/4G external SMB antenna interface (also provide 2x SMB to SMA-F Adapters)SIM Card Format: Nano-SIMCompatibility4G:FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)3G: DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)
