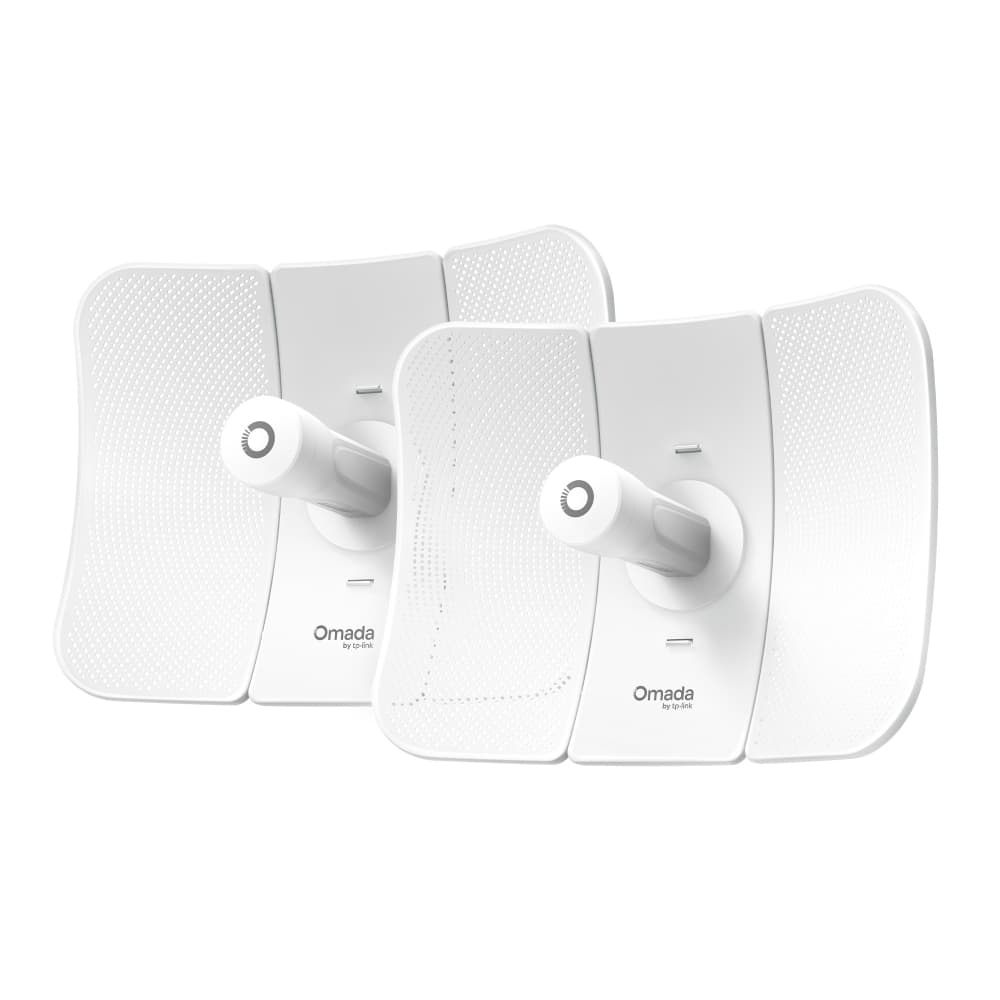

BEAM BRIDGE 5 UR KIT - Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge

HARDWARE FEATURES - Interface

1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In

HARDWARE FEATURES - Button

1 × Reset Button1 × System Mode Selection Button

HARDWARE FEATURES - Power Supply

802.3af PoE (1,2pins; 3,6pins)24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included)

HARDWARE FEATURES - Max. Power Consumption

15.8W

HARDWARE FEATURES - Dimensions ( W x D x H )

14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm)

HARDWARE FEATURES - Antenna

External 2×2 Dual-Polarized Directional MIMO Antennas5 GHz: 23 dBi

HARDWARE FEATURES - Mounting

Pole Mounting (Kits Included)

WIRELESS FEATURES - Wireless Standards

IEEE 802.11 a/n/ac

WIRELESS FEATURES - Frequency

5 GHz

WIRELESS FEATURES - Signal Rate

5 GHz: Up to 867 Mbps

WIRELESS FEATURES - Wireless Functions

• MU-MIMO: 5G 2x2 MU-MIMO DL • Maximum number of associated STAs: 8• Speed Test• Channel Optimization• Antenna Alignment• ACS (Automatic Channel Selection)• Rate Limit• Guest Network

WIRELESS FEATURES - Wireless Security

• VLAN• Rogue AP Detection• Maximum number of MAC Filter: 4,000• Wireless Encryption

WIRELESS FEATURES - Transmission Power

• CE: <23 dBm (5 GHz, U-NII-1/2A, ERIP)<30 dBm (5 GHz, U-NII-1/2C, ERIP)• FCC: <27 dBm (5 GHz, U-NII-1)<27 dBm (5 GHz, U-NII-3)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Require the use of an Omada Controller.

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - SNMP

Yes

Management Features - Web-based Management

Yes

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• Beam Bridge 5 UR KIT• Installation Guide• Mounting Kit• Passive PoE Adapter• Power Cord

OTHERS - Environment

• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing

Management Features - SSH

Yes

Management Features - Restore & Backup

Yes

Management Features - Firmware update via Web

Yes

Management Features - NTP

Yes

Management Features - Zero-Touch Provisioning

Yes

HARDWARE FEATURES - Weatherproof Enclosure

IP65

OTHERS - Weight

1.1 kg (2.43 lb)

HARDWARE FEATURES - DIP Switch

Role Switch

WIRELESS FEATURES - PtP

Yes

WIRELESS FEATURES - Transmission Distance

15 km (9.3 mi)

OTHERS - Lightning Protection

Ethernet Ports: ±6 kV

HARDWARE FEATURES - Antenna Beamwidth

Horizontal: 9°, Vertical: 7°

HARDWARE FEATURES - Bandwidth

5 GHz: 20 MHz/40 MHz/80 MHz
