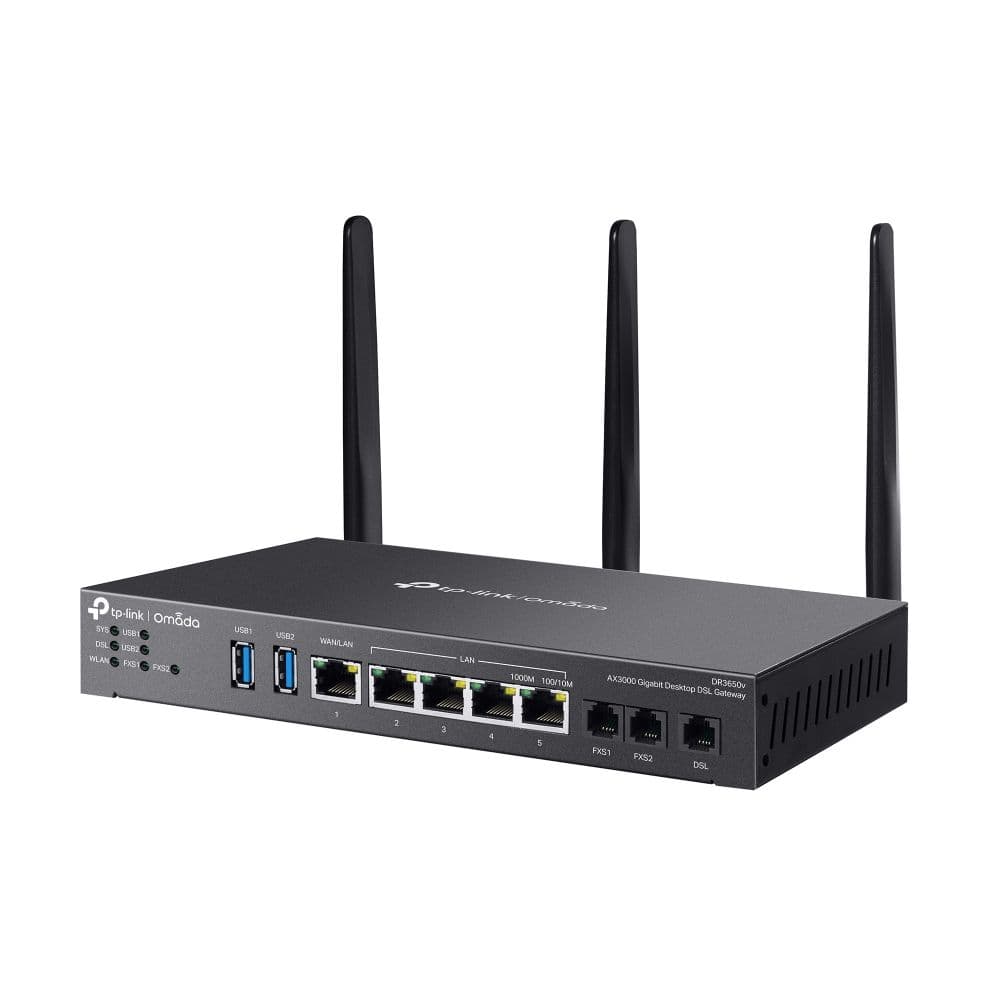

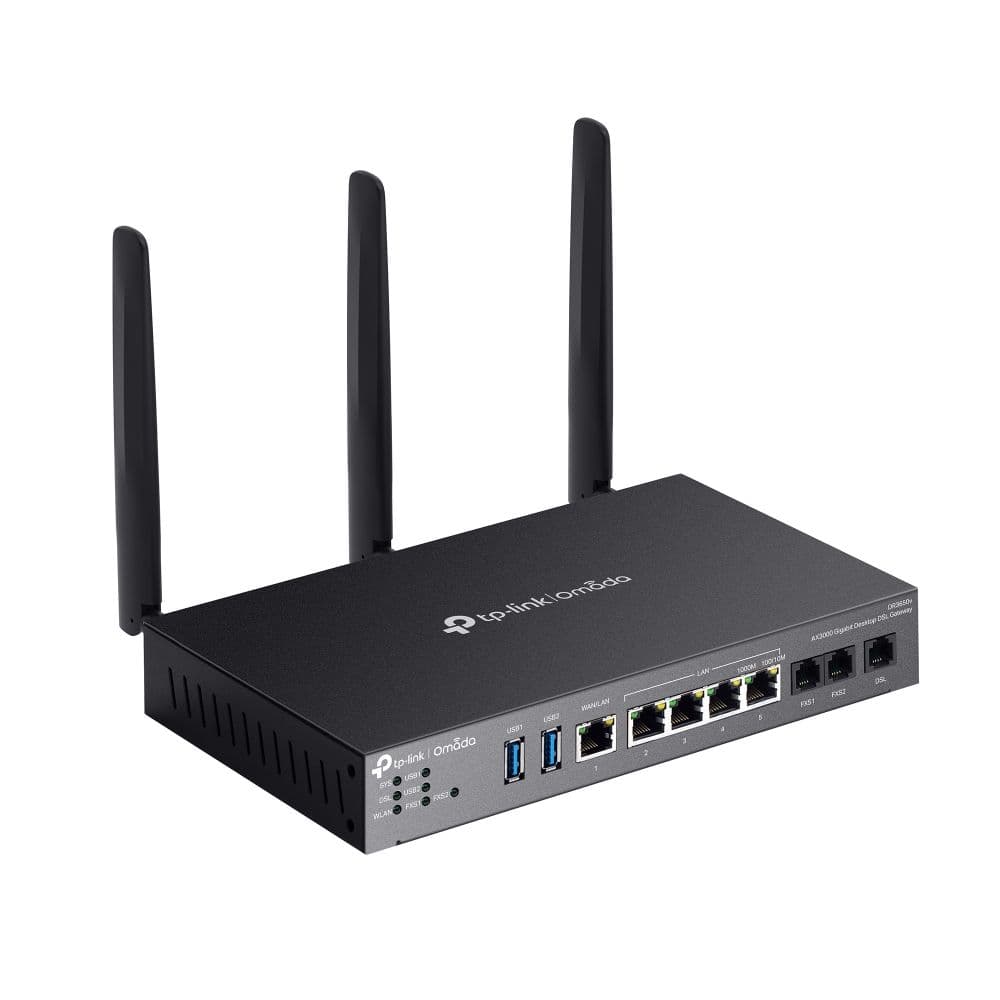

DR3650v - Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

HARDWARE FEATURES - Interface

• 3 × RJ11 Ports (2 × FXS, 1 × DSL)• 5 × RJ45 Gigabit Ports (1 × WAN/LAN Port, 4 × LAN Ports)• 2 × USB 3.0 Ports

HARDWARE FEATURES - Button

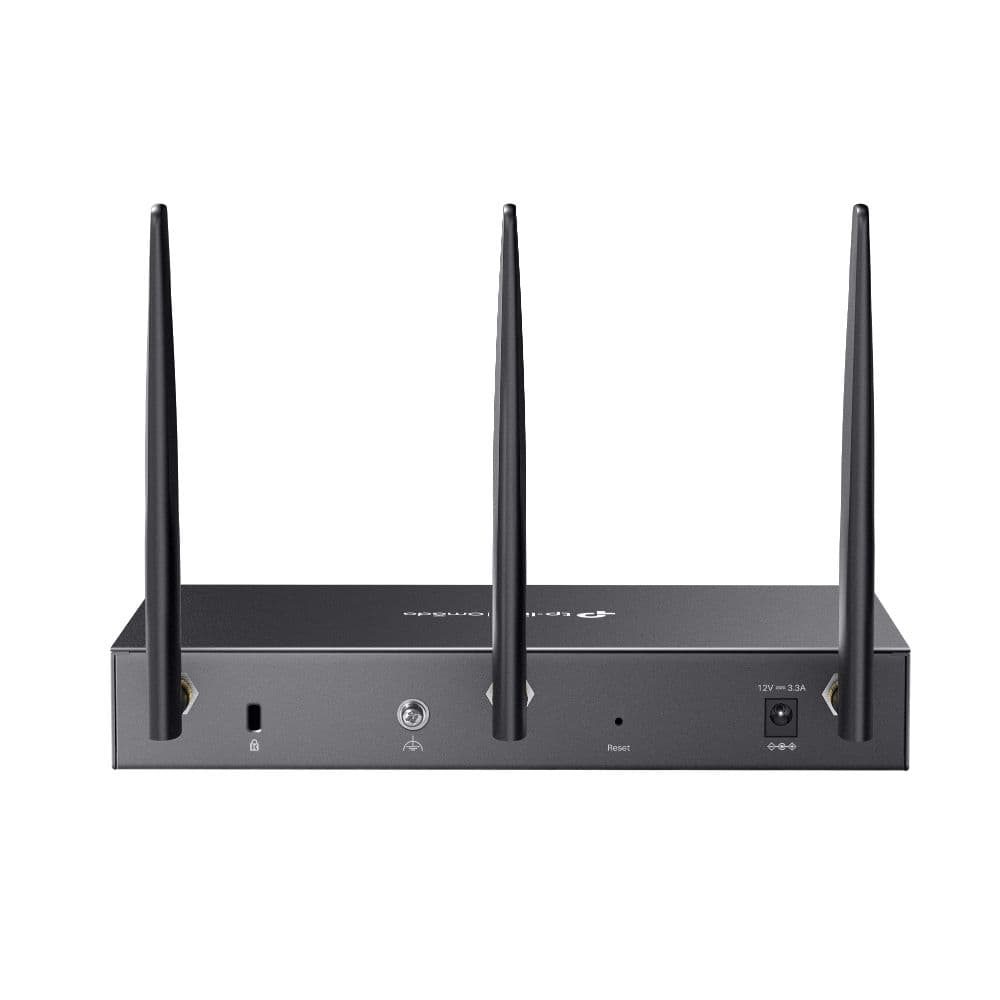

Reset Button

HARDWARE FEATURES - Power Supply

12VDC / 3.3A Power Adapter

HARDWARE FEATURES - Max. Power Consumption

30.6W(with 2 USB 3.0 connect), 20.6W(without 2 USB 3.0 connect)

HARDWARE FEATURES - Dimensions ( W x D x H )

8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are notincluded)

HARDWARE FEATURES - Antenna

• 2.4 GHz: 2x 3 dBi dual-band detachable antennas• 5 GHz: 3x 4.5 dBi dual-band detachable antennas

HARDWARE FEATURES - Mounting

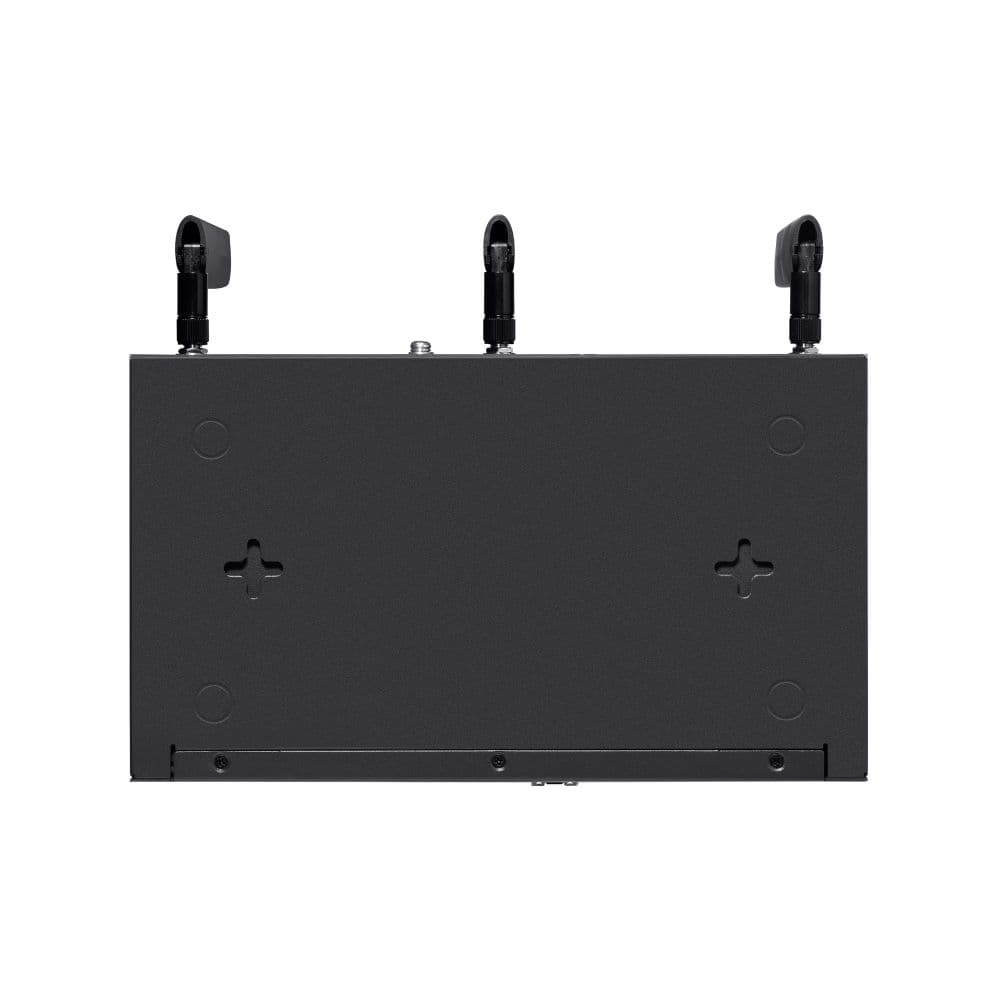

Desktop/Wall-mounting/Rackmount (with Kit-D226, sold separately)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Require the use of Omada Cloud-Based Controller.

OTHERS - Certification

CE, RoHS

OTHERS - Package Content

• DR3650v• Power Adapter• Ethernet Cable• Phone Cable• Quick Installation Guide

OTHERS - Environment

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 10% to 90% non-condensing• Storage Humidity: 5% to 90% non-condensing

Management Features - Zero-Touch Provisioning

Yes. Require the use of Omada Cloud-Based Controller.

OTHERS - System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11• MAC OS, NetWare, UNIX or Linux

Management Features - Management Features

• Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration

SECURITY - Access Control

Source/Destination IP Based Access Control

SECURITY - Filtering

• Web Group Filtering*5• URL Filtering• Web Security*5

SECURITY - ARP Inspection

• Sending GARP Packets• ARP Scanning*5• IP-MAC Binding

SECURITY - Attack Defense

• TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN

HARDWARE FEATURES - Wi-Fi Frequency & Signal Rate

• 2.4 GHz: 574 Mbps• 5 GHz: 2402 Mbps (HE160)

HARDWARE FEATURES - Flash

256 MB NAND

HARDWARE FEATURES - DRAM

512 MB DDR4

PERFORMANCE - GRE

• Unencrypted: 624.2Mbps• Encrypted: 301.5Mbps

PERFORMANCE - WireGuard VPN

393.5Mbps

PERFORMANCE - Concurrent Session

150,000

PERFORMANCE - New Sessions /Second

5,100

PERFORMANCE - NAT (Static IP)

937.2 Mbps / 936.1Mbps

PERFORMANCE - NAT(DHCP)

945.8 Mbps / 940.6Mbps

PERFORMANCE - NAT(PPPoE)

942.9 Mbps / 942.9Mbps

PERFORMANCE - NAT (L2TP)

837.4 Mbps / 881.5Mbps

PERFORMANCE - NAT (PPTP)

803.0 Mbps / 910.5 Mbps

PERFORMANCE - IPsec VPN Throughput

• ESP-SHA1-AES256: 646.9Mbps• ESP-SHA256-AES256: 642.8Mbps• ESP-SHA384-AES256: 648.9Mbps• ESP-SHA512-AES256: 658.4 Mbps

PERFORMANCE - OpenVPN

129.3Mbps

PERFORMANCE - L2TP VPN Throughput

• Unencrypted: 1034.0 Mbps• Encrypted: 570.0 Mbps

PERFORMANCE - PPTP VPN Throughput

• Unencrypted: 1165.0 Mbps• Encrypted: 209.0 Mbps

PERFORMANCE - SSL VPN Throughput

126.7Mbps

PERFORMANCE - 66 Byte Packet Forwarding Rate

1,453,489 pps / 1,453,488 pps

PERFORMANCE - 1,518 Byte Packet forwarding rate

81,274 pps / 91,275 pps

WIRELESS FEATURES - Advanced Features

• Seamless Roaming• Mesh (with EAP that supports Mesh)• OFDMA• Beamforming• MU-MIMO• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

WIRELESS FEATURES - Guest Network

Support

BASIC FUNCTIONS - WAN Connection Type

• Static IP• Dynamic IP• PPPoE (supports MRU Configuration)• PPTP• L2TP

BASIC FUNCTIONS - MAC Clone

Modify WAN Address

BASIC FUNCTIONS - DHCP

• DHCP Server• DHCPv6 PD Server (only in Standalone Mode)• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP

BASIC FUNCTIONS - IPv6

StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

BASIC FUNCTIONS - VLAN

802.1Q VLAN

BASIC FUNCTIONS - IPTV

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features - Advanced Routing

• Static Routing• Policy Routing• RIP*5• OSPF*5

Advanced Features - Bandwidth Control

IP-Based Bandwidth Control

Advanced Features - Load Balance

• Intelligent Load Balance• Application Optimized Routing• Link Backup(Timing, Failover)• Online Detection

Advanced Features - NAT

• One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering*5• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP

Advanced Features - Session Limit

IP-Based Session Limit

VPN - SSL VPN

50 Tunnels

VPN - IPsec VPN

• 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)

VPN - PPTP VPN

• PPTP VPN Server• PPTP VPN Client (10)*6• 50 Tunnels• PPTP with MPPE Encryption

VPN - L2TP VPN

• L2TP VPN Server• L2TP VPN Client (10)*6• 50 Tunnels• L2TP over IPSec

VPN - OpenVPN

• OpenVPN Server• OpenVPN Client (5)*6• 55 OpenVPN Tunnels• "Certificate + Account" Mode• Full Mode

VPN - WireGuard VPN

20 Tunnels

AUTHENTICATION - Web Authentication

• No Authentication• Simple Password*6• Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6)• External Radius Sever• External Portal Sever*6• LDAP

Management Features - Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Management Features - Maintenance

• Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute)*5• NTP Synchronize*5• Port Mirroring• CLI (only in Standalone Mode)• Syslog Support• TR-069 (data models of TR-098 and TR181 are supported)
