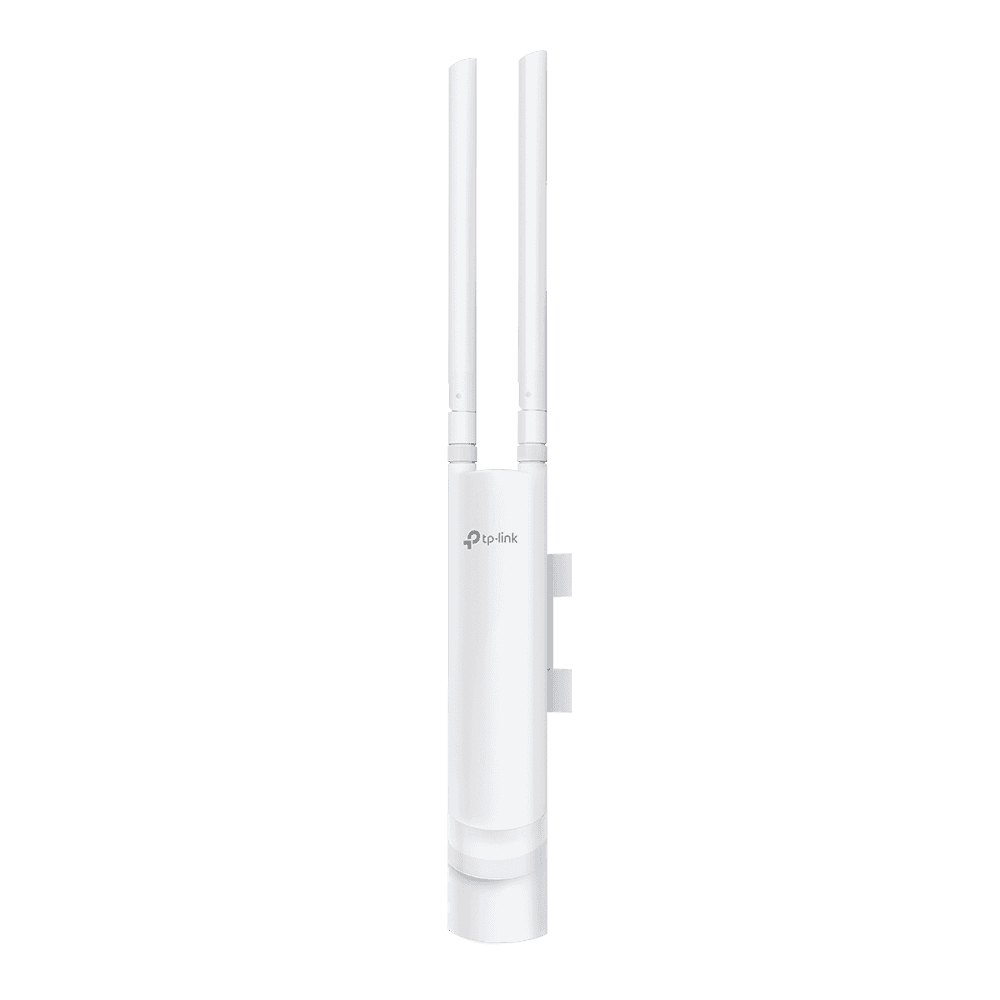

EAP110 OUTDOOR - 300Mbps Wireless N Outdoor Access Point

HARDWARE FEATURES - Interface

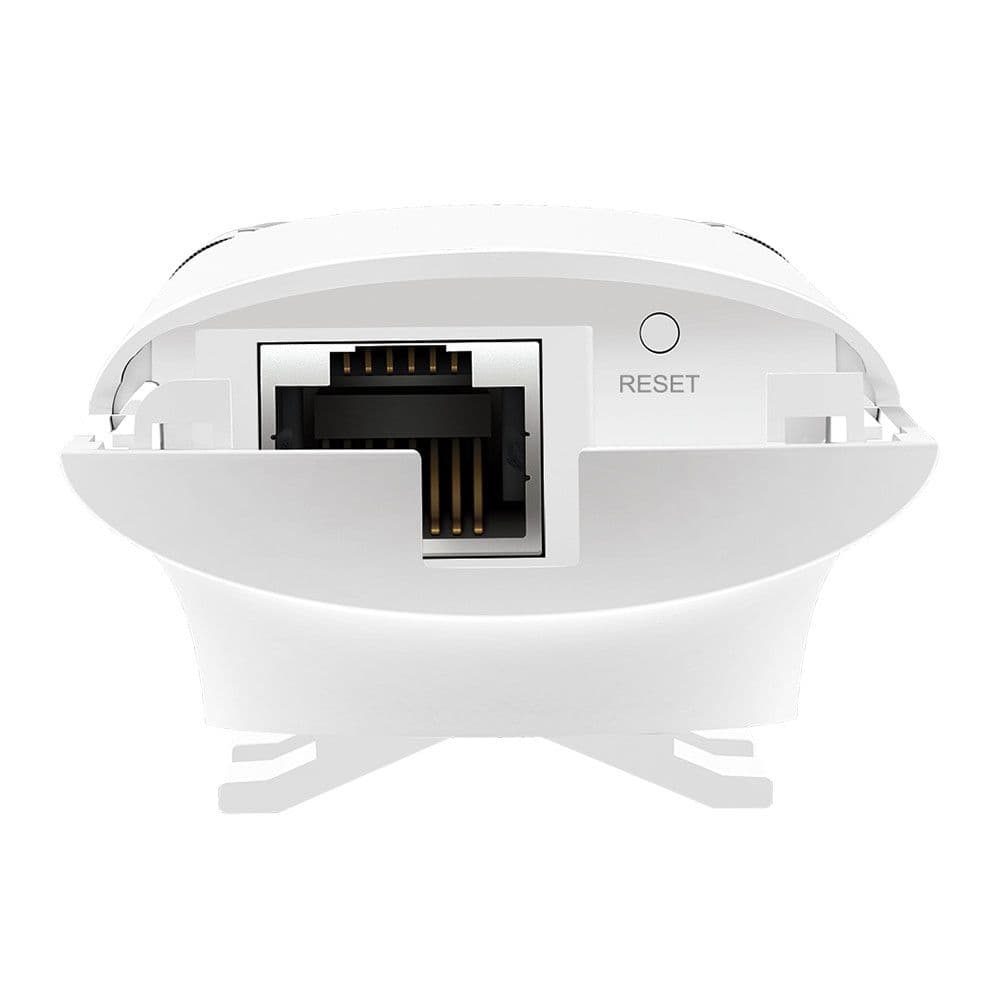

1× Fast Ethernet (RJ-45) Port (Support Passive PoE)

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

HARDWARE FEATURES - Max. Power Consumption

3.12 W

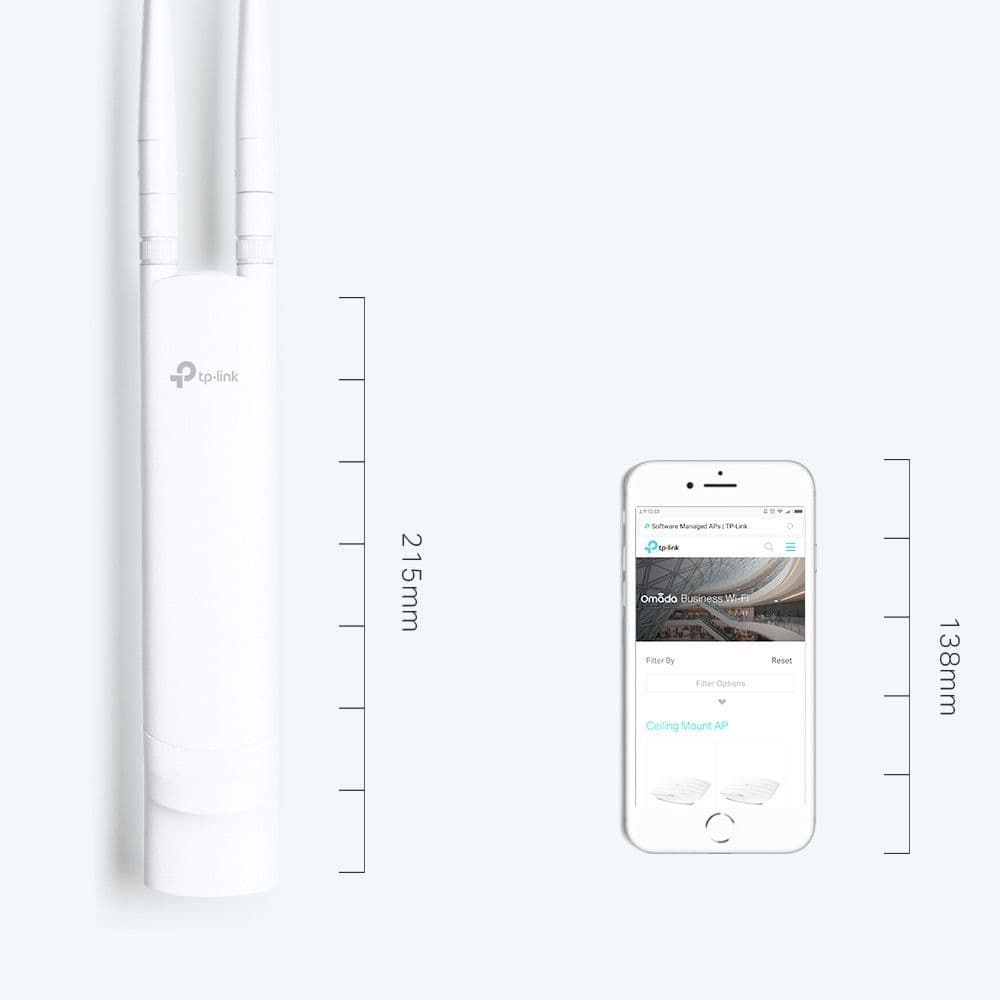

HARDWARE FEATURES - Dimensions ( W x D x H )

8.5 × 1.8 × 1.1 in (216 × 46 × 27 mm)

HARDWARE FEATURES - Antenna

2× 3 dBi External Omni waterproof

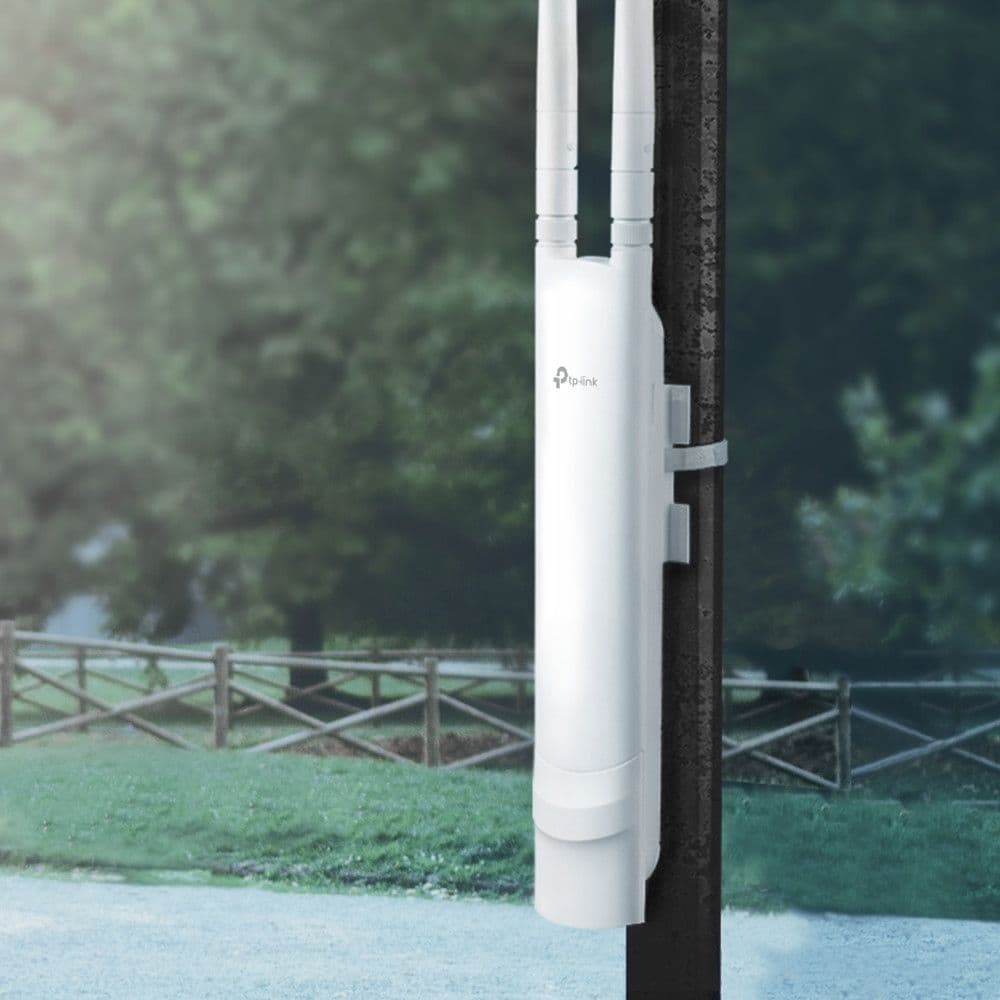

HARDWARE FEATURES - Mounting

Pole / Wall Mounting (Kits included)

WIRELESS FEATURES - Concurrent Clients

100+**

WIRELESS FEATURES - Wireless Standards

IEEE 802.11n/g/b

WIRELESS FEATURES - Frequency

2.4 GHz

WIRELESS FEATURES - Signal Rate

• 11n: Up to 300 Mbps (dynamic)• 11g: Up to 54 Mbps (dynamic)• 11b: Up to 11 Mbps (dynamic)

WIRELESS FEATURES - Wireless Functions

• Multiple SSIDs（Up to 8 SSIDs）• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control （Adjust Transmit Power on dBm）• QoS(WMM)• Load Balance• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

WIRELESS FEATURES - Transmission Power

• CE: ≤20 dBm (EIRP)• FCC: ≤22 dBm

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c

Management Features - System Logging Local/Remote Syslog

Local/Remote Syslog

Management Features - Web-based Management

HTTP/HTTPS

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor• Passive PoE Adapter• Power Cord• Mounting Kits• Waterproof Rubber Insert• Waterproof Antennas• Installation Guide

OTHERS - Environment

• Operating Temperature: -30–65 ℃ (-22–149 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - SSH

Yes

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

Management Features - Management VLAN

Yes

OTHERS - System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

HARDWARE FEATURES - Weatherproof Enclosure

IP68
