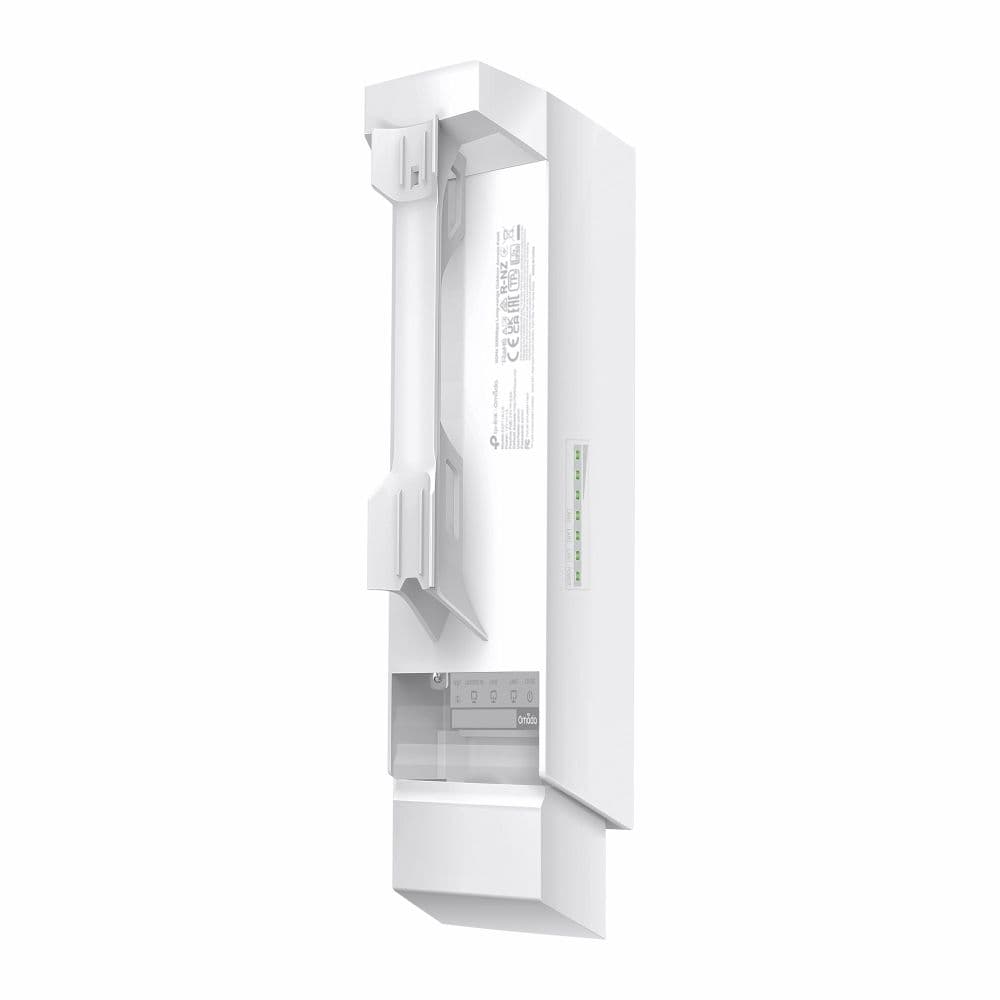

EAP115 BRIDGE KIT - Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point

HARDWARE FEATURES - Interface

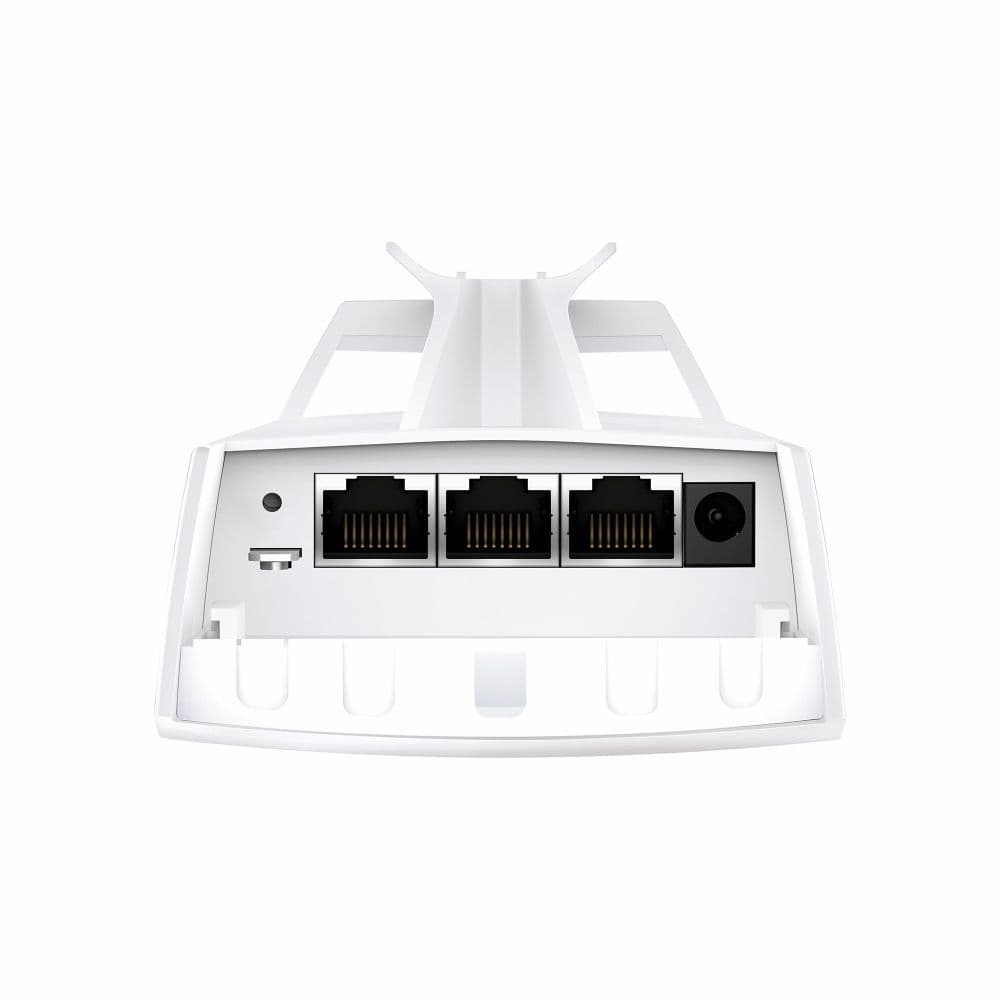

3x 10/100 Mbps Ethernet Ports*6

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

12V DC / 24V Passive PoE (Passive PoE adapter included.)

HARDWARE FEATURES - Max. Power Consumption

6.5W

HARDWARE FEATURES - Dimensions ( W x D x H )

3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)

HARDWARE FEATURES - Antenna

Internal 2×2 Dual-polarized directional MIMO antennas5 GHz: 11.0 dBiAntenna Beamwidth- 35°x 35°

HARDWARE FEATURES - Mounting

Pole mounting (Accessories included)

WIRELESS FEATURES - Coverage

5000m(16400ft)5

WIRELESS FEATURES - Wireless Standards

IEEE 802.11 a/b/g/n

WIRELESS FEATURES - Frequency

5 GHz

WIRELESS FEATURES - Signal Rate

5 GHz: Up to 300 Mbps

WIRELESS FEATURES - Wireless Functions

• Mesh*4• Load Balance• Beamforming• Airtime Fairness• Seamless Roaming(802.11r)• Multiple SSIDs:8 • Wireless Statistics• Wireless Schedule• Reboot Schedule• RADIUS Accounting• MAC Authentication• Static IP/Dynamic IP

WIRELESS FEATURES - Wireless Security

• VLAN• Access Control• Rogue AP Detection• Captive Portal Authentication*4• Maximum number of MAC Filter: 4,000• WPA-Personal/Enterprise, WPA2-Personal/Enterprise

WIRELESS FEATURES - Transmission Power

• CE: <23dBm (5 GHz, band 1/2, EIRP);<30dBm (5 GHz band3, EIRP);• FCC: <22dBm (5 GHz band1/4)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller• Omada Cloud-Based Controller

Management Features - Cloud Access

Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c, v3

Management Features - Web-based Management

Yes

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• EAP115-Bridge KIT• Passive PoE Adapter• Power Cord• Installation Guide• Mounting Kit

OTHERS - Environment

• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing

Management Features - SSH

Yes

Management Features - Restore & Backup

Yes

Management Features - Firmware update via Web

Yes

Management Features - NTP

Yes

HARDWARE FEATURES - Weatherproof Enclosure

IP65
