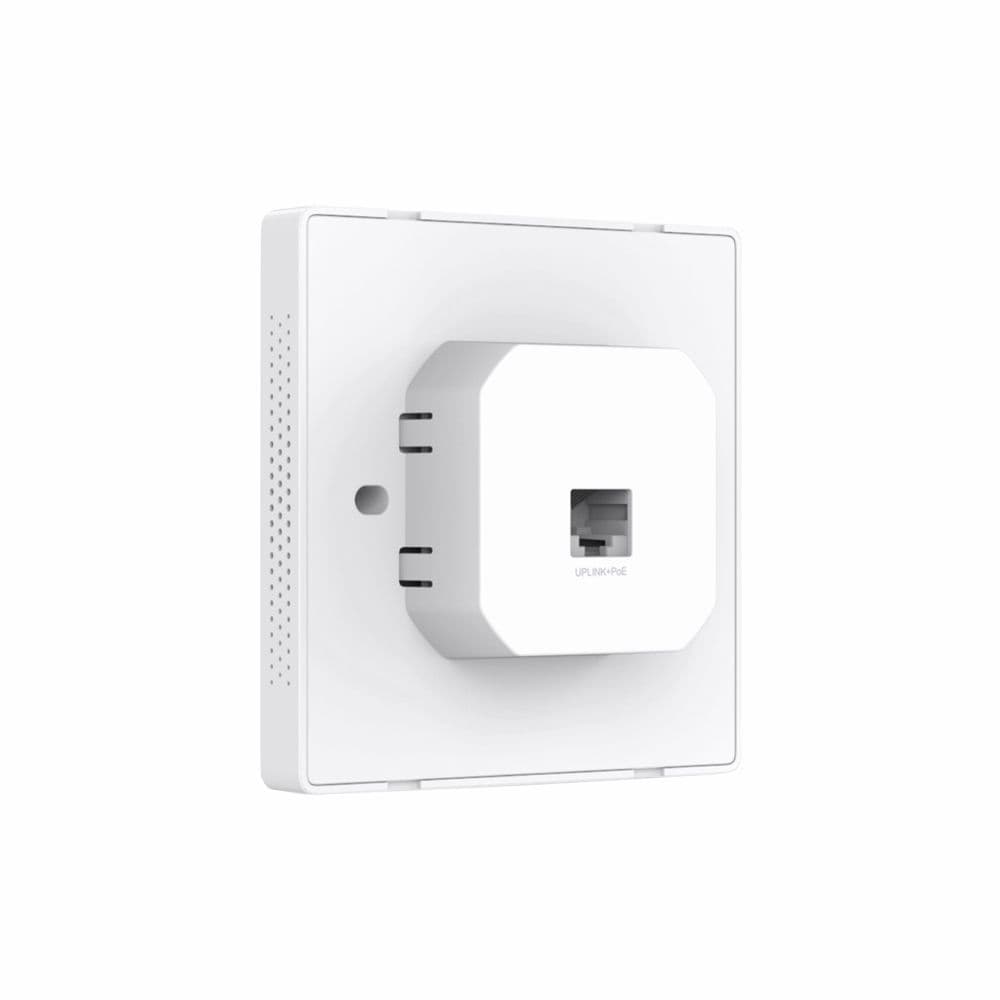

EAP115 WALL - 300Mbps Wireless N Wall-Plate Access Point

HARDWARE FEATURES - Interface

• Uplink: 1× 10/100 Mbps Ethernet Port• Downlink: 1× 10/100 Mbps Ethernet Port

HARDWARE FEATURES - Button

• LED/Wi-Fi Button• RESET

HARDWARE FEATURES - Power Supply

PoE (IEEE 802.3af)

HARDWARE FEATURES - Max. Power Consumption

2.8 W

HARDWARE FEATURES - Dimensions ( W x D x H )

3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)

HARDWARE FEATURES - Antenna

Internal 2× 1.8 dBi Omni

HARDWARE FEATURES - Mounting

Wall Plate Mounting

WIRELESS FEATURES - Coverage

25㎡(300 ft²)**

WIRELESS FEATURES - Concurrent Clients

100+*

WIRELESS FEATURES - Wireless Standards

IEEE 802.11n/g/b

WIRELESS FEATURES - Frequency

2.4 GHz

WIRELESS FEATURES - Signal Rate

• 11n: Up to 300 Mbps (dynamic)• 11g: Up to 54 Mbps (dynamic)• 11b: Up to 11 Mbps (dynamic)

WIRELESS FEATURES - Wireless Functions

• Multiple SSIDs (Up to 8 SSIDs)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Load Balance• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Local LAN port based VLAN• Rogue AP Detection• 802.1X Support• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

WIRELESS FEATURES - Transmission Power

CE：≤20 dBm (2.4 GHz)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requiring the use of OC300, OC200, or Omada Software Controller.

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1,v2c

Management Features - System Logging Local/Remote Syslog

Local/Remote Syslog

Management Features - Web-based Management

HTTP/HTTPS

OTHERS - Certification

CE, RoHS

OTHERS - Package Content

• 300 Mbps Wireless N Wall-Plate Access Point EAP115-Wall• Installation Guide• Mounting Screw

OTHERS - Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - SSH

Yes

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

Management Features - Management VLAN

Yes

OTHERS - System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

HARDWARE FEATURES - Physical Security Lock

No

HARDWARE FEATURES - Hardware Watch Dog

Yes
