TP-Link

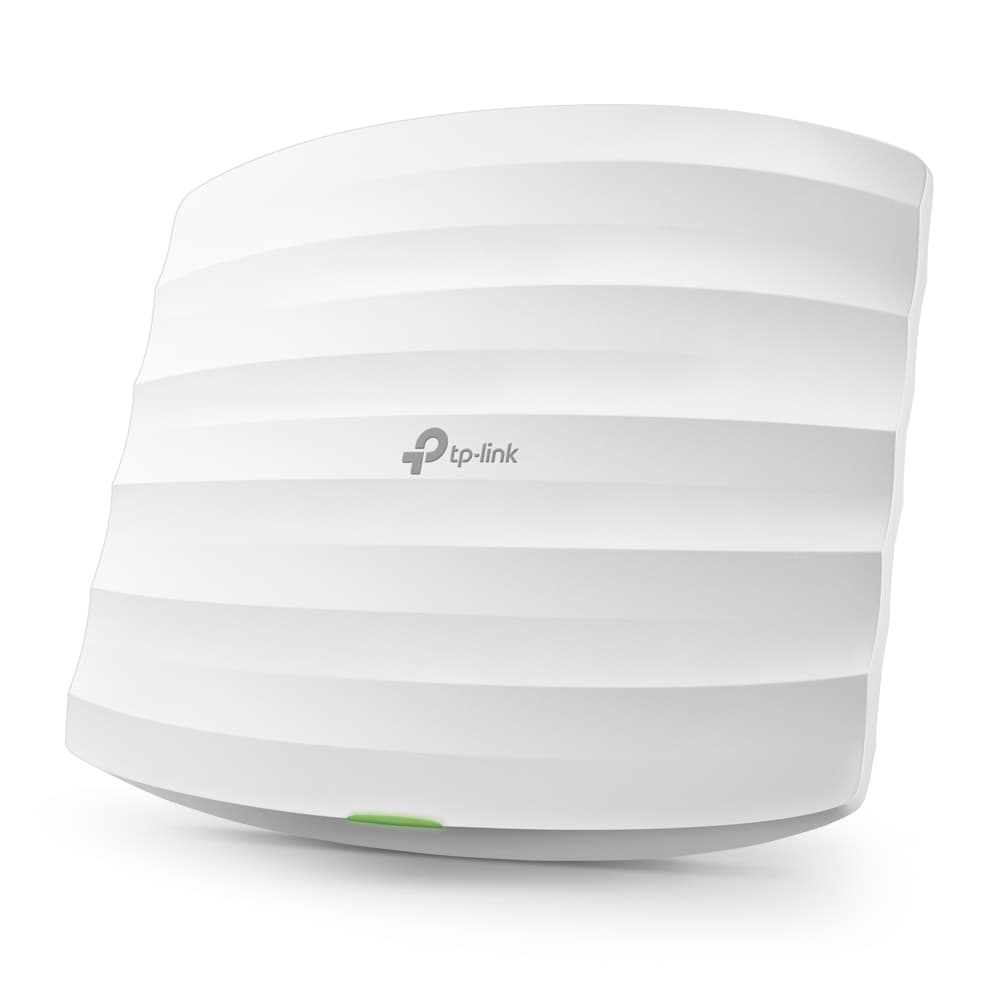

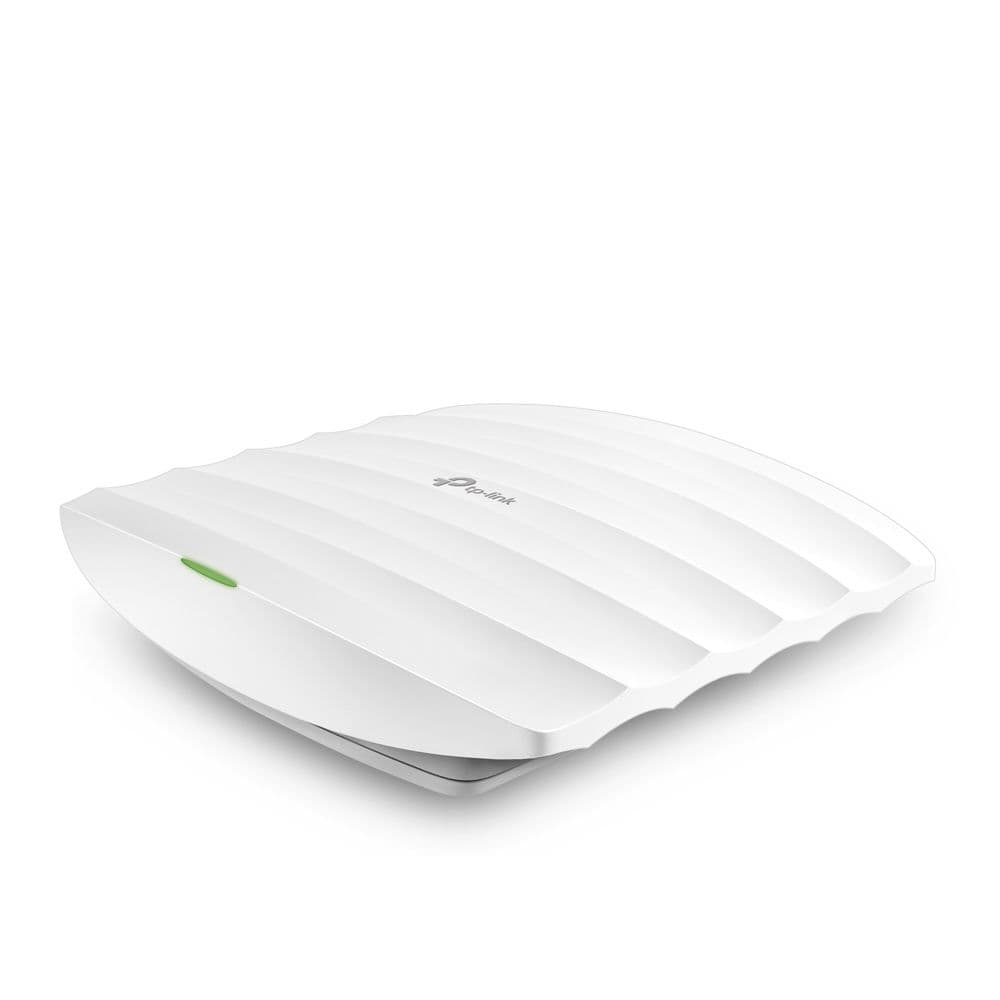

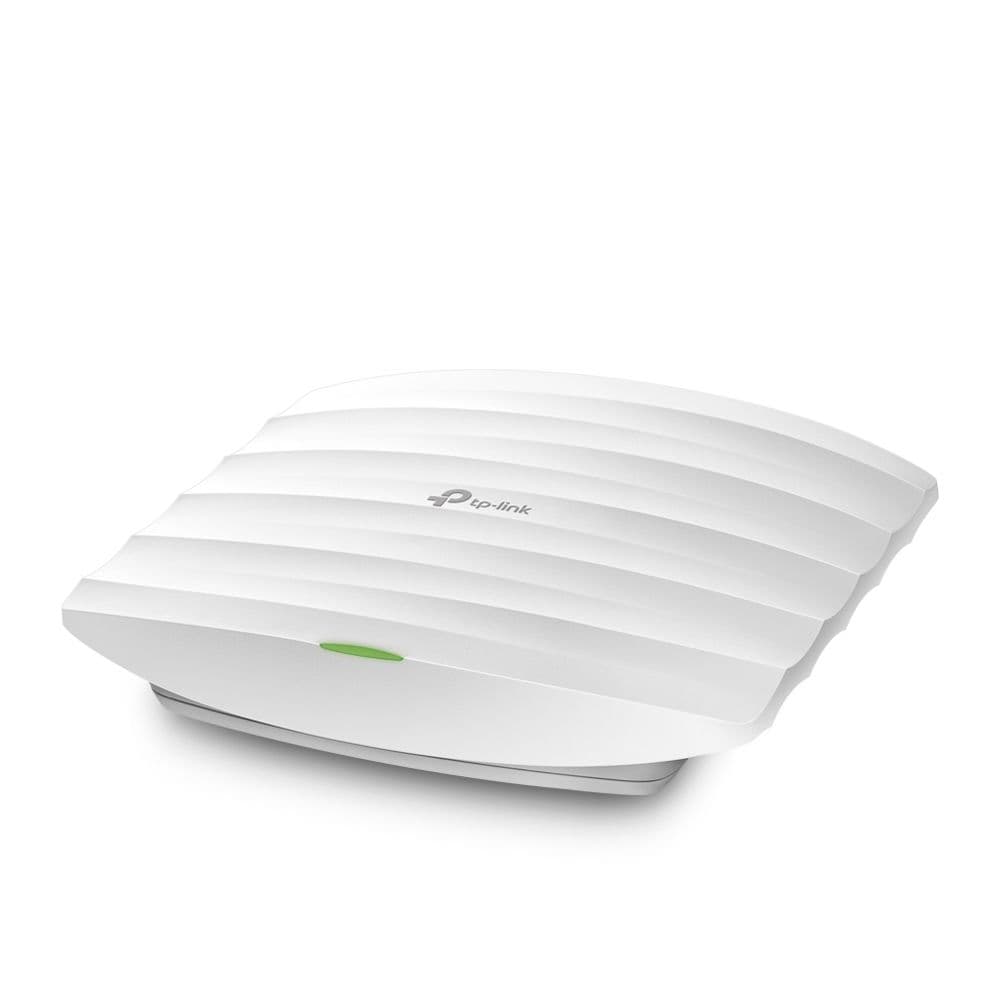

EAP225 - AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

0,00 ₼

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz△ and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.†
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included)△ for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.△

Low stock

HARDWARE FEATURES - Interface

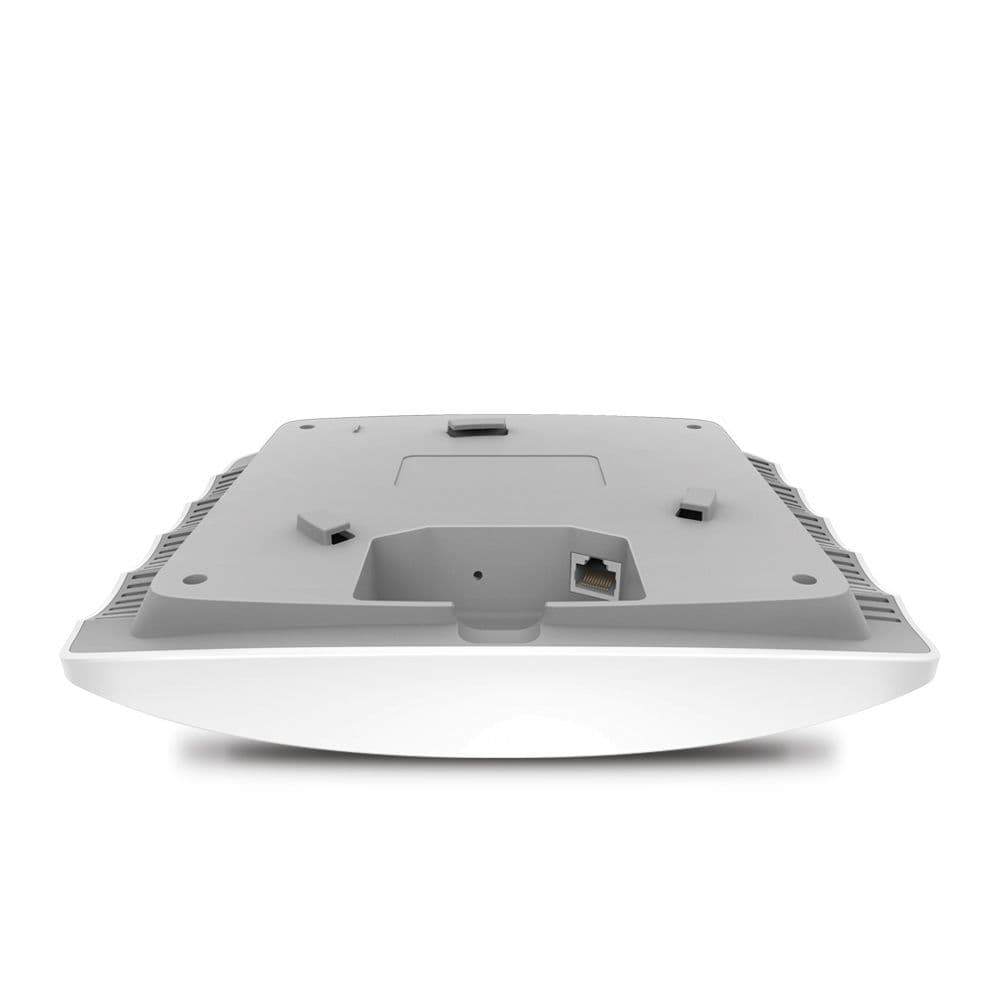

Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

• 802.3af/at PoE• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

HARDWARE FEATURES - Max. Power Consumption

• EU: 10.5 W • US: 12.6 W

HARDWARE FEATURES - Dimensions ( W x D x H )

8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

HARDWARE FEATURES - Antenna

3 Internal Omni• 2.4 GHz: 4 dBi• 5 GHz: 5 dBi

HARDWARE FEATURES - Mounting

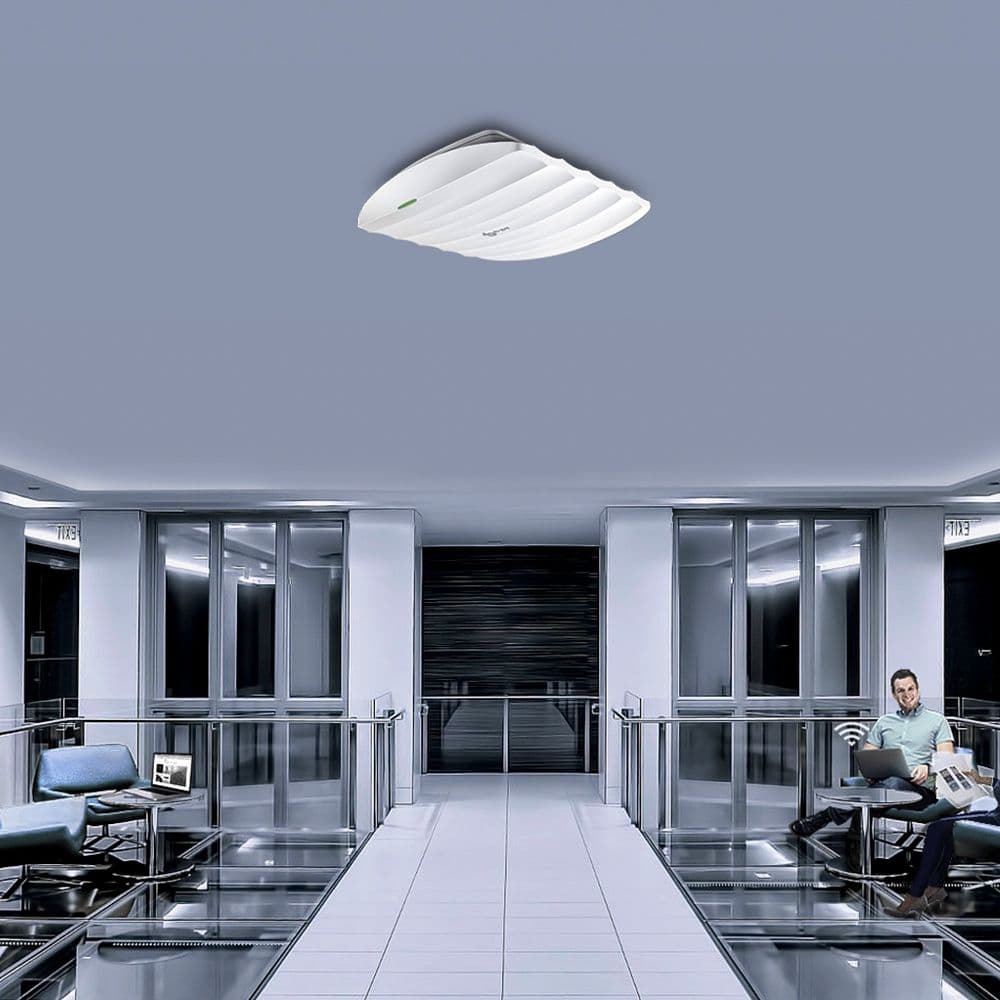

Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES - Wireless Standards

IEEE 802.11ac/n/g/b/a

WIRELESS FEATURES - Frequency

2.4 GHz and 5 GHz

WIRELESS FEATURES - Signal Rate

• 5 GHz:Up to 867 Mbps• 2.4 GHz:Up to 450 Mbps

WIRELESS FEATURES - Wireless Functions

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming• Band Steering• Load Balance• MU-MIMO• Airtime Fairness• Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support

WIRELESS FEATURES - Transmission Power

• CE:≤20 dBm(2.4 GHz, EIRP)≤23 dBm(5 GHz, EIRP)• FCC:≤24 dBm(2.4 GHz)≤22 dBm(5 GHz)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller

Management Features - Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1,v2c

Management Features - System Logging Local/Remote Syslog

Local/Remote Syslog

Management Features - Web-based Management

HTTP/HTTPS

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

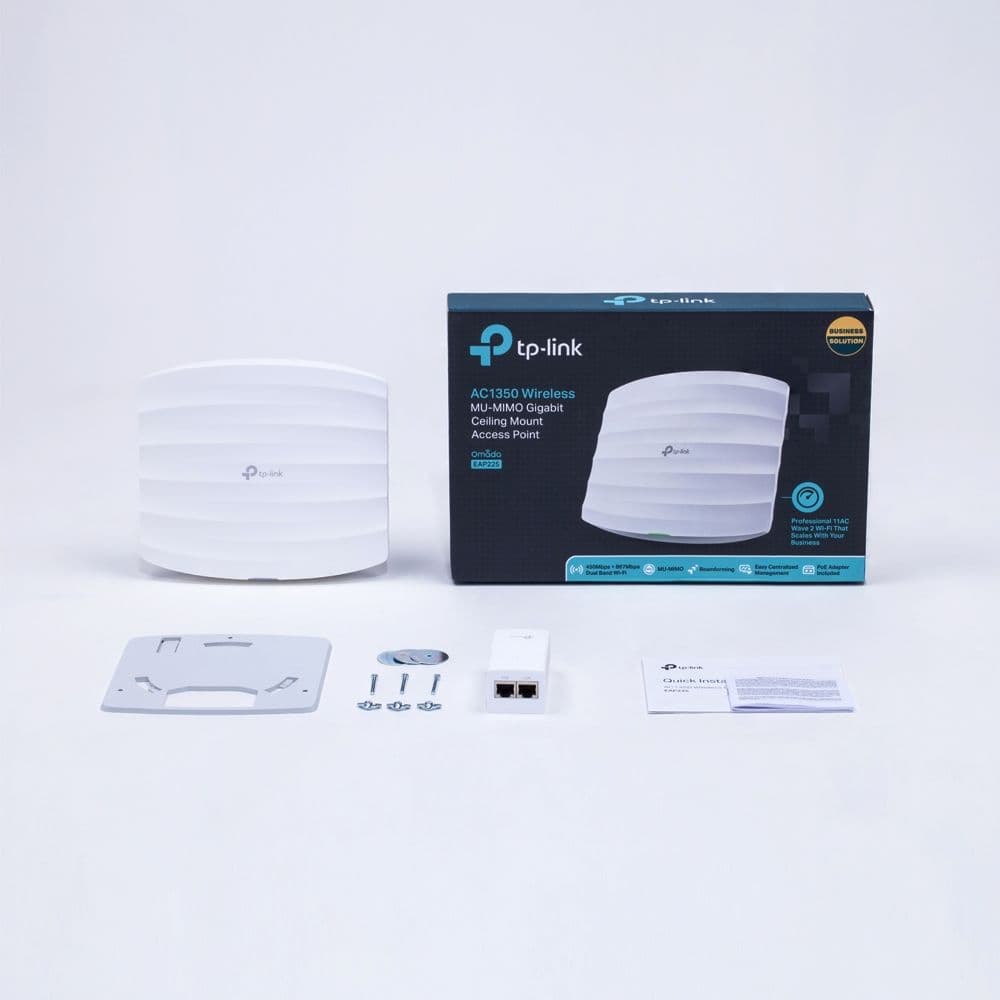

• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225• Passive PoE Adapter• Power Cord• Mounting Kits• Installation Guide

OTHERS - Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - SSH

Yes

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

Management Features - Management VLAN

Yes

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)

OTHERS - System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

HARDWARE FEATURES - Physical Security Lock

Yes
