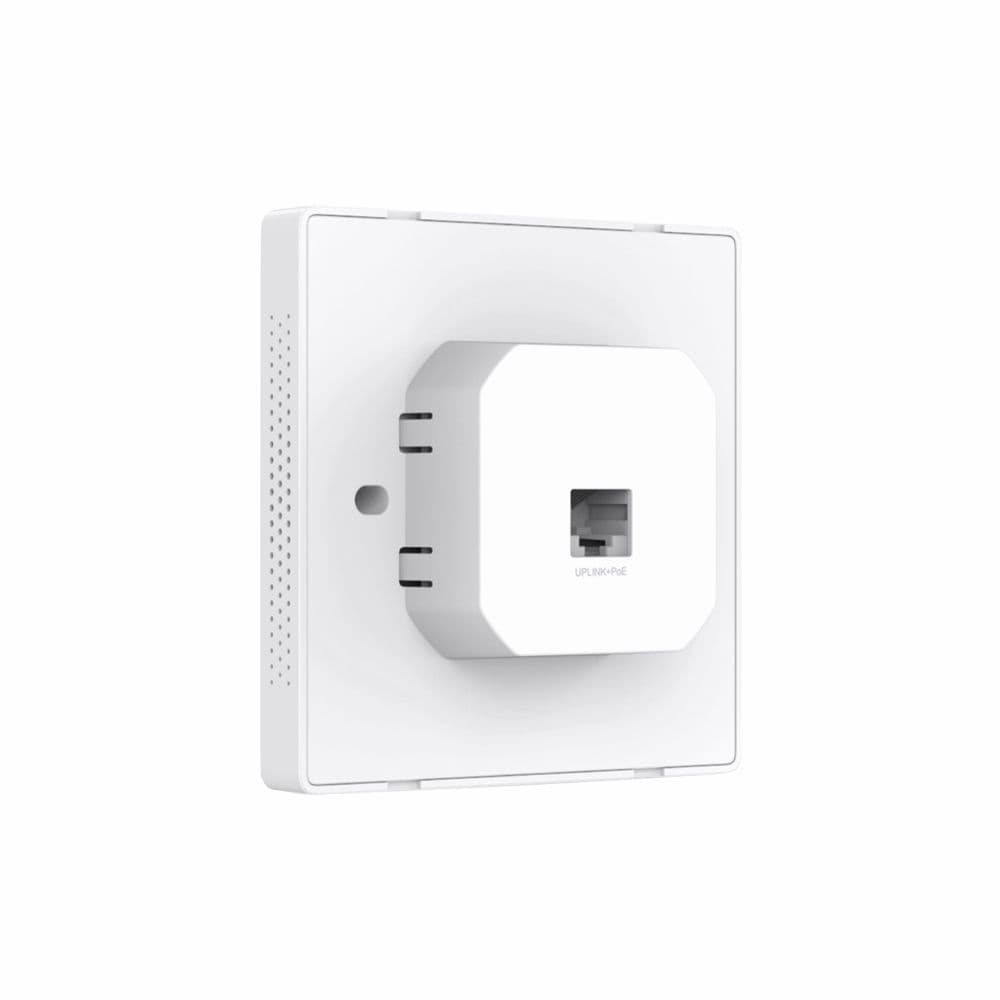

EAP230 WALL - Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

HARDWARE FEATURES - Interface

• Uplink: 1× 10/100/1000 Mbps Ethernet Port• Downlink: 1× 10/100/1000 Mbps Ethernet Port

HARDWARE FEATURES - Button

LED/Wi-Fi Button, RESET

HARDWARE FEATURES - Power Supply

802.3af/802.3at PoE

HARDWARE FEATURES - Max. Power Consumption

7 W

HARDWARE FEATURES - Dimensions ( W x D x H )

3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)

HARDWARE FEATURES - Antenna

2 Dual-Band Antennas• 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 3.6 dBi

HARDWARE FEATURES - Mounting

Wall Plate Mounting

WIRELESS FEATURES - Coverage

25㎡(300 ft²)**

WIRELESS FEATURES - Concurrent Clients

200+*

WIRELESS FEATURES - Wireless Standards

IEEE 802.11n/g/b/ac

WIRELESS FEATURES - Frequency

2.4 GHz and 5 GHz

WIRELESS FEATURES - Signal Rate

• 5 GHz: Up to 867 Mbps• 2.4 GHz: Up to 300 Mbps

WIRELESS FEATURES - Wireless Functions

• 16 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Load Balance• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client• MU-MIMO• Band Steering• Beamforming

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Local LAN port based VLAN• Rogue AP Detection• 802.1X Support• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

WIRELESS FEATURES - Transmission Power

CE:• ≤20 dBm (2.4 GHz, EIRP)• ≤23 dBm (5 GHz, EIRP)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller

Management Features - Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1,v2c

Management Features - System Logging Local/Remote Syslog

Local/Remote Syslog

Management Features - Web-based Management

HTTP/HTTPS

OTHERS - Certification

CE, RoHS

OTHERS - Package Content

• Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall• Installation Guide• Mounting Screw

OTHERS - Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - SSH

Yes

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

Management Features - Management VLAN

Yes

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS - System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

HARDWARE FEATURES - Physical Security Lock

No

HARDWARE FEATURES - Hardware Watch Dog

Yes
