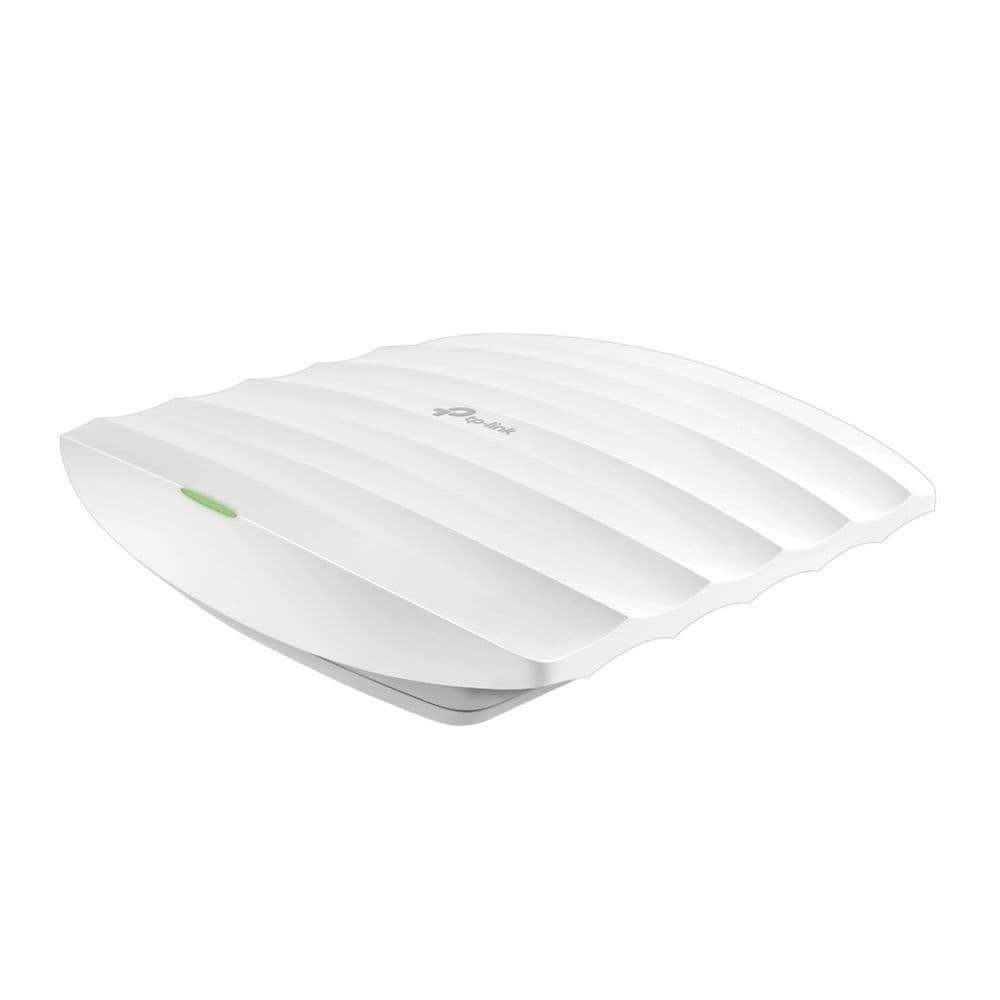

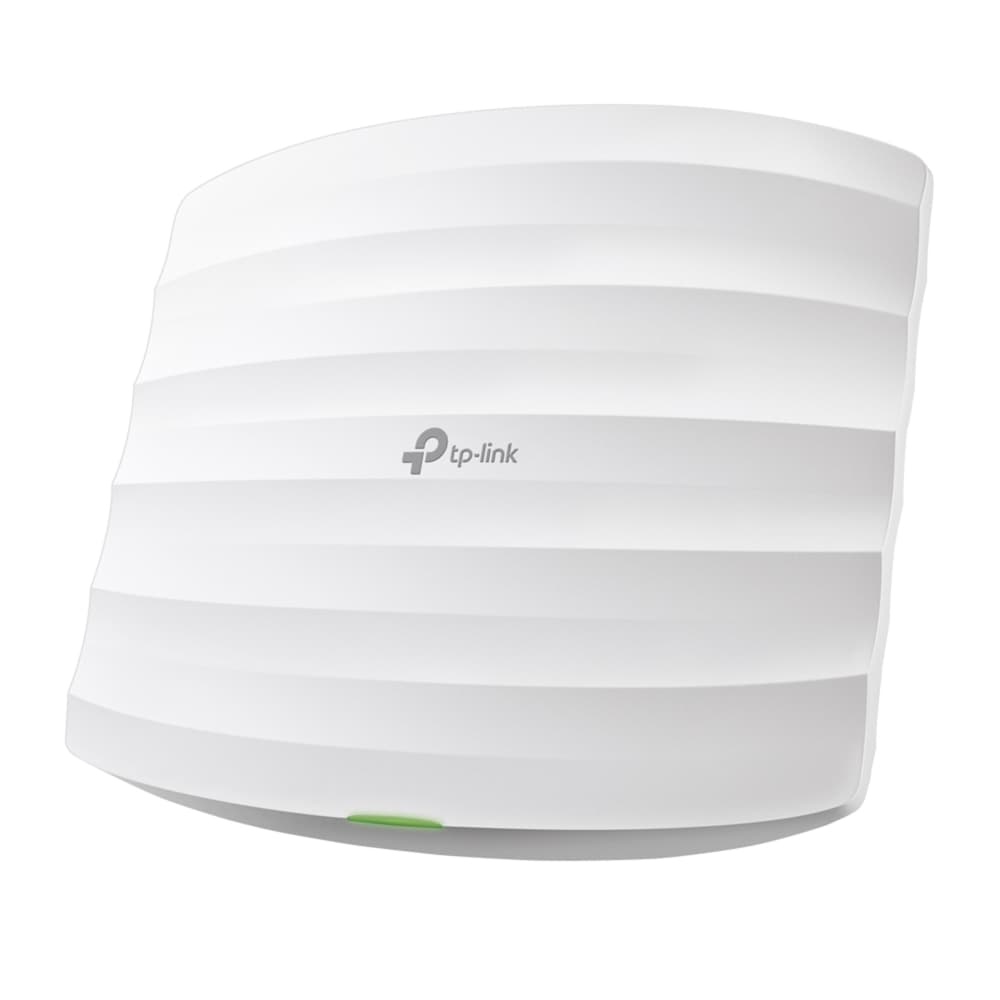

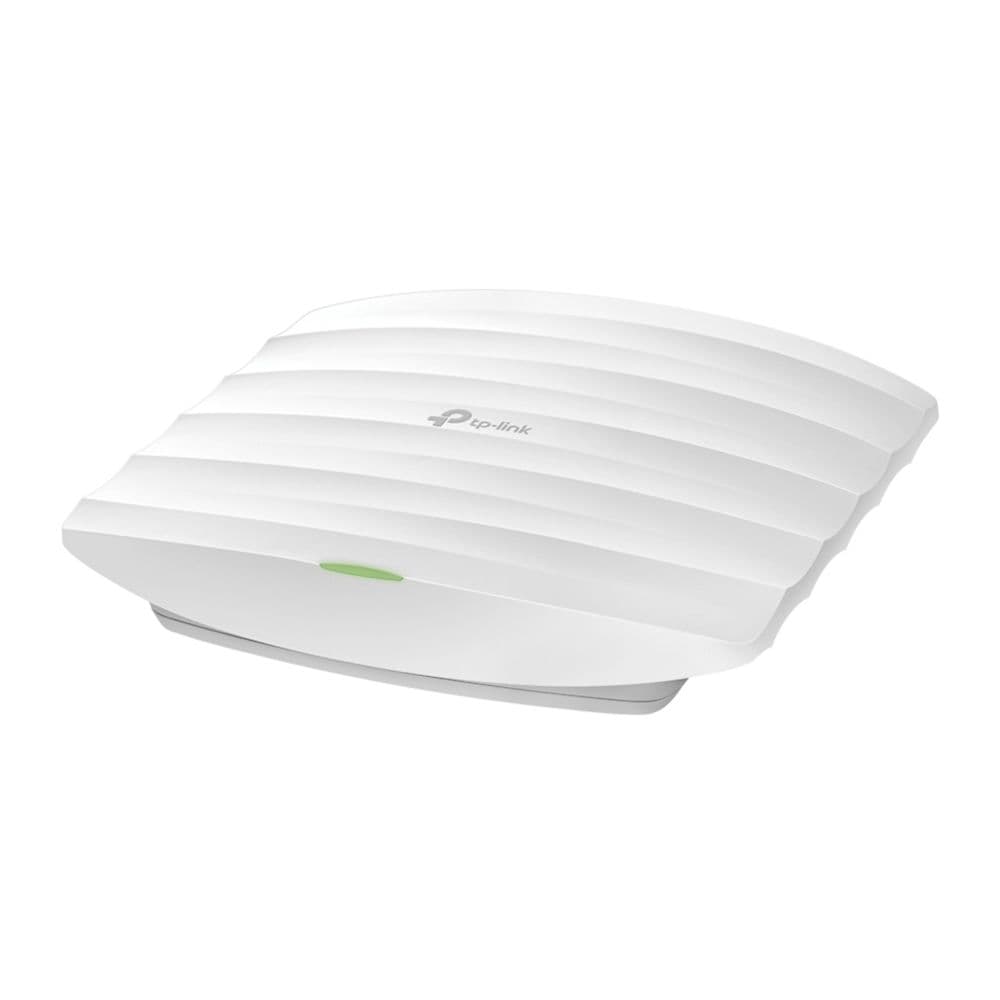

EAP245 - AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

HARDWARE FEATURES - Interface

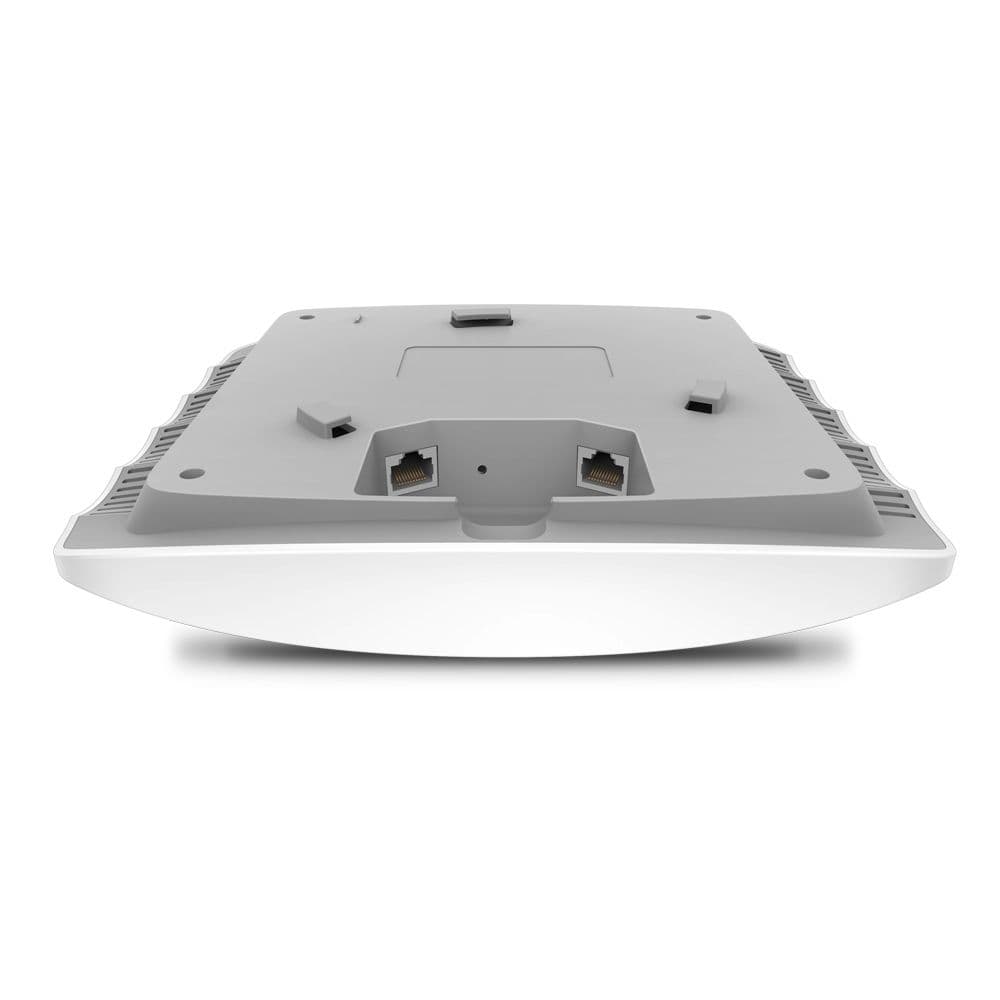

Gigabit Ethernet (RJ-45) Port *1（Support IEEE802.3at PoE）

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

802.3af/at PoE48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

HARDWARE FEATURES - Max. Power Consumption

12.7 W

HARDWARE FEATURES - Dimensions ( W x D x H )

7.1 x 7.1 x 1.9in. (180*180*47.5mm)

HARDWARE FEATURES - Antenna

Internal Omni2.4GHz: 3* 4dBi5GHz: 3*4dBi

HARDWARE FEATURES - Mounting

Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES - Wireless Standards

IEEE 802.11ac/n/g/b/a

WIRELESS FEATURES - Frequency

2.4GHz and 5GHz

WIRELESS FEATURES - Signal Rate

5GHz:Up to 1300Mbps2.4GHz:Up to 450Mbps

WIRELESS FEATURES - Wireless Functions

Multiple SSIDs（Up to 16 SSIDs, 8 for each band）Enable/Disable Wireless RadioAutomatic Channel AssignmentTransmit Power Control （Adjust Transmit Power on dBm）QoS(WMM)Band SteeringLoad BalanceRate LimitReboot ScheduleWireless ScheduleWireless Statistics based on SSID/AP/Client

WIRELESS FEATURES - Wireless Security

Captive Portal AuthenticationAccess ControlWireless Mac Address FilteringWireless Isolation Between ClientsSSID to VLAN MappingRogue AP Detection802.1X Support64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

WIRELESS FEATURES - Transmission Power

CE：≤19dBm(2.4GHz)≤23dBm(5GHz)FCC:≤25dBm(2.4GHz)≤27dBm(5GHz)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller

Management Features - Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1,v2c

Management Features - System Logging Local/Remote Syslog

Local/Remote Syslog

Management Features - Web-based Management

HTTP/HTTPS

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

AC1750 Wireless Dual Band Gigabit Access Point EAP245Power AdapterMounting KitsInstallation Guide

OTHERS - Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

Management Features - SSH

Yes

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

Management Features - Management VLAN

Yes

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS - System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

HARDWARE FEATURES - Physical Security Lock

Kensington Lock Slot

HARDWARE FEATURES - Hardware Watch Dog

Yes

Management Features - EAP Controller Software

Yes

Management Features - Telnet

Yes
