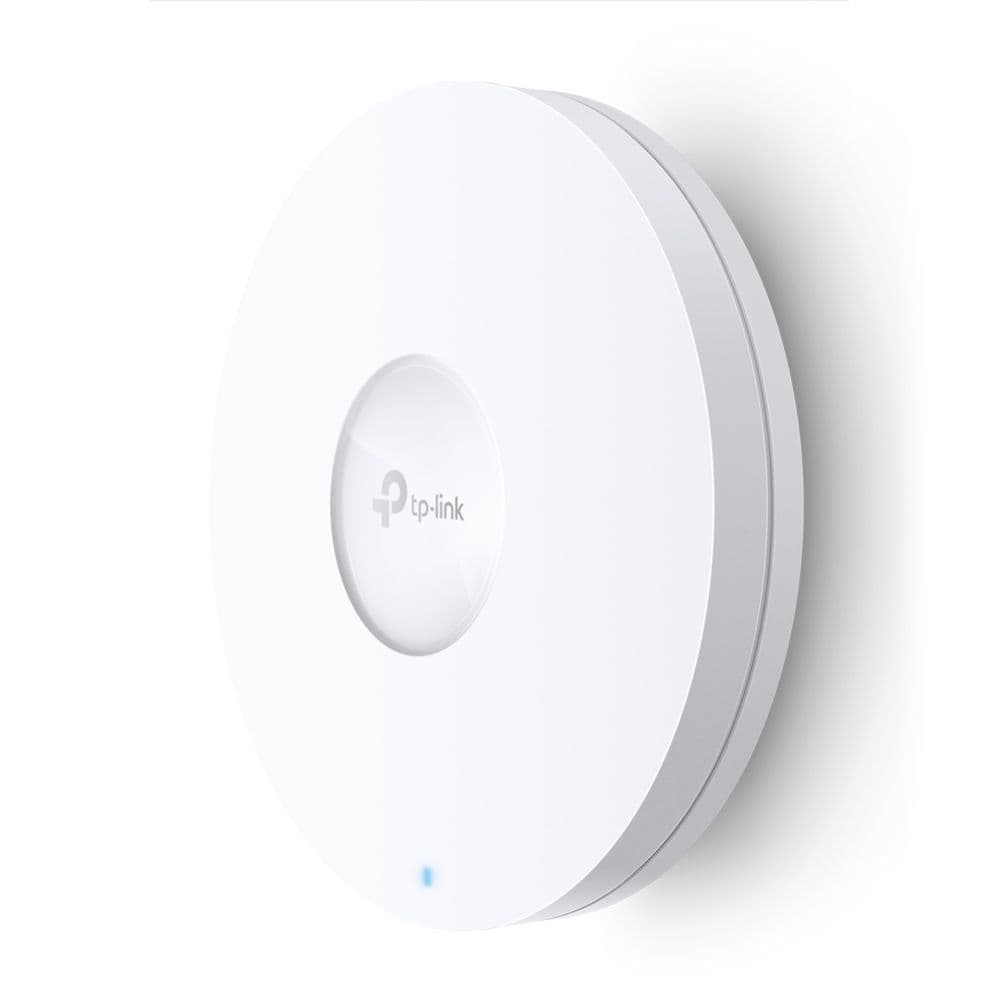

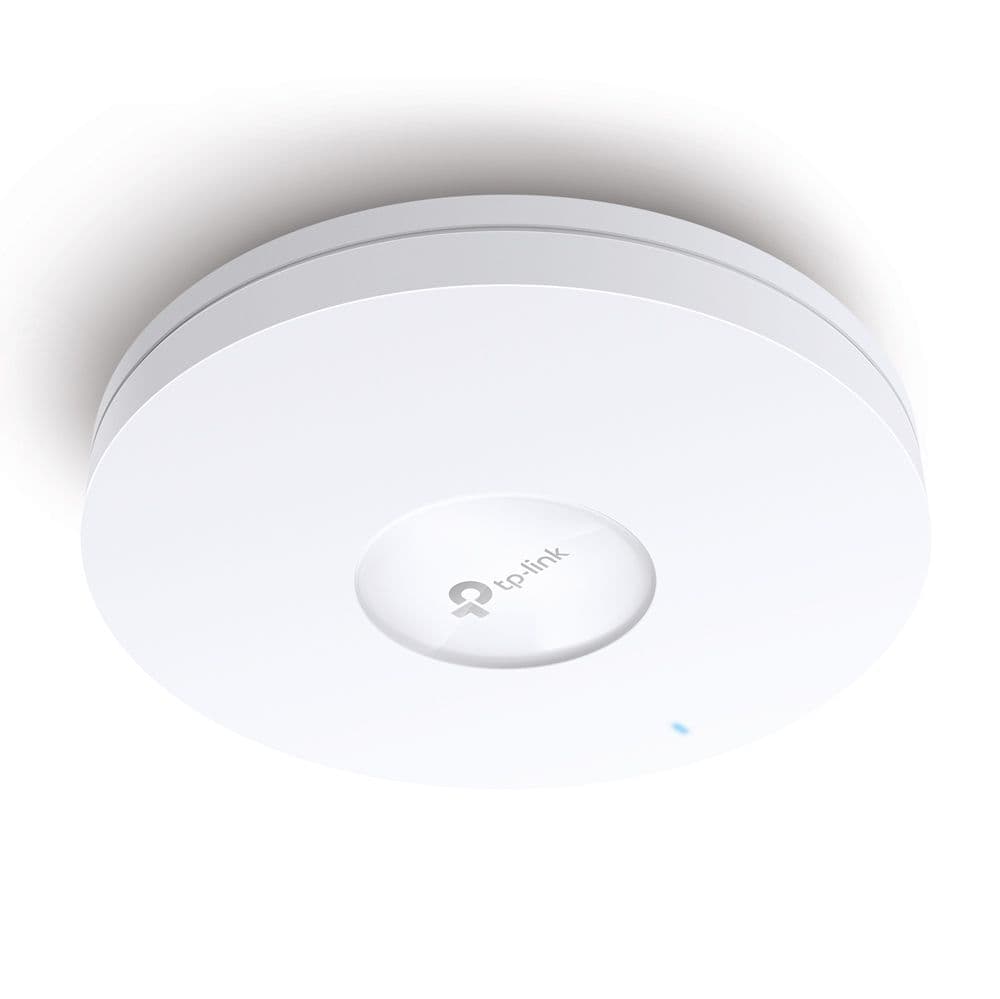

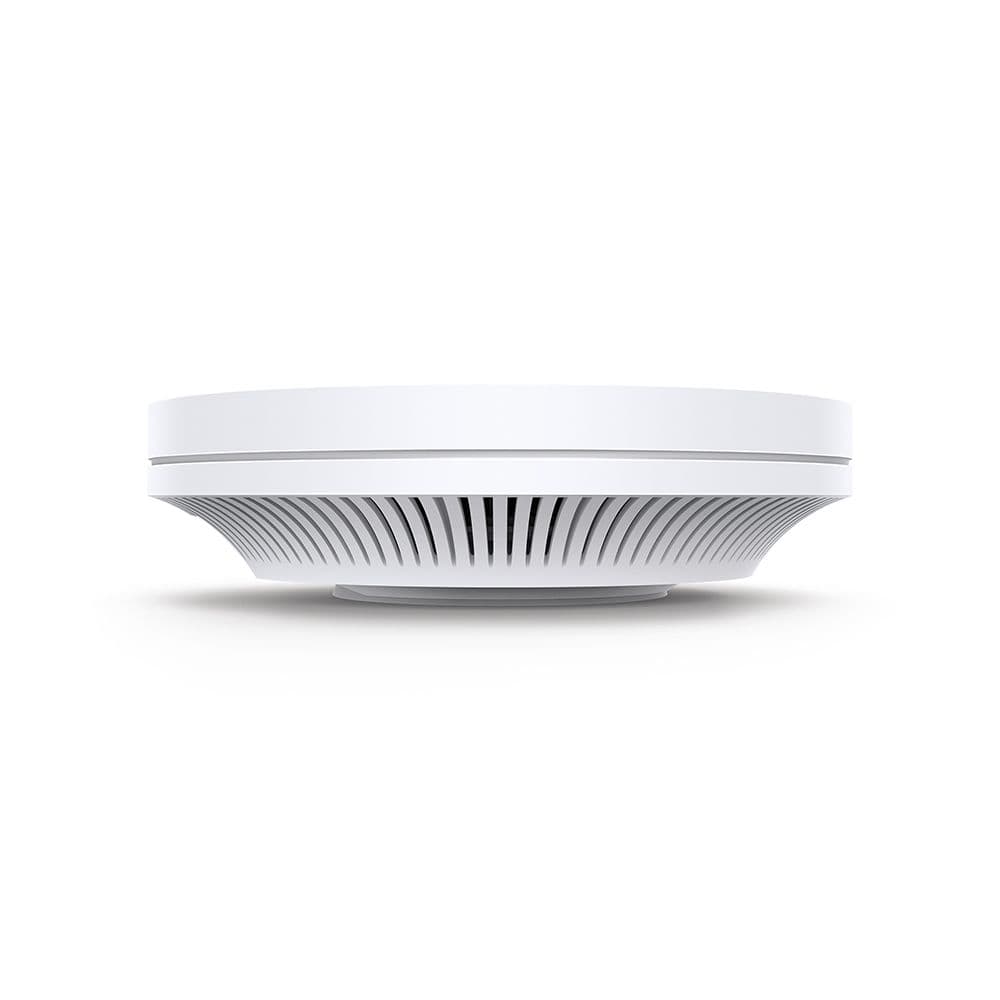

EAP620 HD - AX1800 Wireless Dual Band Ceiling Mount Access Point

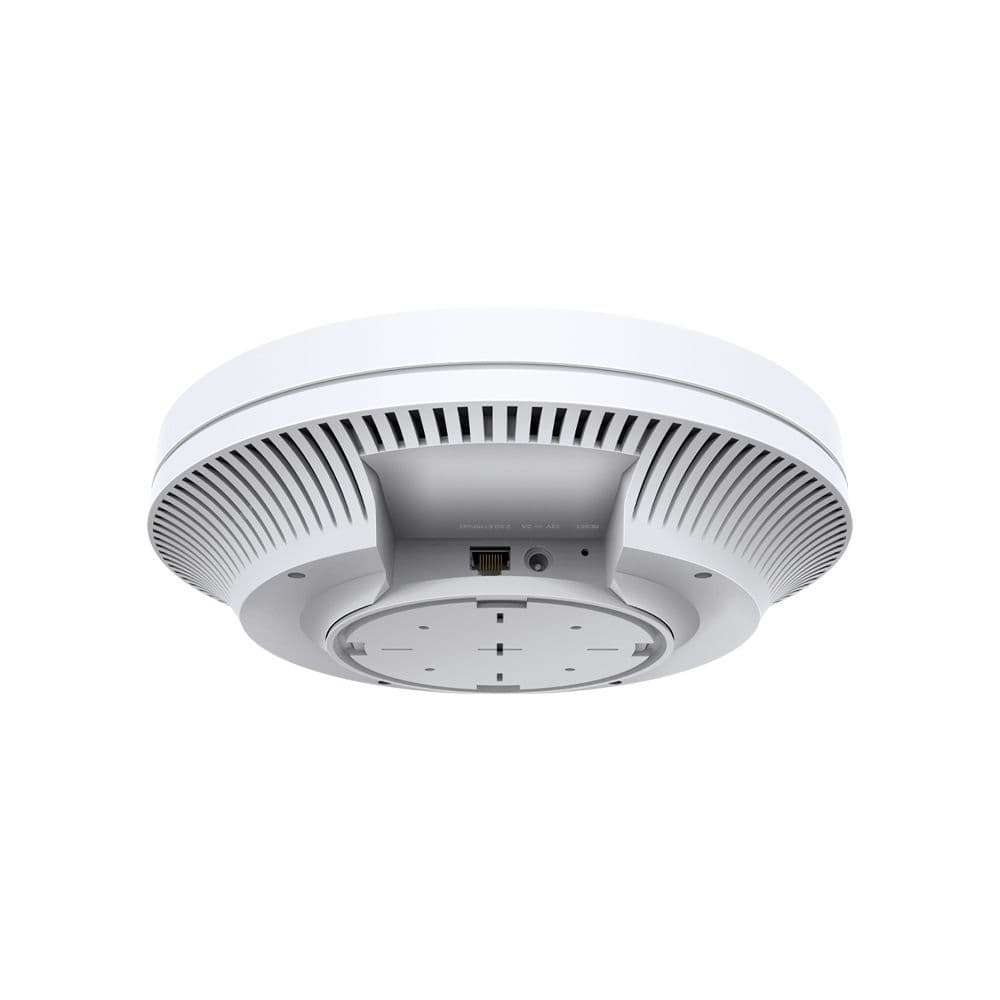

HARDWARE FEATURES - Interface

1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

• 802.3at PoE• 12 V DC

HARDWARE FEATURES - Max. Power Consumption

• EU: 12 W• US: 13.5 W

HARDWARE FEATURES - Dimensions ( W x D x H )

9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

HARDWARE FEATURES - Antenna

Internal Omni• 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 5 dBi

HARDWARE FEATURES - Mounting

Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES - Concurrent Clients

1,000+**

WIRELESS FEATURES - Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

WIRELESS FEATURES - Frequency

2.4 GHz and 5 GHz

WIRELESS FEATURES - Signal Rate

5 GHz: Up to 1201 Mbps2.4 GHz: Up to 574 Mbps

WIRELESS FEATURES - Wireless Functions

• 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO • Seamless Roaming• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

WIRELESS FEATURES - Transmission Power

• CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, EIRP)• FCC:<25 dBm (2.4 GHz)<25 dBm (5 GHz)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller

Management Features - Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c, v3

Management Features - System Logging Local/Remote Syslog

Local/Remote Syslog

Management Features - Web-based Management

HTTP/HTTPS

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• EAP620 HD• Power Adapter• Ceiling/Wall Mounting Kits• Installation Guide

OTHERS - Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - SSH

Yes

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

Management Features - Management VLAN

Yes

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above)

OTHERS - System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
