TP-Link

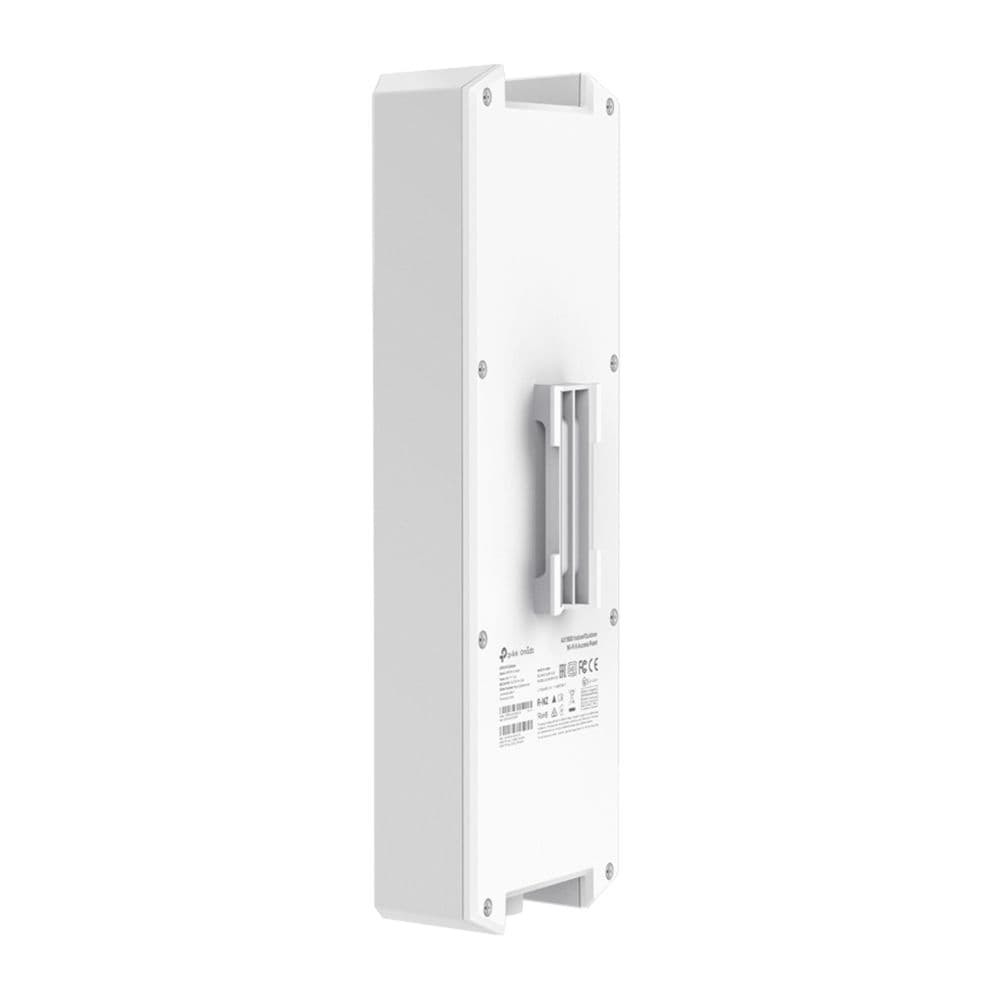

EAP650 OUTDOOR - AX3000 Indoor/Outdoor WiFi 6 Access Point

0,00 ₼

AX3000 WiFi 6 Speed 2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz*1
160 MHz Channel Double the data at peak transmission times on a single stream with HE160*2
High-Security WiFi 6 WAP3 encryption, Captive Portal (SMS, Voucher, and more), and 802.1x authentication*3
Long-Range Coverage Professional Smart Antenna technology and dedicated high-power amplifier
Omada Mesh Technology Flexible wireless deployment without additional cabling*3
Easy and Flexible Installation Supports both 802.3at PoE+ and Passive PoE (adapter included) for flexible installation
Seamless Roaming Uninterrupted streaming when moving between APs*3
IP67 Waterproof & Dustproof Resistant to lightning, dust ingress, shock, vibration, and moisture
Centralized Cloud Management Omada SDN integration manages the whole network locally or from the cloud
Swimming Pool
Outdoor Café
Amphitheatre
School Playground
Yard / Garden
Outdoor WiFi Camera
Shed/Barns
1024 QAM 25% more data encoded at one time
Long OFDM Symbol 11% faster speed
HE160 Double the data at peak transmission times on a single stream*2
Wireless Camera
Laptop
Tablet
Wireless Speaker
Less Wiring with Mesh With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.*3 Using a PoE+ Switch
Powered with PoE+ Switch Powered and connected by an 802.3at PoE+ switch using one single cable for convenient deployment. Using Omada Mesh Technology
Powered with Passive PoE Powered and connected by the provided passive PoE adapter using one single cable, ideal for home WiFi deployment. Using the Provided Passive PoE Adapter Grounded PoE Adapter Up to 60m
6KV Lightning Protection and 15KV ESD Protection
No Ingress of Dust
Waterproof Enclosure
· Pole Mounting
· Wall Mounting
Hassle-Free Cloud or On-Premises Controllers
Centralized Cloud Management
Intelligent Monitoring
Zero-Touch Provisioning (ZTP)*5

Low stock

HARDWARE FEATURES - Interface

1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

• 802.3at PoE• 48V Passive PoE (PoE Adapter Included)

HARDWARE FEATURES - Max. Power Consumption

• EU: 12.5W (802.3at PoE or Passive PoE)• US: 14.7W (802.3at PoE or Passive PoE)

HARDWARE FEATURES - Dimensions ( W x D x H )

• 280.4×106.5×56.8 mm (without antenna & mounting kit)

HARDWARE FEATURES - Antenna

• 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 5 dBi

HARDWARE FEATURES - Mounting

Pole/Wall Mounting (Kits included)

WIRELESS FEATURES - Concurrent Clients

250+6

WIRELESS FEATURES - Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

WIRELESS FEATURES - Frequency

2.4 GHz, 5 GHz

WIRELESS FEATURES - Signal Rate

• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)• 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to2 VHT20/40/80)• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps• 802.11b: 1, 2, 5.5, 11 Mbps• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

WIRELESS FEATURES - Wireless Functions

• 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• MU-MIMO• Omada Mesh3• Seamless Roaming3• Band Steering• Load Balance• Airtime Fairness• Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication3• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

WIRELESS FEATURES - Transmission Power

• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller

Management Features - Cloud Access

Yes, through• Omada Cloud-Based Controller• OC300• OC200• Omada Software Controller

Management Features - Email Alerts

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c

Management Features - System Logging Local/Remote Syslog

Yes

Management Features - Web-based Management

Yes

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• Access Point EAP650-Outdoor• Passive PoE Adapter• Power Cord• Mounting Kits• Installation Guide

OTHERS - Environment

• Operating Temperature: -30–70 ℃ (-22–158 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - SSH

Yes

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

Management Features - Management VLAN

Yes

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS - System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

HARDWARE FEATURES - Weatherproof Enclosure

IP68
