TP-Link

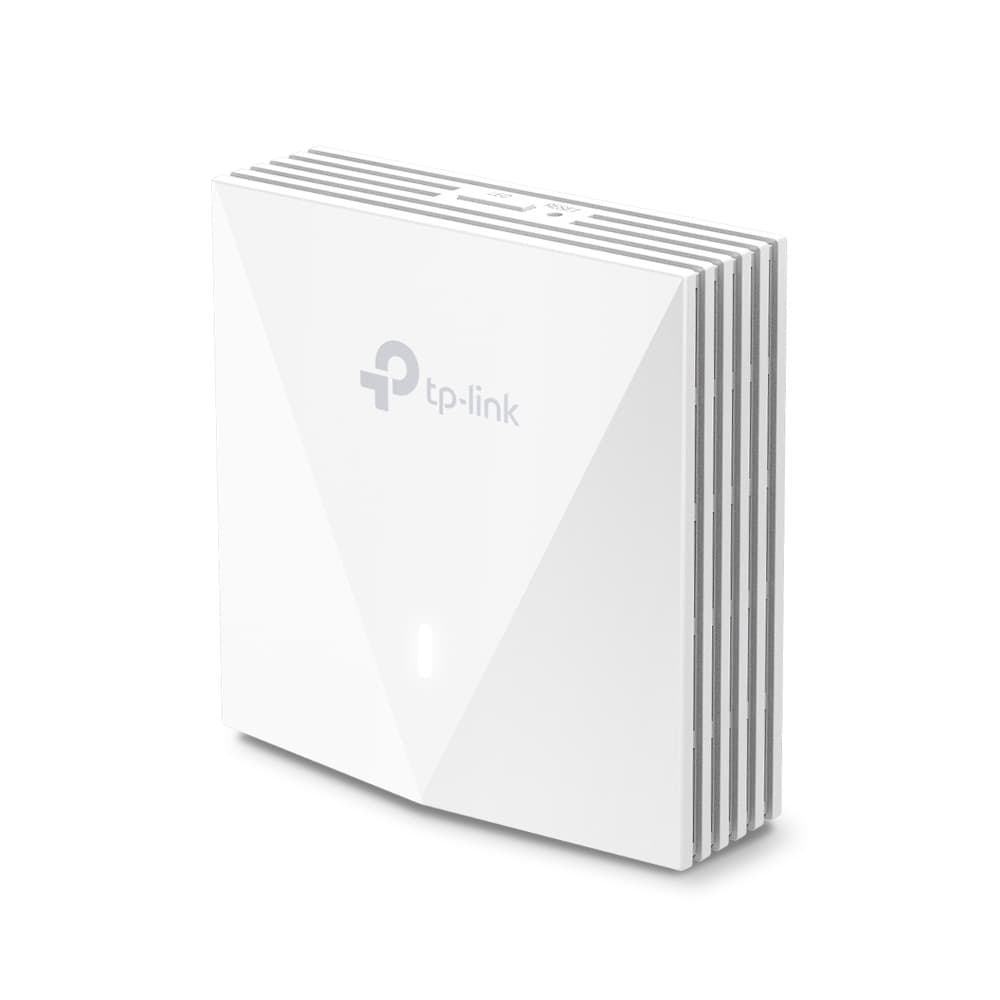

EAP650 WALL - AX3000 Wall Plate WiFi 6 Access Point

0,00 ₼

AX3000 WiFi 6 Speed 2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz†
High-Efficiency WiFi 6 More connected devices enjoy faster speeds
Centralized Cloud Management Manage the whole network locally or from the cloud
160 MHz Channel Double the data at peak transmission times on a single stream with HE160‡
Enhanced Security With guest networks, Captive Portal, and WPA3 encryption
Seamless Roaming Uninterrupted streaming when moving between APs§

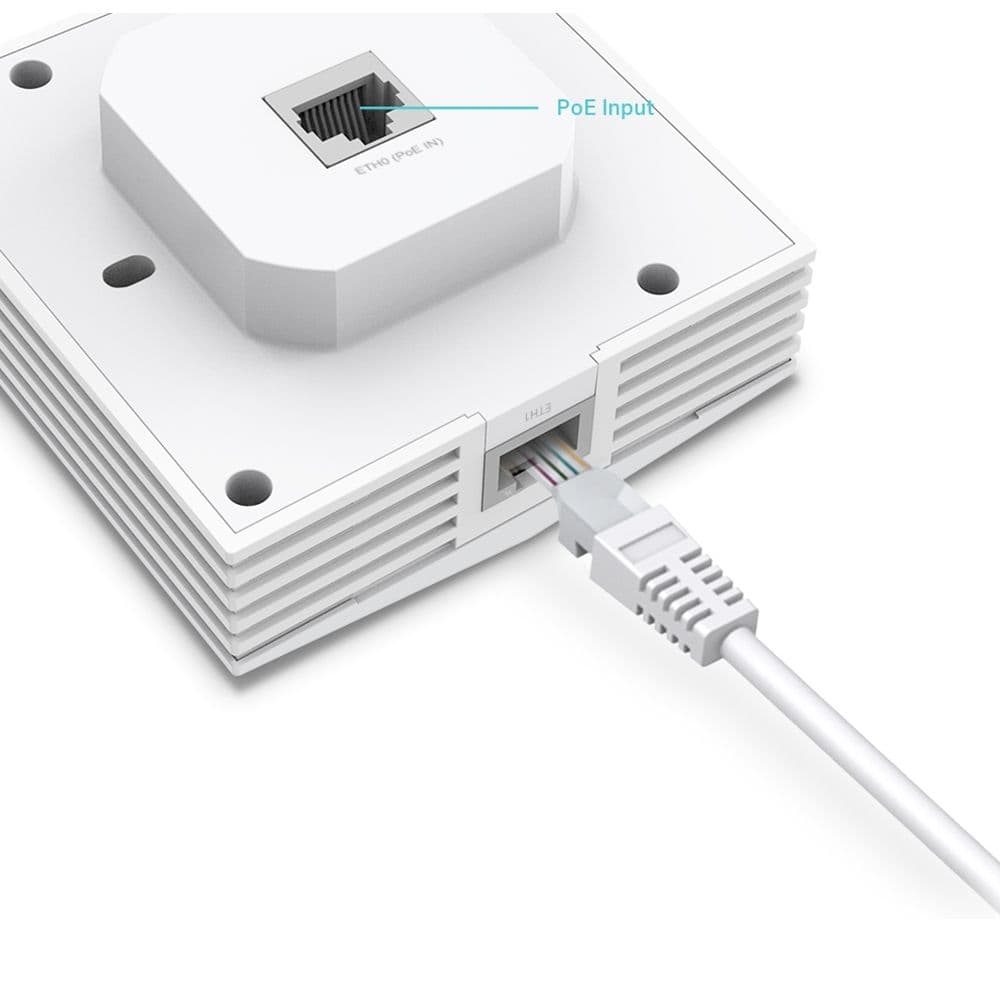

Two Gigabit Ports One downlink and one uplink for fast wired connection
802.3af/at PoE Support Flexible and convenient deployment

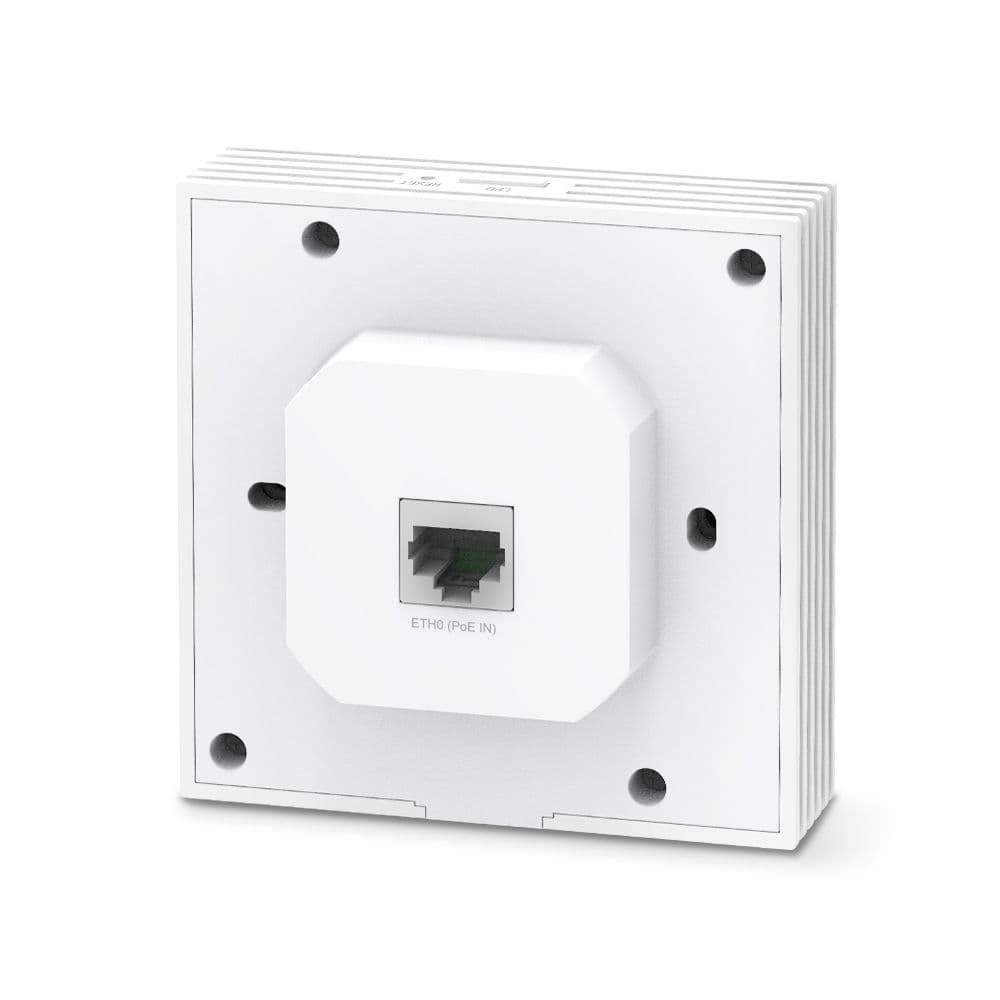

Quick, Simplified Installation Compatible with 86 mm & EU standard junction box

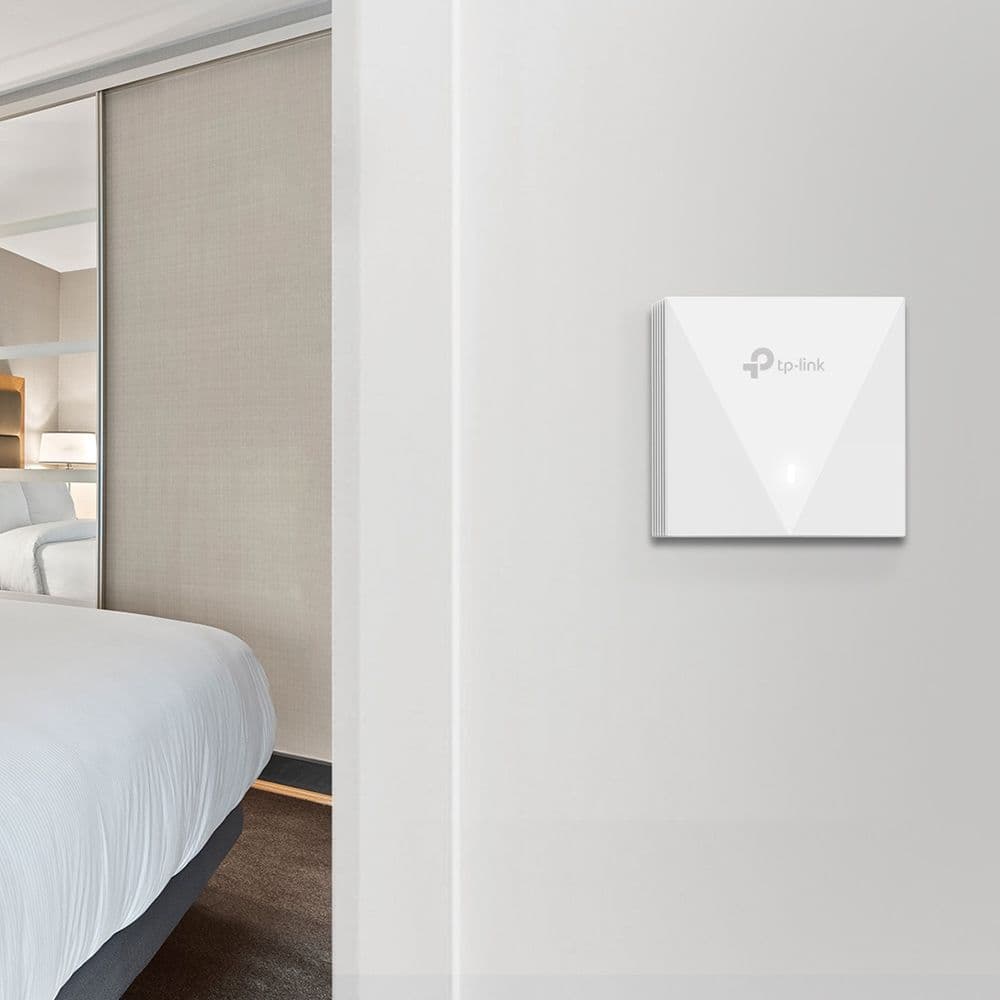

Hospitality Room-by-room connection with elegant appearance
Dormitory Stable wireless and wired connections
Apartment Private and secure network access for every family
Villa Whole-home WiFi coverage with seamless roaming
Meeting Room Faster streaming, downloading, video conferencing, and everything to satisfy your needs
1024 QAM 25% more data encoded at one time
Long OFDM Symbol 11% faster speed
HE160 Double the data at peak transmission times on a single stream‡
BSS Coloring
High-Efficiency WiFi 6
Band Steering
Secure Guest Network with Up to 16 SSIDs Guest networks provide enhanced security. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page.§ Learn More about WiFi Marketing >>
WPA3 for Worry-Free Open Public Networks WPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security. Learn more about WPA3 >>
Switch
Printer
Smart TV
86 mm wall junction box
Standard EU wall junction box
Before Optimization Channel 1 Channel 1 Channel 4
After Optimization Channel 1 Channel 11 Channel 6

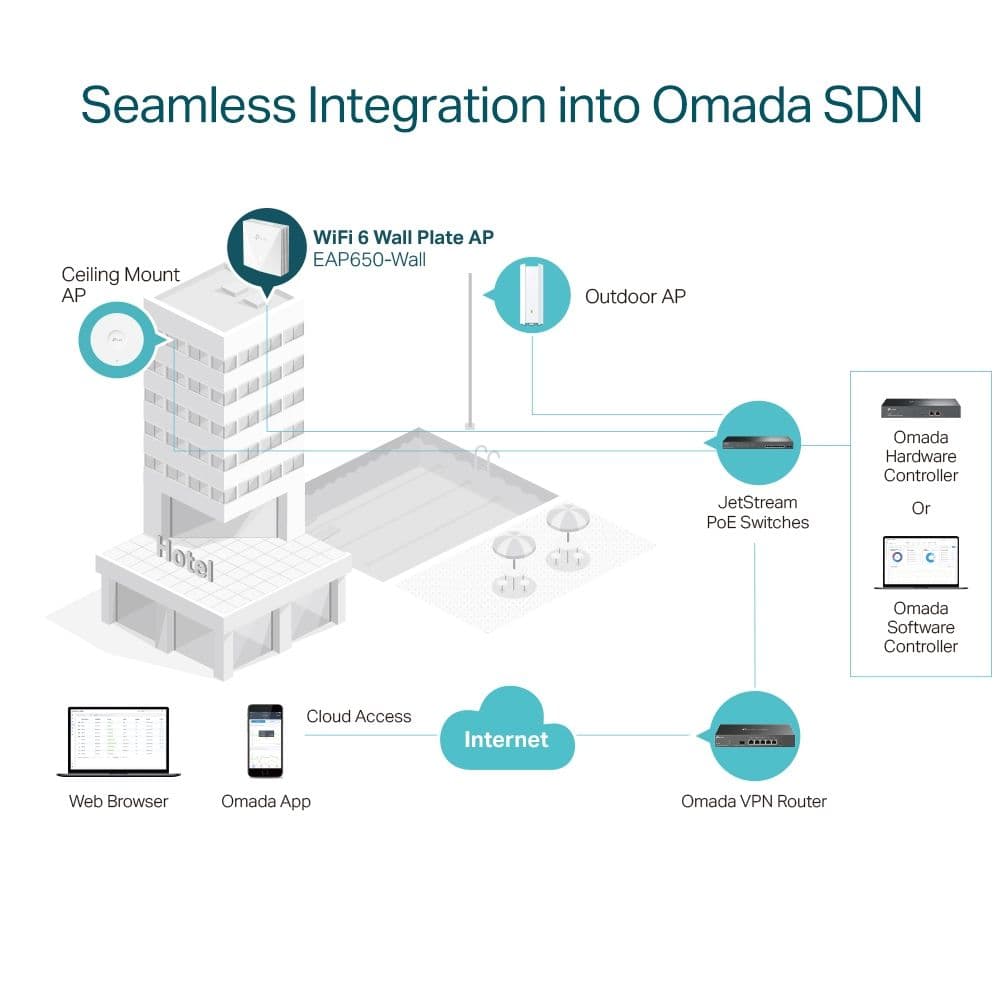

Hardware, Software, or Cloud-Based Controllers
Centralized Cloud Management
Intelligent Monitoring
Zero-Touch Provisioning (ZTP)*

Low stock

HARDWARE FEATURES - Interface

• Uplink: 1× 10/100/1000 Mbps Ethernet Port• Downlink: 1× 10/100/1000 Mbps Ethernet Port

HARDWARE FEATURES - Button

Reset, LED

HARDWARE FEATURES - Power Supply

802.3af/at PoE

HARDWARE FEATURES - Max. Power Consumption

EU: 11.5 W

HARDWARE FEATURES - Dimensions ( W x D x H )

86 × 86 × 42.6 mm (3.4 × 3.4 × 1.7 in)

HARDWARE FEATURES - Antenna

2 Dual-Band Antennas• 2.4 GHz: 2× 3 dBi• 5 GHz: 2× 5 dBi

HARDWARE FEATURES - Mounting

Wall Plate Mounting (Kits included)

WIRELESS FEATURES - Coverage

40㎡(450ft²)***

WIRELESS FEATURES - Concurrent Clients

100+**

WIRELESS FEATURES - Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

WIRELESS FEATURES - Frequency

2.4 GHz and 5 GHz

WIRELESS FEATURES - Signal Rate

• 5 GHz: Up to 2402 Mbps• 2.4 GHz: Up to 574 Mbps

WIRELESS FEATURES - Wireless Functions

• 16 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming§• Beamforming• Rate Limit• Load Balance• Airtime Fairness• Band Steering• Reboot Schedule• Wireless Schedule• RADIUS Accounting• MAC Authentication• Wireless Statistics• Static IP/Dynamic IP

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

WIRELESS FEATURES - Transmission Power

• CE: <20 dBm (2.4GHz, EIRP)<22 dBm (5GHz band1 & 2, EIRP)<22 dBm (5GHz band3, EIRP)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller• Omada Cloud-Based Controller

Management Features - Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c, v3

Management Features - System Logging Local/Remote Syslog

Local/Remote Syslog

Management Features - Web-based Management

HTTP/HTTPS

OTHERS - Certification

CE, RoHS

OTHERS - Package Content

• AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall• Installation Guide• Mounting Kits

OTHERS - Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - SSH

Yes

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

Management Features - Management VLAN

Yes

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS - System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
