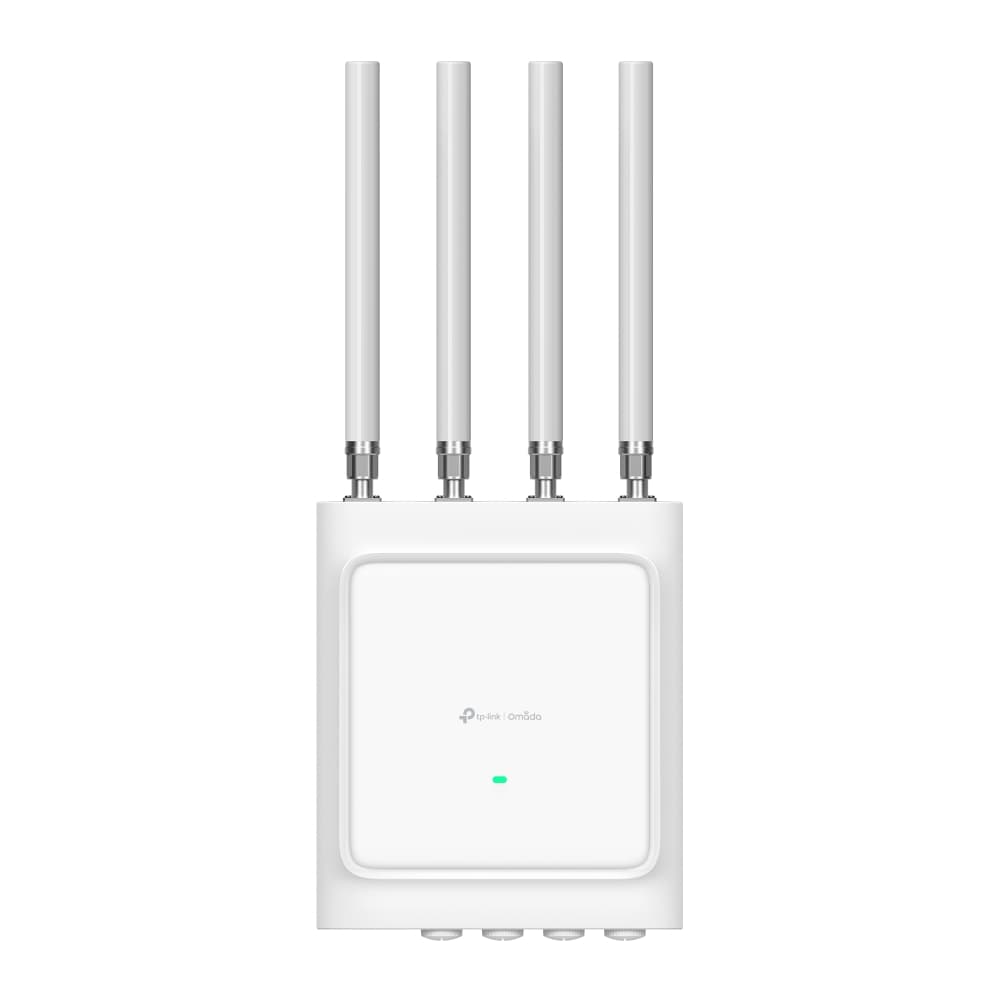

EAP668 OUTDOOR HD - AX3600 Indoor/Outdoor WiFi 6 Access Point

HARDWARE FEATURES - Interface

1× 2.5G Ethernet Port + 1× Gigabit Ethernet Port + 1× 10G SFP+

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

802.3at/bt PoE

HARDWARE FEATURES - Max. Power Consumption

802.3bt: • EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out)• US: 25.4W (bt type3: af PSE out; bt type4: at PSE out); 802.3at: • EU: 20.2W (PSE disabled)• US: 25.4W (PSE disabled)Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input.

HARDWARE FEATURES - Dimensions ( W x D x H )

9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm) (excluding antennas, waterproofing kit, and mounting kit)

HARDWARE FEATURES - Antenna

4× External Dual-Band Omni Antennas• 2.4 GHz: 6.0 dBi• 5 GHz: 6.0 dBi

HARDWARE FEATURES - Bluetooth

Yes

HARDWARE FEATURES - Mounting

Wall/pole mouting (kits included)，supporting horizontal ±45° adjustment• Optional bracket accessory APM-110: Supports vertical ±90°, horizontal ±45° adjustment• Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment(Note: Optional bracket accessories need to be purchased separately)

WIRELESS FEATURES - Concurrent Clients

1,000+*

WIRELESS FEATURES - Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax

WIRELESS FEATURES - Frequency

5 GHz, and 2.4 GHz

WIRELESS FEATURES - Signal Rate

• 5 GHz: Up to 2402 Mbps• 2.4 GHz: Up to 1148 Mbps

WIRELESS FEATURES - Wireless Functions

• 1024-QAM• Mesh§ • Seamless Roaming(802.11k/v/r)§ • Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Guest Network• Automatic Channel Assignment (Adjust transmit Power on dBm)• Transmit Power Control• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDs:16 (8 for each band)• MU-MIMO (4 × 4 MU-MIMO DL/UL)• UL/DL OFDMA• Wireless Statistics• Wireless Schedule• Reboot Schedule• RADIUS Accounting• MAC Authentication• Static IP/Dynamic IP

WIRELESS FEATURES - Wireless Security

• VLAN• Access Control• Rogue AP Detection• Captive Portal Authentication• Maximum number of MAC Filter: 4,000• Wireless Isolation between Clients• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

WIRELESS FEATURES - Transmission Power

• CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);• FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Require the use of an Omada controller.

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c, v3

Management Features - Web-based Management

Yes

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• EAP668-Outdoor HD• 4× External Dual-Band Omni Antennas• Installation Guide• Mounting Kit• Waterproof Kit

OTHERS - Environment

• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing

Management Features - SSH

Yes

Management Features - Restore & Backup

Yes

Management Features - Firmware update via Web

Yes

Management Features - NTP

Yes

HARDWARE FEATURES - Weatherproof Enclosure

IP68
