TP-Link

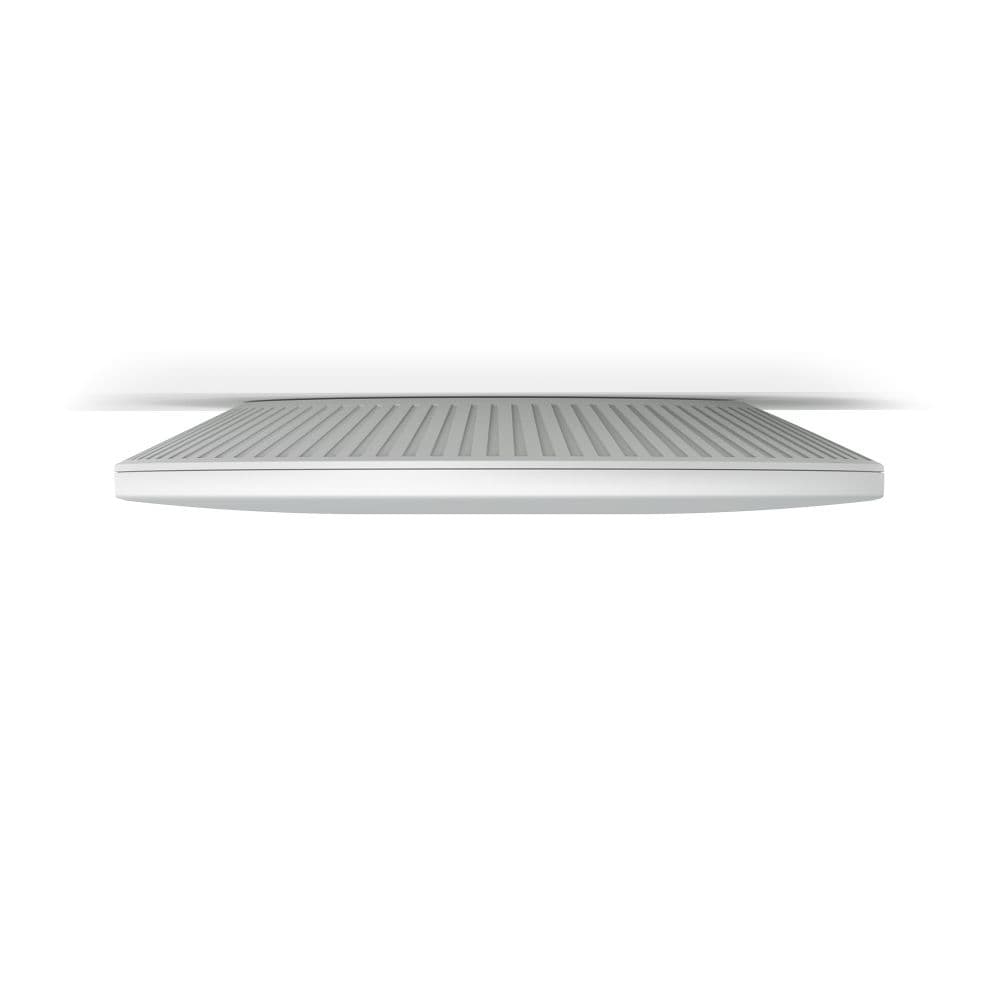

EAP673 - AX5400 Ceiling Mount WiFi 6 Access Point

0,00 ₼

AX5400 WiFi 6 Speed 4804 Mbps on 5 GHz + 574 Mbps on 2.4 GHz†
High-Efficiency WiFi 6 More connected devices can enjoy faster speeds
Centralized Cloud Management Manage the whole network locally or from the cloud
2.5GE Wired Performance Boosts overall throughput with a 2.5 Gbps Ethernet port
160 MHz Channel Double the data at peak transmission times on a single stream with HE160‡
Auto Channel Selection and Power Adjustment* Optimize overall performance by reducing WiFi interference
Omada Mesh Technology More flexible and convenient wireless deployment§
Seamless Roaming Uninterrupted streaming when moving between APs§
PoE+ Powered Supports both DC (adapter not included) and 802.3at PoE+ for flexible installations
Hospitality High-quality and full coverage Guest WiFi
Education High-security WiFi to connect more devices
Shopping Mall Seamless marketing WiFi coverage to boost business
Office Stable, seamless, and high-security WiFi coverage
Meeting Room Faster streaming, downloading, video conferencing, and more
1024 QAM 25% more data encoded at one time
Long OFDM Symbol 11% faster speed
HE160 Double the data at peak transmission times on a single stream‡
Hardware, Software, or Cloud-Based Controllers
Centralized Cloud Management
Intelligent Monitoring
Zero-Touch Provisioning (ZTP)*
Traditional Wired Networking
Mesh Wireless Networking
Intelligent Self-Organization
Self-Healing
Secure Guest Network with Up to 16 SSIDs Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Boost Business with SMS Login Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.§
WPA3 for Worry-Free Open Public Networks With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance Ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness Increases average network throughput in heavily congested environments

Low stock

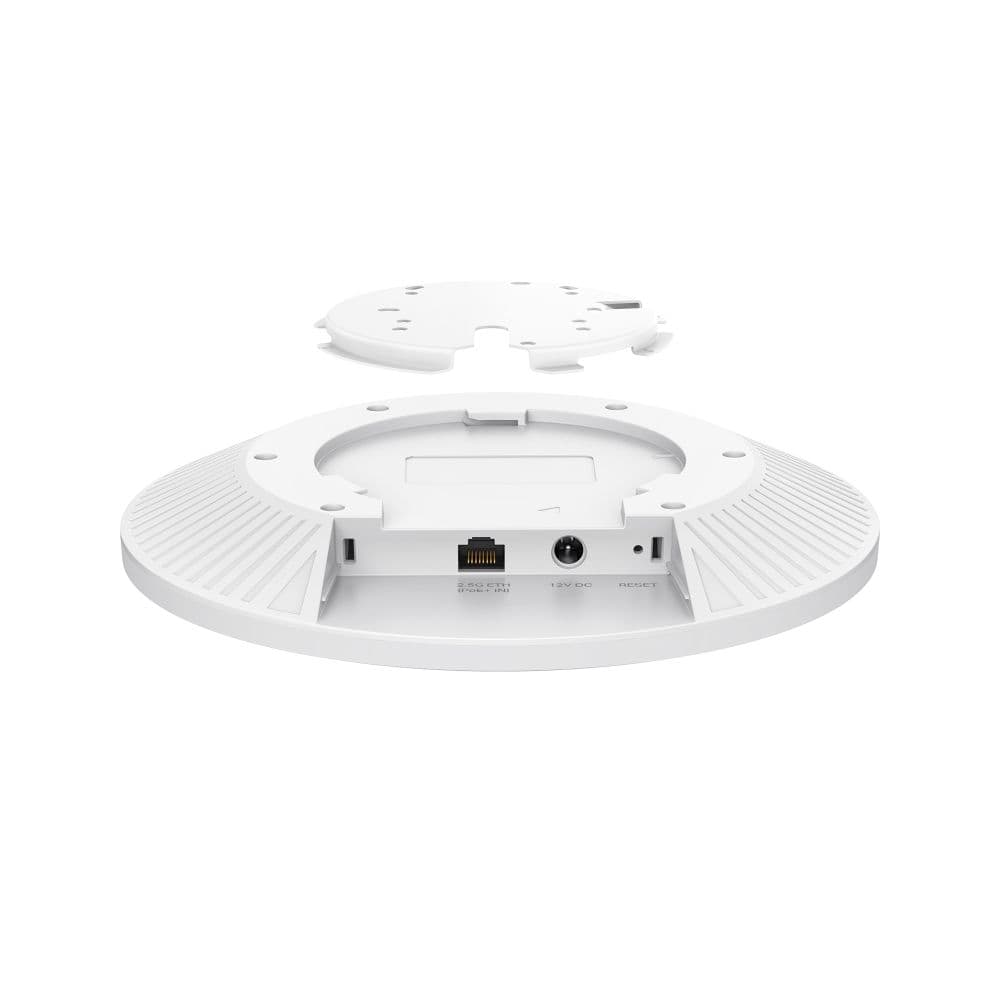

HARDWARE FEATURES - Interface

1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

• 802.3at PoE• 12 V / 2 A DC (Power adapter not included)

HARDWARE FEATURES - Max. Power Consumption

• EU: 20.8 W• US: 22.3 W

HARDWARE FEATURES - Dimensions ( W x D x H )

8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

HARDWARE FEATURES - Antenna

Internal Omni• 2.4 GHz: 2× 4 dBi• 5 GHz: 4× 5 dBi

HARDWARE FEATURES - Bluetooth

V5.2

HARDWARE FEATURES - Mounting

Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES - Coverage

140㎡(1500 ft²)***

WIRELESS FEATURES - Concurrent Clients

250+**

WIRELESS FEATURES - Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

WIRELESS FEATURES - Frequency

2.4 GHz and 5 GHz

WIRELESS FEATURES - Signal Rate

• 5 GHz: Up to 4804 Mbps• 2.4 GHz: Up to 574 Mbps

WIRELESS FEATURES - Wireless Functions

• 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO • HE160 (160 MHz Bandwidth)‡• Seamless Roaming §• Omada Mesh§• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

WIRELESS FEATURES - Transmission Power

• CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, , band1 & band2, EIRP)<30 dBm(5 GHz, , band3, EIRP)• FCC:<25 dBm (2.4 GHz)<28 dBm (5 GHz)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller• Omada Cloud-Based Controller

Management Features - Cloud Access

Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c, v3

Management Features - System Logging Local/Remote Syslog

Local/Remote Syslog

Management Features - Web-based Management

HTTP/HTTPS

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• EAP673• Ceiling/Wall Mounting Kits• Installation Guide

OTHERS - Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - SSH

Yes

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

Management Features - Management VLAN

Yes

Management Features - Zero-Touch Provisioning

Yes. Require the use of Omada Cloud-Based Controller.

OTHERS - System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
