EAP723 - BE3600 Ceiling Mount Wi-Fi 7 Access Point

HARDWARE FEATURES - Interface

1× 2.5G Ethernet Port

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)

HARDWARE FEATURES - Max. Power Consumption

• 16.8 W (For PoE); • 13.0 W (For DC)

HARDWARE FEATURES - Dimensions ( W x D x H )

6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)

HARDWARE FEATURES - Antenna

• 2.4 GHz: 2× 4.0 dBi• 5 GHz: 2× 5.0 dBi

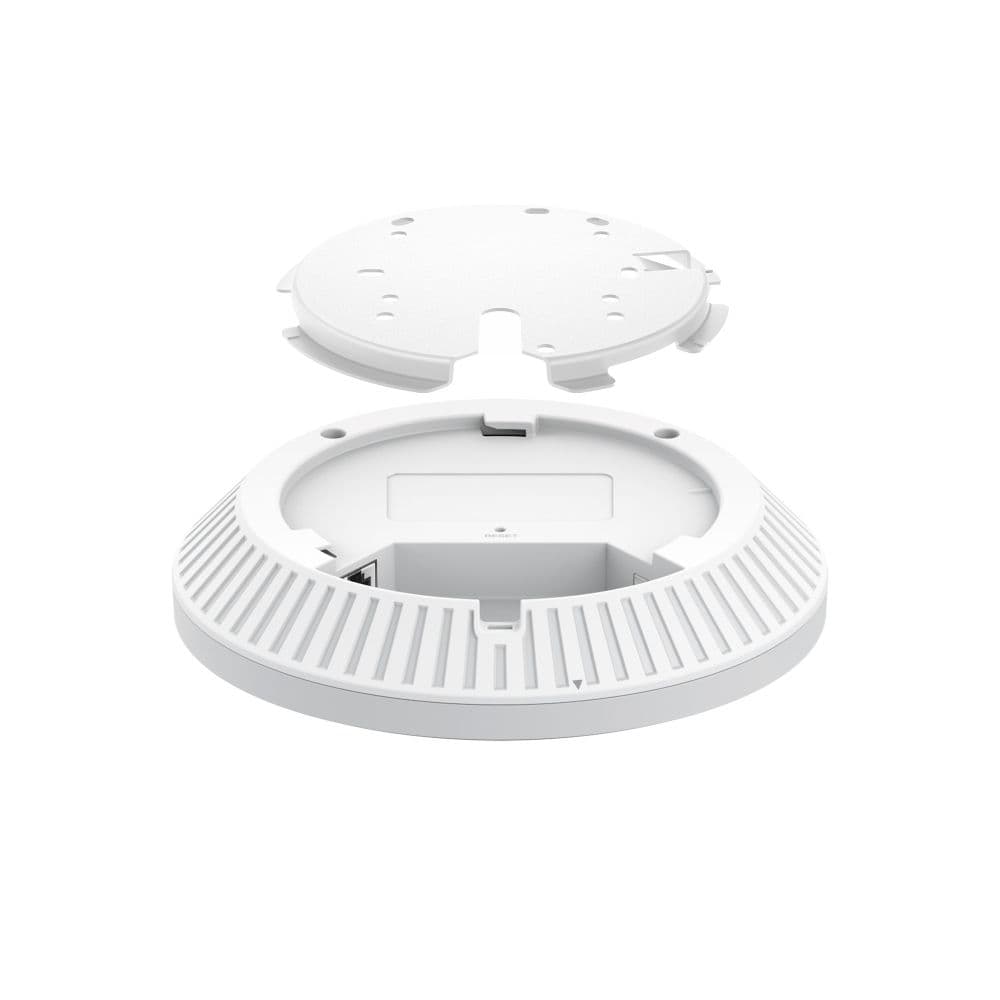

HARDWARE FEATURES - Mounting

Ceiling / Wall / Junction Box Mounting (Kits Included)

WIRELESS FEATURES - Coverage

140㎡(1500 ft²)***

WIRELESS FEATURES - Concurrent Clients

250+**

WIRELESS FEATURES - Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

WIRELESS FEATURES - Frequency

2.4 GHz and 5 GHz

WIRELESS FEATURES - Signal Rate

688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)

WIRELESS FEATURES - Wireless Functions

• MLO‡• 4K-QAM‡• Seamless Roaming• EHT160‡• Mesh△• OFDMA‡• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDS:16(8 on each band)• Wireless Schedule• Reboot Schedule• QoS(WMM)• Rate Limit• Static IP/Dynamic IP• RADIUS Accounting• MAC Authentication

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication△• Access Control• Maximum number of MAC Filter: 4,000• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

WIRELESS FEATURES - Transmission Power

< 20 dBm (2.4 GHz, EIRP)< 23 dBm (5 GHz, band 1&band 2, EIRP)< 28 dBm (5 GHz, band 3, EIRP)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller • Omada Software Controller

Management Features - Cloud Access

Yes. Require the use of an Omada controller.

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c, v3

Management Features - System Logging Local/Remote Syslog

Yes

Management Features - Web-based Management

Yes

OTHERS - Certification

CE, FCC, RoHS, IC

OTHERS - Package Content

• EAP723• Installation Guide• Ceiling/Wall/Junction Box Mounting KitsNote: Power Adapter is NOT included.

OTHERS - Environment

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing;
