TP-Link

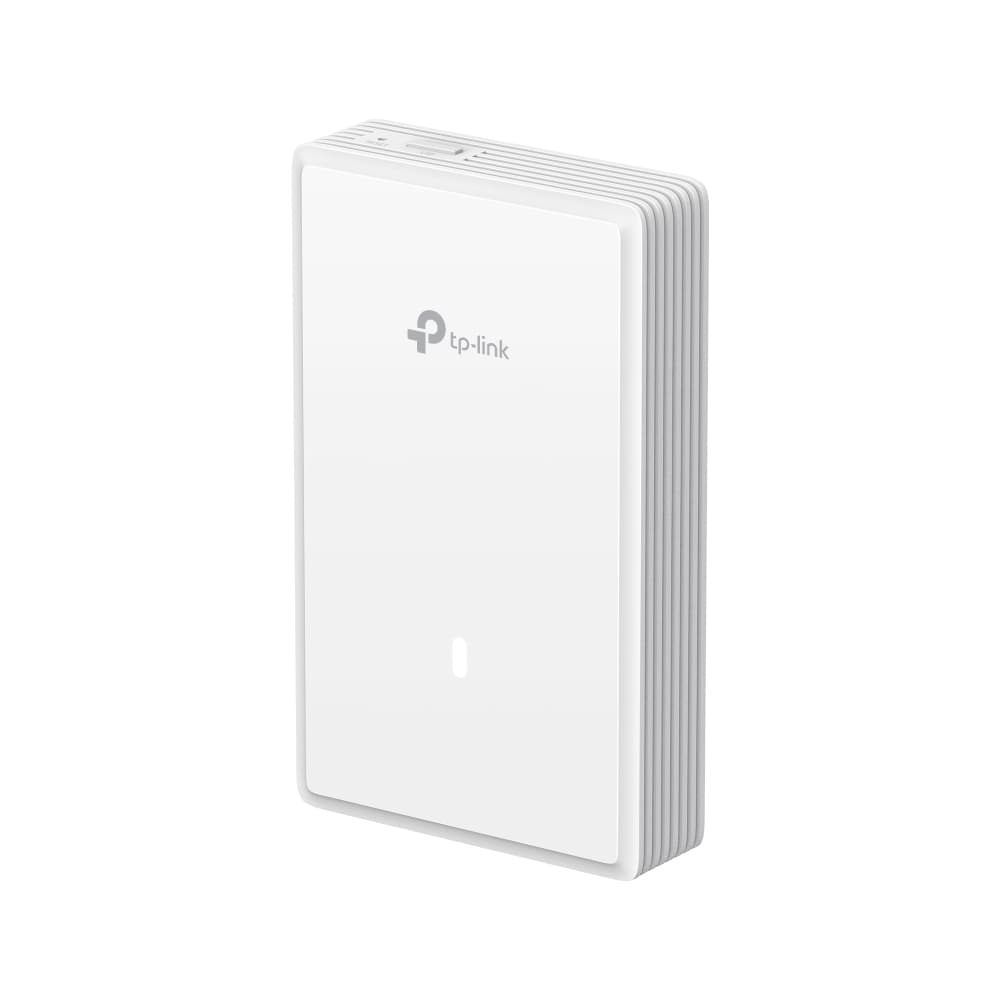

EAP725 WALL - BE3600 Wall Plate Wi-Fi 7 Access Point

0,00 ₼

Next-Gen WiFi 7
WiFi Speeds up to 3.6 Gbps†
2× 2.5G Ports + 2× Gigabit Ports
802.3at/bt PoE
Enhanced Security
Centralized Cloud Management*
Omada Mesh & Seamless Roaming△
Compact Design
5 GHz 2882 Mbps
2.4 GHz 688 Mbps
Higher Efficiency with 4K-QAM 20% more data transmission WiFi 7 12 bits/symbol WiFi 6 10 bits/symbol
Lower Latency with Multi-RUs WiFi 7 WiFi 6 User 1 User 2 User 1 Not Used User 2 RU1 RU2 RU3 RU1 RU2 RU3
IP Phone
Printer
Secure Guest Network with up to 16 SSIDs
Boost Your Business with SMS Login
WPA3 for Worry-Free Open Public Networks
Rogue AP Detection

Low stock

HARDWARE FEATURES - Interface

• Uplink: 1× 2.5G Ethernet Port• Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.)

HARDWARE FEATURES - Button

Reset, LED

HARDWARE FEATURES - Power Supply

802.3at/bt PoE

HARDWARE FEATURES - Max. Power Consumption

• 802.3bt: 17W (PoE Out support 15.4W)• 802.3at: 17W (PoE Out support 7W)

HARDWARE FEATURES - Dimensions ( W x D x H )

143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in)

HARDWARE FEATURES - Antenna

4× Internal Antennas• 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 5 dBi

HARDWARE FEATURES - Mounting

Wall Mounting (Kits included)

WIRELESS FEATURES - Coverage

50 ㎡(600 ft²)**

WIRELESS FEATURES - Concurrent Clients

250+§

WIRELESS FEATURES - Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

WIRELESS FEATURES - Frequency

2.4 GHz and 5 GHz

WIRELESS FEATURES - Signal Rate

• 5 GHz: Up to 2882 Mbps• 2.4 GHz: Up to 688 Mbps

WIRELESS FEATURES - Wireless Functions

• 16 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming△• Beamforming• Rate Limit (Based on SSID/Client)• Load Balance• Airtime Fairness• Band Steering• Reboot Schedule• Wireless Schedule• RADIUS Accounting• MAC Authentication• Wireless Statistics• Static IP/Dynamic IP

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

WIRELESS FEATURES - Transmission Power

<20 dBm (2.4GHz, EIRP)<23 dBm (5GHz, band 1 & band 2, EIRP)<25 dBm (5GHz, band 3, EIRP)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller• Omada Cloud-Based Controller

Management Features - Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c, v3

Management Features - System Logging Local/Remote Syslog

System Log

Management Features - Web-based Management

Yes

OTHERS - Certification

CE, RoHS

OTHERS - Package Content

• BE3600 Wall Plate Wi-Fi 7 Access Point• Installation Guide• Mounting Kits

OTHERS - Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - SSH

Yes

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

Management Features - Management VLAN

Yes

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS - System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
