TP-Link

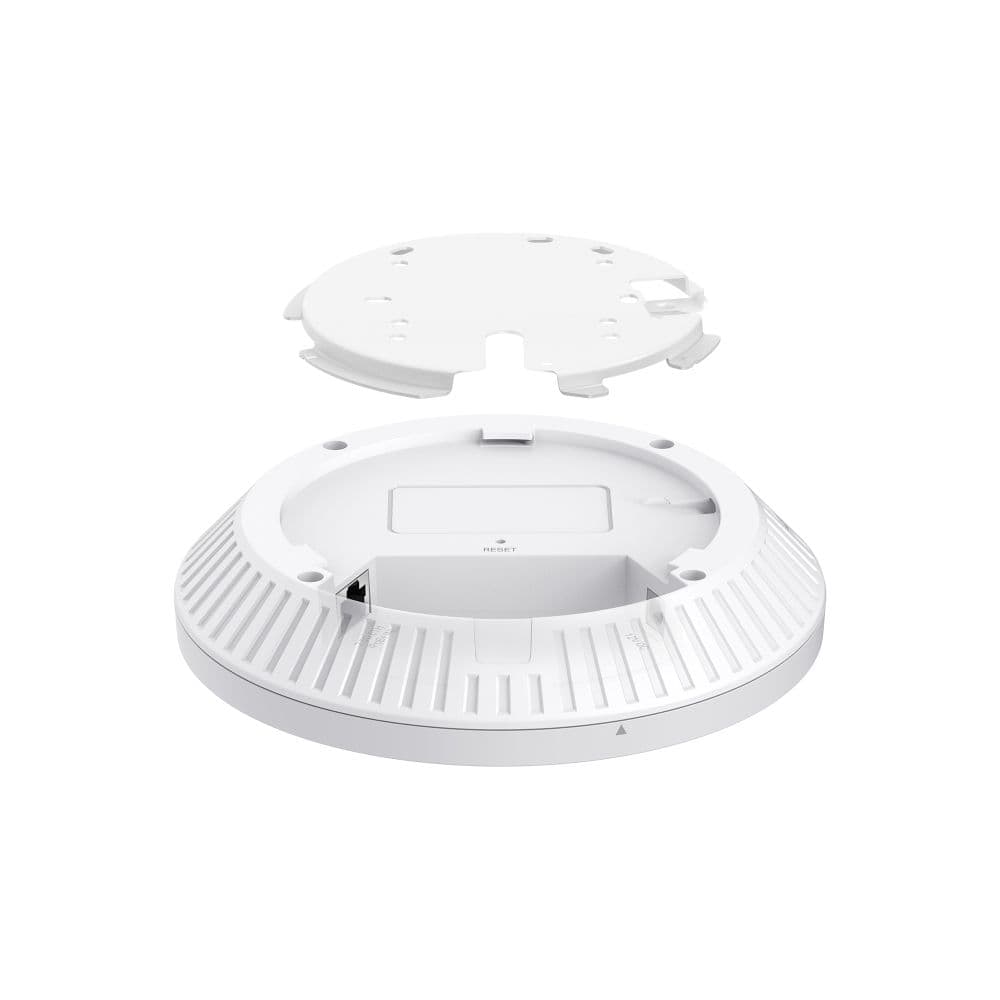

EAP727 - Omada BE5000 Ceiling Mount Wi-Fi 7 Access Point

0,00 ₼

5-Stream Dual-Band Wi-Fi 7: 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.†
1× 2.5G PoE+ Port: Ensures high-speed connectivity throughout the network.
Low Latency and Interference: 160 MHz bandwidth, Multi-Link Operation, Multi-Rus, and 4K-QAM ensure high performance for your connectivity.‡
Flexible Deployment and Easy Setup: Supports 802.3at PoE or DC power supply for flexible installation with Omada SDN for one-click setup.
Advanced Features: Supports centralized cloud management, PPSK, multiple portals, mesh, and seamless roaming. §
More Connections and Wider Coverage: Supports 250+ concurrent connections** and covers up to 2,000 ft² (185 m²)* for reliable and extensive wireless connectivity.

Low stock

HARDWARE FEATURES - Interface

1× 2.5 Gbps Ethernet Port

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

• 802.3at PoE• 12V/1.5A DCNote：DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.

HARDWARE FEATURES - Max. Power Consumption

• 15.6 W (PoE)• 14.1 W (DC)

HARDWARE FEATURES - Dimensions ( W x D x H )

6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)

HARDWARE FEATURES - Antenna

• 2.4 GHz: 2 × 4 dBi• 5 GHz: 3 × 6 dBi

HARDWARE FEATURES - Bluetooth

1 × 4 dBi (peak gain), internal antenna

HARDWARE FEATURES - Mounting

• Ceiling/Wall/Junction Box Mounting (Kits included) • T-Bar Mounting (Kits included)

WIRELESS FEATURES - Coverage

2,000 ft² (185 m²)*

WIRELESS FEATURES - Concurrent Clients

510+**

WIRELESS FEATURES - Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

WIRELESS FEATURES - Frequency

2.4 GHz and 5 GHz

WIRELESS FEATURES - Signal Rate

688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)

WIRELESS FEATURES - Wireless Functions

• MLO‡• 4K-QAM‡• Seamless Roaming• 160 MHz Bandwidth‡• Mesh§• OFDMA‡• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDS:16(8 on each band)• Wireless Schedule• Reboot Schedule• QoS(WMM)• Rate Limit• Static IP/Dynamic IP• Radius Accounting• MAC Authentication

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication§• Access Control• MAC Filter• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

WIRELESS FEATURES - Transmission Power

7-20 dBm (2.4 GHz, EIRP)9-24 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP)9-30 dBm (5 GHz, U-NII-2C, EIRP)

Management Features - Omada App

Yes (Omada App V5.0 and above)

Management Features - Centralized Management

• Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Require the use of an Omada Controller.

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c, v3

Management Features - System Logging Local/Remote Syslog

Yes

Management Features - Web-based Management

Yes

OTHERS - Certification

FCC/CE/VCCI/JRF/ICES

OTHERS - Package Content

• EAP727 • Installation Guide• Mounting Kit

OTHERS - Environment

• Operating Temperature: 0℃ to +40℃ (32℉ to +104℉) • Storage Temperature : -40℃ to +70℃ (-40℉ to +158℉) • Operating Humidity: 10% to 90% (non-condensing) • Storage Humidity: 5% to 90% (non-condensing) • Storage Altitude: up to + 2000 m (6561 feet) • Operating Altitude: up to + 2000 m (6561 feet)

Management Features - SSH

Yes

HARDWARE FEATURES - Weight

0.47 kg (1.04 lb)
