EAP770 - BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

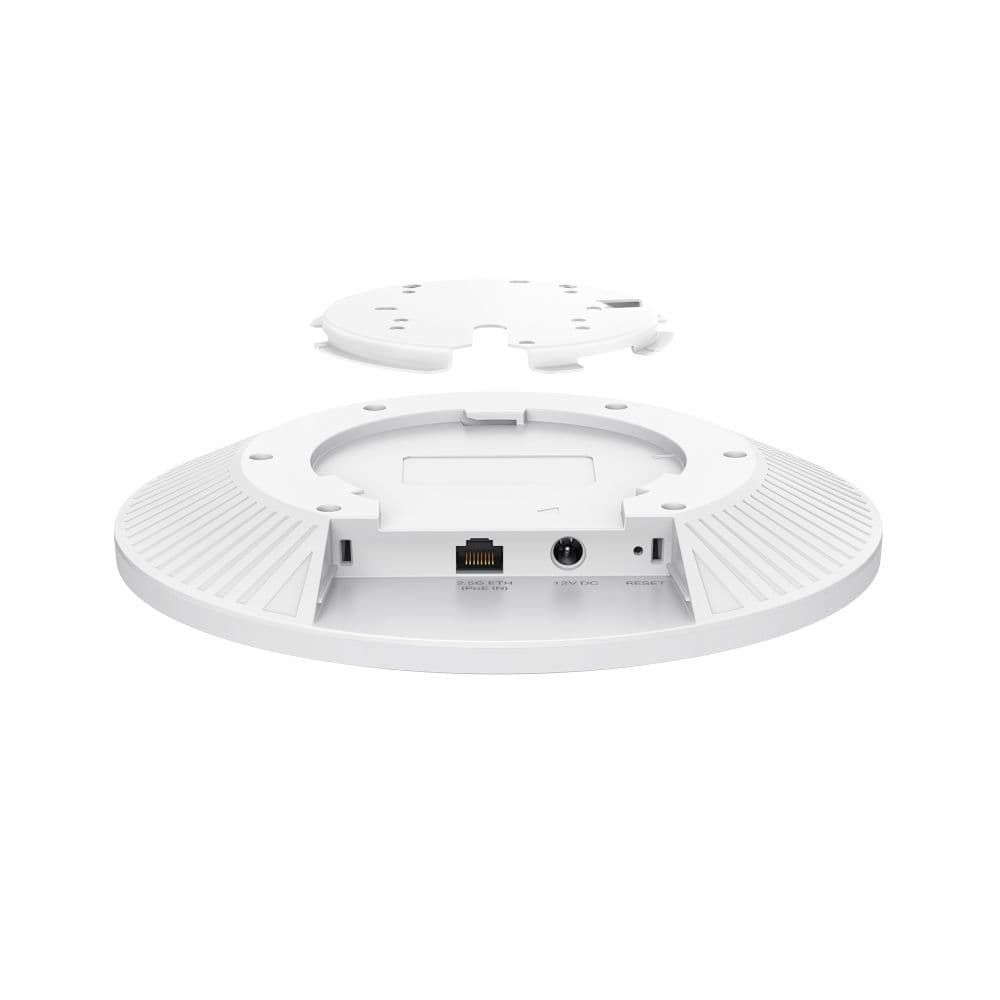

HARDWARE FEATURES - Interface

1× 2.5G Ethernet Port

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

802.3at PoE or 12V/2.5A DC

HARDWARE FEATURES - Max. Power Consumption

• 24.05 W (For PoE)• 20.92 W (For DC)

HARDWARE FEATURES - Dimensions ( W x D x H )

8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

HARDWARE FEATURES - Antenna

• 2.4 GHz: 2× 4.0 dBi• 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi

HARDWARE FEATURES - Bluetooth

1 × 4.0 dBi, Bluetooth 5.2*Firmware update may be required.

HARDWARE FEATURES - Mounting

Ceiling / Wall /Junction Box Mounting (Kits Included)

WIRELESS FEATURES - Coverage

1500 ft² (140㎡)§

WIRELESS FEATURES - Concurrent Clients

380+**

WIRELESS FEATURES - Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

WIRELESS FEATURES - Frequency

6 GHz, 5 GHz, and 2.4 GHz

WIRELESS FEATURES - Signal Rate

688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)†

WIRELESS FEATURES - Wireless Functions

• MLO‡• 4K-QAM‡• MU-MIMO‡• 320 MHz Bandwidth‡• Mesh△• Seamless Roaming(802.11k/v/r)△• BBS Coloring‡• OFDMA‡• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDS:24(8 on each band)• Wireless Schedule• Reboot Schedule• QoS(WMM)• Rate Limit• Static IP/Dynamic IP• RADIUS Accounting• MAC Authentication

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication△• Access Control• Maximum number of MAC Filter: 4,000• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

WIRELESS FEATURES - Transmission Power

< 20 dBm (2.4 GHz, EIRP)< 23 dBm (5 GHz, band 1&band 2, EIRP)< 28 dBm (5 GHz, band 3, EIRP)< 23dBm (6 GHz, EIRP)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Require the use of an Omada controller.

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c, v3

Management Features - System Logging Local/Remote Syslog

Yes

Management Features - Web-based Management

Yes

OTHERS - Certification

CE, FCC, RoHS, IC

OTHERS - Package Content

• Omada Ceiling Mount Accsee Point EAP770• Installation Guide• Power Adapter• Ceiling/Wall/Junction Box Mounting Kits

OTHERS - Environment

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing;
