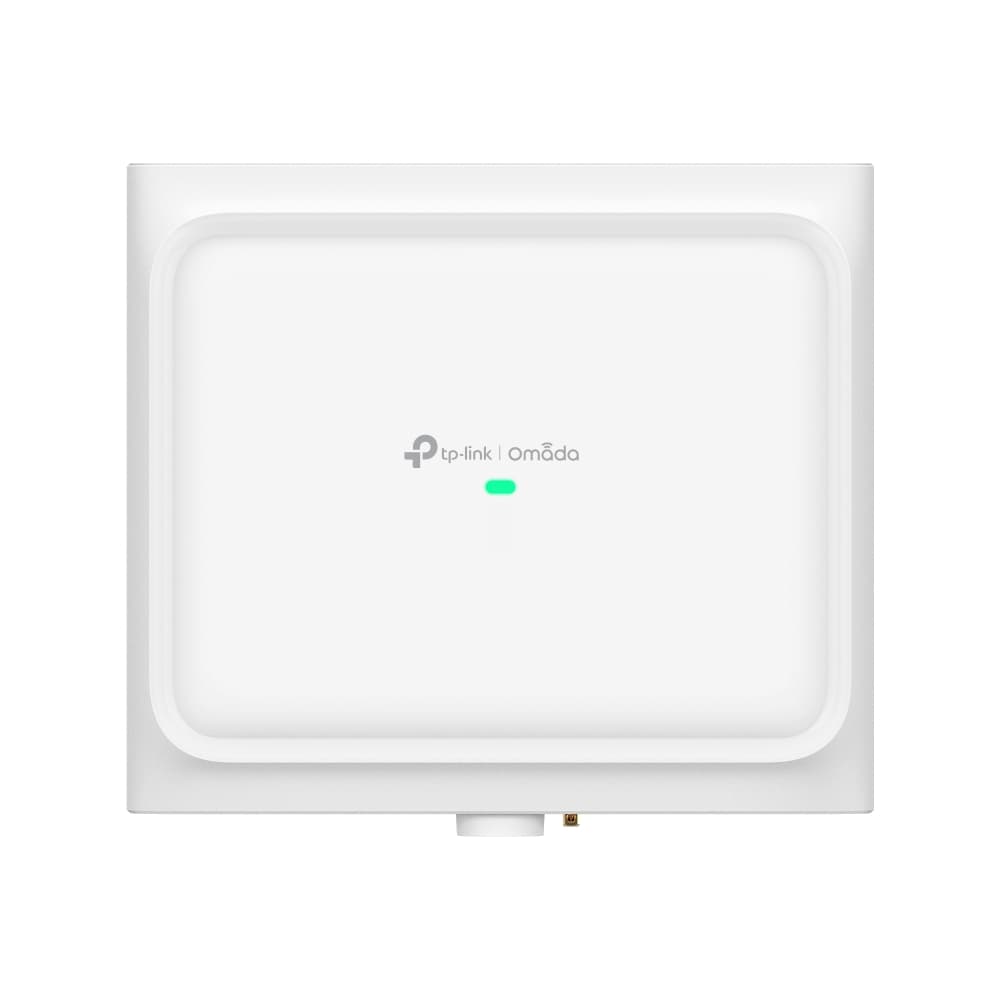

EAP772 OUTDOOR - Omada Tri-Band Omnidirectional BE9300 Indoor/Outdoor WiFi 7 Access Point

HARDWARE FEATURES - Interface

1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE)

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

• 802.3at PoE

HARDWARE FEATURES - Max. Power Consumption

21.5W (for PoE)

HARDWARE FEATURES - Dimensions ( W x D x H )

9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)

HARDWARE FEATURES - Antenna

• 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 6 dBi• 6 GHz: 2× 6 dBi

HARDWARE FEATURES - Bluetooth

BLE 5.2

HARDWARE FEATURES - Mounting

Pole/Wall Mounting (Kits included)

WIRELESS FEATURES - Coverage

300m2 (3,200ft2) Recommended Omnidirectional Coverage

WIRELESS FEATURES - Concurrent Clients

380+**

WIRELESS FEATURES - Wireless Standards

IEEE 802.11be/ax/ac/n/g/b/a

WIRELESS FEATURES - Frequency

2.4 GHz, 5 GHz, 6 GHz

WIRELESS FEATURES - Signal Rate

688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)†

WIRELESS FEATURES - Wireless Functions

• 4k-QAM• OFDMA• Multiple SSIDs: 24 (8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• MU-MIMO• MLO• 320MHz• Omada Mesh§• Seamless Roaming(802.11k/v/r)§• Band Steering• Load Balance• Airtime Fairness• Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client• Static IP/Dynamic lP

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE

WIRELESS FEATURES - Transmission Power

• CE: Indoor Mode: < 20 dBm (2.4 GHz, EIRP);, < 23 dBm (5 GHz, band 1 & band 2, ElRP), < 28 dBm (5 GHz, band 3, EIRP); <23dBm (6 GHz, EIRP)Outdoor Mode: < 20 dBm (2.4 GHz, EIRP); < 28 dBm (5 GHz, band 3, EIRP)• FCC: Indoor Mode: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz)Outdoor Mode:< 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Require the use of an Omada controller.

Management Features - Email Alerts

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c

Management Features - System Logging Local/Remote Syslog

Yes

Management Features - Web-based Management

Yes

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• Access Point EAP772-Outdoor• Waterproof Kit• Mounting Kits• Installation Guide

OTHERS - Environment

• Operating Temperature: -30–70 ℃ (-22–158 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - SSH

Yes

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

Management Features - Management VLAN

Yes

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS - System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

HARDWARE FEATURES - Weatherproof Enclosure

IP68

HARDWARE FEATURES - GNSS

L1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signalsReceive sensitivity: -164dBm (tracking)GPS antennas: Integrated 3dBi omnidirectional antennas
