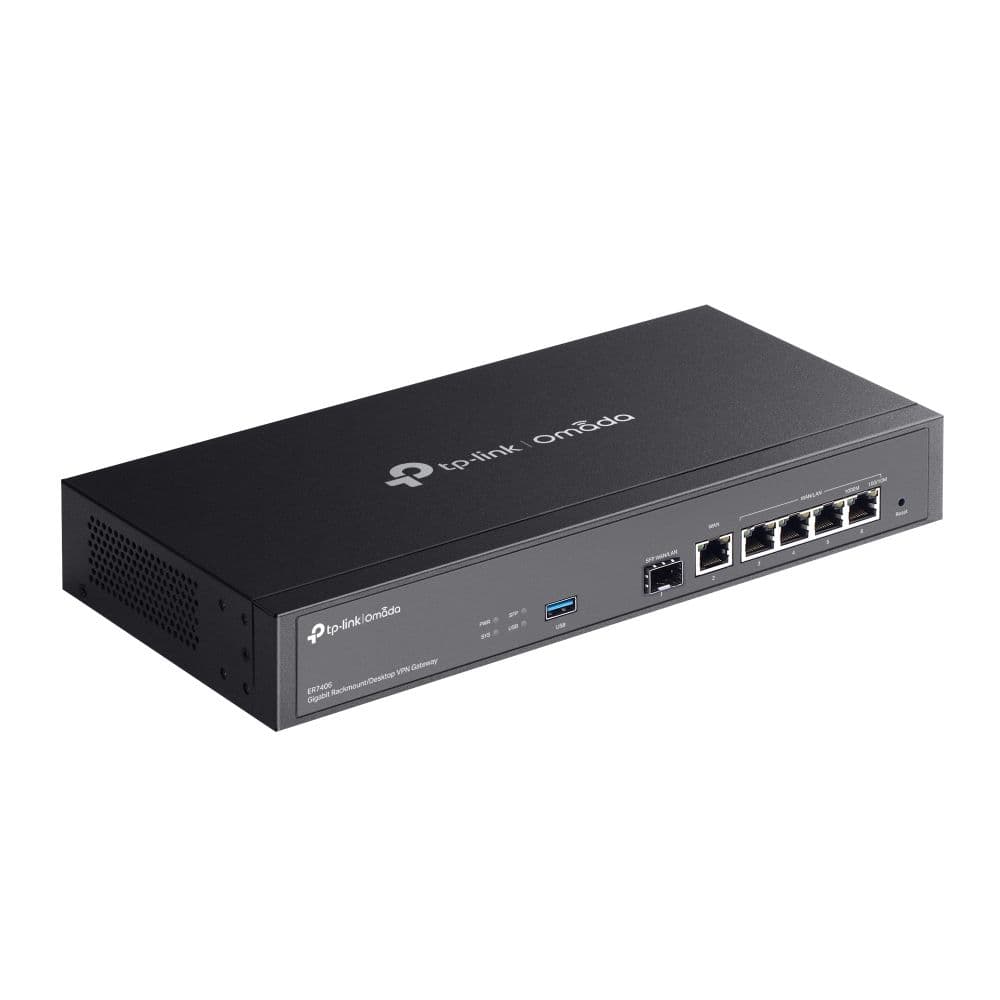

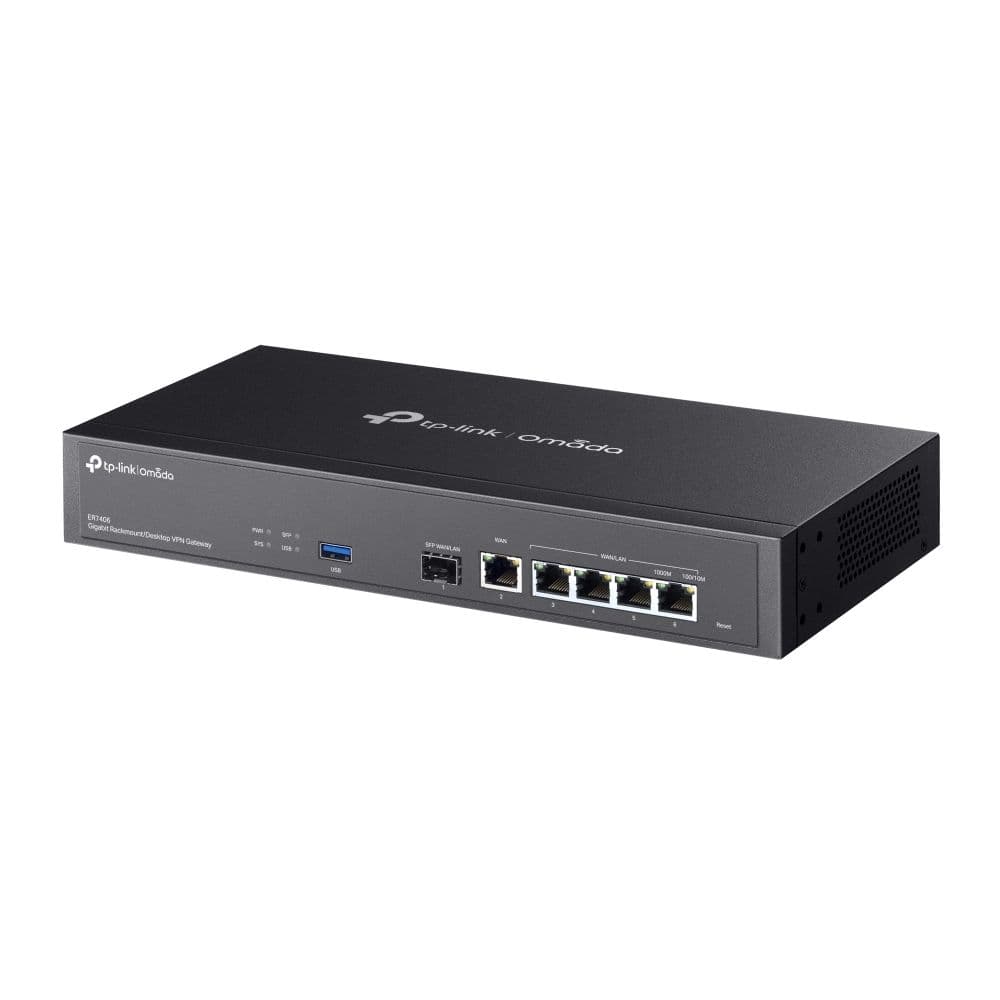

ER7406 - Omada Gigabit Rackmount/Desktop VPN Gateway

HARDWARE FEATURES - Interface

• 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port• 4 Gigabit LAN/WAN Ports • 1 USB 3.0 Port (supports USB LTE dongle and USB storage)

HARDWARE FEATURES - Button

Reset Button

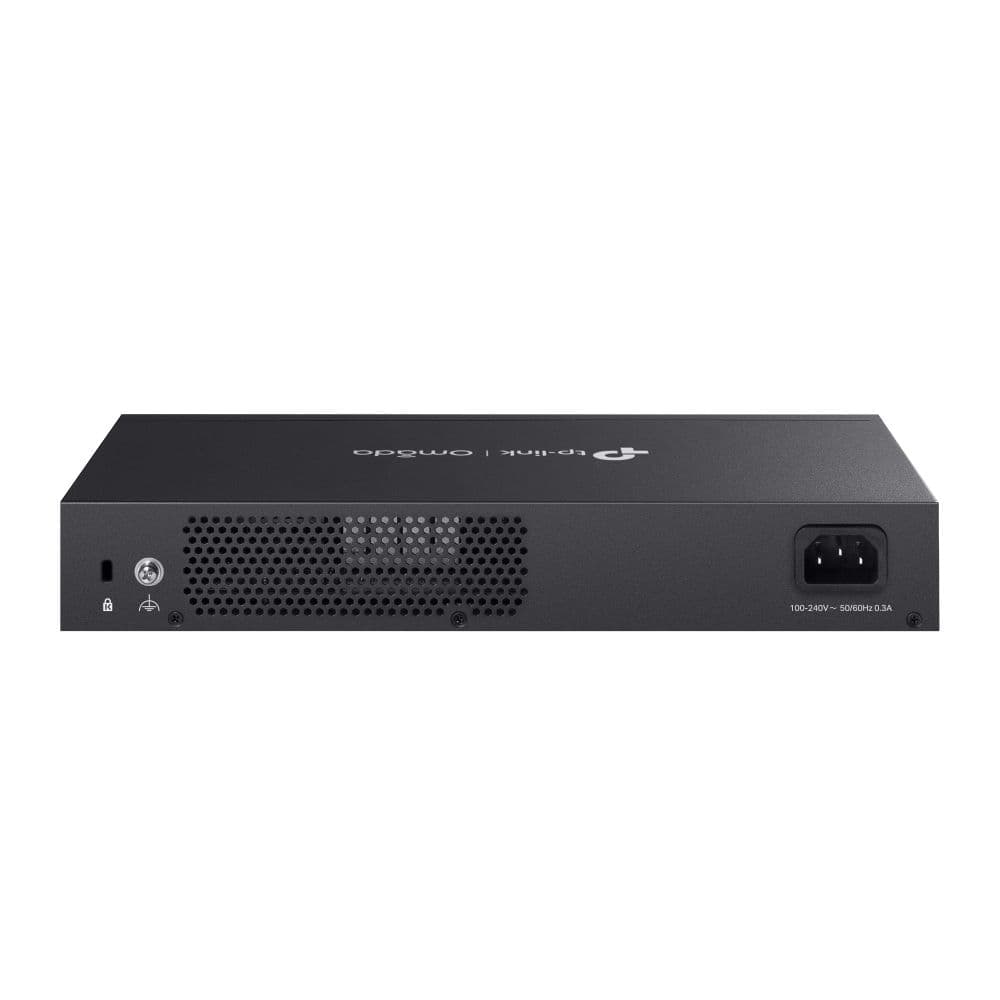

HARDWARE FEATURES - Power Supply

100-240VAC, 50/60Hz

HARDWARE FEATURES - Max. Power Consumption

• 7.5 W (with USB 3.0 connected)• 4.5 W (without USB 3.0 connected)

HARDWARE FEATURES - Dimensions ( W x D x H )

11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)

HARDWARE FEATURES - Mounting

• Desktop• Rackmountable

Management Features - Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• ER7406• Power Cord• Quick Installation Guide• Rackmount Kit

OTHERS - Environment

• Operating Temperature: 0 °C to 50 °C (32 °F to 122°F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller.

OTHERS - System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10• MAC OS, NetWare, UNIX or Linux

Management Features - Management Features

• Automatic Device Discovery*• Batch Configuration*• Batch Firmware Upgrading*• Intelligent Network Monitoring*• Abnormal Event Warnings*• Unified Configuration*• Reboot Schedule*

HARDWARE FEATURES - Fan Quantity

Fanless

HARDWARE FEATURES - Standards and Protocols

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

HARDWARE FEATURES - Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

SECURITY - Access Control

Source/Destination IP Based Access Control

SECURITY - Filtering

• WEB Group Filtering§• URL Filtering• Web Security§

SECURITY - ARP Inspection

• Sending GARP Packets• ARP Scanning§• IP-MAC Binding

SECURITY - Attack Defense

• TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN

HARDWARE FEATURES - Flash

128 MB NAND

HARDWARE FEATURES - DRAM

512 MB DDR4

PERFORMANCE - GRE

• Unencrypted: 611.9 Mbps• Encrypted: 325.0 Mbps

PERFORMANCE - WireGuard VPN

341.3 Mbps

PERFORMANCE - Concurrent Session

150,000

PERFORMANCE - New Sessions /Second

5,300

PERFORMANCE - NAT (Static IP)

945.3 Mbps / 940.5 Mbps

PERFORMANCE - NAT(DHCP)

939.6 Mbps / 940.9 Mbps

PERFORMANCE - NAT(PPPoE)

943.6 Mbps / 940.9 Mbps

PERFORMANCE - NAT (L2TP)

880.1 Mbps / 859.0 Mbps

PERFORMANCE - NAT (PPTP)

855.0 Mbps / 907.2 Mbps

PERFORMANCE - IPsec VPN Throughput

• ESP-SHA1-AES256: 617.1 Mbps• ESP-SHA256-AES256: 592.8 Mbps• ESP-SHA384-AES256: 592.4 Mbps• ESP-SHA512-AES256: 604.5 Mbps

PERFORMANCE - OpenVPN

139.1 Mbps

PERFORMANCE - L2TP VPN Throughput

• Unencrypted: 977.4 Mbps • Encrypted: 334.6 Mbps

PERFORMANCE - PPTP VPN Throughput

• Unencrypted: 1064.1 Mbps • Encrypted: 206.8 Mbps

PERFORMANCE - SSL VPN Throughput

131.6 Mbps

PERFORMANCE - 66 Byte Packet Forwarding Rate

1,453,489 pps / 1,453,488 pps

PERFORMANCE - 1,518 Byte Packet forwarding rate

81,279 pps / 81,275 pps

BASIC FUNCTIONS - WAN Connection Type

• Static IP• Dynamic IP• PPPoE(supports MRU Configuration)• PPTP• L2TP

BASIC FUNCTIONS - MAC Clone

Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)

BASIC FUNCTIONS - DHCP

• DHCP Server• DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP

BASIC FUNCTIONS - IPv6

StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode

BASIC FUNCTIONS - VLAN

802.1Q VLAN

BASIC FUNCTIONS - IPTV

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features - Advanced Routing

• Static Routing• Policy Routing• RIP (available in Standalone Mode)• OSPF (available in Standalone Mode)

Advanced Features - Bandwidth Control

IP-based Bandwidth Control

Advanced Features - Load Balance

• Intelligent Load Balance• Application Optimized Routing• Link Backup (Timing, Failover)• Online Detection

Advanced Features - NAT

• One-to-One NAT• Multi-Net NAT• Port Forwarding• Port Triggering§• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP

Advanced Features - Session Limit

IP-based Session Limit

VPN - SSL VPN

50 Tunnels

VPN - IPsec VPN

• 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)

VPN - PPTP VPN

• PPTP VPN Server• PPTP VPN Client (10)**• 50 Tunnels• PPTP with MPPE Encryption

VPN - L2TP VPN

• L2TP VPN Server • L2TP VPN Client (10)**• 50 Tunnels• L2TP over IPSec

VPN - OpenVPN

• OpenVPN Server • OpenVPN Client (5)**• 55 OpenVPN Tunnels• "Certificate + Account" Mode • Full Mode

VPN - WireGuard VPN

• 20 Tunnels

AUTHENTICATION - Web Authentication

• No Authentication• Simple Password*• Hotspot (Local User /Voucher*/ SMS/Radius*)• External Radius Server• External Portal Sever<*• LDAP§

Management Features - Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Management Features - Maintenance

• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) (only in Standalone Mode) • NTP Synchronize (only in Standalone Mode) • Port Mirroring• CLI (only in Standalone Mode) • Syslog Support

HARDWARE FEATURES - LED

PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)

HARDWARE FEATURES - Protection

4 kV surge protection

HARDWARE FEATURES - Enclosure

Steel

PERFORMANCE - IPS Throughput

TCP: 229 Mbps; UDP: 188 Mbps

PERFORMANCE - DPI Throughput

TCP: 933 Mbps; UDP: 927 Mbps

VPN - SD-WAN

√ (Only in Controller Mode)

VPN - GRE

√ (Only in Standalone Mode)
