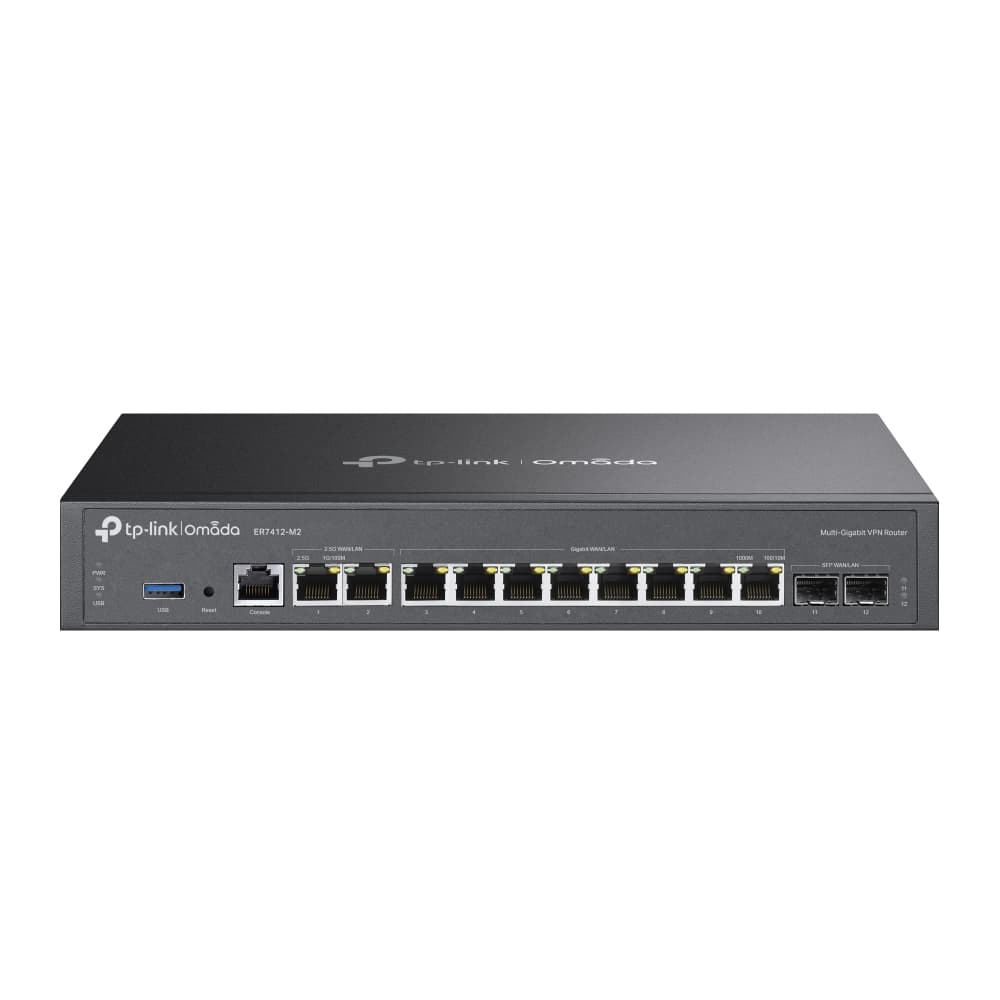

ER7412 M2 - Omada Multi-Gigabit VPN Router

HARDWARE FEATURES - Interface

• 1× 2.5G RJ45 WAN/LAN Port• 1× 2.5G RJ45 WAN/LAN Port• 2× Gigabit SFP WAN/LAN Ports• 8× Gigabit RJ45 WAN/LAN Ports• 1× RJ45 Console Port• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)

HARDWARE FEATURES - Button

Reset Button

HARDWARE FEATURES - Power Supply

100–240 VAC, 50/60 Hz

HARDWARE FEATURES - Max. Power Consumption

18.5W (With USB 3.0 connected)

HARDWARE FEATURES - Dimensions ( W x D x H )

11.6×7.1×1.7 in (294×180×44 mm)

HARDWARE FEATURES - Mounting

• Desktop• Rackmountable

Management Features - Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

CE, FCC

OTHERS - Package Content

• ER7412-M2• Power Cord• Quick Installation Guide• Rackmount Kit• RJ45 Console Cord

OTHERS - Environment

• Operating Temperature: 0–45 ℃ (32–113 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS - System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11• MAC OS, NetWare, UNIX or Linux

Management Features - Management Features

• Automatic Device Discovery*• Batch Configuration*• Batch Firmware Upgrading*• Intelligent Network Monitoring*• Abnormal Event Warnings*• Unified Configuration*• Reboot Schedule*

HARDWARE FEATURES - Standards and Protocols

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

HARDWARE FEATURES - Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)

SECURITY - Access Control

• Source/Destination IP-Based ACL• Stateful ACL• IPv4/IPv6 ACL• National Based ACL

SECURITY - Filtering

• WEB Group Filtering§• URL Filtering• Web Security§

SECURITY - ARP Inspection

• Sending GARP Packets§• ARP Scanning§• IP-MAC Binding§

SECURITY - Attack Defense

• TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN

HARDWARE FEATURES - Flash

128MB NAND

HARDWARE FEATURES - DRAM

1 GB DDR4

PERFORMANCE - GRE

• Unencrypted: 1153.0 Mbps• Encrypted: 559.2 Mbps

PERFORMANCE - WireGuard VPN

771.6 Mbps

PERFORMANCE - Concurrent Session

1,000,000

PERFORMANCE - New Sessions /Second

7,000

PERFORMANCE - NAT (Static IP)

2345.71 Mbps / 2351.22 Mbps

PERFORMANCE - NAT(DHCP)

2353.41 Mbps / 2353.40 Mbps

PERFORMANCE - NAT(PPPoE)

2336.52 Mbps / 2336.08 Mbps

PERFORMANCE - NAT (L2TP)

1937.53 Mbps / 1761.82 Mbps

PERFORMANCE - NAT (PPTP)

1757.54 Mbps / 2011.33 Mbps

PERFORMANCE - IPsec VPN Throughput

• ESP-SHA1-AES256: 1125.60 Mbps• ESP-SHA256-AES256: 1133.1 Mbps• ESP-SHA384-AES256: 1126.6 Mbps• ESP-SHA512-AES256: 1132.8 Mbps

PERFORMANCE - OpenVPN

UDP: 266.2 Mbps

PERFORMANCE - L2TP VPN Throughput

• Unencrypted: 2724.5 Mbps• Encrypted: 1018.4Mbps

PERFORMANCE - PPTP VPN Throughput

• Unencrypted: 3035 Mbps• Encrypted: 534.6 Mbps

PERFORMANCE - SSL VPN Throughput

263.1 Mbps

PERFORMANCE - 66 Byte Packet Forwarding Rate

1833 Mbps / 1835 Mbps

PERFORMANCE - 1,518 Byte Packet forwarding rate

2461 Mbps / 2461 Mbps

BASIC FUNCTIONS - WAN Connection Type

• Static IP/Dynamic IP• PPPoE (supports MRU Configuration)• PPTP• L2TP• Mobile Broadband: 4G/3G modem for backup via USB port

BASIC FUNCTIONS - MAC Clone

Modify WAN/LAN MAC Address†

BASIC FUNCTIONS - DHCP

• DHCP Server• DHCPv6 PD Server (only in Standalone Mode)• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP

BASIC FUNCTIONS - IPv6

StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

BASIC FUNCTIONS - VLAN

802.1Q VLAN

BASIC FUNCTIONS - IPTV

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features - Advanced Routing

• Static Routing• Policy Routing• RIP (available in Standalone Mode)• OSPF (available in Standalone Mode)

Advanced Features - Bandwidth Control

IP/Port-based Bandwidth Control

Advanced Features - Load Balance

• Intelligent Load Balance• Application Optimized Routing• Link Backup (Timing, Failover)• Online Detection

Advanced Features - NAT

• One-to-One NAT§• Multi-Net NAT• Virtual Server• Port Triggering§• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP

Advanced Features - Session Limit

IP-based Session Limit

VPN - SSL VPN

80 Tunnels

VPN - IPsec VPN

• 150 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)

VPN - PPTP VPN

• PPTP VPN Server• PPTP VPN Client (15)**• 150 Tunnels• PPTP with MPPE Encryption

VPN - L2TP VPN

• L2TP VPN Server• L2TP VPN Client (15)**• 150 Tunnels• L2TP over IPSec

VPN - OpenVPN

• OpenVPN Server• OpenVPN Client (11)**• 121 OpenVPN Tunnels• "Certificate + Account" Mode• Full Mode

VPN - WireGuard VPN

• 20 Tunnels

AUTHENTICATION - Web Authentication

• No Authentication• Simple Password*• Hotspot (Local User/Voucher*/SMS*/Radius*)• External Radius Server• External Portal Server*• LDAP

Management Features - Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Management Features - Maintenance

• Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3*• Diagnostics (Ping & Traceroute)§• NTP Synchronize§• Port Mirroring• CLI (only in Standalone Mode)• Syslog Support

HARDWARE FEATURES - Protection

4 kV surge protection

HARDWARE FEATURES - Enclosure

Steel

PERFORMANCE - IPS Throughput

523Mbps

PERFORMANCE - DPI Throughput

2.2Gbps

VPN - GRE

Only in Standalone Mode
