TP-Link

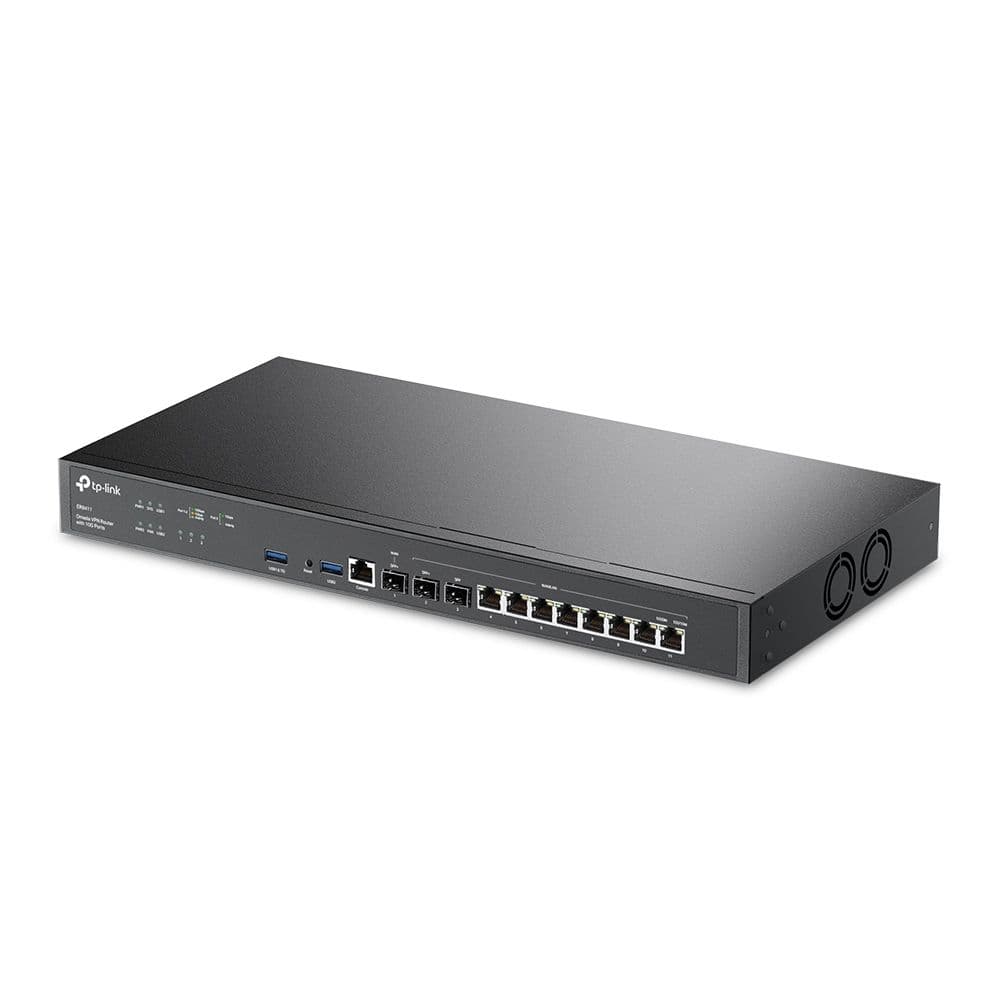

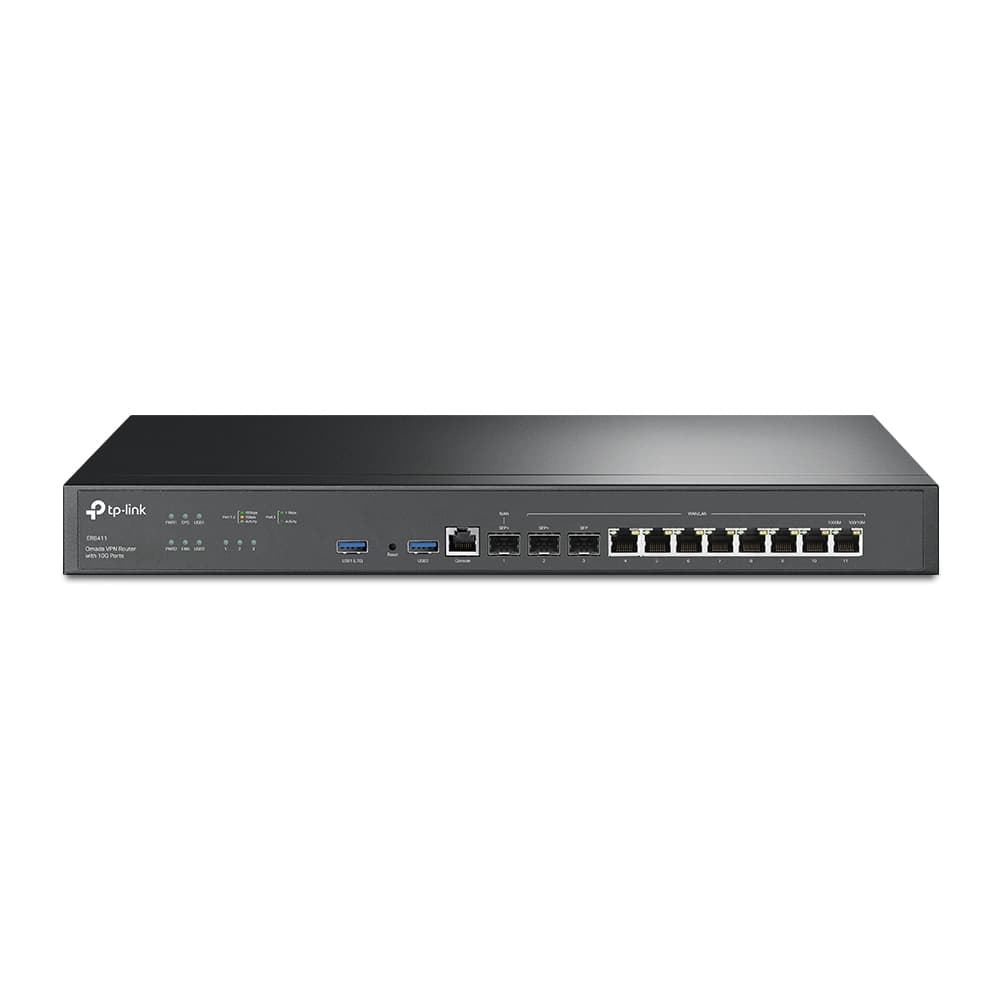

ER8411 - Omada VPN Router with 10G Ports

0,00 ₼

Centralized Cloud Management Seamless integration into the Omada SDN platform

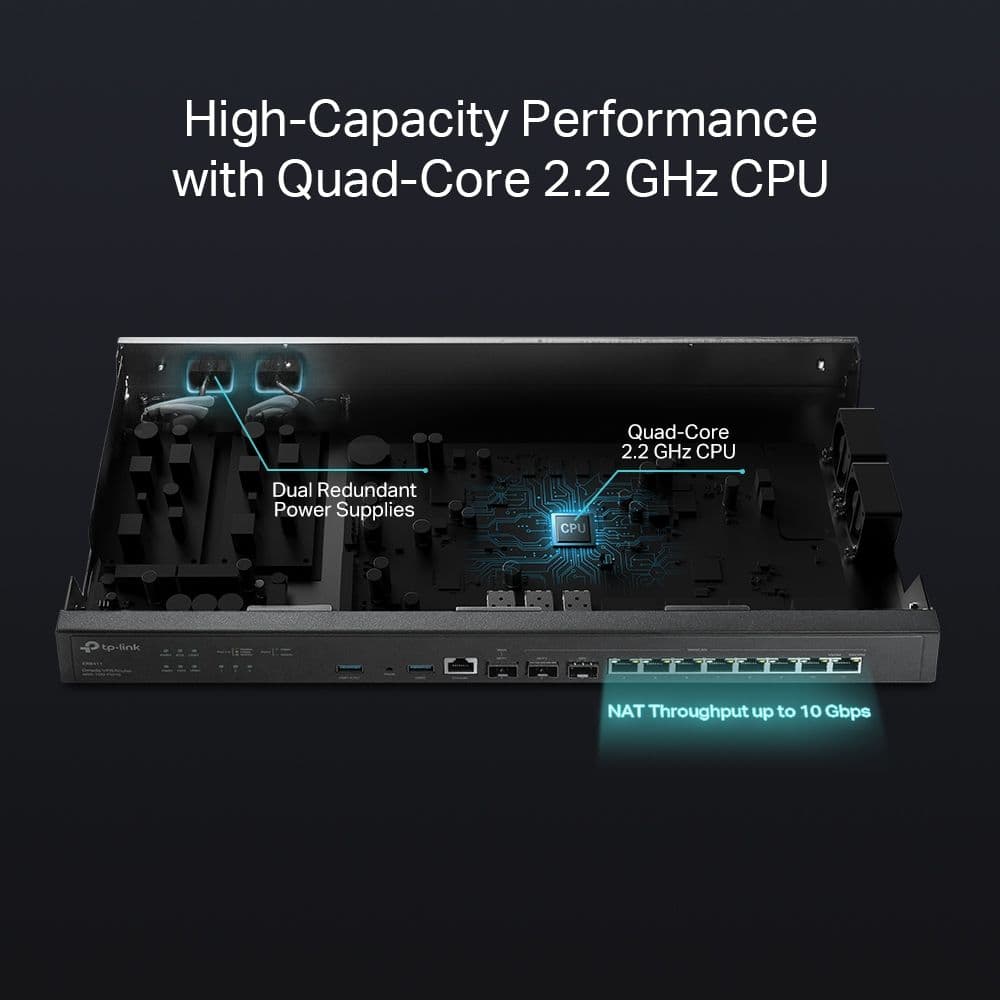

Quad-Core 2.2 GHz CPU Enterprise–level hardware design provides maximum performance
Two 10GE SFP+ Ports High-bandwidth aggregation with 1× WAN and 1× WAN/LAN ports
Up to 10 WAN Ports Multi-WAN Load Balance raises the utilization rate of multi-line broadband*1
Two USB 3.0 Ports Available 4G/3G Modem connection for LTE WAN backup
High-Capacity Performance Supports up to 2,300,000 concurrent sessions

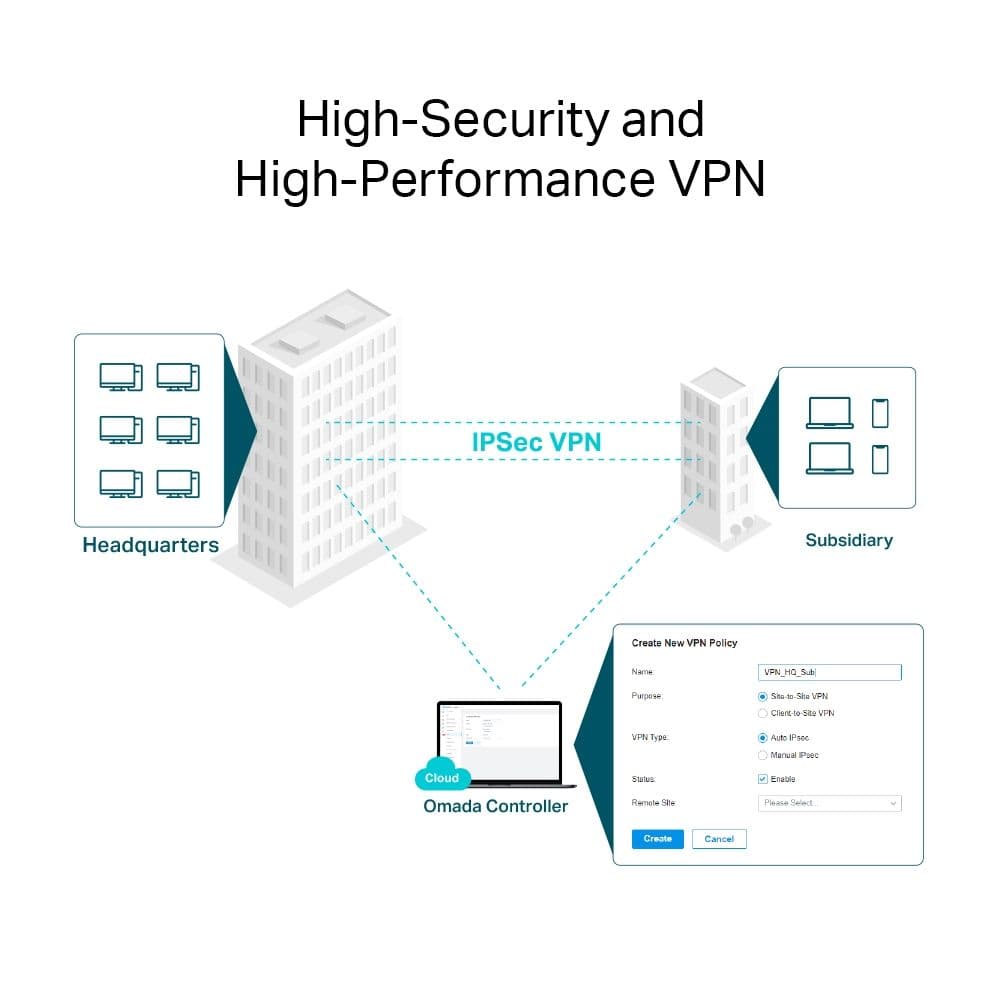

High-Security VPN Enterprise-standard SSL / IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN
Enhanced Security Powerful Firewall, DoS defense, IP/MAC/URL/ Keyword filtering

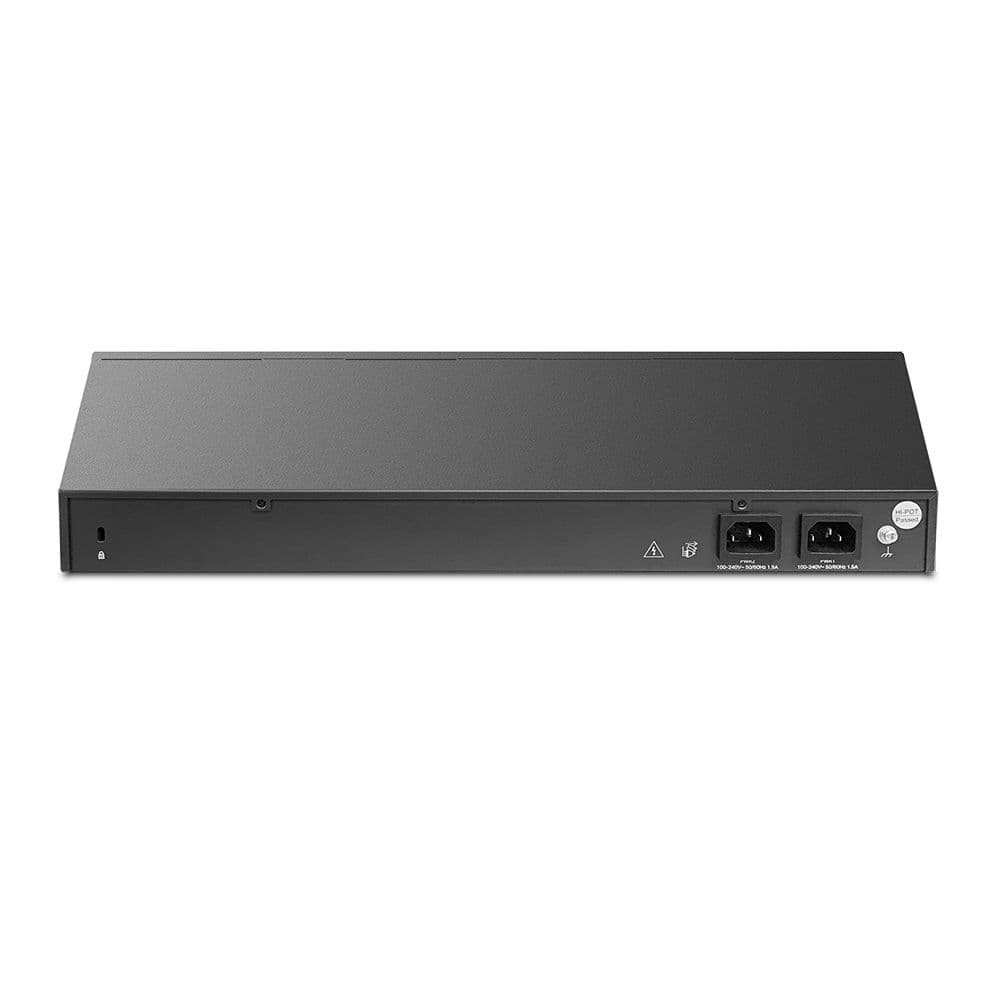

Dual Redundant Power Supplies Carrier-class reliability for enterprise networking

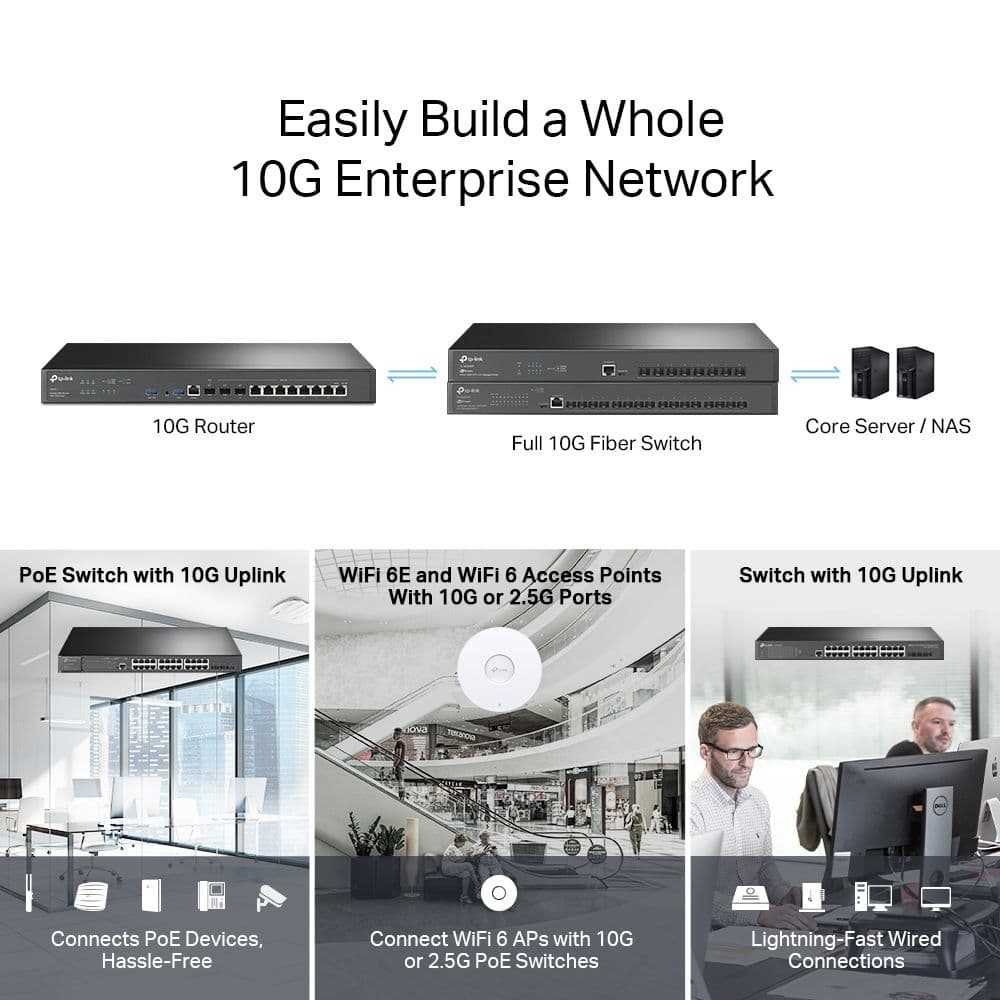

PoE Switch with 10G Uplink Connects PoE Devices, Hassle-Free
WiFi 6E and WiFi 6 Access Points With 10G or 2.5G Ports Connect WiFi 6 APs with 10G or 2.5G PoE Switches
Switch with 10G Uplink Lightning-Fast Wired Connections
Hardware, Software, or Cloud-Based Controllers

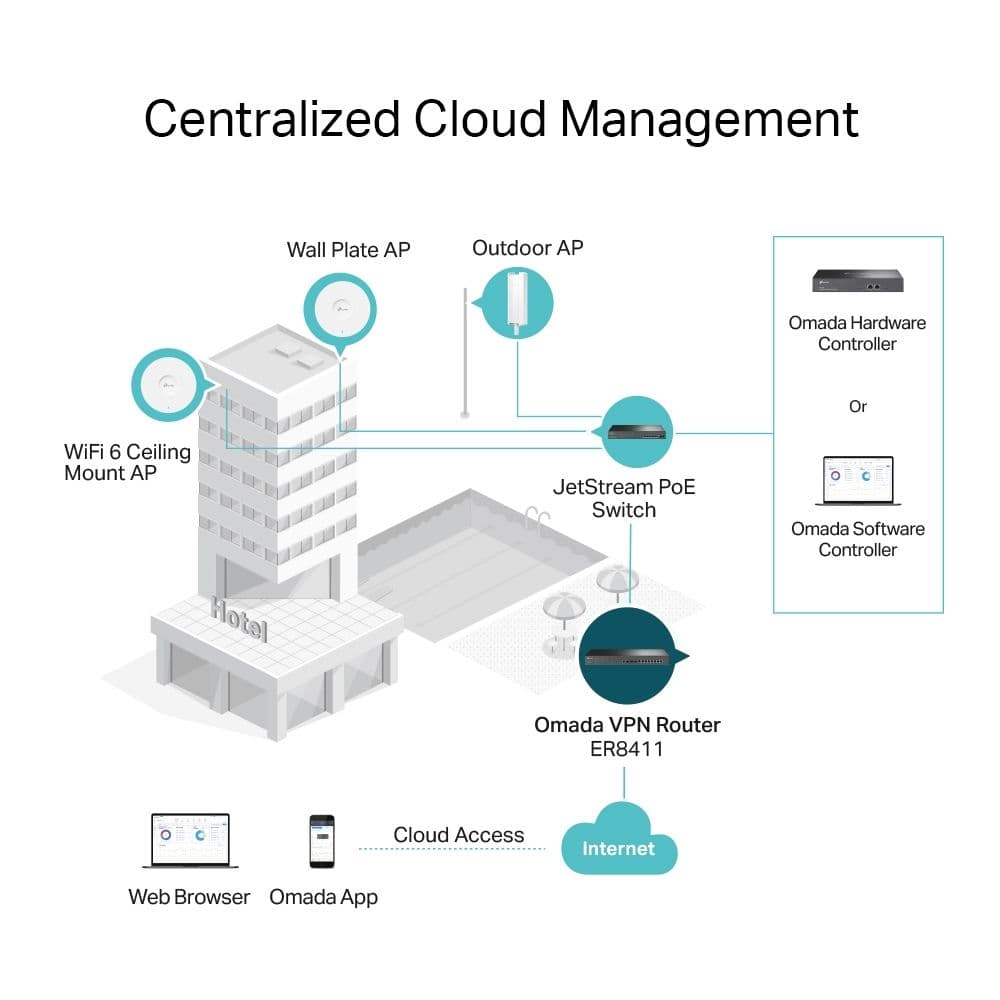

Centralized Cloud Management
Intelligent Monitoring
Zero-Touch Provisioning (ZTP)*3

Low stock

HARDWARE FEATURES - Interface

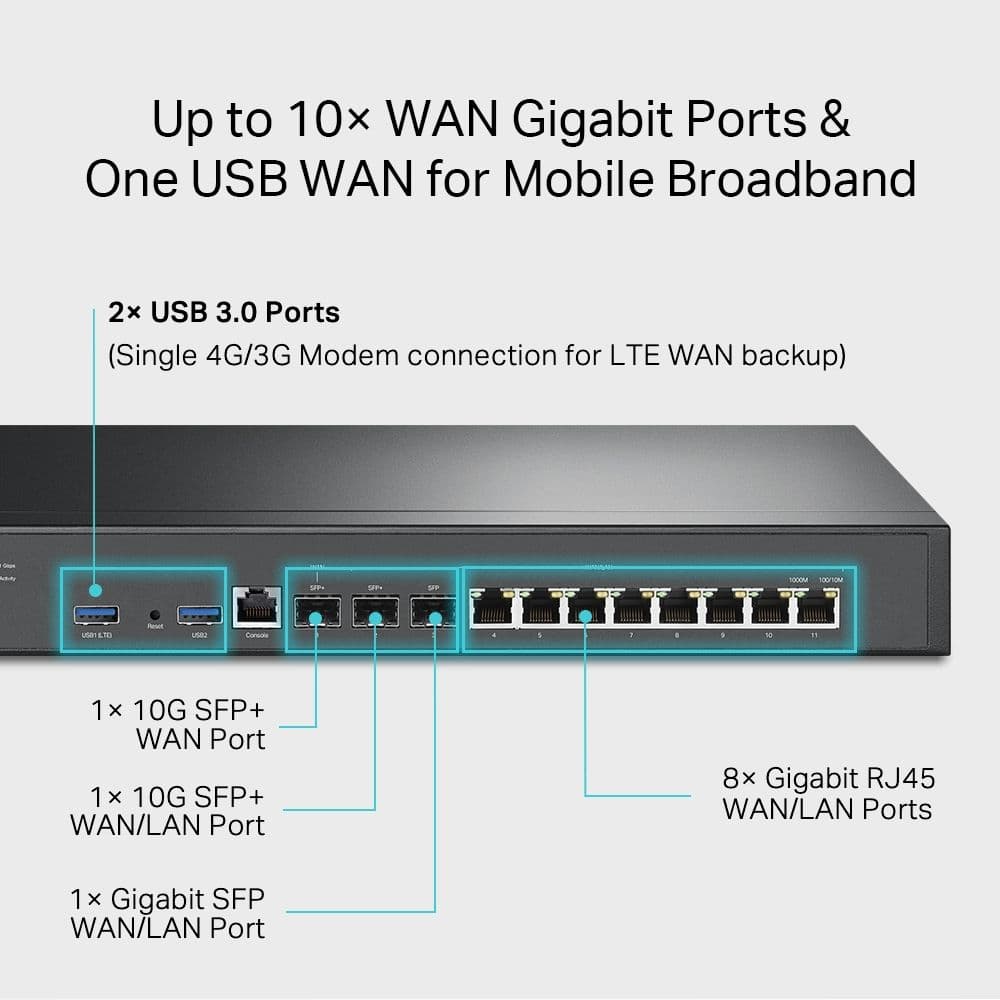

• 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)• 1× 1GE SFP WAN/LAN Ports• 8× 1GE RJ45 WAN/LAN Ports• 1× RJ45 Console Ports• 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)

HARDWARE FEATURES - Button

Reset Button

HARDWARE FEATURES - Power Supply

Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)

HARDWARE FEATURES - Max. Power Consumption

• 26.36 W (with USB 3.0 connected)• 19.12 W (without USB 3.0 connected)

HARDWARE FEATURES - Dimensions ( W x D x H )

17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

HARDWARE FEATURES - Mounting

Rack Mountable

Management Features - Omada App

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller• Omada Cloud-Based Controller

Management Features - Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• Omada 10G Multi-WAN Security Gateway ER8411• Power Cord• Rack-Mount Kit• Quick Installation Guide

OTHERS - Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS - System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux

Management Features - Management Features

• Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration

HARDWARE FEATURES - Fan Quantity

HARDWARE FEATURES - Standards and Protocols

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN

HARDWARE FEATURES - Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)EIA/TIA-568 100Ω STP (Max 100 m)• 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)

SECURITY - Access Control

Source/Destination IP Based Access Control

SECURITY - Filtering

• WEB Group Filtering*5• URL Filtering• Web Security*5

SECURITY - ARP Inspection

• Sending GARP Packets*5• ARP Scanning*5• IP-MAC Binding*5

SECURITY - Attack Defense

• TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN

HARDWARE FEATURES - Flash

4MB SPI NOR + 256 MB NAND

HARDWARE FEATURES - DRAM

4 GB DDR4

PERFORMANCE - WireGuard VPN

1411 Mbps

PERFORMANCE - Concurrent Session

2,300,000

PERFORMANCE - New Sessions /Second

20,000

PERFORMANCE - NAT (Static IP)

• Upload: 9445.82 Mbps• Download: 9449.26 Mbps

PERFORMANCE - NAT(DHCP)

• Upload: 9426.83 Mbps• Download: 9426.20 Mbps

PERFORMANCE - NAT(PPPoE)

• Upload: 9413.96 Mbps• Download: 9102.01 Mbps

PERFORMANCE - NAT (L2TP)

• Upload: 4230.62 Mbps• Download: 4169.53 Mbps

PERFORMANCE - NAT (PPTP)

• Upload: 3933.86 Mbps• Download: 3821.97 Mbps

PERFORMANCE - IPsec VPN Throughput

• SHA1-AES256: 2140.45 Mbps• SHA2-AES256: 2080.20 Mbps

PERFORMANCE - OpenVPN

1665.64 Mbps

PERFORMANCE - L2TP VPN Throughput

• Unencrypted: 5013.50 Mbps• Encrypted: 2274.74 Mbps

PERFORMANCE - PPTP VPN Throughput

• Unencrypted: 10143 Mbps• Encrypted: 952 Mbps

PERFORMANCE - SSL VPN Throughput

1511.10 Mbps

PERFORMANCE - 66 Byte Packet Forwarding Rate

PERFORMANCE - 1,518 Byte Packet forwarding rate

• Upload: 9970 Mbps• Download: 9970 Mbps

BASIC FUNCTIONS - WAN Connection Type

• Static/Dynamic IP• PPPoE• PPTP• L2TP• 6to4 Tunnel• Pass-Through• Mobile Broadband: 4G/3G modem for backup via USB port

BASIC FUNCTIONS - MAC Clone

Modify WAN/LAN MAC Address*4

BASIC FUNCTIONS - DHCP

• DHCP Server/Client• DHCP Address Reservation• Multi-net DHCP• Multi-IP Interfaces

BASIC FUNCTIONS - IPv6

WAN Connection

BASIC FUNCTIONS - VLAN

802.1Q VLAN

BASIC FUNCTIONS - IPTV

IGMP v2/v3 Proxy

Advanced Features - Advanced Routing

• Static Routing• Policy Routing

Advanced Features - Bandwidth Control

• IP/Port-based Bandwidth Control• Guarantee & Limited Bandwidth

Advanced Features - Load Balance

• Intelligent Load Balance• Application Optimized Routing• Link Backup (Timing*5, Failover)• Online Detection

Advanced Features - NAT

• One-to-One NAT*5• Multi-Net NAT• Virtual Server• Port Triggering*5• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP

Advanced Features - Session Limit

IP-based Session Limit

VPN - SSL VPN

• SSL VPN Server• SSL VPN Client• 500 OpenVPN Tunnels

VPN - IPsec VPN

• 300 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm• IKE v1/v2• MD5, SHA1 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)

VPN - PPTP VPN

• PPTP VPN Server• PPTP VPN Client (32)*6• 300 Tunnels (Shared with L2TP)• PPTP with MPPE Encryption

VPN - L2TP VPN

• L2TP VPN Server• L2TP VPN Client (32)*6• 300 Tunnels (Shared with PPTP)• L2TP over IPSec

VPN - OpenVPN

• OpenVPN Server• OpenVPN Client (10)*6• 110 OpenVPN Tunnels

VPN - WireGuard VPN

• 300 Tunnels

AUTHENTICATION - Web Authentication

• No Authentication• Simple Password*2• Hotspot（Local User / Voucher*2 / SMS*2 / Radius*2）• External Radius Sever• External Portal Sever*2• Facebook Check-In*2• Instagram Follow*2

Management Features - Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Management Features - Maintenance

• Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute)*5• NTP Synchronize*5• Syslog Support

HARDWARE FEATURES - PoE Budget

HARDWARE FEATURES - LED

PWR, SYS, WAN, LAN, USB, FAN

HARDWARE FEATURES - Protection

4 kV surge protection

HARDWARE FEATURES - Enclosure

Steel

PERFORMANCE - IPS Throughput

TCP: 4924 Mbps;UDP: 4521 Mbps

PERFORMANCE - DPI Throughput

TCP: 5524 Mbps; UDP: 3547 Mbps

PERFORMANCE - 64 Byte Packet Forwarding Rate

• Upload: 1080 Mbps• Download: 1030 Mbps

Advanced Features - Access Control

IP/Port/Protocol/Domain Name Filtering

Advanced Features - Security

• SPI Firewall• VPN Passthrough• FTP/H.323/PPTP/SIP/IPsec ALG• DoS Defence, Ping of Death• Local Management

VPN - SD-WAN

√ (Only in Controller Mode)
