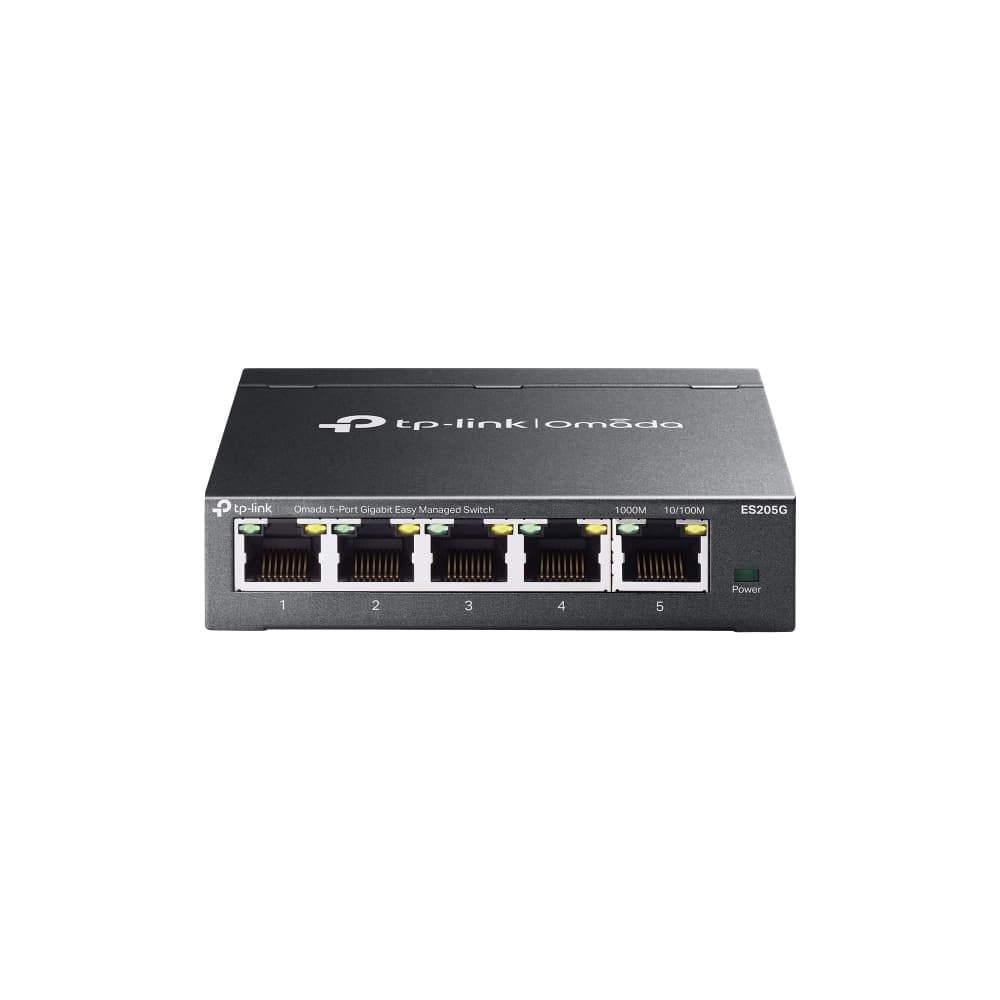

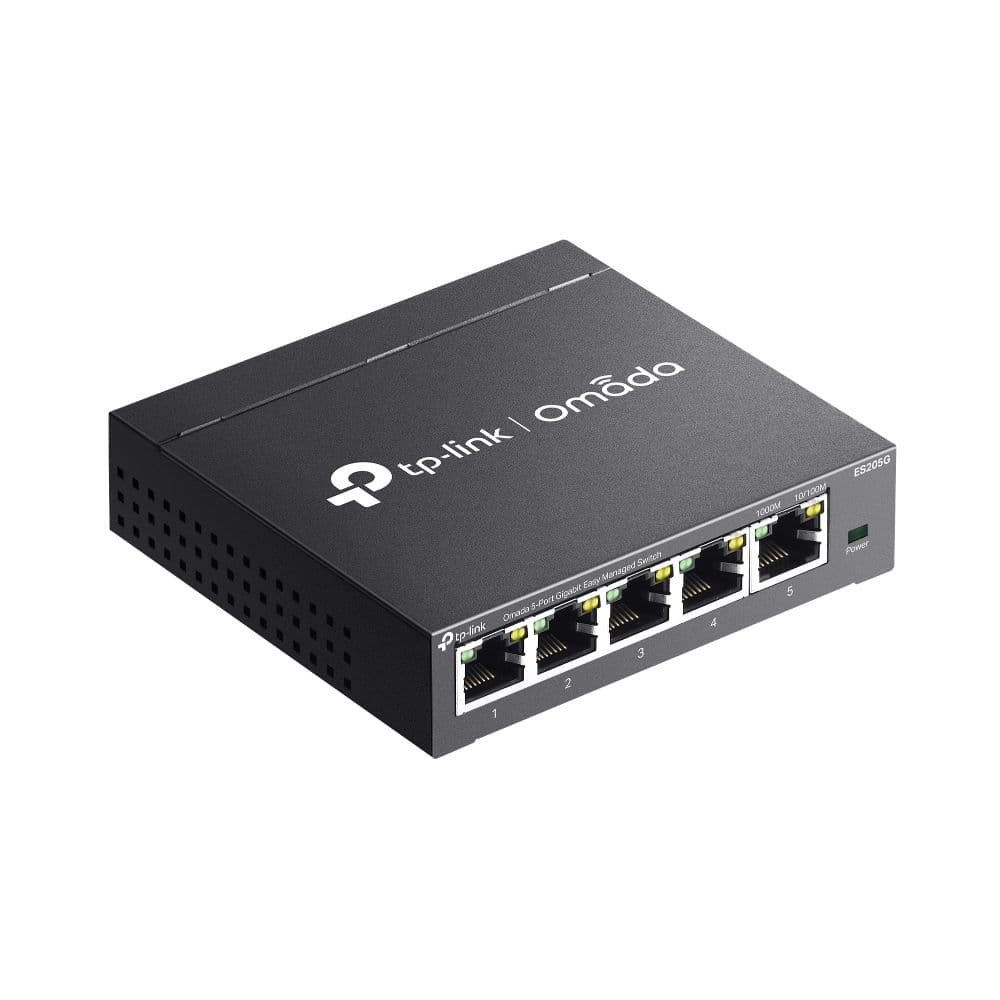

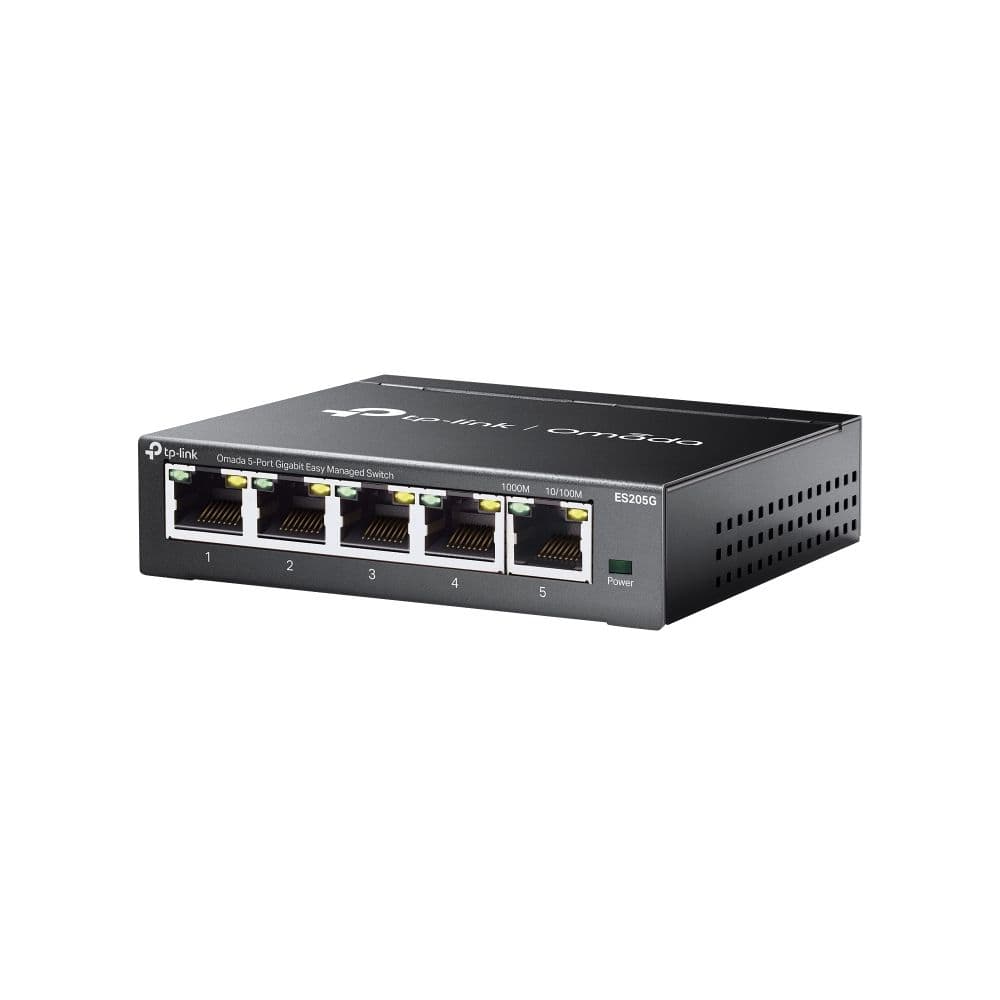

ES205G - Omada 5-Port Gigabit Easy Managed Switch

HARDWARE FEATURES - Interface

• 5× 10/100/1000 Mbps RJ45 Ports• AUTO Negotiation/AUTO MDI/MDIX

HARDWARE FEATURES - Power Supply

External DC Power Adapter (Output: 5 VDC/ 0.6 A)

HARDWARE FEATURES - Dimensions ( W x D x H )

3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

Management Features - Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

FCC, CE, RoHS

OTHERS - Package Content

• ES205G• Power Adapter• Installation Guide• Rubber Feet

OTHERS - Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

HARDWARE FEATURES - Physical Security Lock

√

PERFORMANCE - Packet Buffer Memory

4 Mbits

PERFORMANCE - Jumbo Frame

15 KB

PERFORMANCE - Switching Capacity

10 Gbps

PERFORMANCE - Packet Forwarding Rate

7.4 Mpps

PERFORMANCE - MAC Address Table

8 K

Management Features - Management Features

• Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†

HARDWARE FEATURES - Fan Quantity

Fanless

SOFTWARE FEATURES - Quality of Service

• Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△

SOFTWARE FEATURES - VLAN

• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID

SOFTWARE FEATURES - L2 Multicast

• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave

HARDWARE FEATURES - Surge Protection

±6kV

HARDWARE FEATURES - Installation

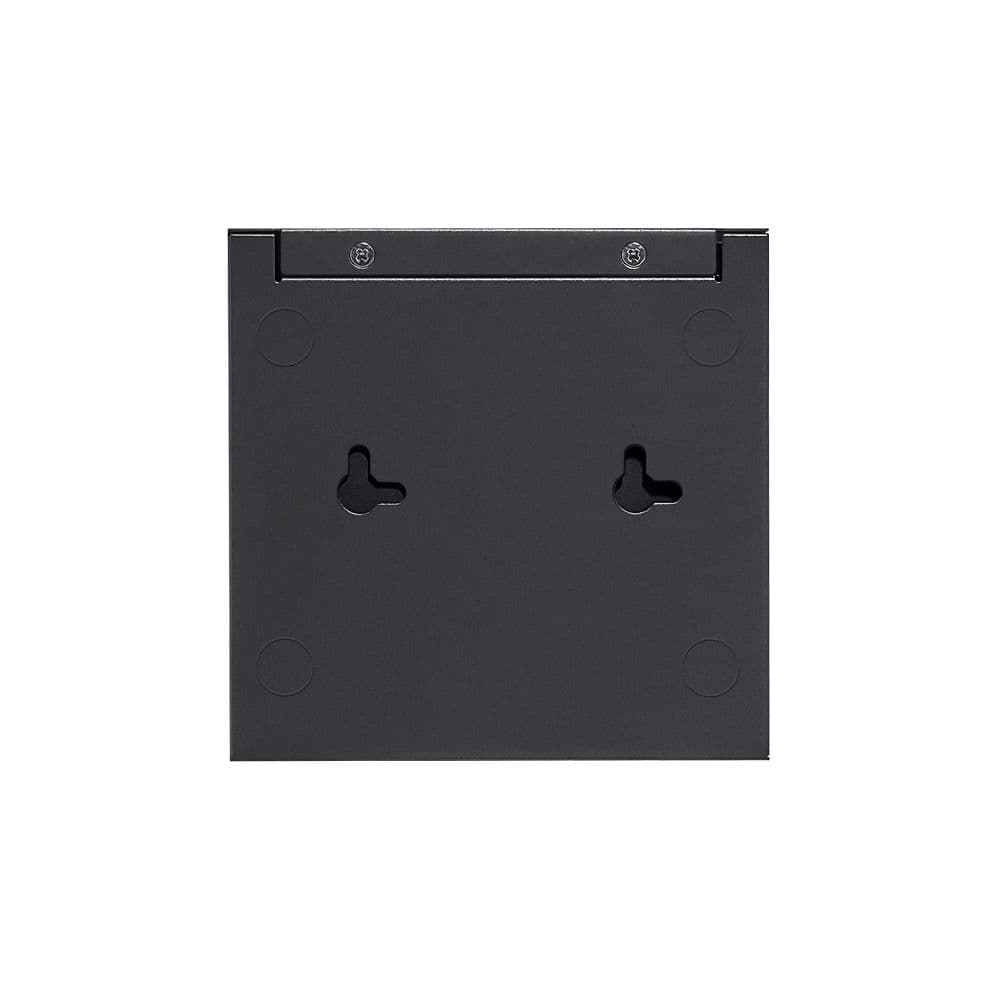

• Desktop• Wall Mount

SOFTWARE FEATURES - L2 Features

• Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP

SOFTWARE FEATURES - Transmission Method

Store-And-Forward
