TP-Link

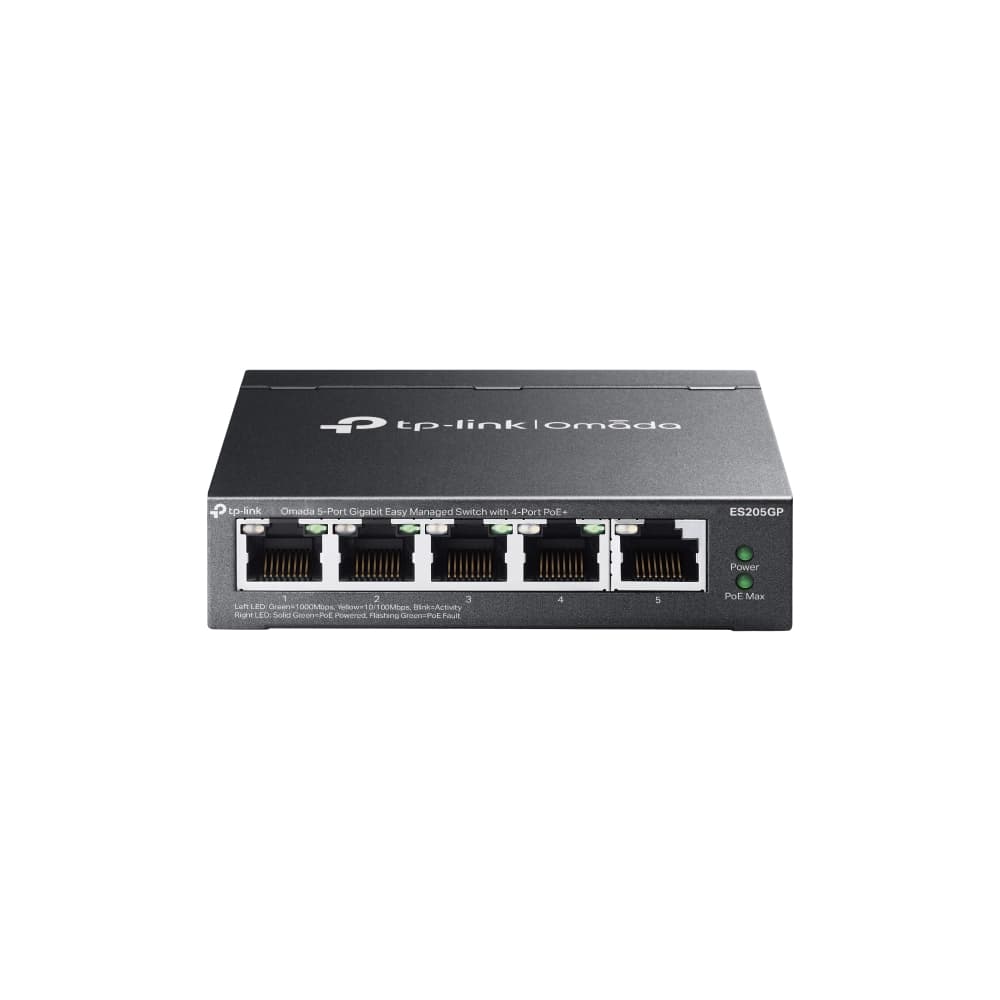

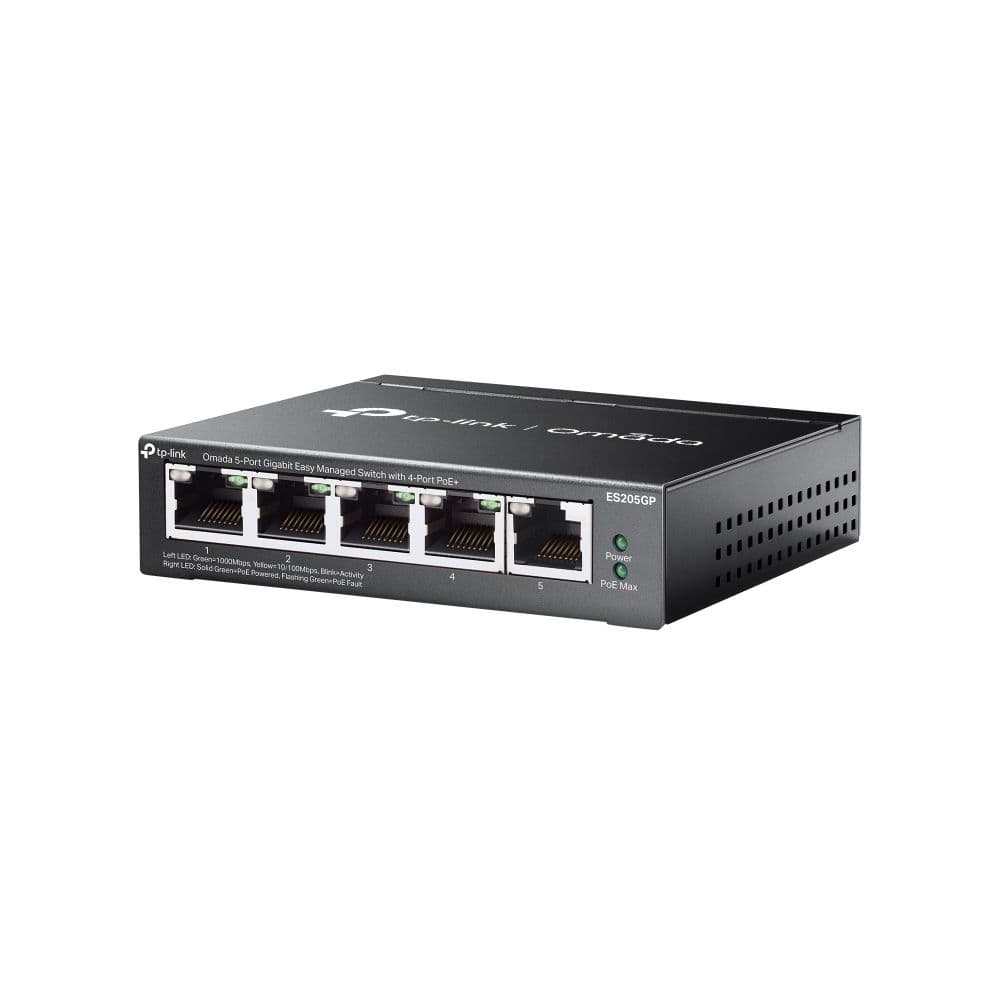

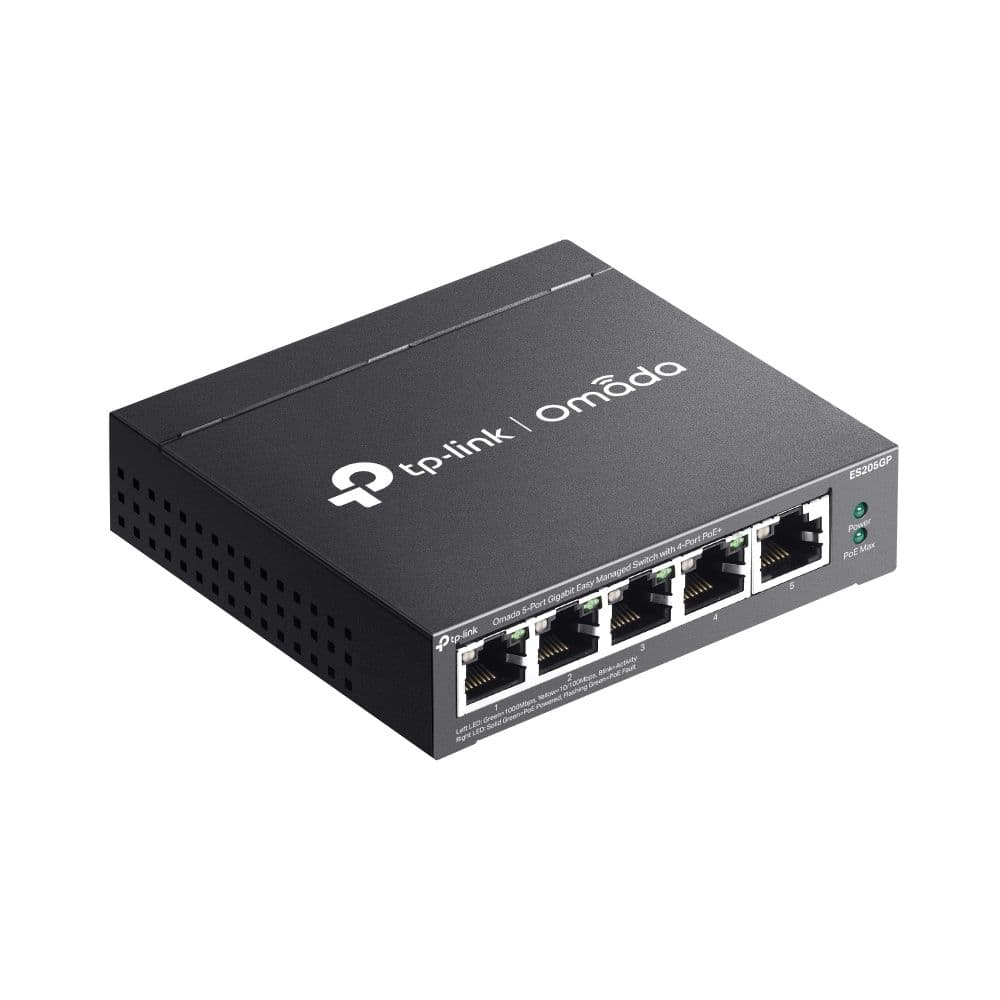

ES205GP - Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

0,00 ₼

5× Gigabit RJ45 Ports (4× PoE+)
65W Total PoE Budget*
Fanless Design for Silent Operation
Easy Centralized Management†
Automatic Loop Prevention
PoE Auto Recovery‡
Traffic Separation
Traffic Prioritization△
Easy to Use
Hardware, Software, or Cloud-Based Controllers
Centralized Management via Web or Omada App
Zero-Touch Provisioning (ZTP)†
Transmission Distance up to 250 m**
Priority Video Quality Guaranteed△
Secure Traffic Separation via Port Isolation
PoE Auto Recovery‡
Surveillance Works with IP Cameras
Wi-Fi Coverage Works with Access Points
Wired Connections Works with Non-PoE Devices such as PCs and Printers

Low stock

HARDWARE FEATURES - Interface

• 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE)• Auto-Negotiation/Auto MDI/MDIX

HARDWARE FEATURES - Power Supply

DC Power Adapter (Output: 53.5 VDC/ 1.31 A)

HARDWARE FEATURES - Dimensions ( W x D x H )

3.9×3.9×1.0 in (100×98×25 mm)

Management Features - Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

FCC, CE, RoHS

OTHERS - Package Content

• ES205GP• Power Adapter• Installation Guide• Rubber Feet

OTHERS - Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

HARDWARE FEATURES - Physical Security Lock

√

PERFORMANCE - Packet Buffer Memory

4 Mbit

PERFORMANCE - Jumbo Frame

15 KB

PERFORMANCE - Switching Capacity

10 Gbps

PERFORMANCE - Packet Forwarding Rate

7.4 Mpps

PERFORMANCE - MAC Address Table

Management Features - Management Features

• Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†

HARDWARE FEATURES - Fan Quantity

Fanless

SOFTWARE FEATURES - Quality of Service

• Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△

SOFTWARE FEATURES - VLAN

• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID

HARDWARE FEATURES - PoE Ports (RJ45)

• Standard: 802.3af PoE and 802.3at PoE+ compliant• PoE Ports: 4 ports• PoE Budget: 65 W available for all PoE+ ports, 30W max per port• PoE Auto Recovery‡• Up to 250m PoE transmission distance**

SOFTWARE FEATURES - L2 Multicast

• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave

HARDWARE FEATURES - Surge Protection

±6kV

HARDWARE FEATURES - Installation

• Desktop• Wall Mount

SOFTWARE FEATURES - L2 Features

• Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP

SOFTWARE FEATURES - Transmission Method

Store-And-Forward
