TP-Link

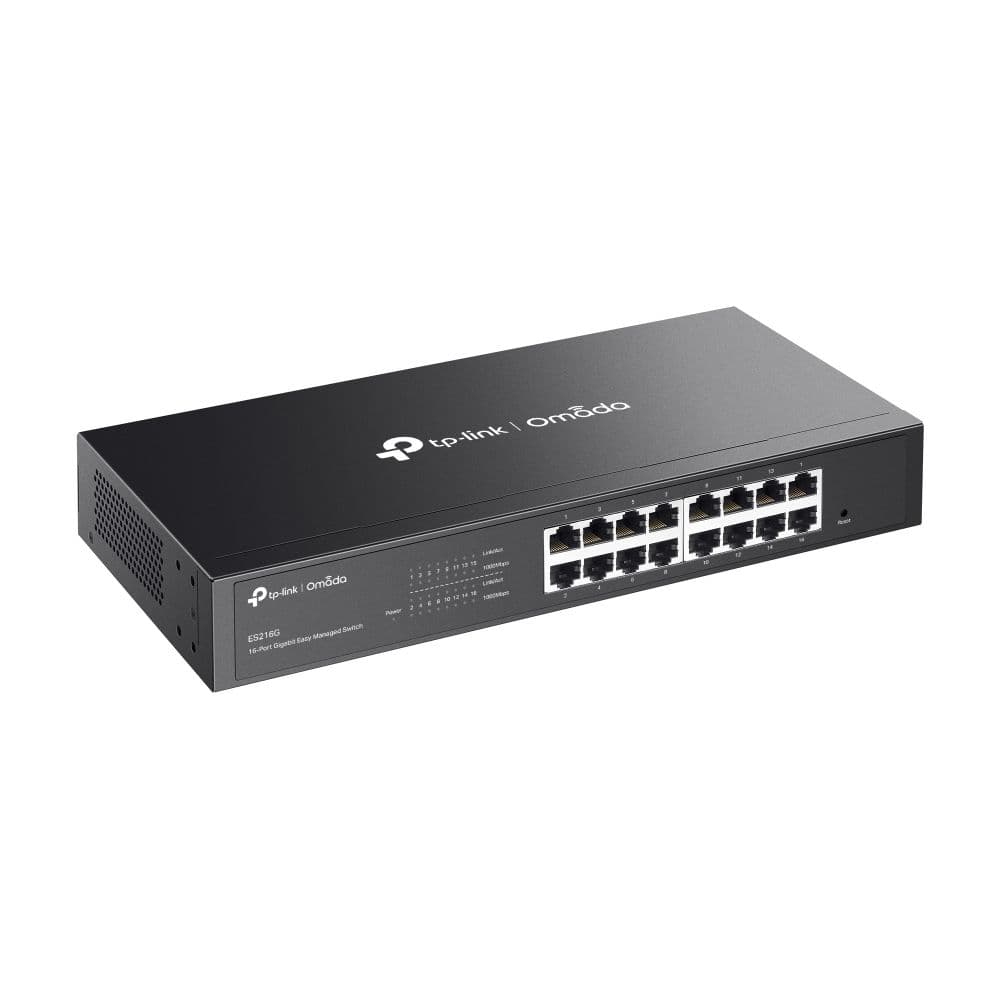

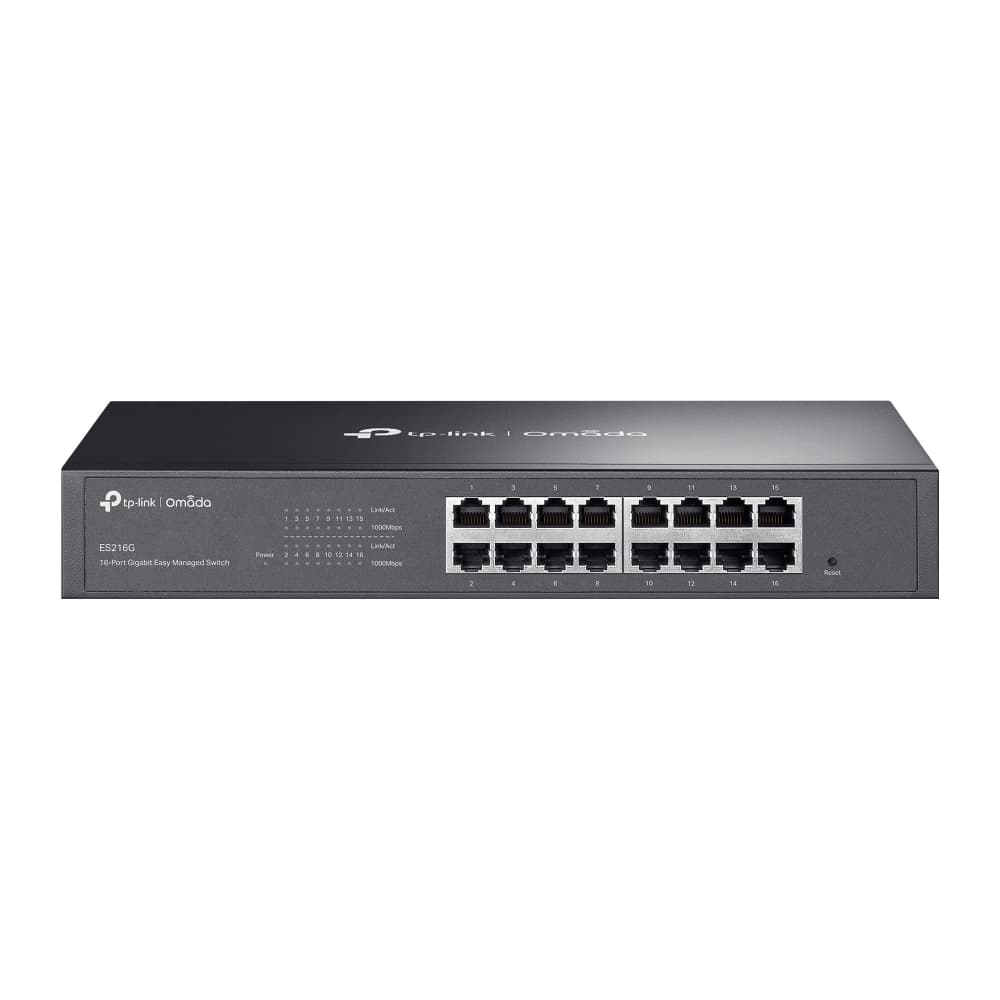

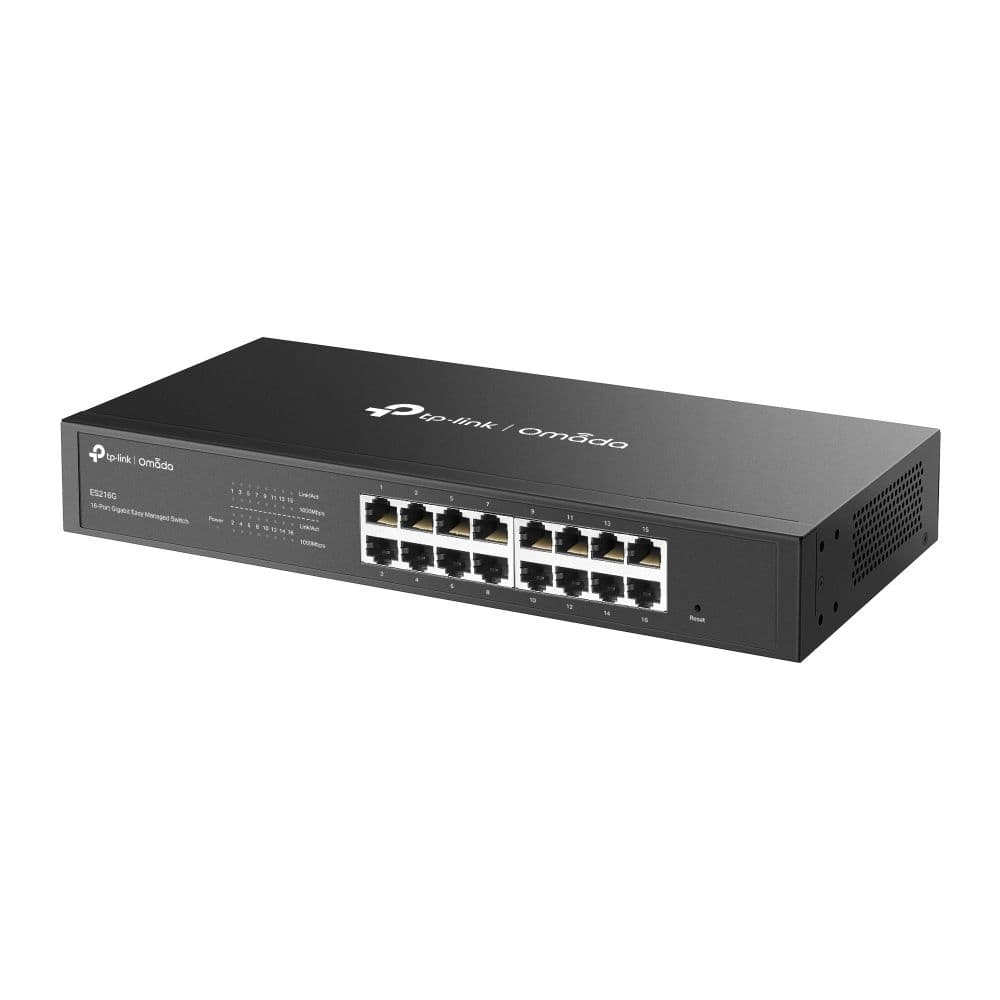

ES216G - Omada 16-Port Gigabit Easy Managed Switch

0,00 ₼

16× Gigabit RJ45 Ports
Fanless Design for Silent Operation
Easy Centralized Management†
Omada App†
Traffic Separation
Traffic Prioritization△
Automatic Loop Prevention
Cable Test△
Lifetime Free Cloud without Any Additional Fees
Exists Entirely in the Cloud. No Hardware or Software Controller Needed
Cloud Centralized Management for Multiple Sites
Access Anytime via Omada App or Web
Easy Setup, Use, and Maintenance
Unlimited Management Scale
Zero-Touch Provisioning (ZTP) without Unboxing *The gateway requires one-step configuration
Seamlessly Upgrade to Omada Cloud Standard with a Subscription *Available from Q2 2025.
Secure Traffic Separation
Priority Video Quality Guaranteed△
Safer Camera Networking via Port Isolation
Simplify Maintenance with Cable Test△

Low stock

HARDWARE FEATURES - Interface

• 16× 10/100/1000 Mbps RJ45 Ports• Auto-Negotiation/Auto MDI/MDIX

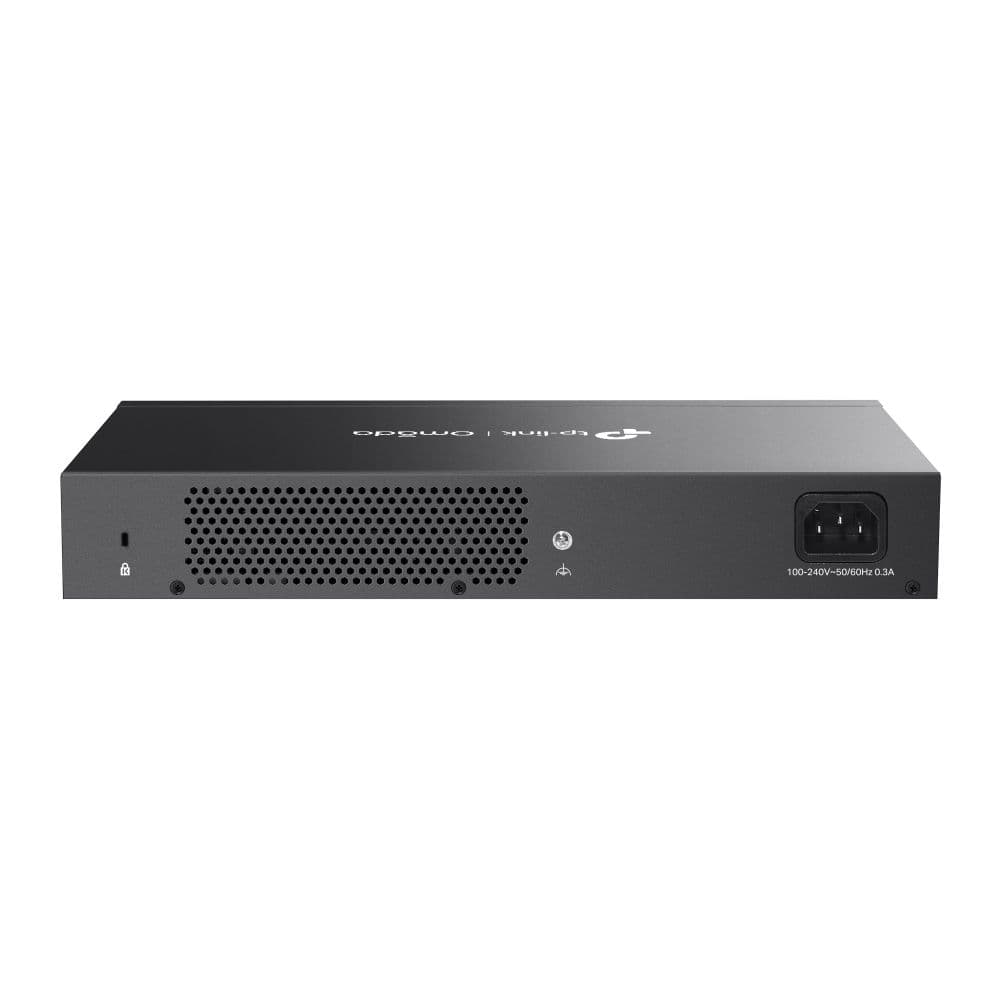

HARDWARE FEATURES - Power Supply

100-240 V~50/60 Hz

HARDWARE FEATURES - Dimensions ( W x D x H )

11.6 × 5.5 × 1.7 in (294× 140 × 44 mm)

Management Features - Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

FCC, CE, RoHS

OTHERS - Package Content

• ES216G• Power Cord• Rubber Feet• Mounting Brackets• Screws• Installation Guide

OTHERS - Environment

• Operating Temperature: -5℃~50℃ (23℉~122℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

HARDWARE FEATURES - Physical Security Lock

√

PERFORMANCE - Packet Buffer Memory

4 Mbit

PERFORMANCE - Jumbo Frame

15 KB

PERFORMANCE - Switching Capacity

32 Gbps

PERFORMANCE - Packet Forwarding Rate

23.8 Mpps

PERFORMANCE - MAC Address Table

Management Features - Management Features

• Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†

HARDWARE FEATURES - Fan Quantity

Fanless

SOFTWARE FEATURES - Quality of Service

• Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△

SOFTWARE FEATURES - VLAN

• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID

SOFTWARE FEATURES - L2 Multicast

• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave

HARDWARE FEATURES - Surge Protection

±6kV

HARDWARE FEATURES - Installation

• Desktop• Rackmountable

SOFTWARE FEATURES - L2 Features

• Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP

SOFTWARE FEATURES - Transmission Method

Store-And-Forward
