1 / 5

TP-Link

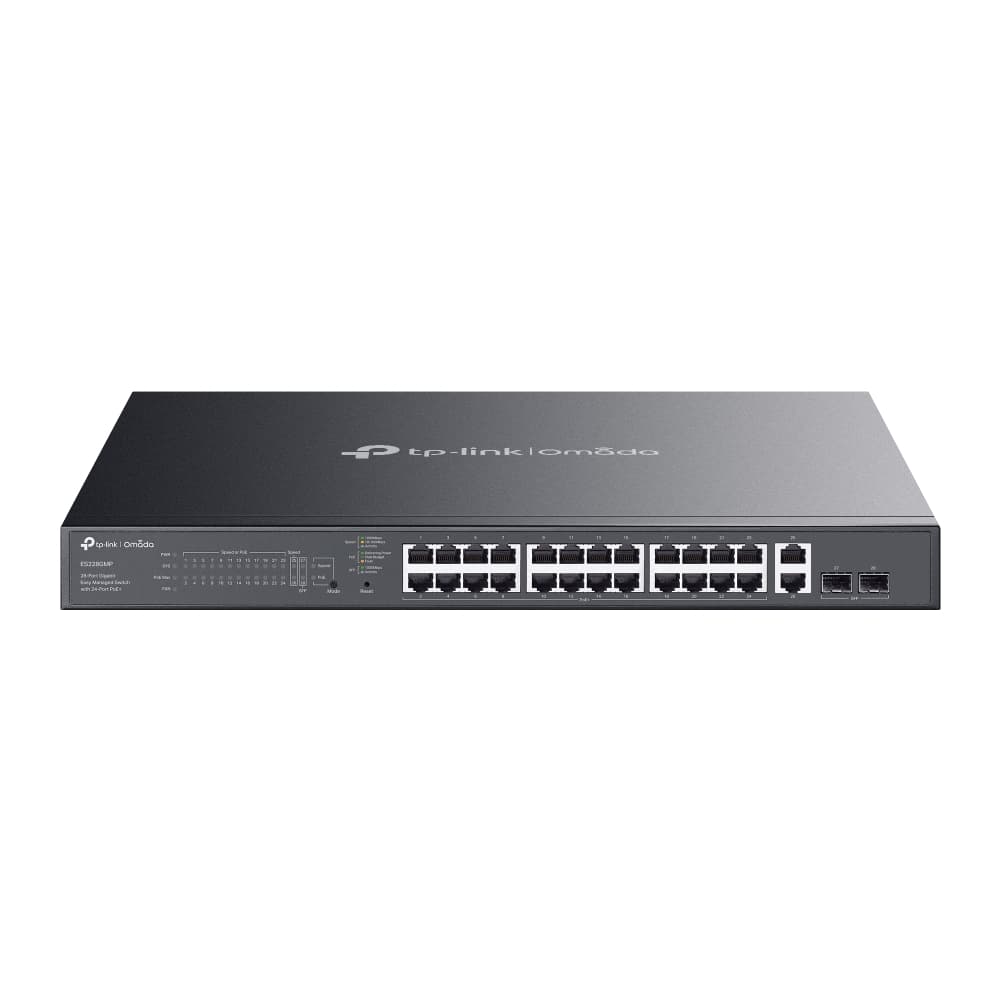

ES228GMP - Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

0,00 ₼

28× Gigabit Ports (24× PoE+, 2× RJ45, 2× SFP)
384W Total PoE Budget*
Up to 250m PoE Transmission**
Easy Centralized Management§
Automatic Loop Prevention
PoE Auto Recovery‡
Traffic Separation
Traffic Prioritization△
Lifetime Free Cloud without Any Additional Fees
Exists Entirely in the Cloud. No Hardware or Software Controller Needed
Cloud Centralized Management for Multiple Sites
Access Anytime via Omada App or Web
Easy Setup, Use, and Maintenance
Unlimited Management Scale
Zero-Touch Provisioning (ZTP) without Unboxing *The gateway requires one-step configuration
Seamlessly Upgrade to Omada Cloud Standard with a Subscription *Available from Q2 2025.
Transmission Distance up to 250 m**
Priority Video Quality Guaranteed△
Secure Traffic Separation via Port Isolation
PoE Auto Recovery‡
Surveillance Works with IP Cameras
Wi-Fi Coverage Works with Access Points
Wired Connections Works with Non-PoE Devices such as PCs and Printers

Low stock

HARDWARE FEATURES - Interface

• 24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)• 2× 10/100/1000 Mbps RJ45 Port• 2× Gigabit SFP Slot• Auto-Negotiation/Auto MDI/MDIX

HARDWARE FEATURES - Power Supply

100–240V AC, 50/60Hz

HARDWARE FEATURES - Dimensions ( W x D x H )

17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm)

Management Features - Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

FCC, CE, RoHS

OTHERS - Package Content

• ES228GMP• Power Cord• Mounting Brackets• Rubber Feet• Screws• Installation Guide

OTHERS - Environment

• Operating Temperature: -5℃~45℃ (23℉~113℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

HARDWARE FEATURES - Physical Security Lock

√

PERFORMANCE - Packet Buffer Memory

4 Mbit

PERFORMANCE - Jumbo Frame

15 KB

PERFORMANCE - Switching Capacity

56 Gbps

PERFORMANCE - Packet Forwarding Rate

41.67 Mpps

PERFORMANCE - MAC Address Table

Management Features - Management Features

• Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†

HARDWARE FEATURES - Fan Quantity

SOFTWARE FEATURES - Quality of Service

• Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△

SOFTWARE FEATURES - VLAN

• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID

HARDWARE FEATURES - PoE Ports (RJ45)

• Standard: 802.3af PoE and 802.3at PoE+ compliant• PoE Ports: 24 ports• PoE Budget: 384W available for all PoE+ ports, 30W max per port• Fast PoE & Perpetual PoE• PoE Auto Recovery‡• Up to 250m PoE transmission distance**

SOFTWARE FEATURES - L2 Multicast

• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave

HARDWARE FEATURES - Surge Protection

±6kV

HARDWARE FEATURES - Installation

Rackmountable

SOFTWARE FEATURES - L2 Features

• Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP

SOFTWARE FEATURES - Transmission Method

Store-And-Forward
