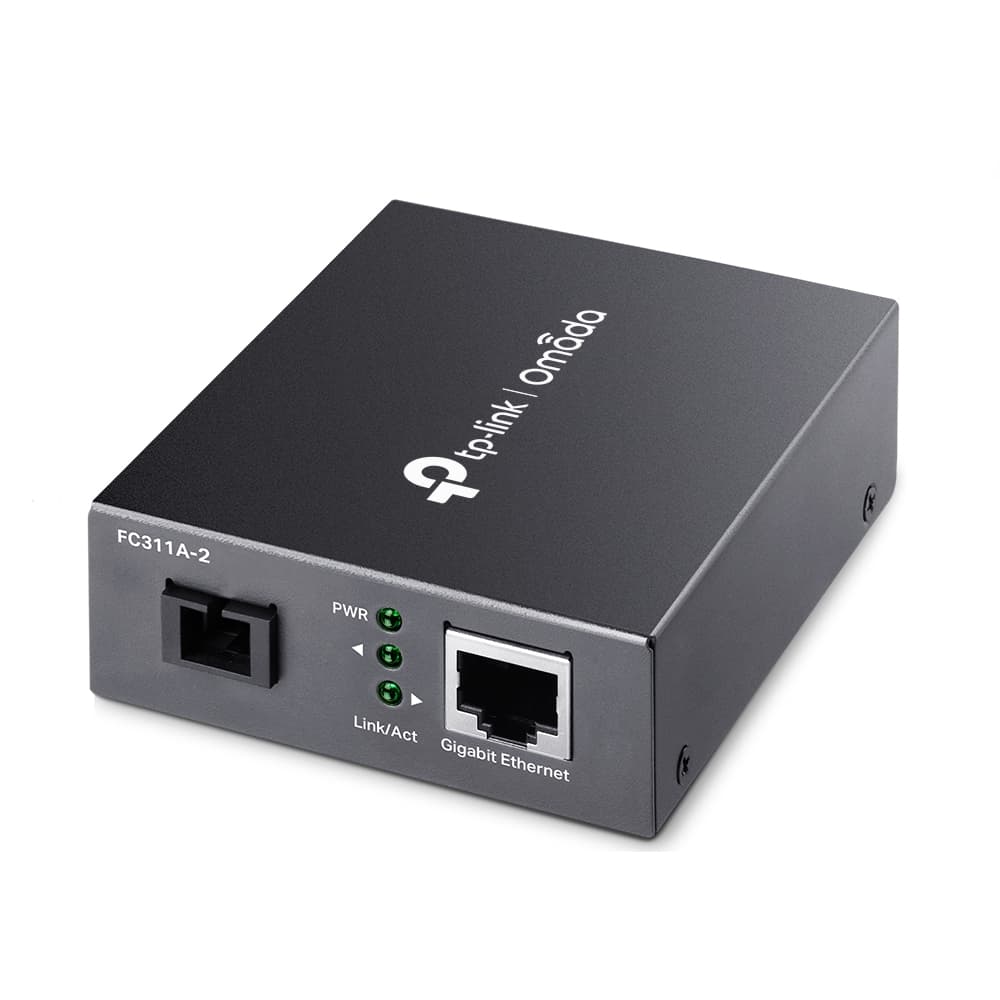

FC311A 2 - Omada Gigabit WDM Media Converter

HARDWARE FEATURES - Interface

• 1× Gigabit SC/UPC Fiber Port• 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)

HARDWARE FEATURES - Power Supply

External Power Adapter: 5 V/0.6 A

HARDWARE FEATURES - Dimensions ( W x D x H )

3.7×2.9×1.1 in (94.5×73.0×27.0 mm)

OTHERS - Package Content

• Media Converter FC311A-2• Power Adapter• Installation Guide

HARDWARE FEATURES - Network Media

• Single-mode Fiber (9/125μm, maximum 2km)• UTP category 5, 5e cable (maximum 100m)

HARDWARE FEATURES - LED

PWR, Link/Act

NETWORK - Standards and Protocols

IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z

HARDWARE FEATURES - Wave Length

1550 nm TX, 1310 nm RX

ENVIRONMENT - Operating Temperature

0˚C to 50˚C (32˚F to 122˚F)

ENVIRONMENT - Storage Temperature

-40˚C to 70˚C (-40˚F to 158˚F)

ENVIRONMENT - Operating Humidity

10% to 90% RH non-condensing

ENVIRONMENT - Storage Humidity

5% to 90% RH non-condensing
