TP-Link

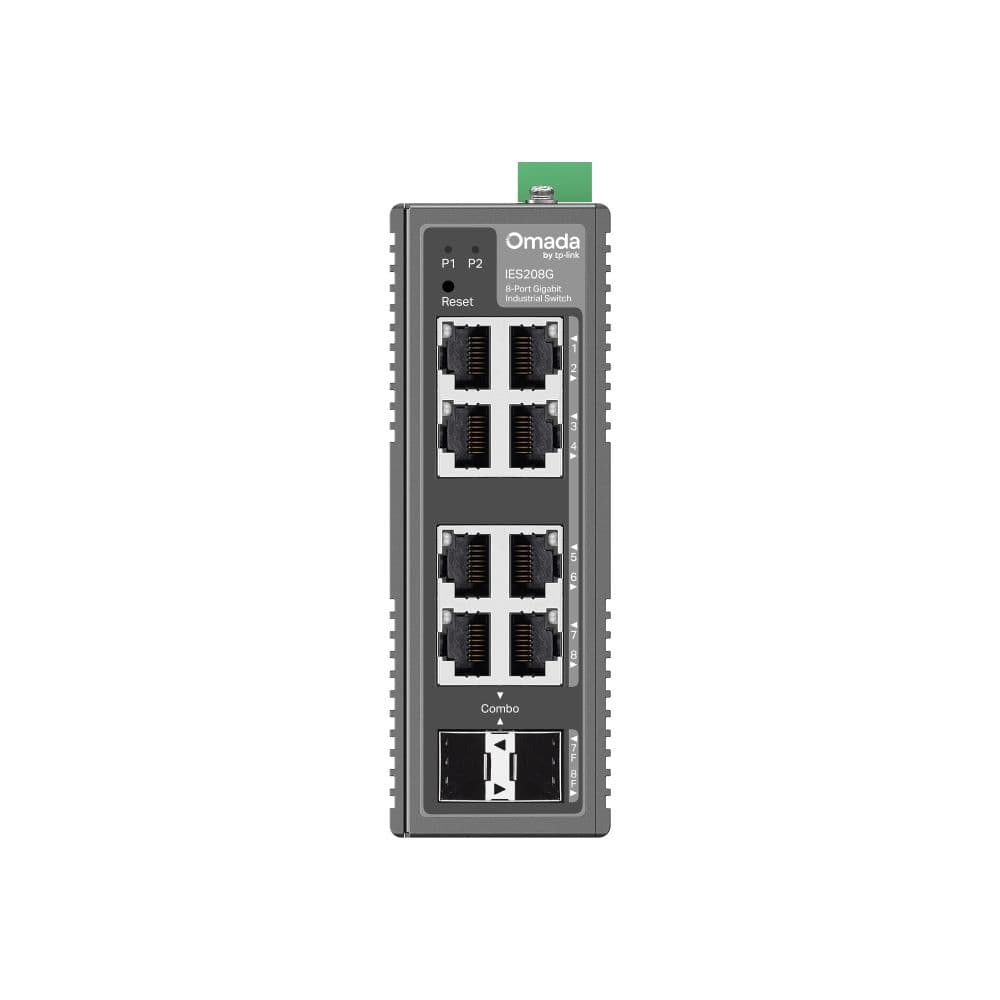

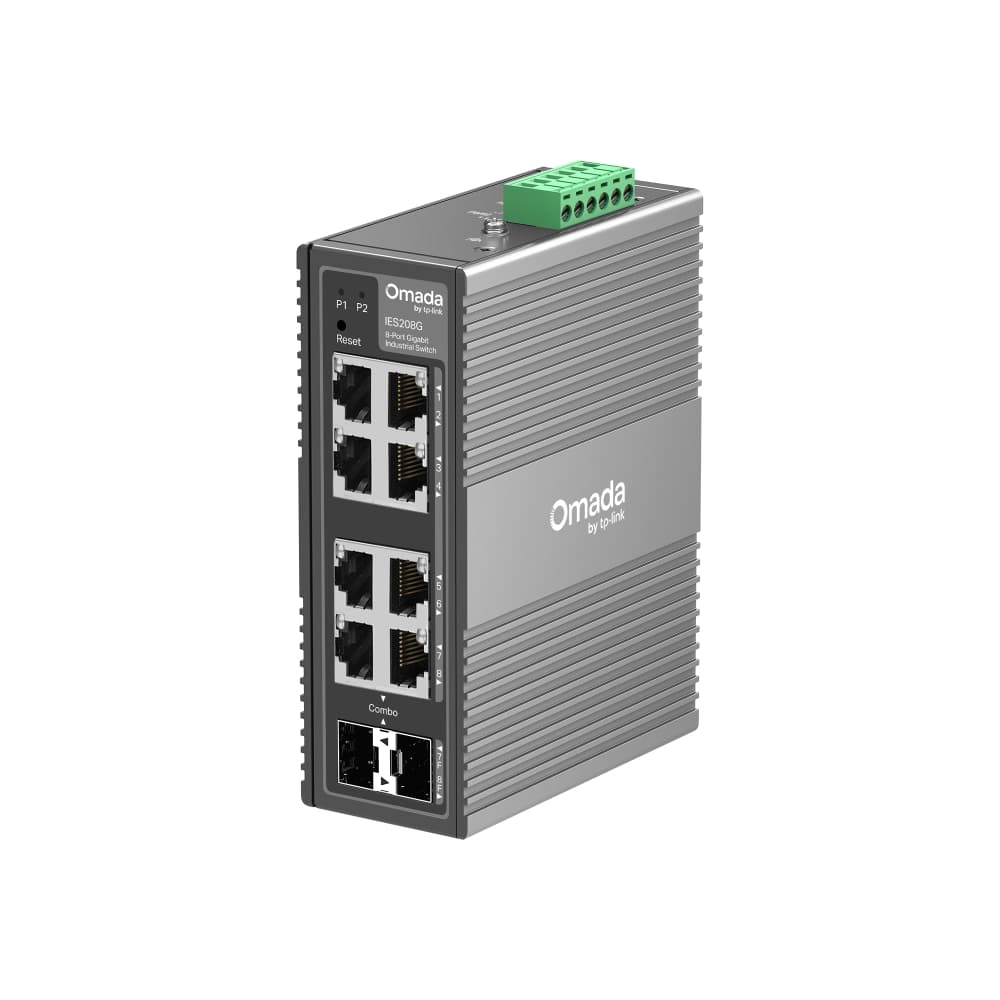

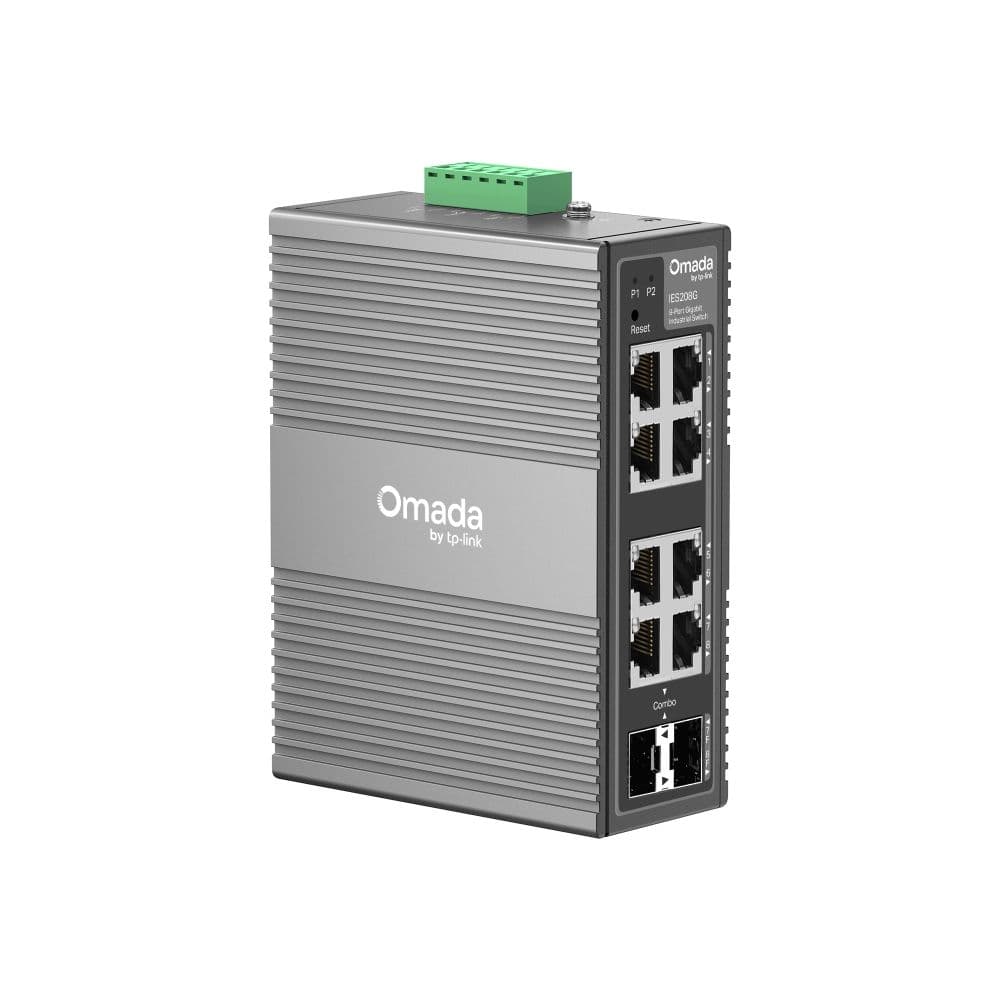

IES208G - Omada 8-Port Gigabit Industrial Easy Managed Switch

0,00 ₼

8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
-40°C to 75°C Operating Temperature
9.6~60VDC 1+1 Redundant Power Input
Industrial-Grade IP40 Aluminum Casing
Easy Centralized Management
VLAN for Traffic Separation
STP/RSTP for Reliable Networking
DIN-Rail & Wall Mounting
-40°C to 75°C Operating Temperature
6kV Lightning Protection
Industrial-Grade IP40 Aluminum Casing
1+1 Redundant Power Input Equipped with dual power input ports and a wide 9.6-60V DC voltage range, ensuring continuous operation even if one power supply fails.
Real-Time Fault Alarm
Easy to Use with Plug-and-Play Design and Simple Configuration
Free and Easy Centralized Cloud Management via Omada Central Essentials
Access Logs and Receive Alert Notifications at Any Time
Intelligent Network Monitoring for Instant Topology Views and Effortless Troubleshooting
DIN-rail
Wall-mount
Surveillance
Industrial Automation
Energy
Smart Buildings

Low stock

HARDWARE FEATURES - Interface

• 6× 10/100/1000 Mbps RJ45 Ports• 2× Gigabit SFP/RJ45 Combo Slots• Auto-Negotiation/Auto MDI/MDIX

HARDWARE FEATURES - Power Supply

9.6-60V 1+1 Redundant DC Power Input

HARDWARE FEATURES - Dimensions ( W x D x H )

5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)

Management Features - Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

FCC, CE, RoHS

OTHERS - Package Content

• IES208G• DIN-Rail Mounting Bracket• Wall-Mounting Plates• Installation Guide

OTHERS - Environment

• Operating Temperature: -40℃~75℃ (-40℉~167℉)• Storage Temperature: -40℃~85℃ (-40℉~185℉)• Operating Humidity: 5%~95% non-condensing• Storage Humidity: 5%~95% non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

PERFORMANCE - Packet Buffer Memory

4 Mbit

PERFORMANCE - Jumbo Frame

15 KB

PERFORMANCE - Switching Capacity

16 Gbps

PERFORMANCE - Packet Forwarding Rate

11.9 Mpps

PERFORMANCE - MAC Address Table

Management Features - Management Features

• Web-based GUI• DHCP Client• Cable Diagnostics• Digital Diagnostic Monitoring (DDM)• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†

HARDWARE FEATURES - Fan Quantity

Fanless

SOFTWARE FEATURES - Quality of Service

• 802.1p DSCP Priority• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rate Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control

SOFTWARE FEATURES - VLAN

• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID

SOFTWARE FEATURES - L2 Multicast

• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave

HARDWARE FEATURES - Surge Protection

• ±6 kV in common mode for Ethernet ports• ±4 kV in common mode for DC power input ports

HARDWARE FEATURES - Installation

• DIN-rail mounting• Wall mounting

SOFTWARE FEATURES - L2 Features

• Link Aggregation- Static Link Aggregation- Up to 2 aggregation groups and up to 4 ports per group• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP• Spanning Tree- STP (802.1d)- RSTP (802.1w)

SOFTWARE FEATURES - Transmission Method

Store-And-Forward
