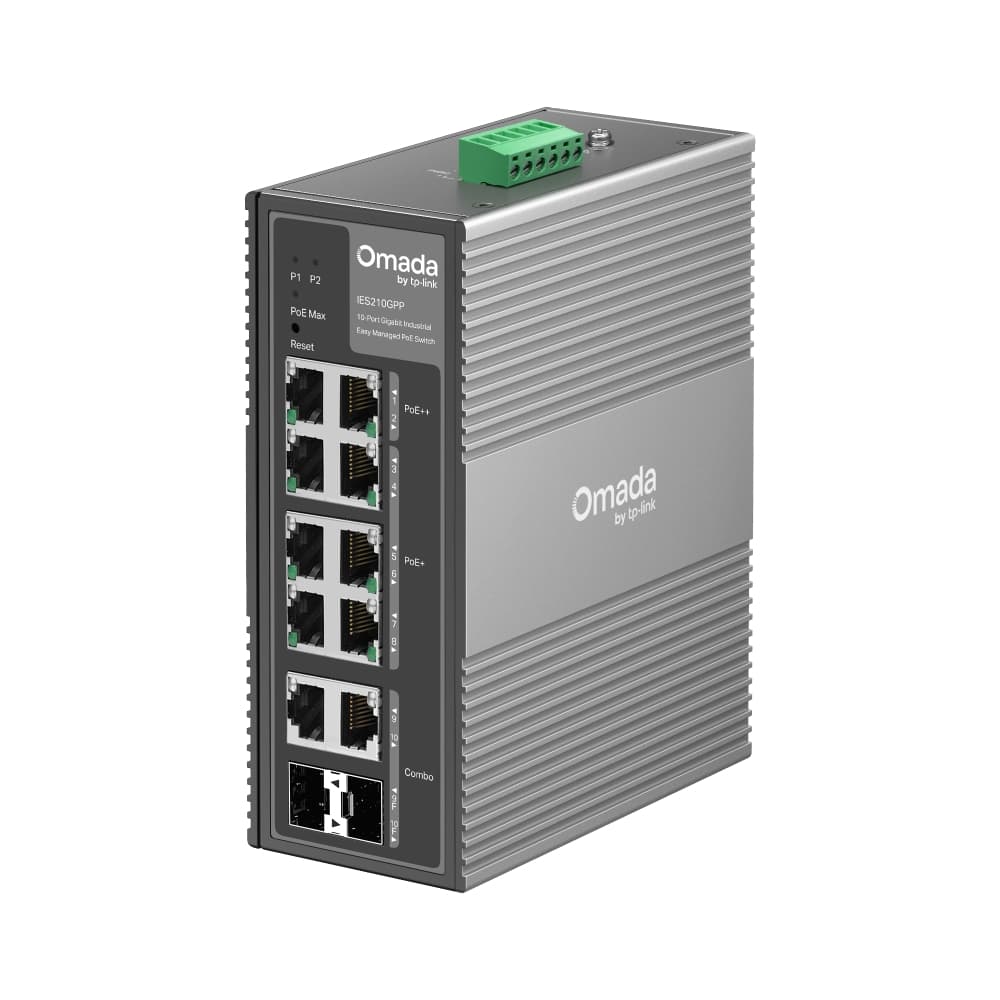

IES210GPP - Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

HARDWARE FEATURES - Interface

• 2× 10/100/1000 Mbps PoE++ RJ45 Ports• 6× 10/100/1000 Mbps PoE+ RJ45 Ports• 2× Gigabit SFP/RJ45 Combo Slots• Auto-Negotiation/Auto MDI/MDIX

HARDWARE FEATURES - Power Supply

12-57V 1+1 Redundant DC Power Input

HARDWARE FEATURES - Dimensions ( W x D x H )

6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)

Management Features - Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

FCC, CE, RoHS

OTHERS - Package Content

• IES210GPP• DIN-Rail Mounting Bracket• Wall-Mounting Plates• Installation Guide

OTHERS - Environment

• Operating Temperature: -40℃~75℃ (-40℉~167℉)• Storage Temperature: -40℃~85℃ (-40℉~185℉)• Operating Humidity: 5%~95% non-condensing• Storage Humidity: 5%~95% non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

HARDWARE FEATURES - Physical Security Lock

√

PERFORMANCE - Packet Buffer Memory

4 Mbit

PERFORMANCE - Jumbo Frame

15 KB

PERFORMANCE - Switching Capacity

20 Gbps

PERFORMANCE - Packet Forwarding Rate

14.88 Mpps

PERFORMANCE - MAC Address Table

8K

Management Features - Management Features

• Web-based GUI• DHCP Client• Cable Diagnostics• Digital Diagnostic Monitoring (DDM)• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†

HARDWARE FEATURES - Fan Quantity

Fanless

SOFTWARE FEATURES - Quality of Service

• 802.1p DSCP Priority• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rate Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control

SOFTWARE FEATURES - VLAN

• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID

HARDWARE FEATURES - PoE Ports (RJ45)

• Standard: 802.3af/at/bt compliant• PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port• PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port• PoE Budget: - 60W (Input: 12V / 7.2A - 21V / 3.7A))- 120W (Input: 21V / 6.7A - 46V / 3.1A)- 240W (Input: 46V / 5.7A - 57V / 4.4A)

SOFTWARE FEATURES - L2 Multicast

• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave

HARDWARE FEATURES - Surge Protection

• ±6 kV in common mode for Ethernet ports• ±4 kV in common mode for DC power input ports

HARDWARE FEATURES - Installation

• DIN-rail mounting• Wall mounting

SOFTWARE FEATURES - L2 Features

• Link Aggregation- Static Link Aggregation- Up to 4 aggregation groups and up to 6 ports per group• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP• Spanning Tree- STP (802.1d)- RSTP (802.1w)

SOFTWARE FEATURES - Transmission Method

Store-And-Forward
