TP-Link

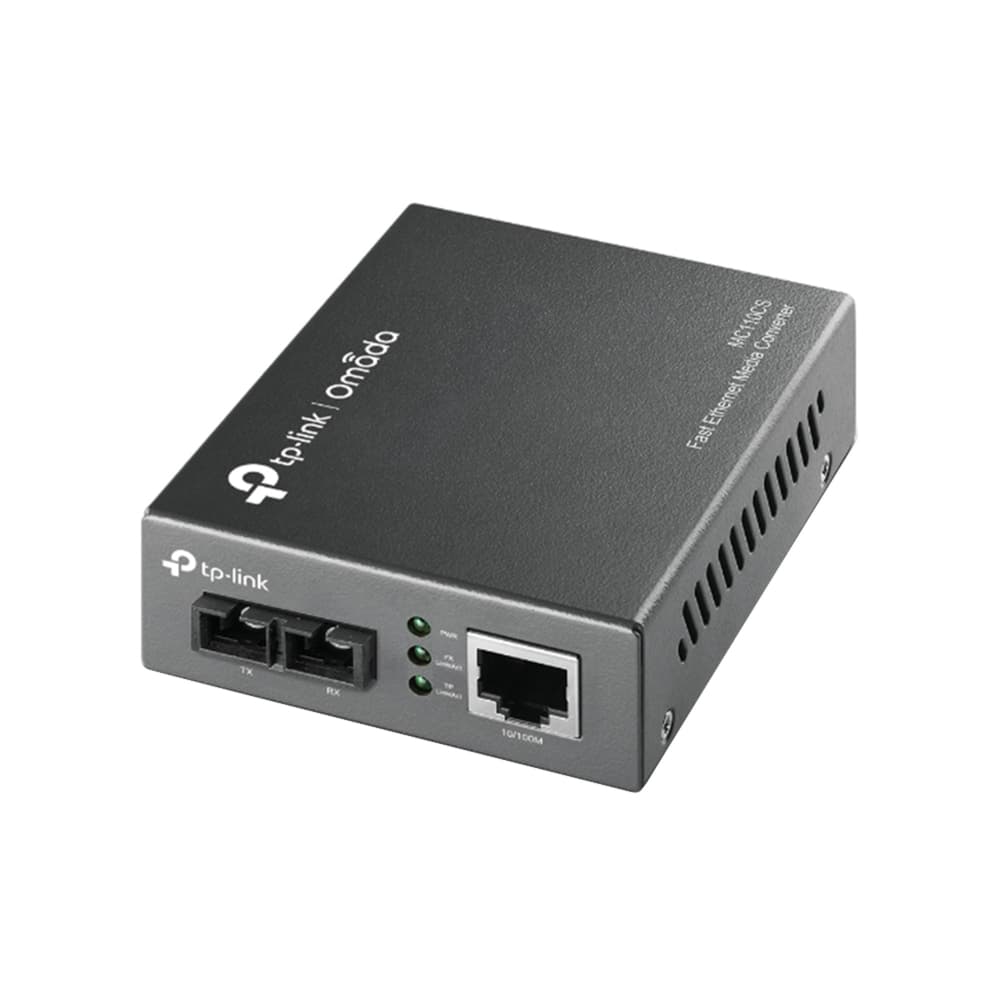

MC110CS - 10/100Mbps Single-Mode Media Converter

0,00 ₼

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 20km

Low stock

MEDIA CONVERTER & MODULE - Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

MEDIA CONVERTER & MODULE - Basic Function

Auto-negotiation of Half-Duplex / Full-Duplex transfer modeFull Duplex Flow Control (IEEE 802.3x)Half Duplex Flow Control (Backpressure)Extends fiber distance up to 20km

MEDIA CONVERTER & MODULE - Interface

1 100M SC/UPC port1 10/100M RJ45 port (Auto MDI/MDIX)

MEDIA CONVERTER & MODULE - Wave Length

1310nm

MEDIA CONVERTER & MODULE - Network Media 10BASE-T

UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)

MEDIA CONVERTER & MODULE - Network Media 100BASE-T

UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)

MEDIA CONVERTER & MODULE - Network Media 100BASE-FX

Single-mode Fiber

MEDIA CONVERTER & MODULE - Dimensions ( W x D x H )

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

MEDIA CONVERTER & MODULE - Power Supply

External power supply

MEDIA CONVERTER & MODULE - Max. Power Consumption

2.4W

MEDIA CONVERTER & MODULE - LED

PWR, Link/Act

MEDIA CONVERTER & MODULE - Safety & Emission

FCC, CE, RoHS

MEDIA CONVERTER & MODULE - Package Content

• Media Converter MC110CS• Power Adapter• Installation Guide

MEDIA CONVERTER & MODULE - Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
