TP-Link

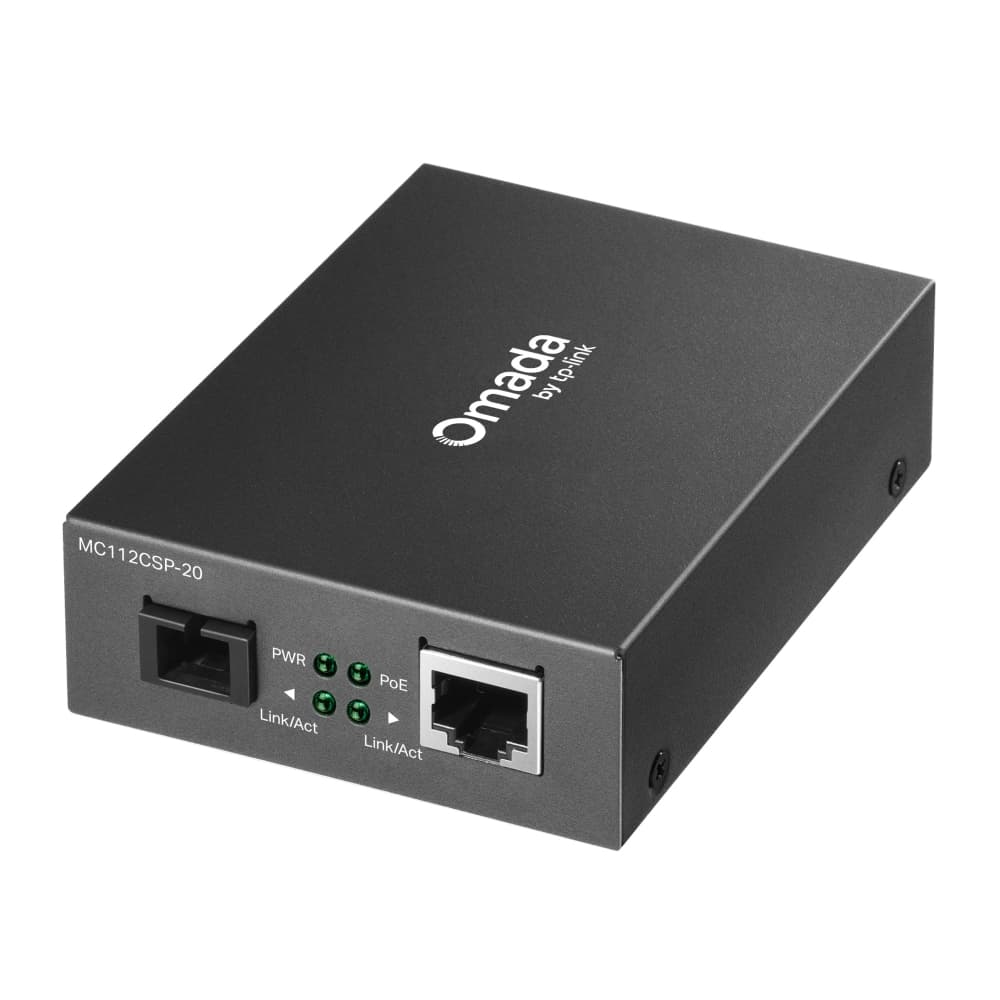

MC112CSP 20 - Omada 10/100 Mbps WDM Media Converter

0,00 ₼

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 20km
The 802.3af PoE output makes remote camera deployment easier and more convenient.

Low stock

• 1×100 Mbps SC/UPC Fiber Port• 1× 10/100 Mbps PoE RJ45 Port (Auto MDI/MDIX)

External Power Adapter: 48 V/0.375 A

3.7×2.9×1.1 in (94.5×73.0×27.0 mm)

• Media Converter MC112CSP-20• Power Adapter• Installation Guide

• Single-mode Fiber• UTP category 5, 5e cable (maximum 100m)

PWR, Link/Act ,PoE

IEEE 802.3, IEEE 802.3i, IEEE802.3u, IEEE802.3af

• 1310 nm TX• 1550 nm RX

-5˚C to 50˚C (23˚F to 122˚F)

-40˚C to 70˚C (-40˚F to 158˚F)

10% to 90% RH non-condensing

5% to 90% RH non-condensing

9/125 μm single-mode fiber
