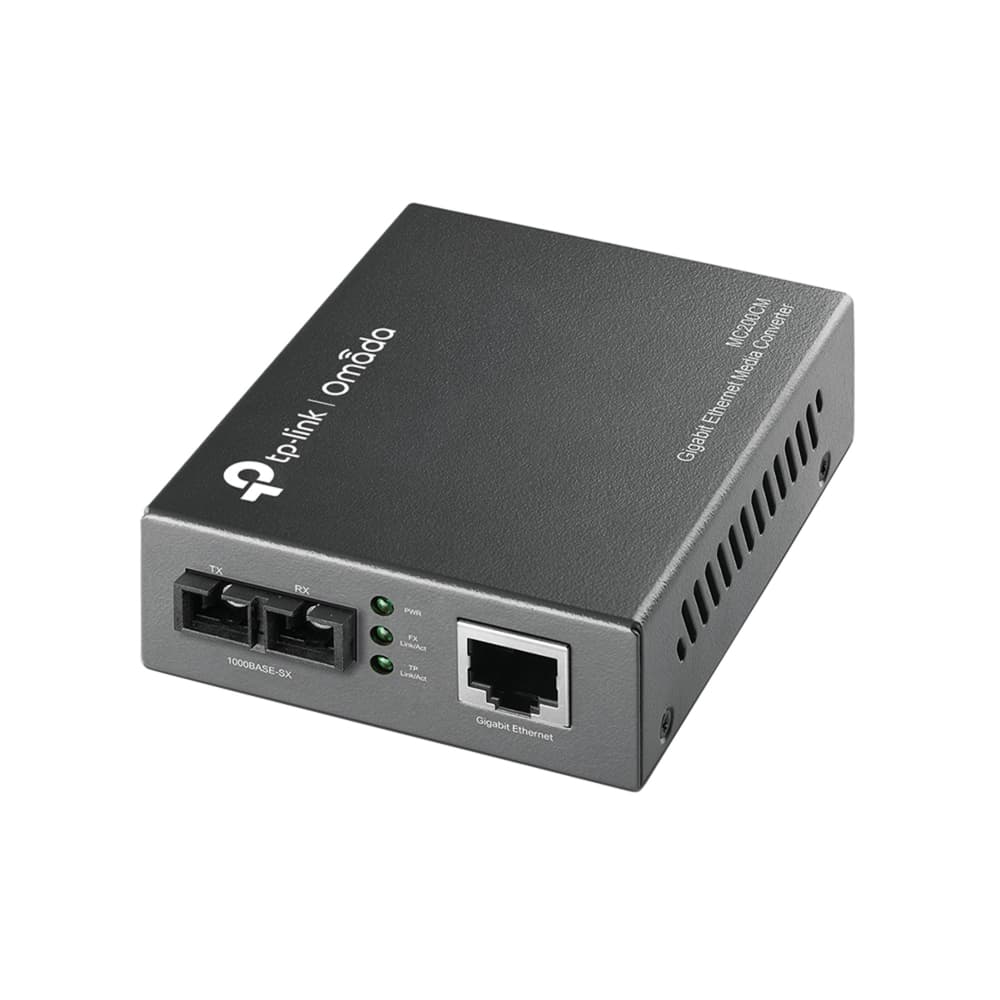

MC200CM - Gigabit Multi-Mode Media Converter

MEDIA CONVERTER & MODULE - Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

MEDIA CONVERTER & MODULE - Basic Function

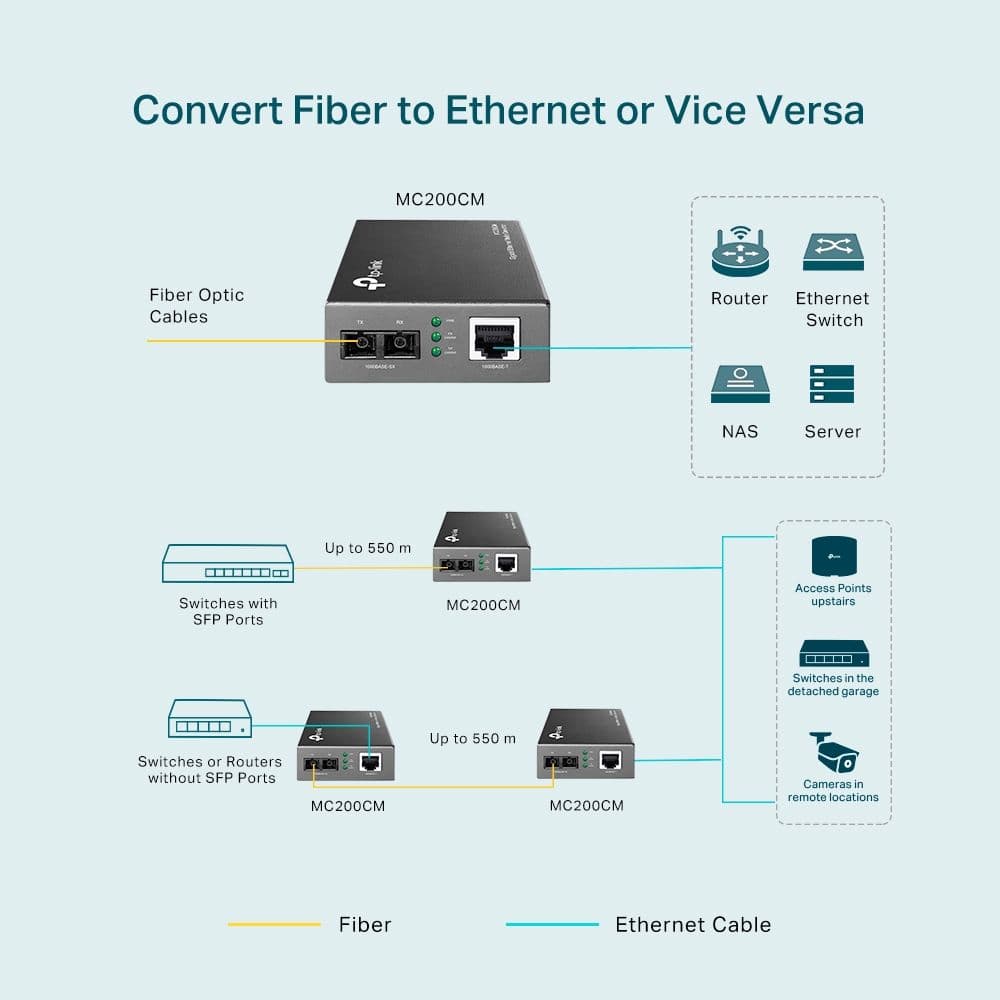

Auto-negotiation of Half-Duplex / Full-Duplex transfer modeExtends fiber distance up to 0.55km using 50/125um fiberExtends fiber distance up to 0.22km using 62.5/125um fiber

MEDIA CONVERTER & MODULE - Interface

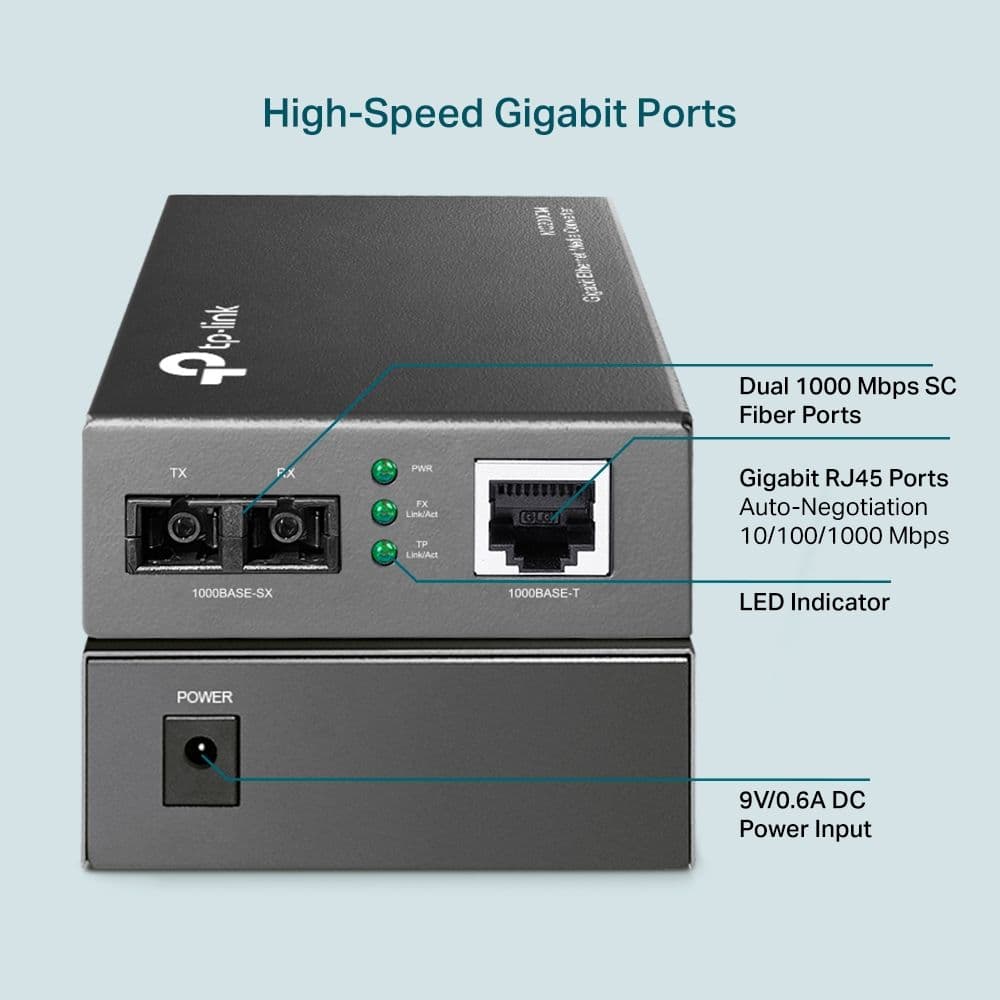

1 1000M SC/UPC port1 10/100/1000M RJ45 port (Auto MDI/MDIX)

MEDIA CONVERTER & MODULE - Wave Length

850nm

MEDIA CONVERTER & MODULE - Dimensions ( W x D x H )

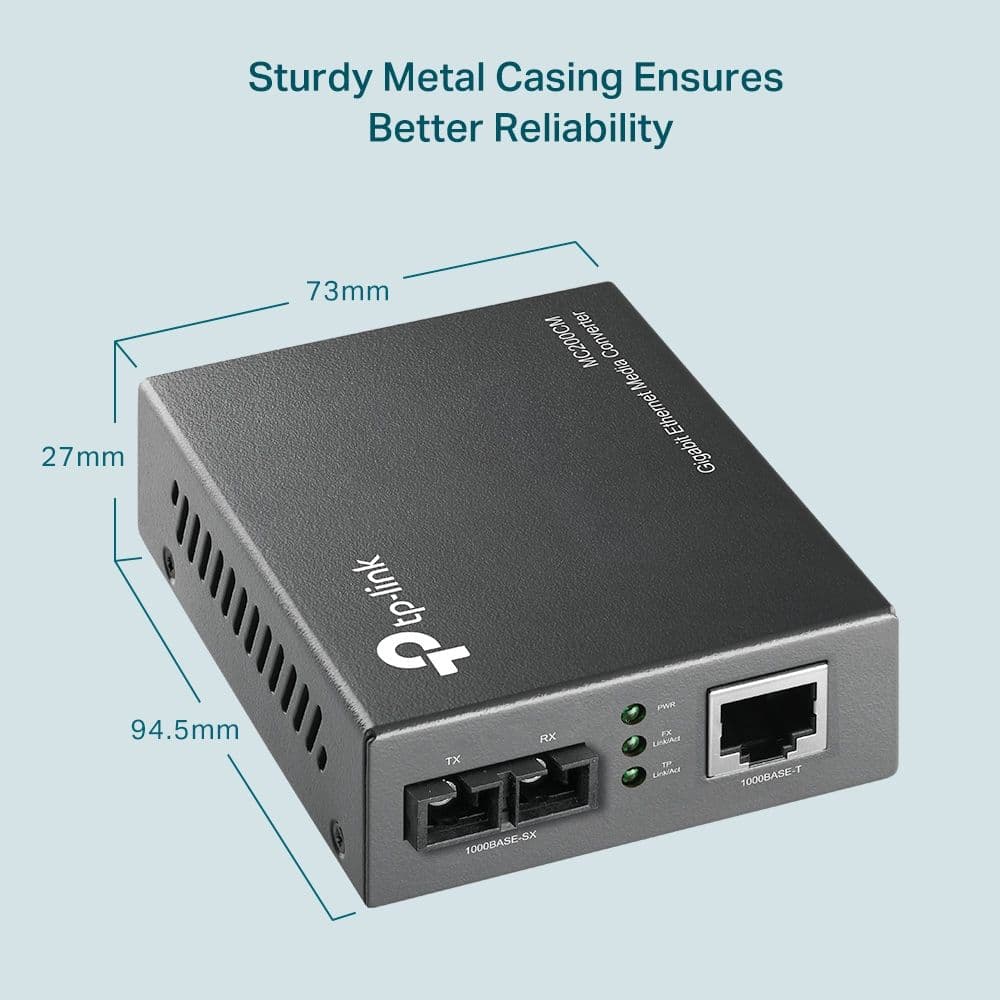

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

MEDIA CONVERTER & MODULE - Power Supply

External Power Adapter

MEDIA CONVERTER & MODULE - Max. Power Consumption

1.66W

MEDIA CONVERTER & MODULE - LED

PWR, Link/Act

MEDIA CONVERTER & MODULE - Safety & Emission

FCC, CE, RoHS

MEDIA CONVERTER & MODULE - Package Content

• Media Converter MC200CM• Power Adapter• Installation Guide

MEDIA CONVERTER & MODULE - Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing

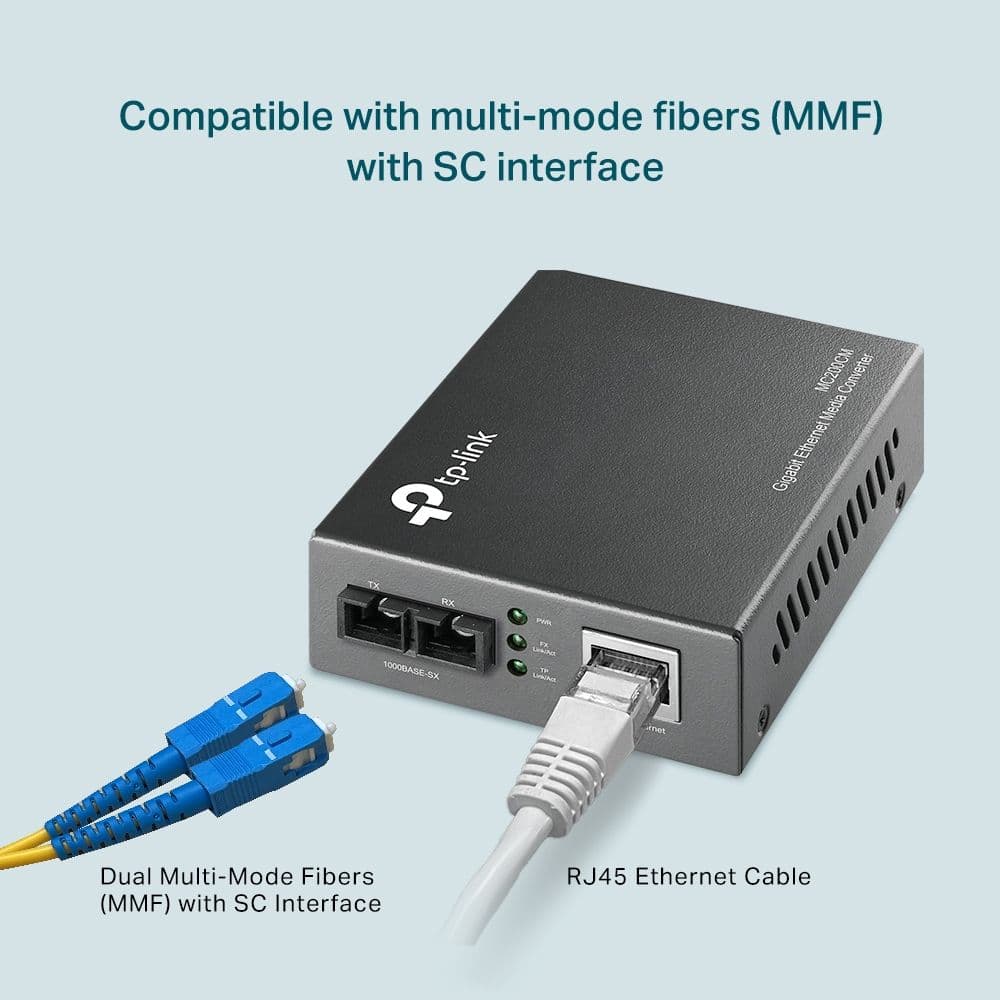

MEDIA CONVERTER & MODULE - Network Media 1000BASE-SX

Multi-mode Fiber

MEDIA CONVERTER & MODULE - Network Media 1000BASE-T

UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)
