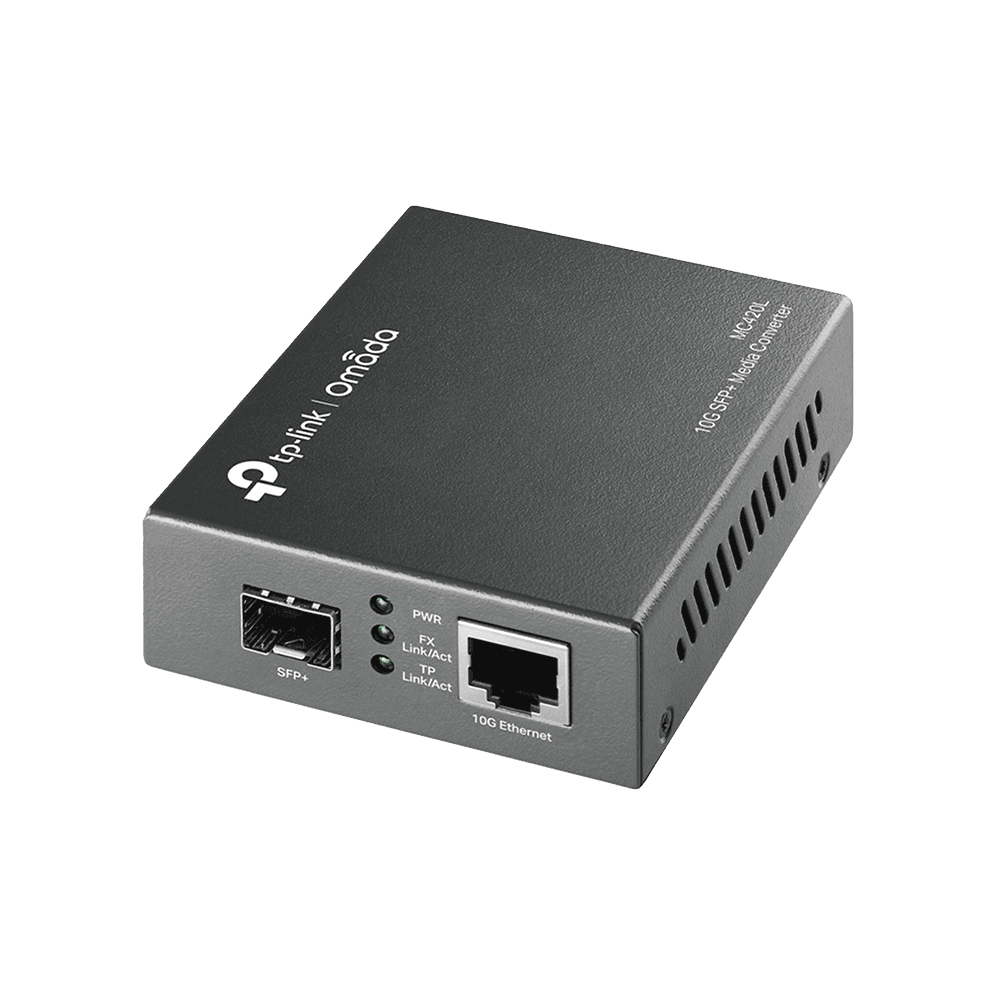

MC420L - Omada 10G Multi-Gigabit SFP Media Converter

MEDIA CONVERTER & MODULE - Standards and Protocols

IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x

MEDIA CONVERTER & MODULE - Basic Function

• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode• Maximum transmission distance depends on the inserting SFP module

MEDIA CONVERTER & MODULE - Interface

• 1× SFP+ port• 1× 1G/2.5G/5G/10Gbps RJ45 port

MEDIA CONVERTER & MODULE - Wave Length

Depends on the used SFP module

MEDIA CONVERTER & MODULE - Dimensions ( W x D x H )

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

MEDIA CONVERTER & MODULE - Power Supply

External Power Adapter

MEDIA CONVERTER & MODULE - Max. Power Consumption

4.12W

MEDIA CONVERTER & MODULE - LED

PWR, Link/Act

MEDIA CONVERTER & MODULE - Safety & Emission

UL, RoHS

MEDIA CONVERTER & MODULE - Package Content

• MC420L• Power Adapter• Installation Guide

MEDIA CONVERTER & MODULE - Environment

• Operating Temperature: 0℃~50℃ (32℉~122℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%RH~90%RH Non-condensing• Storage Humidity: 5%RH~90%RH Non-condensing

MEDIA CONVERTER & MODULE - Network Media 10GBASE-R

Multi-mode/Single-mode SFP+ module

MEDIA CONVERTER & MODULE - Network Media 10GBASE-T

1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m);10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m)
