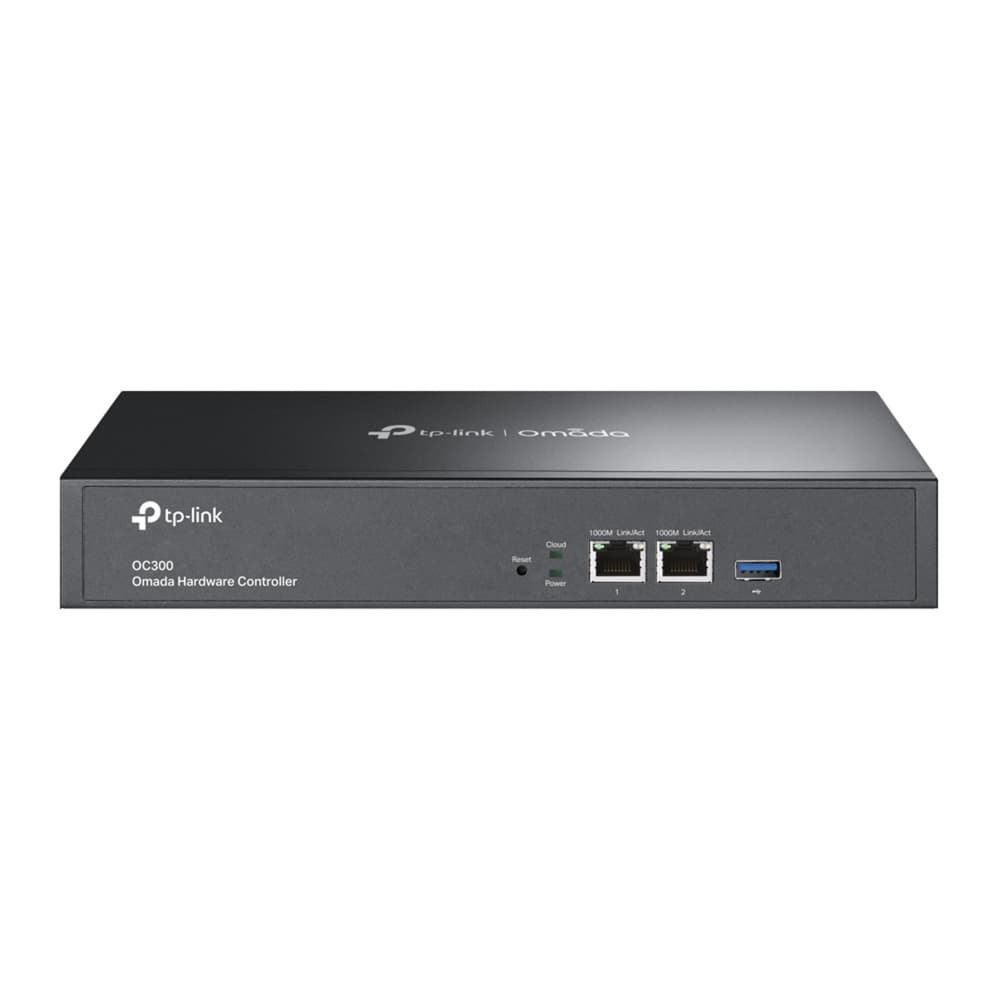

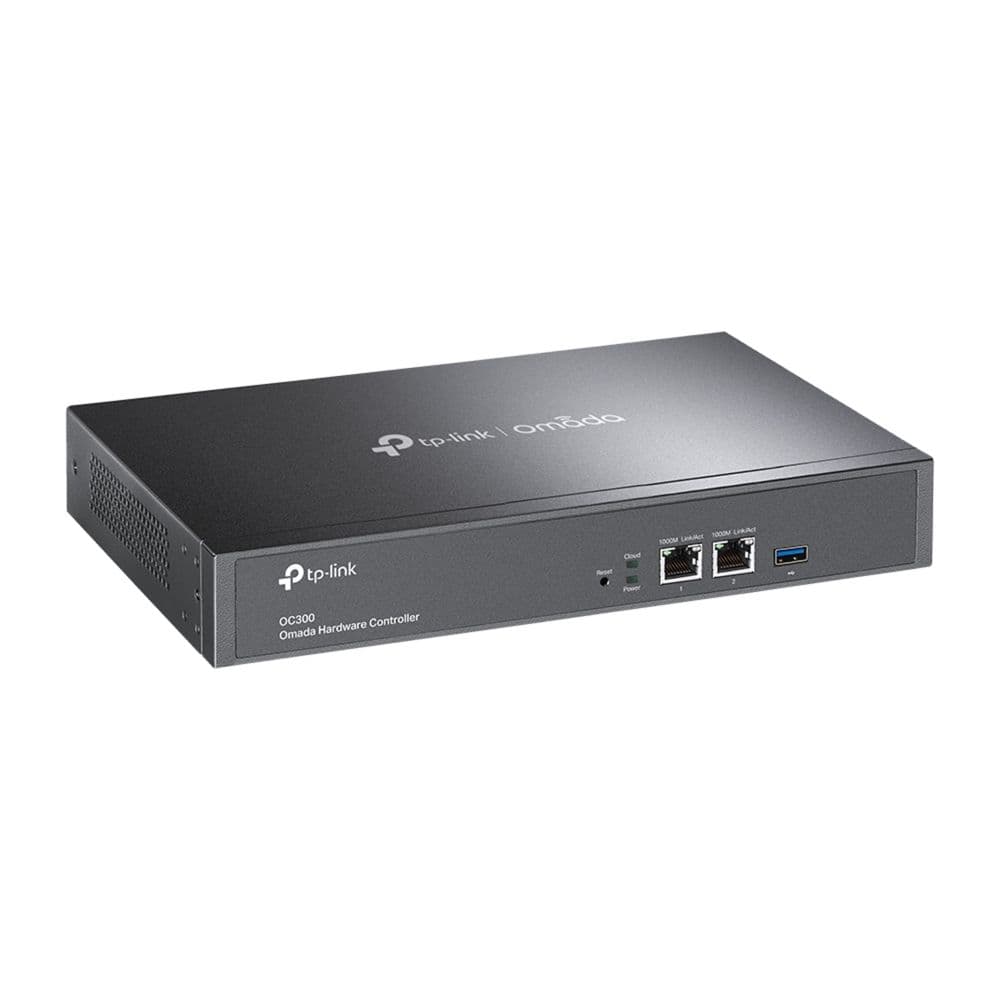

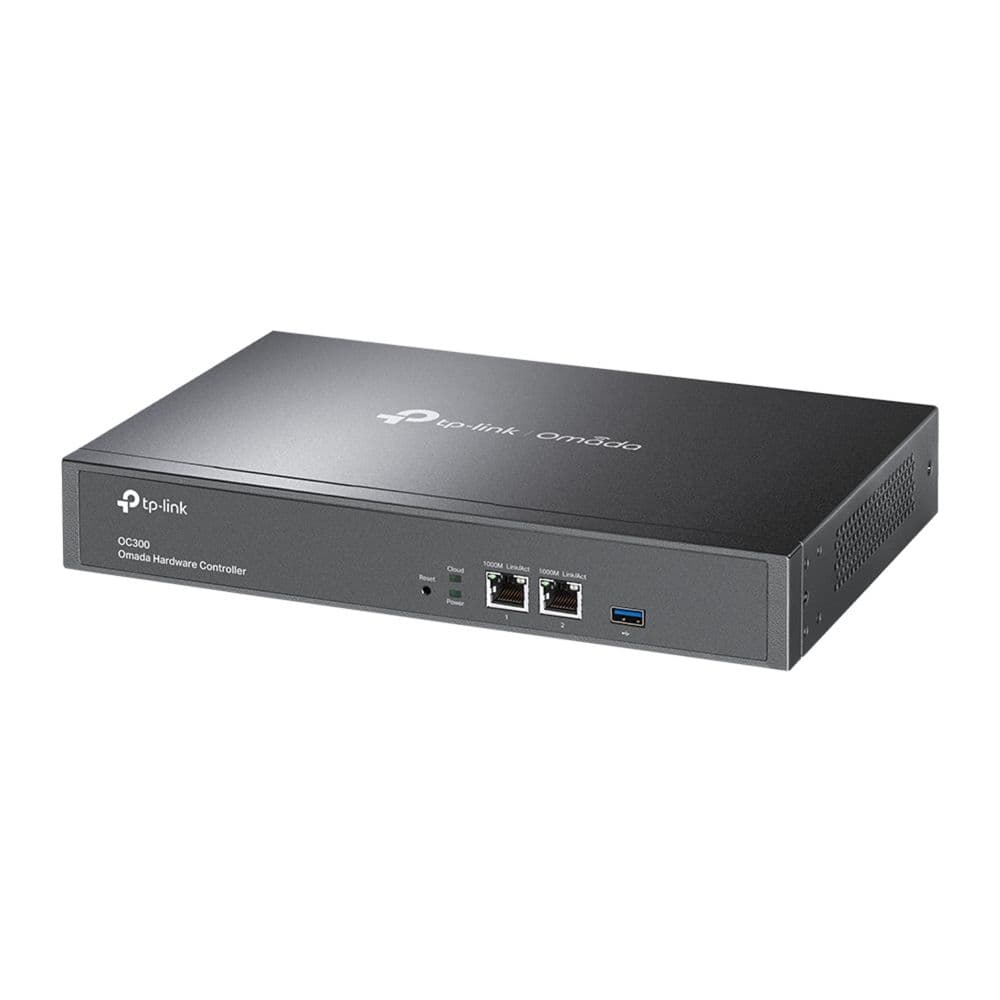

OC300 - Omada Hardware Controller

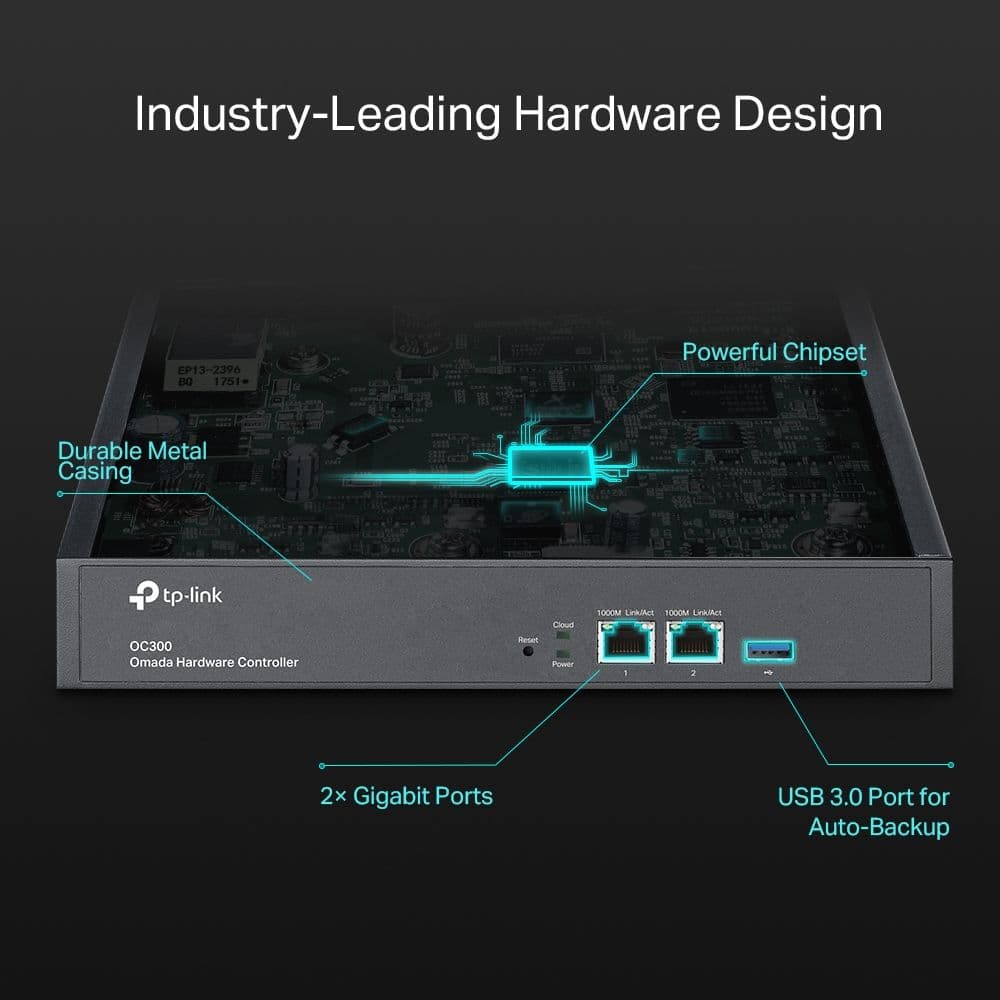

HARDWARE FEATURES - Interface

• 2× 10/100/1000 Mbps Ethernet Ports• 1× USB 3.0 Port

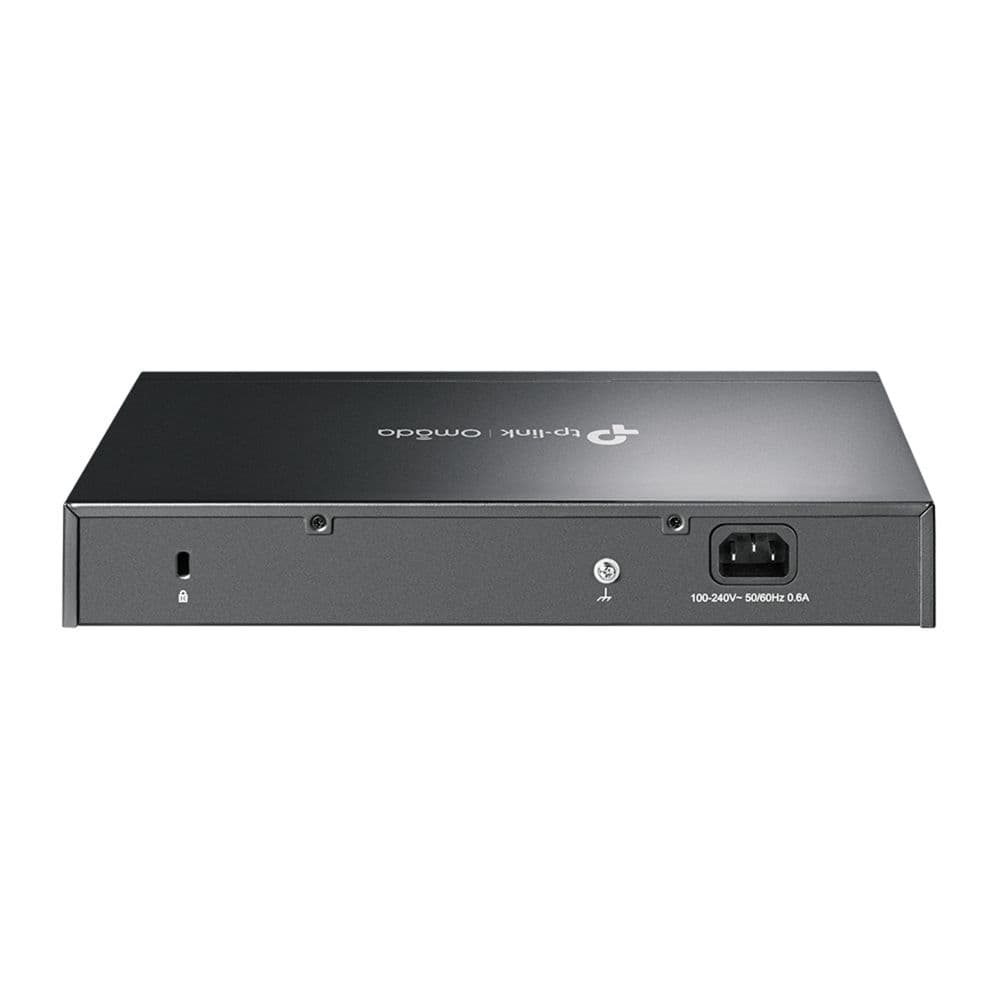

HARDWARE FEATURES - Power Supply

100–240 V~50/60 Hz, 0.6 A

HARDWARE FEATURES - Dimensions ( W x D x H )

11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)

Management Features - Omada App

Yes

Management Features - Centralized Management

• Up to 500 Omada access points, 100 Omada switches, and 100 Omada routers*• Up to 15,000 clients*Refer to www.tp-link.com/en/business-networking/all-omada/ to find all the models supported by OC300

Management Features - Cloud Access

Yes

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• Omada Hardware Controller OC300• Quick Installation Guide • Ethernet Cable• Power Cord• Rackmount Kit

OTHERS - Environment

• Operating Temperature: 0–50 ℃ (32–122 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

OTHERS - System Requirements

Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Management Features - Management Features

• Automatic Device Discovery • Batch Configuration• Batch Firmware Upgrading • Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration

Management Scale

Up to 500 Omada access points, 100 Omada switches, and 100 Omada routers

Usage Method

Connect to the intranet

Network Type

Small/Medium local network

Pricing Model

Hardware costs

Cloud Access

√(Free)

Auto Channel Selection and Power Adjustment

-

Zero-Touch Provisioning

-

Advanced Functions

Multi-Site Management, Multi-User Privilege Assignment, WiFi Heatmap Simulator, Network Summary Report, Abnormal Event Warnings and Notifications, Batch Configuration, Batch Firmware Upgrading, Captive Portal (Facebook WiFi, Voucher, SMS, etc.)
