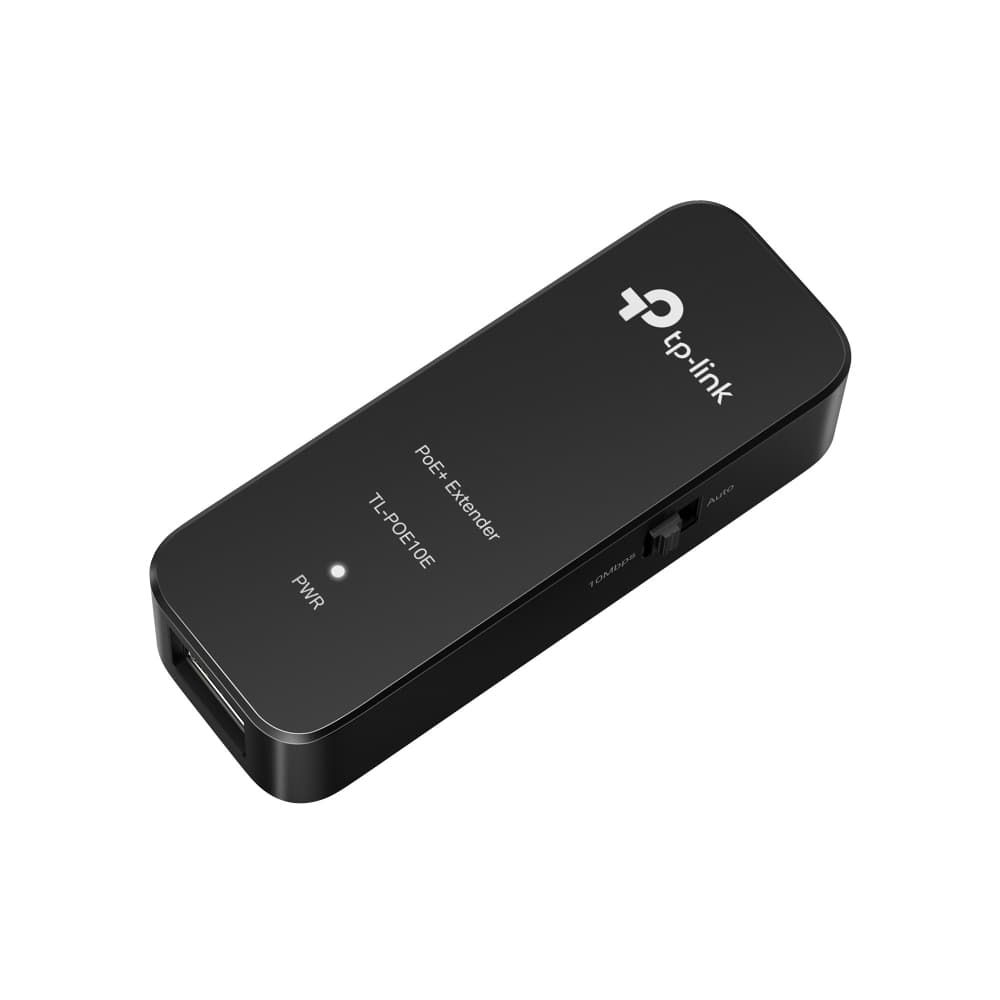

POE10E - Omada Fast Ethernet PoE+ Extender

0,00 ₼

2×10/100 Mbps ports
Compliance with 802.3af/at devices
Supplies up to 20 W, which meets the power consumption requirements of most IP cameras
Extends a PoE/PoE+ network connection an additional 100 m/250 m (10 Mbps mode) from the PoE power sourcing equipment
Plug and Play, no configuration required

Low stock

HARDWARE FEATURES - Interface

• 1× 10 Mbps /100 Mbps RJ45 PoE IN Port• 1× 10 Mbps /100 Mbps RJ45 PoE OUT Port, up to 20 W

HARDWARE FEATURES - Dimensions ( W x D x H )

2.33*0.85*0.52 in (71*26*16 mm)

OTHERS - Certification

FCC, CE, RoHS

OTHERS - Package Content

• POE10E• Installation Guide

OTHERS - Environment

• Operating Temperature: 0°C to 45°C (32°F to 113°F)• Storage Temperature: -40°C to 70°C (-40°F to 158°F)• Operating Humidity: 10% to 90%RH non-condensing• Storage Humidity: 5% to 90%RH non-condensing

HARDWARE FEATURES - Network Media

UTP/STP of Cat.5E or above (based on the standards that the connected devices comply with)

NETWORK - Standards and Protocols

IEEE802.3i, IEEE802.3u

HARDWARE FEATURES - Basic Function

• Complaince with 802.3af/at devies• Up to 250 m data and power transmitting range under 10Mbps mode• Plug and Play
