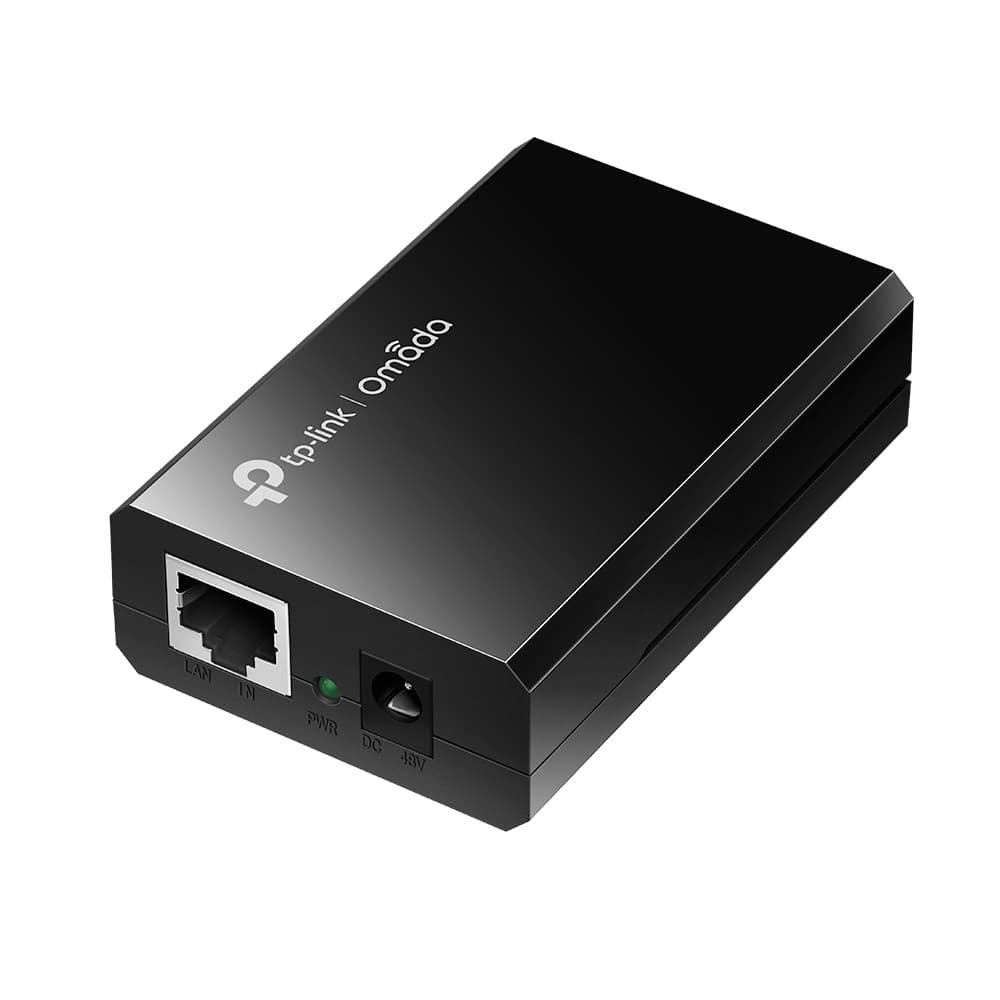

POE150S - Omada PoE Injector

0,00 ₼

IEEE 802.3af compliant

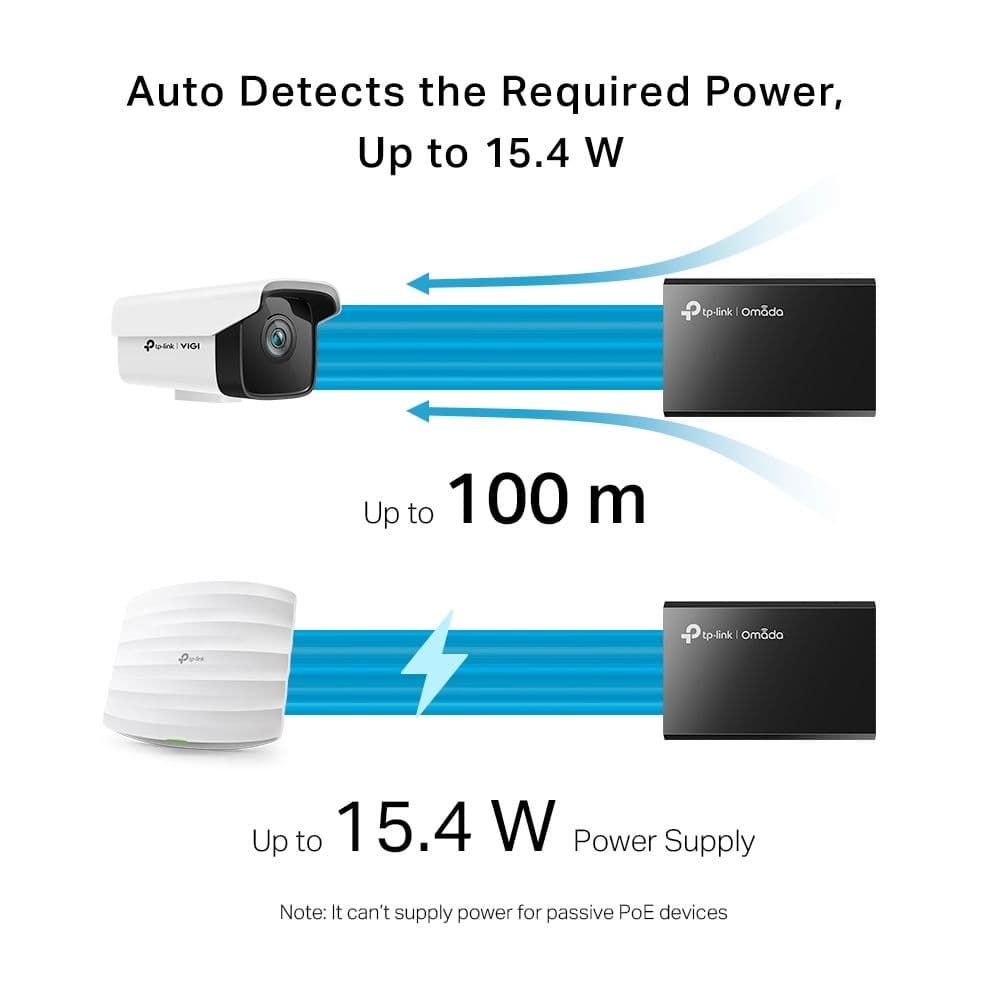

Auto-determine the necessary power requirements
Gigabit speed support
Plug-and-Play, no configuration required

Low stock

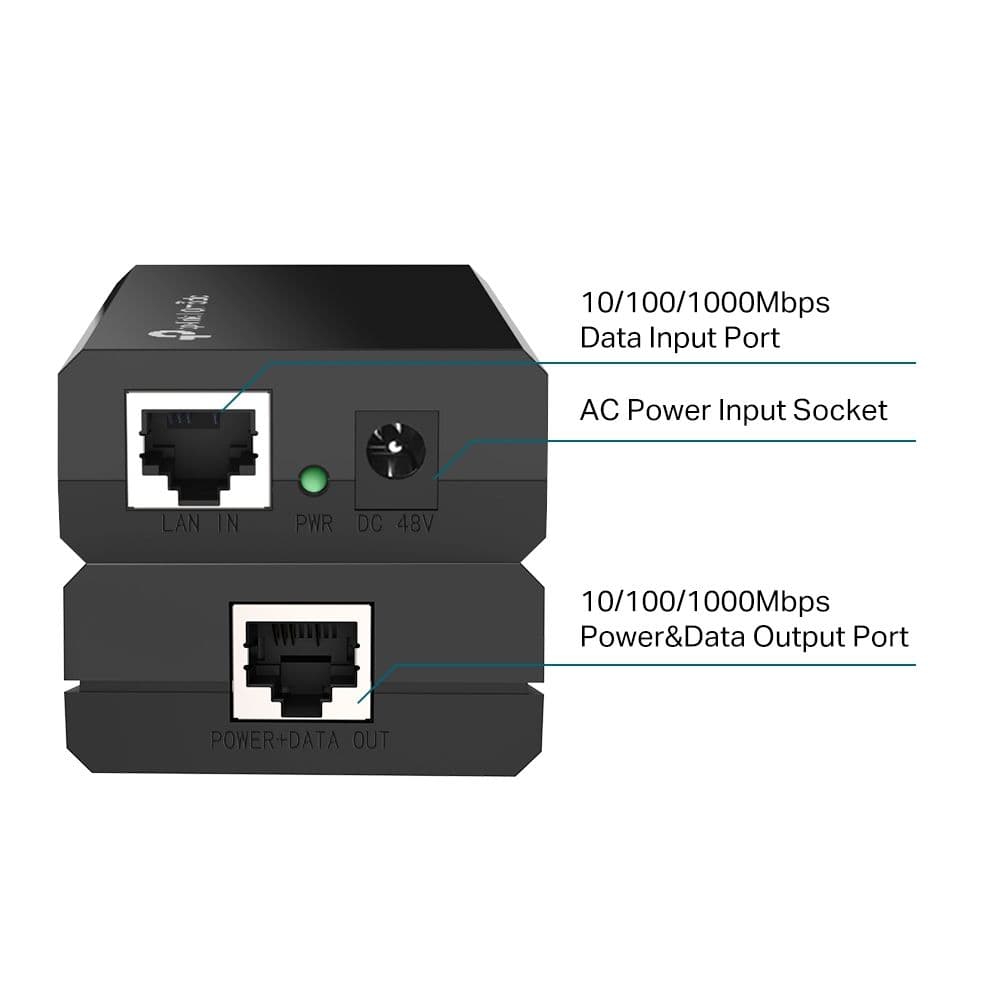

HARDWARE FEATURES - Interface

• 2× 10/100/1000Mbps RJ45 Port• Auto Negotiation/Auto MDI/MDIX• 1× 48VDC Power Input Port

HARDWARE FEATURES - Power Supply

15.4W (Max. 48VDC)

HARDWARE FEATURES - Dimensions ( W x D x H )

3.2*2.1*0.9 in.(80.8*54*24 mm)

OTHERS - Certification

FCC, CE, RoHS

OTHERS - Package Content

• POE150S• Power Adapter• Installation Guide

OTHERS - Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing

OTHERS - System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

HARDWARE FEATURES - Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)• 100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

HARDWARE FEATURES - LED

PWR

SOFTWARE FEATURES - Basic Function

• Compatible With IEEE 802.3af Compliant PDs• Delivers Power Up To 100 Meters• Auto-determine the necessary power requirements
