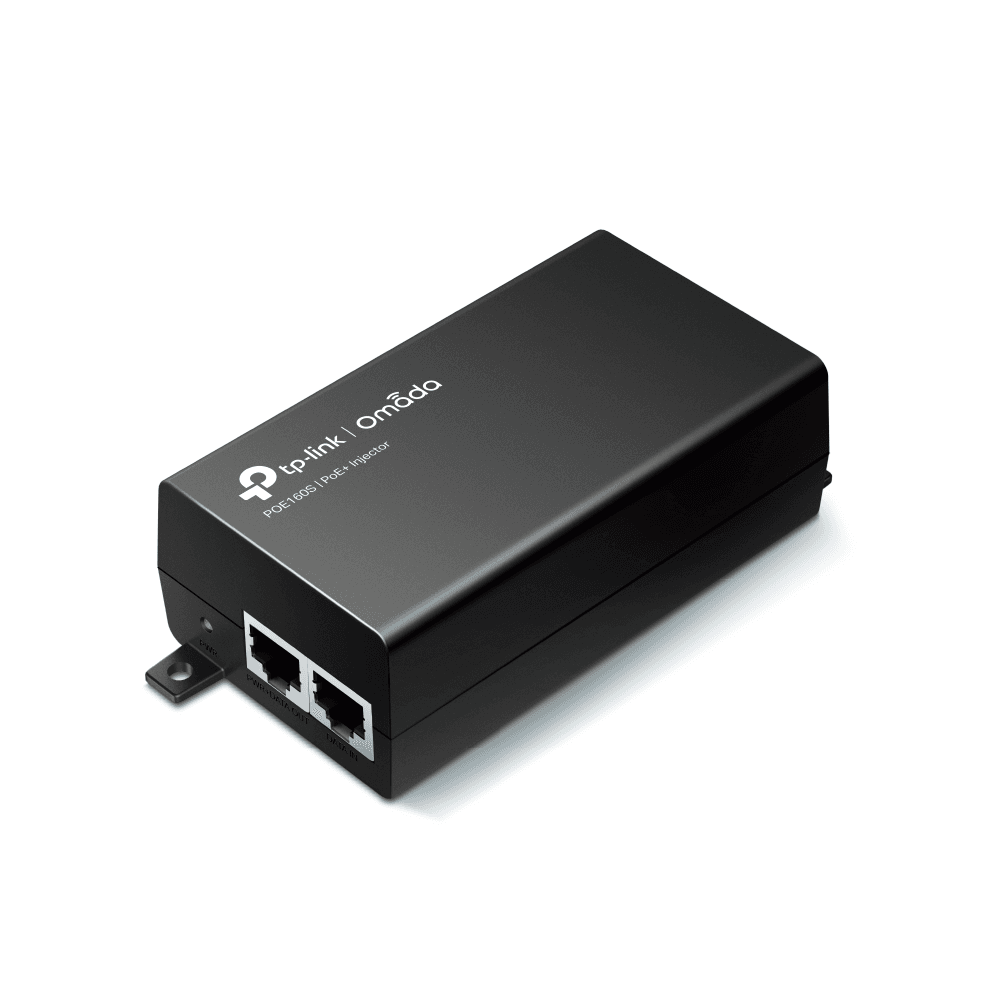

POE160S - PoE+ Injector

0,00 ₼

2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at standards, supplies up to 30 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply

Low stock

HARDWARE FEATURES - Interface

• 1 10/100/1000Mbps RJ45 data-in port• 1 10/100/1000Mbps RJ45 power+data-out port• 1 AC socket

HARDWARE FEATURES - Max. Power Consumption

• Input: 100-240 V, 50/60 Hz• Output: Auto-determine the necessary power requirements (max. 30 W)

HARDWARE FEATURES - Dimensions ( W x D x H )

4.9×2.3×1.4 in (125×59.4×36.8 mm)

OTHERS - Certification

FCC, CE, RoHS

OTHERS - Package Content

• POE160S• Installation Guide• Power Cord• Wall Mounting Kits

OTHERS - Environment

• Operating Temperature: 0°C to 40°C (32°F to 104°F)• Storage Temperature: -40°C to 70°C (-40°F to 158°F)• Operating Humidity: 10% to 90%RH non-condensing• Storage Humidity: 5% to 90%RH non-condensing

HARDWARE FEATURES - Standards and Protocols

IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

HARDWARE FEATURES - Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)EIA/TIA-568 100Ω STP (maximum 100 m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)EIA/TIA-568 100Ω STP (maximum 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

HARDWARE FEATURES - LED

Power / PoE

HARDWARE FEATURES - Basic Function

• Auto-Sensing Algorithm enables providing power with 802.3af/at PD• Auto-determine the necessary power requirements• Wall-mounting and desktop installation supported• Plug-and-Play
