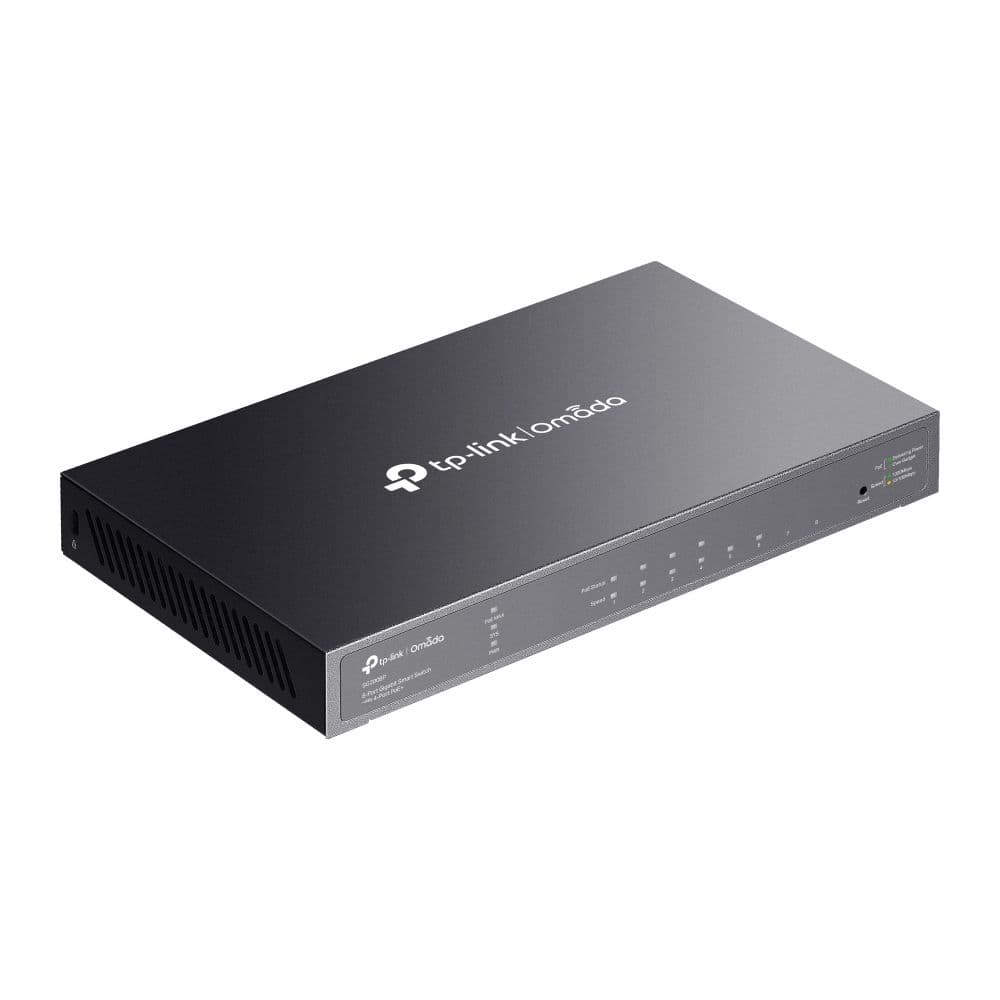

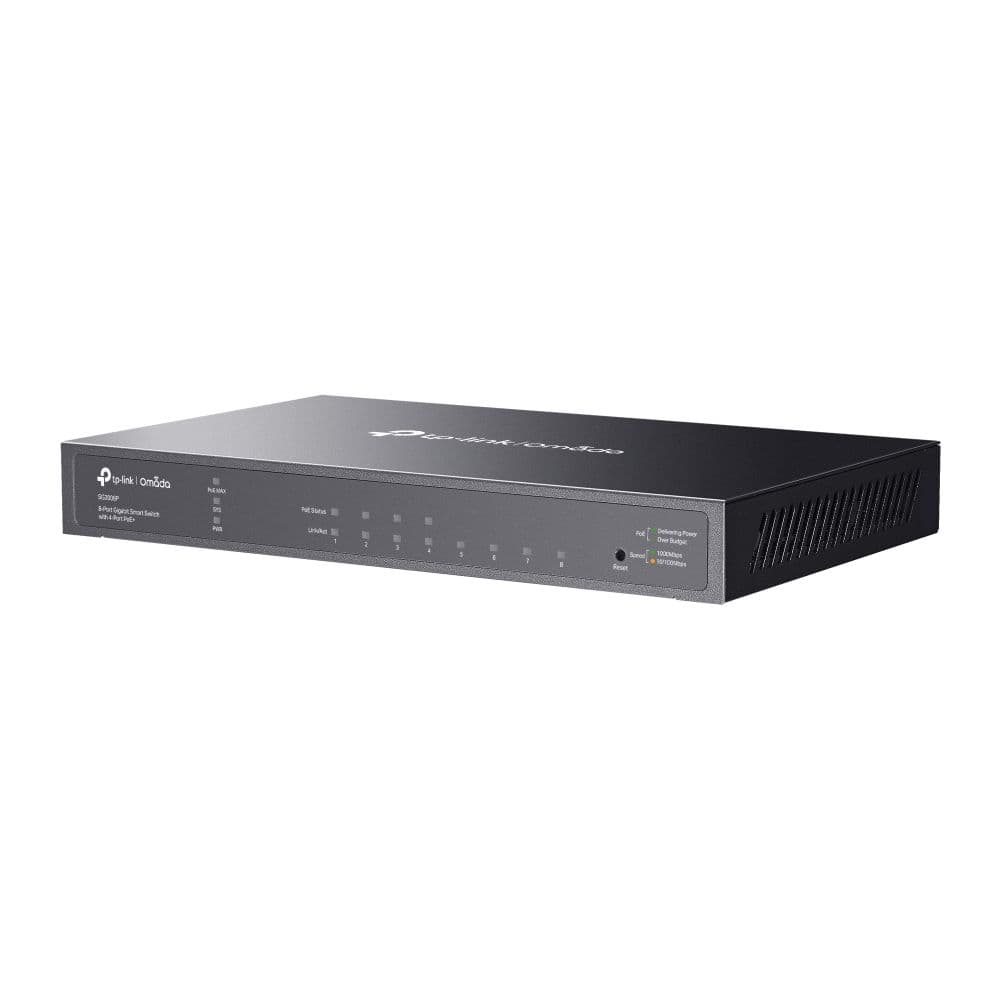

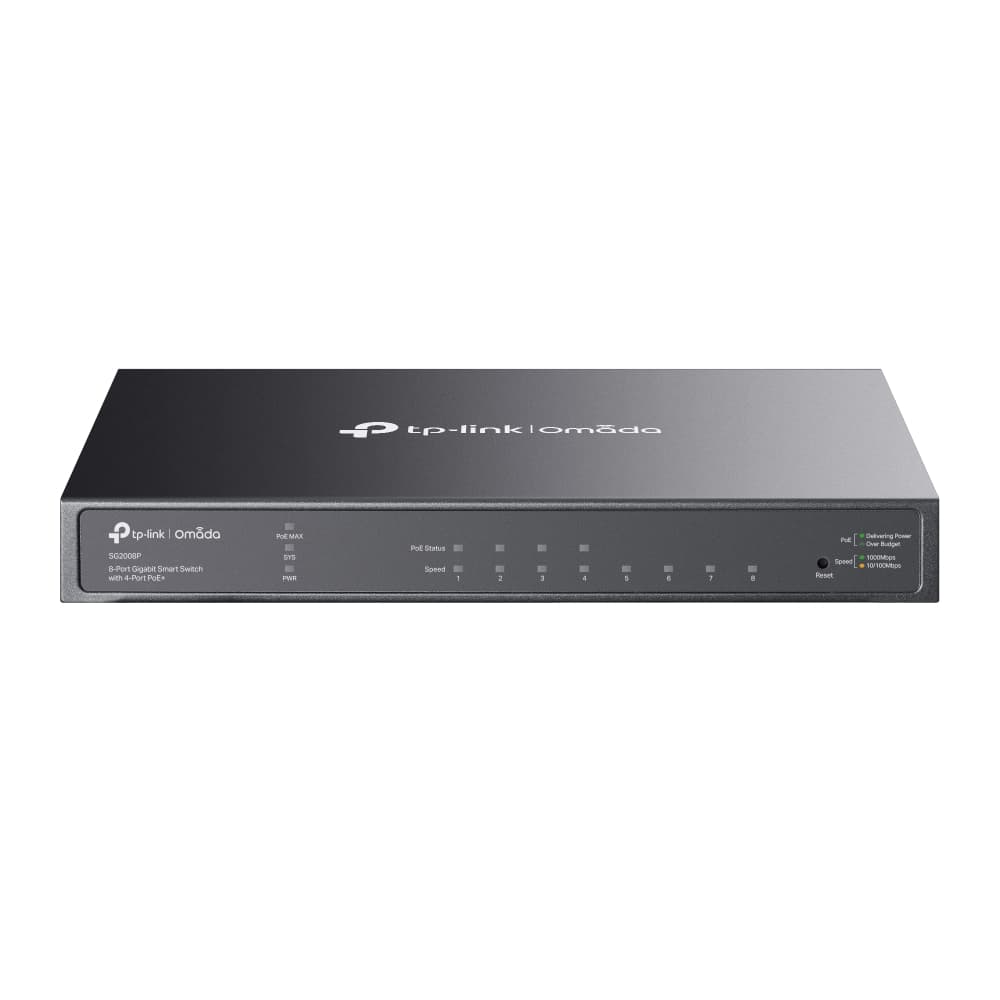

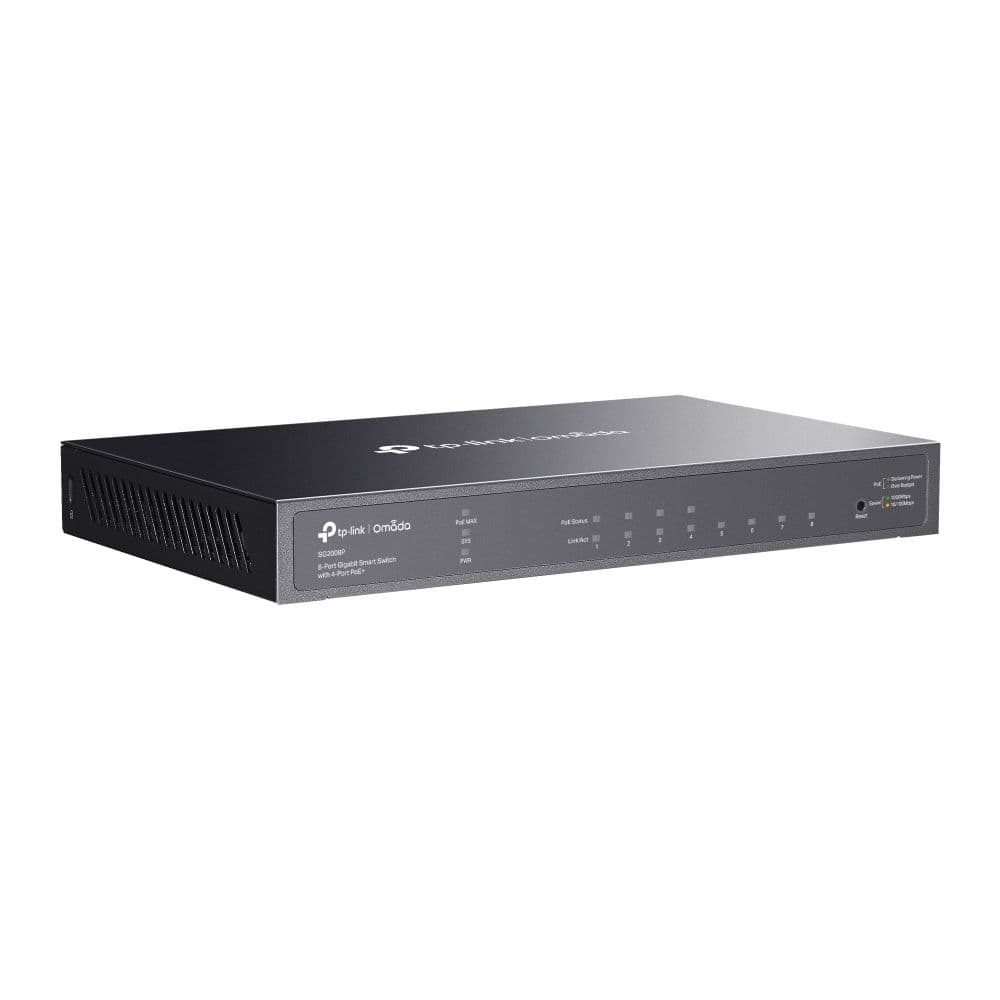

SG2008P - Omada 8-Port Gigabit Smart Switch with 4-Port PoE+

HARDWARE FEATURES - Interface

• 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)• Auto-Negotiation/Auto MDI/MDIX

HARDWARE FEATURES - Power Supply

External Power Adapter (Output: 53.5 VDC/ 1.31 A)

HARDWARE FEATURES - Max. Power Consumption

77.3 W (110 V/60 Hz) (with 62 W PD connected)

HARDWARE FEATURES - Dimensions ( W x D x H )

8.2×4.9×1.0 in (209×126×26 mm)

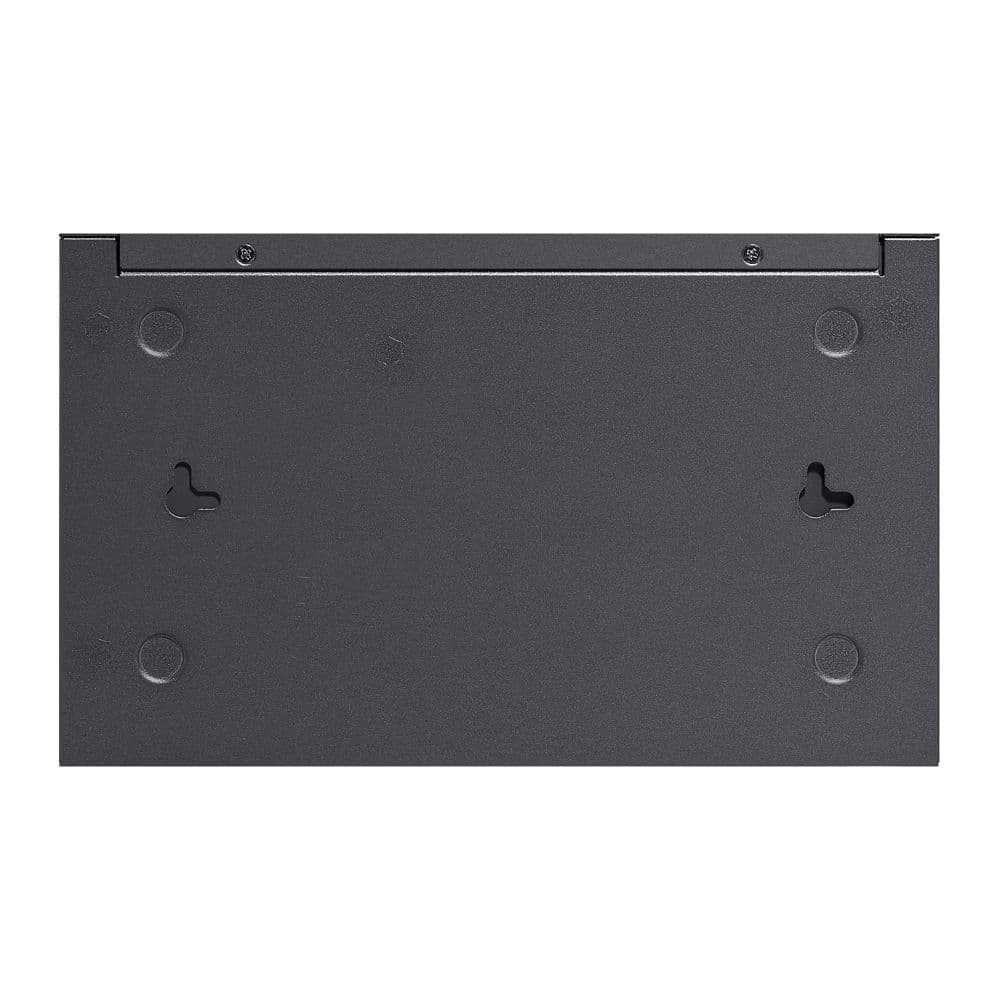

HARDWARE FEATURES - Mounting

Desktop / Wall-Mounting

Management Features - Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• SG2008P• Power Adapter• Installation Guide• Rubber Feet

OTHERS - Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS - System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

HARDWARE FEATURES - Physical Security Lock

√

PERFORMANCE - Packet Buffer Memory

4.1 Mbit

PERFORMANCE - Jumbo Frame

9 KB

PERFORMANCE - Packet Forwarding Rate

11.90 Mpps

PERFORMANCE - MAC Address Table

8k

Management Features - Management Features

• Web-based GUI• Command Line Interface (CLI) through telnet• SNMPv1/v2c/v3• SNMP Trap/Inform• RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• SNTP• System Log

HARDWARE FEATURES - Fan Quantity

Fanless

HARDWARE FEATURES - Max. Heat Dissipation

263.6 BTU/hr (110 V/60 Hz) (with 62 W PD connected)

SOFTWARE FEATURES - Quality of Service

• 802.1p CoS/DSCP priority• 8 priority queues• Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control: Port/Flow-based Rating Limit• Smoother Performance• Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control

SOFTWARE FEATURES - L2 and L2+ Features

• 16 IP Interfaces: Support IPv4/IPv6 Interface• Static Routing: 32 IPv4/IPv6 Static Routes• DHCP Server• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay• DHCP L2 Relay• Static ARP• Proxy ARP• Gratuitous ARP• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring• Device Link Detect Protocol (DLDP)• 802.1ab LLDP/ LLDP-MED

SOFTWARE FEATURES - Advanced Features

• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†

SOFTWARE FEATURES - VLAN

• VLAN Group: Max 4K VLAN Groups• 802.1Q tag VLAN• MAC VLAN: 12 Entries• Protocol VLAN• GVRP• Voice VLAN

SOFTWARE FEATURES - Security

• IP-MAC-Port Binding• AAA• 802.1X- Port-based authentication- MAC (Host) based authentication- Authentication Method includes PAP/EAP-MD5- MAB- Guest VLAN- Support Radius authentication and accountability• IP/IPv6-MAC Binding- 512 Binding Entries- DHCP Snooping- DHCPv6 Snooping- ARP Inspection- ND Detection• IP Source Guard- 253 Entries- Source IP+Source MAC• IPv6 Source Guard- 183 Entries- Source IPv6 Address+Source MAC• DoS Defend• Static/Dynamic/Permanent Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control- kbps/ratio control mode• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control

HARDWARE FEATURES - PoE Ports (RJ45)

• Standard: 802.3af/at compliant• PoE Ports: 4 Ports• Power Supply: 62 W*

SOFTWARE FEATURES - L2 Multicast

• 511 IPv4, IPv6 shared multicast groups• IGMP Snooping• Multicast VLAN Registration (MVR)• Multicast Filtering• Limited IP Multicast (256 profiles and 16 entries per profile)

SOFTWARE FEATURES - Access Control List

• Support up to 230 entries• Time-based ACL• MAC ACL• IP ACL• IPv6 ACL• Combined ACL• Rule Operation: Permit/Deny• Policy Action: Mirroring, Redirect, Rate Limit, QoS Remark• ACL Rules Binding: Port Binding, VLAN Binding

SOFTWARE FEATURES - IPv6

• IPv6 Static Routing and ACL• IPv6 Dual IPv4/IPv6• IPv6 Interface• Multicast Listener Discovery (MLD) Snooping• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

SOFTWARE FEATURES - MIBs

• MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9)

PERFORMANCE - Bandwidth/Backplane

16 Gbps
