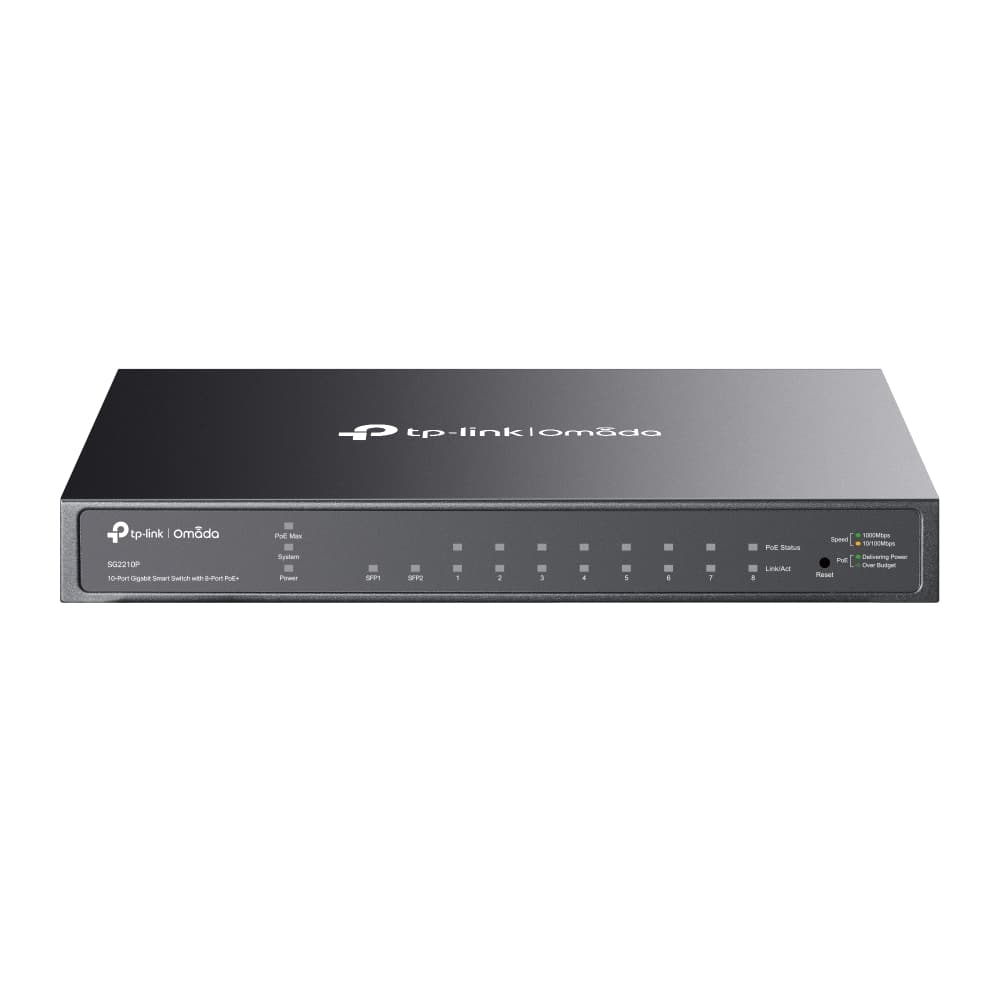

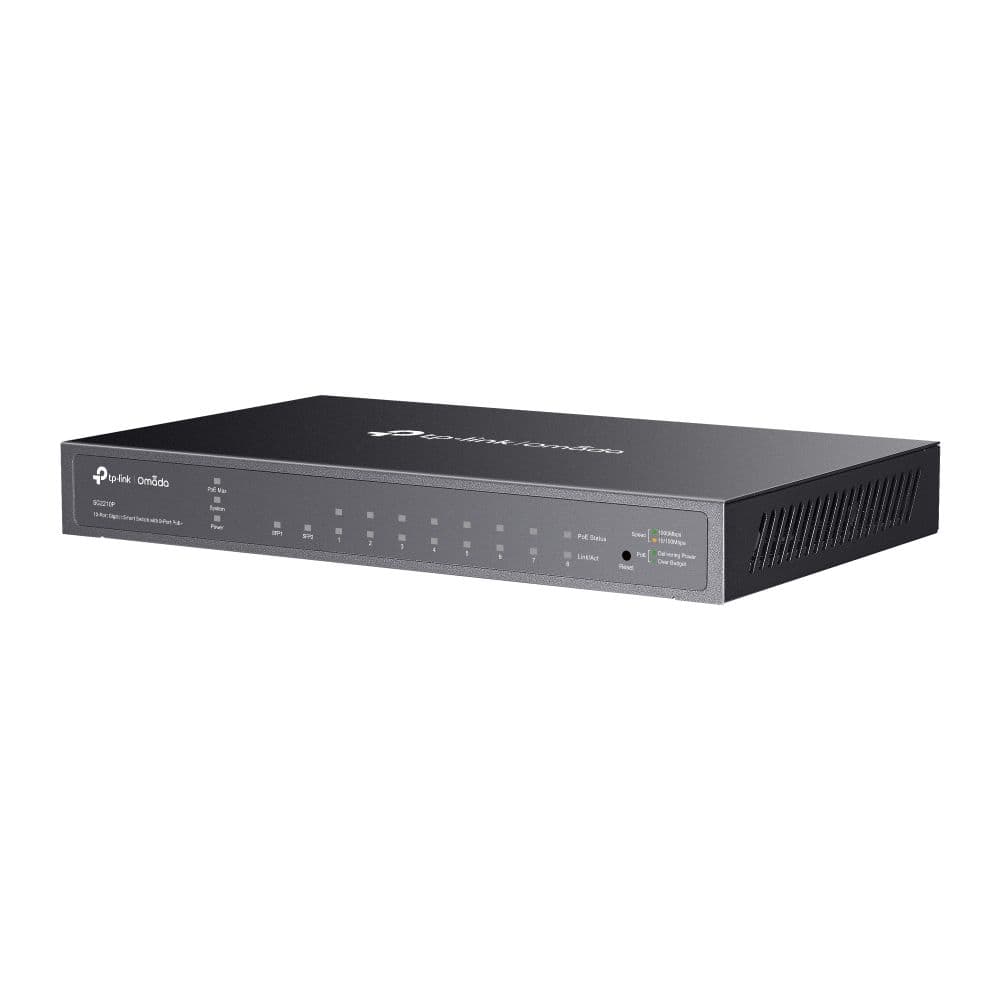

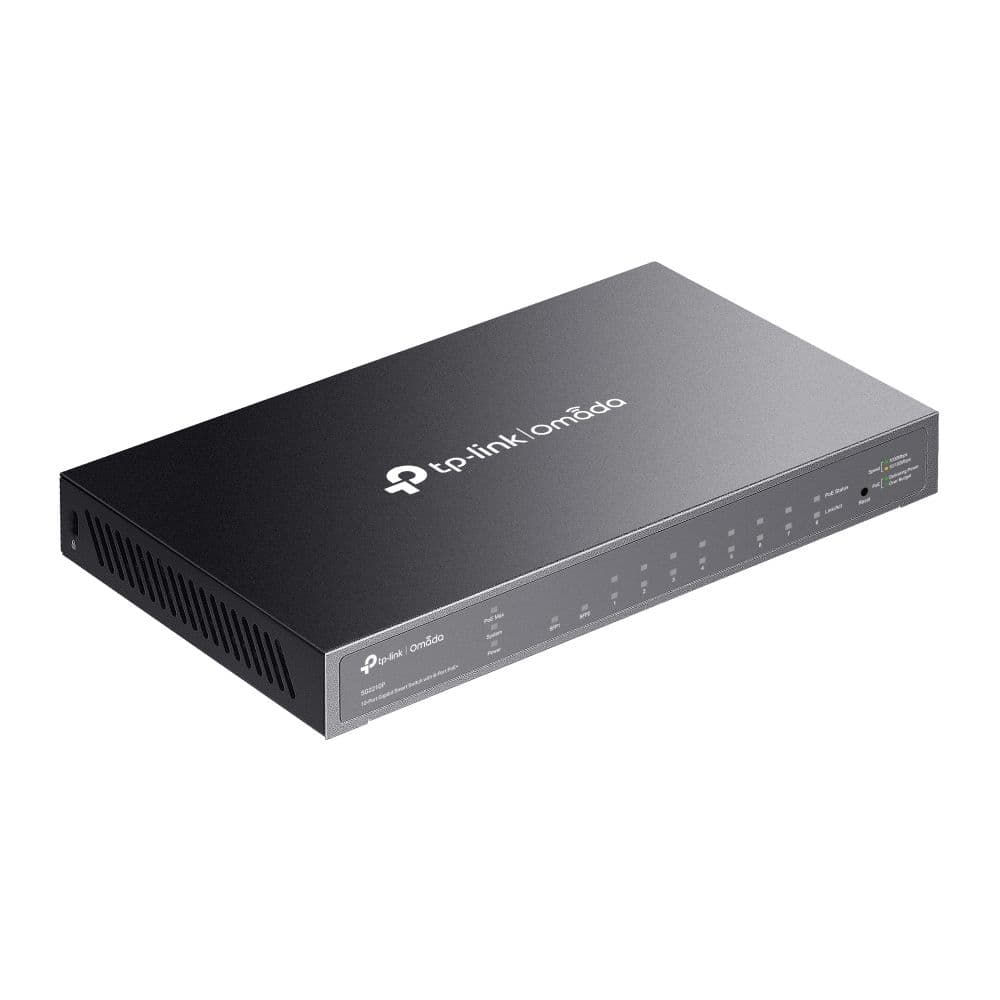

SG2210P - Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

HARDWARE FEATURES - Interface

• 8× 10/100/1000Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)• 2× 100/1000 Mbps SFP Slots

HARDWARE FEATURES - Power Supply

External Power Adapter (Output: 53.5VDC/1.31A)

HARDWARE FEATURES - Max. Power Consumption

77.8 W (110 V/60 Hz) (with 61 W PD connected)

HARDWARE FEATURES - Dimensions ( W x D x H )

8.2×4.9×1.0 in (209×126×26 mm)

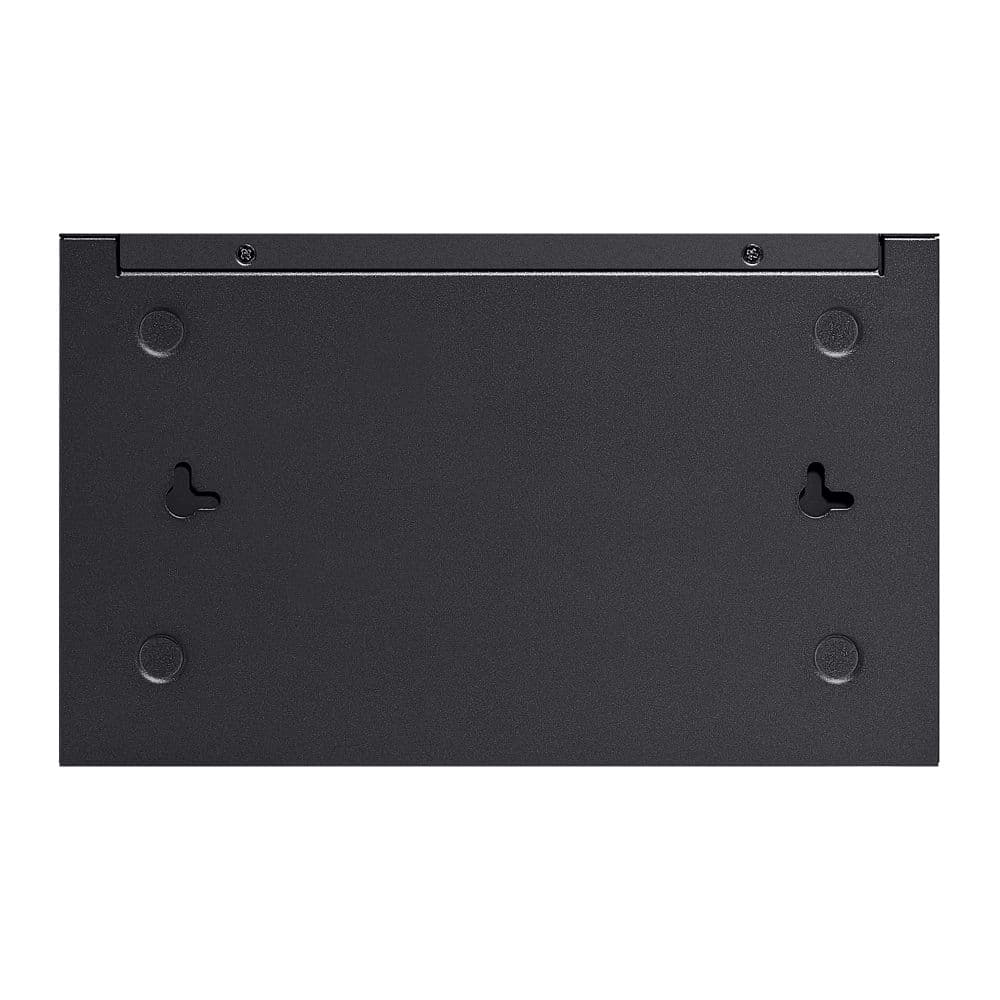

HARDWARE FEATURES - Mounting

Desktop / Wall-Mounting

Management Features - Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• SG2210P• Power Adapter• Installation Guide• Rubber Feet

OTHERS - Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉);• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS - System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

HARDWARE FEATURES - Physical Security Lock

√

PERFORMANCE - Packet Buffer Memory

4.1 Mbit

PERFORMANCE - Jumbo Frame

9 KB

PERFORMANCE - Switching Capacity

20 Gbps

PERFORMANCE - Packet Forwarding Rate

14.88 Mpps

PERFORMANCE - MAC Address Table

8K

Management Features - Management Features

• Web-based GUI• Command Line Interface (CLI) through telnet• SNMPv1/v2c/v3• SNMP Trap/Inform• RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• SNTP• System Log

HARDWARE FEATURES - Fan Quantity

Fanless

HARDWARE FEATURES - Max. Heat Dissipation

265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)

SOFTWARE FEATURES - Quality of Service

• 802.1p CoS/DSCP priority• 8 priority queues• Priority Schedule Mode- SP (Strict Priority)- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port/Flow based Rating Limit• Smoother Performance• Storm Control- Multiple Control Modes(kbps/ratio)- Broadcast/Multicast/Unknown-Unicast Control

SOFTWARE FEATURES - L2 and L2+ Features

• 32 IP Interfaces: Support IPv4/IPv6 Interface• Static Routing: 32 IPv4/IPv6 Static Routes• DHCP Server• DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay• DHCP L2 Relay• Static ARP• Proxy ARP• Gratuitous ARP• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring• Device Link Detect Protocol (DLDP)• 802.1ab LLDP/ LLDP-MED

SOFTWARE FEATURES - Advanced Features

• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†

SOFTWARE FEATURES - VLAN

• VLAN Group- Max. 4K VLAN Groups• 802.1Q tag VLAN• MAC VLAN: 12 Entries• Protocol VLAN• GVRP• Voice VLAN

SOFTWARE FEATURES - Security

• IP-MAC-Port Binding• AAA• 802.1X- Port-based authentication- MAC (Host) based authentication- Authentication Method includes PAP/EAP-MD5- MAB- Guest VLAN- Support Radius authentication and accountability• IP/IPv6-MAC Binding- 512 Binding Entries- DHCP Snooping- DHCPv6 Snooping- ARP Inspection- ND Detection• IP Source Guard- 253 Entries- Source IP+Source MAC• IPv6 Source Guard- 183 Entries- Source IPv6 Address+Source MAC• DoS Defend• Static/Dynamic/Permanent Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control- kbps/ratio control mode• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control

HARDWARE FEATURES - PoE Ports (RJ45)

• Standard: 802.3af/at compliant• PoE Ports: 8 Ports• Power Supply: 61 W*

SOFTWARE FEATURES - L2 Multicast

• 511 IPv4, IPv6 shared multicast groups• IGMP Snooping• Multicast VLAN Registration (MVR)• Multicast Filtering• Limited IP Multicast (256 profiles and 16 entries per profile)

SOFTWARE FEATURES - Access Control List

• Support up to 230 entries• Time-based ACL• MAC ACL• IP ACL• IPv6 ACL• Combined ACL• Rule Operation: Permit/Deny• Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark• ACL Rules Binding - Port Binding - VLAN Binding

SOFTWARE FEATURES - IPv6

• IPv6 Static Routing and ACL• IPv6 Dual IPv4/IPv6• IPv6 Interface• Multicast Listener Discovery (MLD) Snooping• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP

SOFTWARE FEATURES - MIBs

• MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9)
