TP-Link

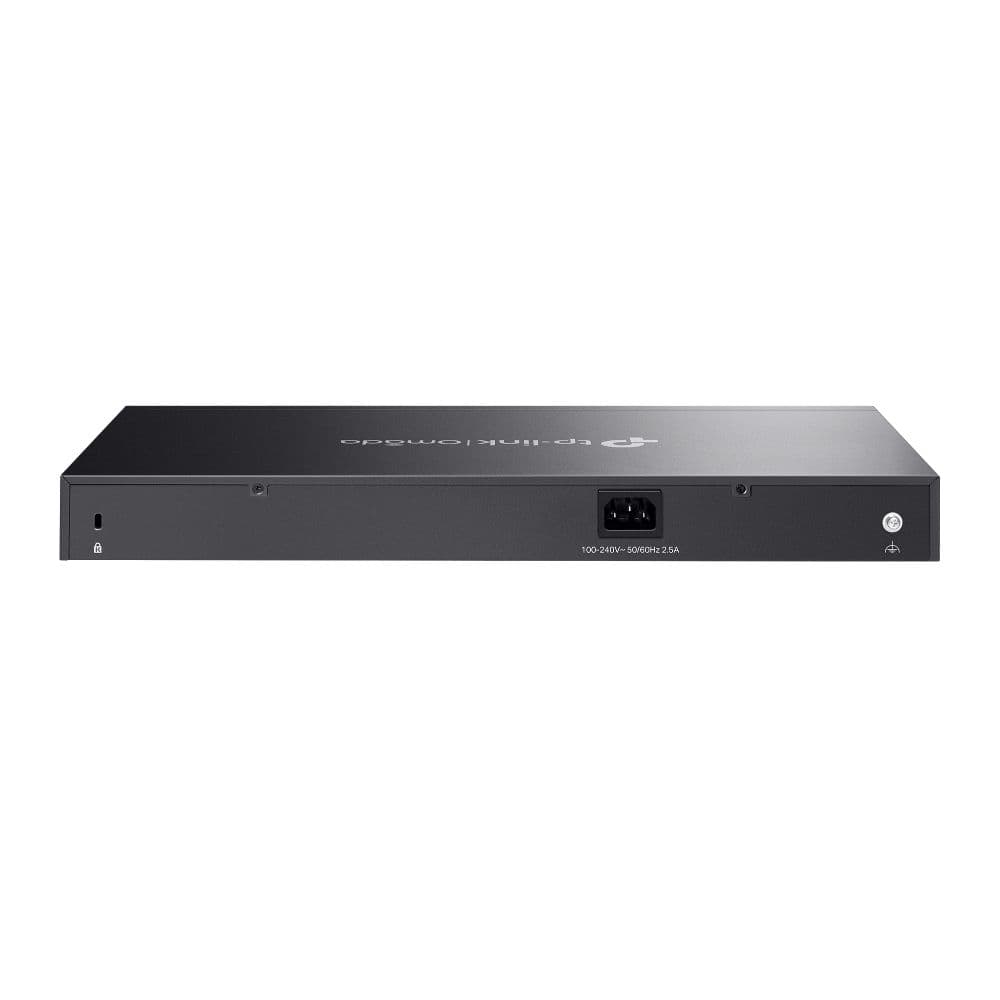

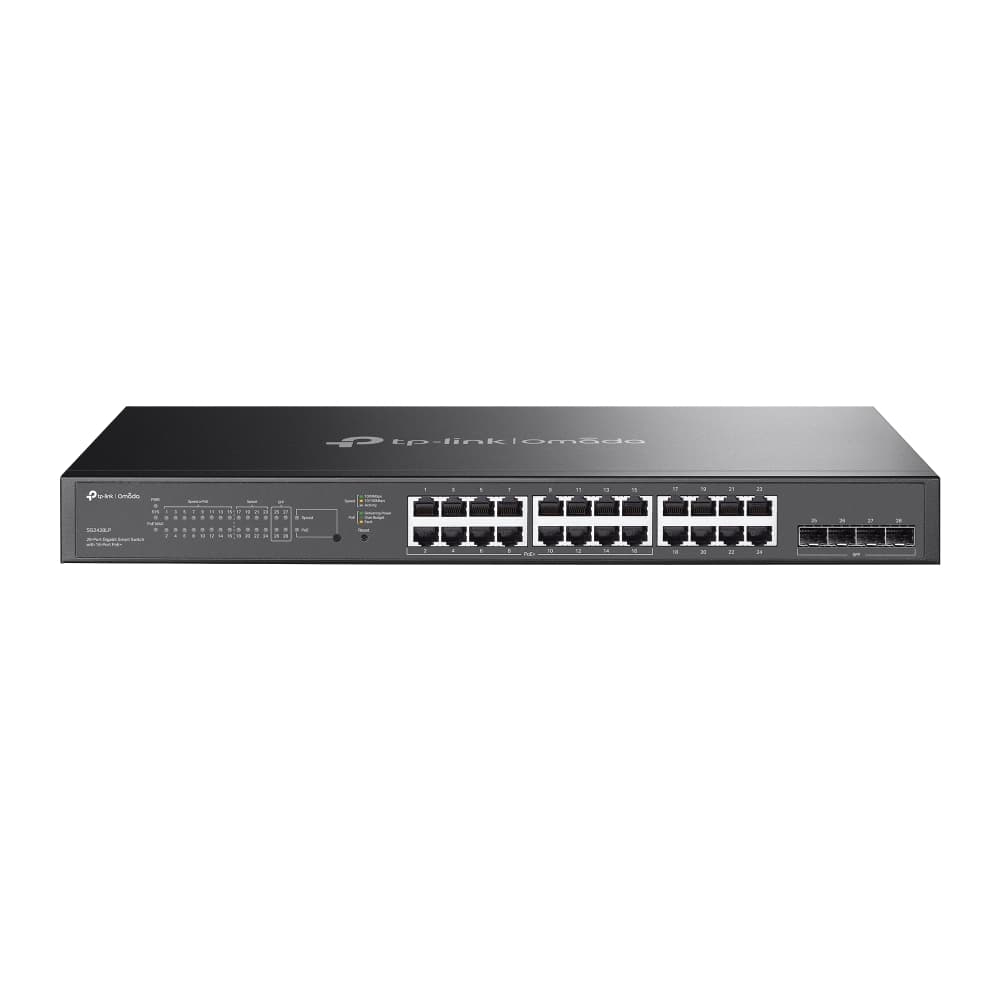

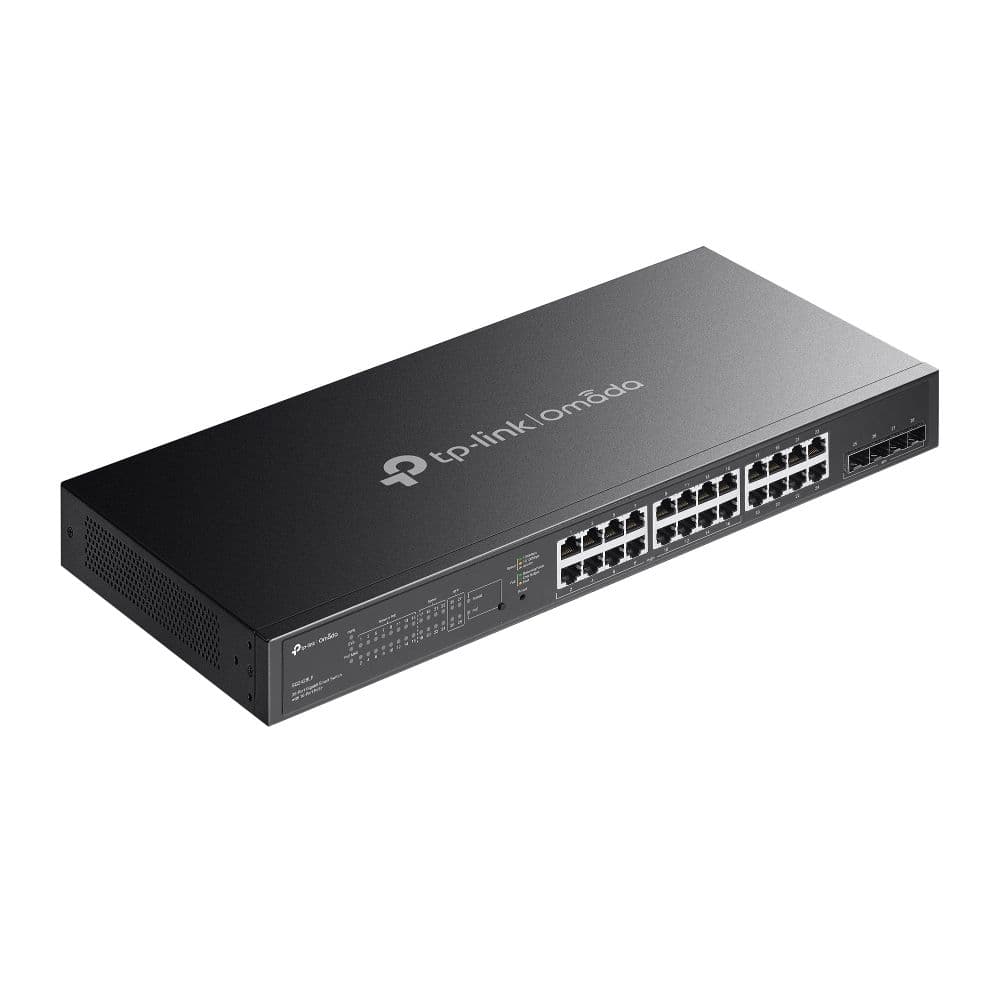

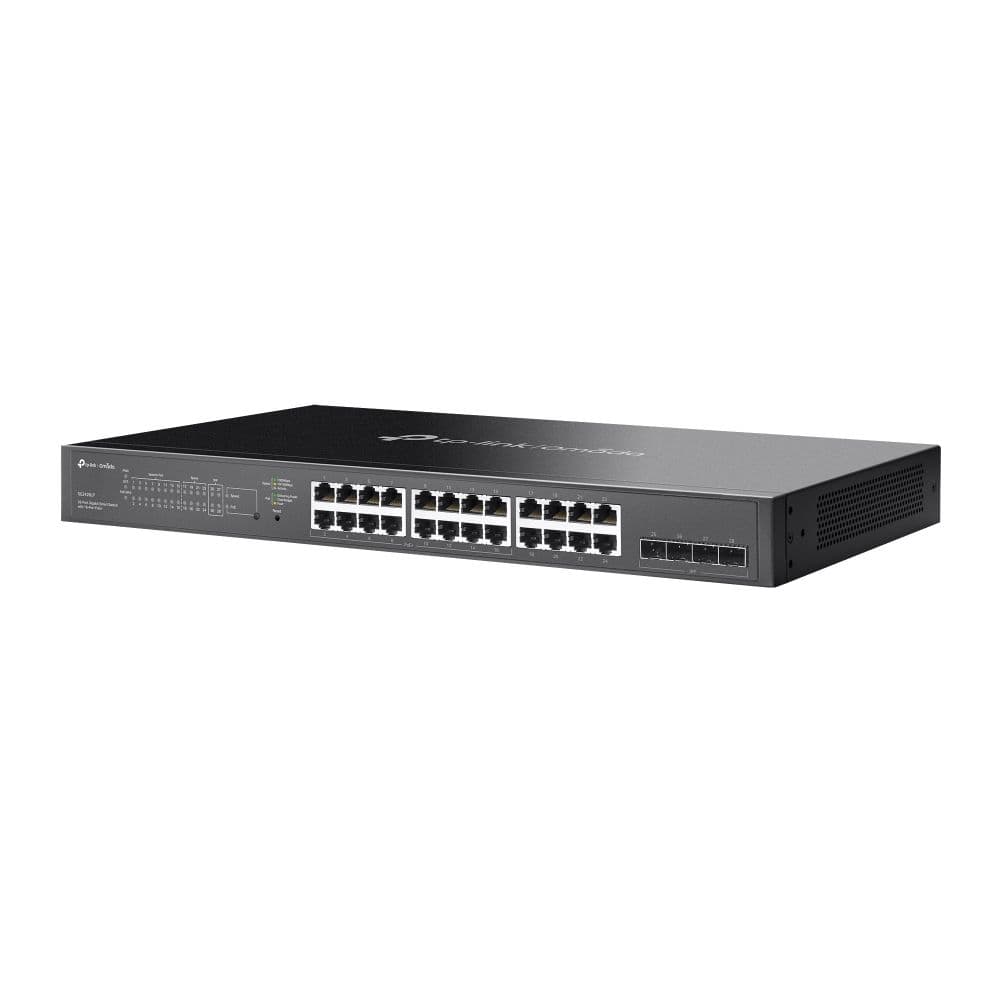

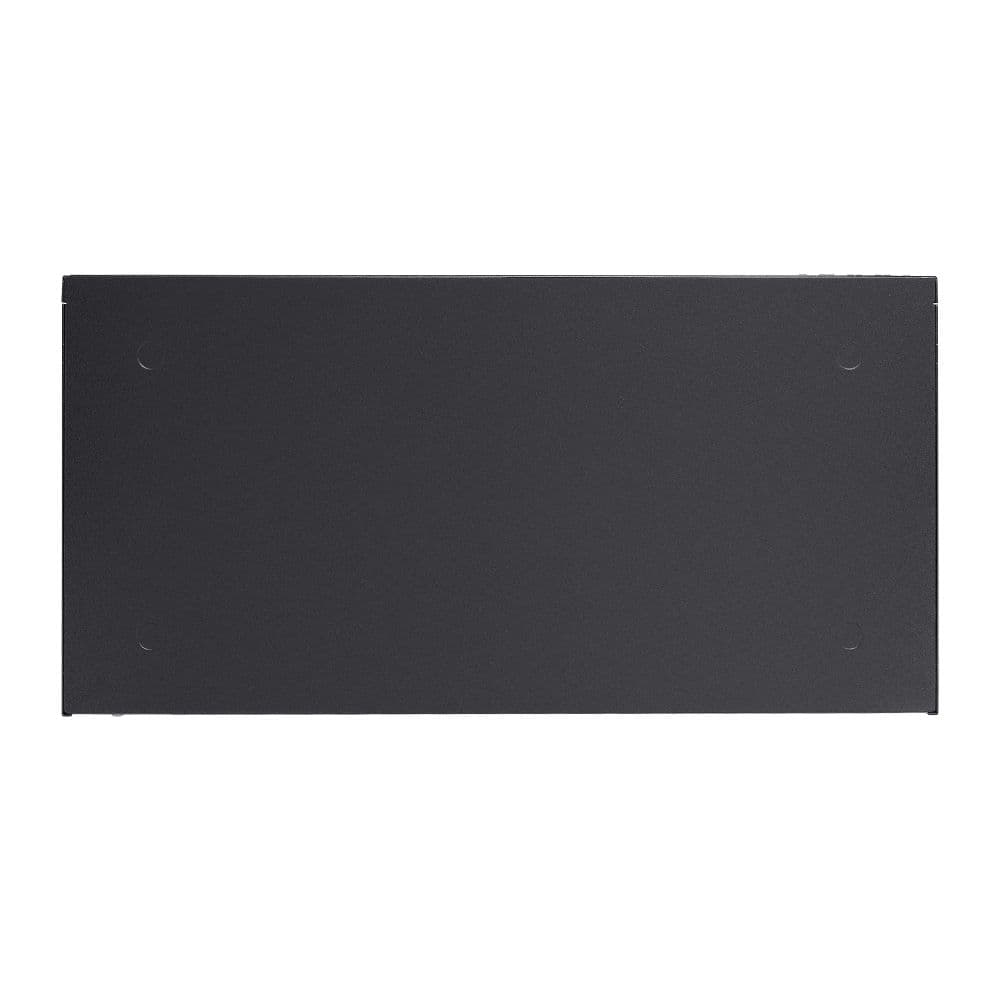

SG2428LP - Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

0,00 ₼

24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
150 W Total PoE Budget*
Fanless Design for Silent Operation
Zero-Touch Provisioning†
Centralized Management†
Omada App†
Static Routing
Traffic Separation
Surveillance Works with IP Cameras
Conference Call Works with IP Phones
Wi-Fi Coverage Works with Access Points
Wired Connections Works with Non-PoE Devices such as PCs and Printers

Low stock

HARDWARE FEATURES - Interface

• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)• 8× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)• 4× Gigabit SFP Slots

HARDWARE FEATURES - Power Supply

100-240V AC, 50/60Hz

HARDWARE FEATURES - Max. Power Consumption

184.7 W (110V/60Hz) (with 150 W PD connected)

HARDWARE FEATURES - Dimensions ( W x D x H )

17.3×8.7×1.73 in (440×220×44 mm)

HARDWARE FEATURES - Mounting

Rack Mountable

Management Features - Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

CE, FCC

OTHERS - Package Content

• SG2428LP• Power Cord• Installation Guide• Rackmount Kit• Rubber Feet

OTHERS - Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS - System Requirements

Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

HARDWARE FEATURES - Physical Security Lock

√

PERFORMANCE - Packet Buffer Memory

4.1 Mbit

PERFORMANCE - Jumbo Frame

9 KB

PERFORMANCE - Switching Capacity

56 Gbps

PERFORMANCE - Packet Forwarding Rate

41.66 Mpps

PERFORMANCE - MAC Address Table

Management Features - Management Features

• Web-based GUI• Command Line Interface (CLI) through telnet• SNMPv1/v2c/v3• SNMP Trap/Inform• RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• SNTP• System Log

HARDWARE FEATURES - Fan Quantity

Fanless

HARDWARE FEATURES - Max. Heat Dissipation

628.0 BTU/hr (110V/60 Hz) (with 150 W PD connected)

SOFTWARE FEATURES - Quality of Service

• 802.1p CoS/DSCP priority• 8 priority queues• Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control: Port/Flow-based Rating Limit• Smoother Performance• Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control

SOFTWARE FEATURES - L2 and L2+ Features

• 16 IP Interfaces: Support IPv4/IPv6 Interface• Static Routing: 32 IPv4/IPv6 Static Routes• DHCP Server• DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay• DHCP L2 Relay• Static ARP• Proxy ARP• Gratuitous ARP• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring• Device Link Detect Protocol (DLDP)• 802.1ab LLDP/ LLDP-MED

SOFTWARE FEATURES - Advanced Features

• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†

SOFTWARE FEATURES - VLAN

• VLAN Group: Max. 4K VLAN Groups• 802.1Q tag VLAN• MAC VLAN: 12 Entries• Protocol VLAN• GVRP• Voice VLAN

SOFTWARE FEATURES - Security

• IP-MAC-Port Binding• AAA• 802.1X- Port based authentication- MAC (Host) based authentication- Authentication Method includes PAP/EAP-MD5- MAB- Guest VLAN- Radius authentication and accountability support • IP/IPv6-MAC Binding- 512 Binding Entries- DHCP Snooping- DHCPv6 Snooping- ARP Inspection- ND Detection• IP Source Guard- 253 Entries- Source IP+Source MAC• IPv6 Source Guard- 183 Entries- Source IPv6 Address+Source MAC• DoS Defend• Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control

HARDWARE FEATURES - PoE Ports (RJ45)

• Standard: 802.3at/af compliant• PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)• PoE Power Budget: 150 W*

SOFTWARE FEATURES - L2 Multicast

• 511 IPv4, IPv6 shared multicast groups• IGMP Snooping• Multicast VLAN Registration (MVR)• Multicast Filtering• Limited IP Multicast (256 profiles and 16 entries per profile)

SOFTWARE FEATURES - Access Control List

• Support up to 230 entries• Time-based ACL• MAC ACL• IP ACL• IPv6 ACL• Combined ACL• Rule Operation: Permit/Deny• Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark• ACL Rules Binding - Port Binding - VLAN Binding

SOFTWARE FEATURES - IPv6

• IPv6 Static Routing and ACL• IPv6 Dual IPv4/IPv6• IPv6 Interface• Multicast Listener Discovery (MLD) Snooping• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

SOFTWARE FEATURES - MIBs

• MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9)
