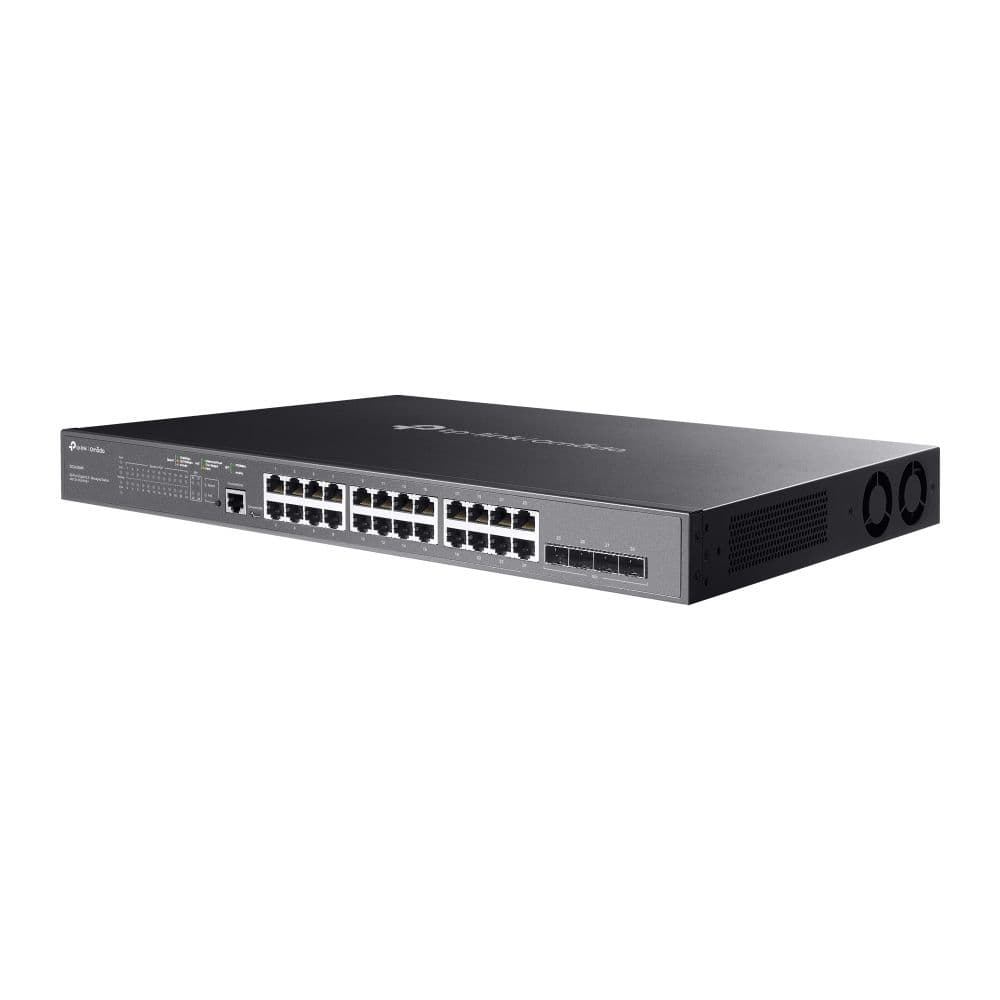

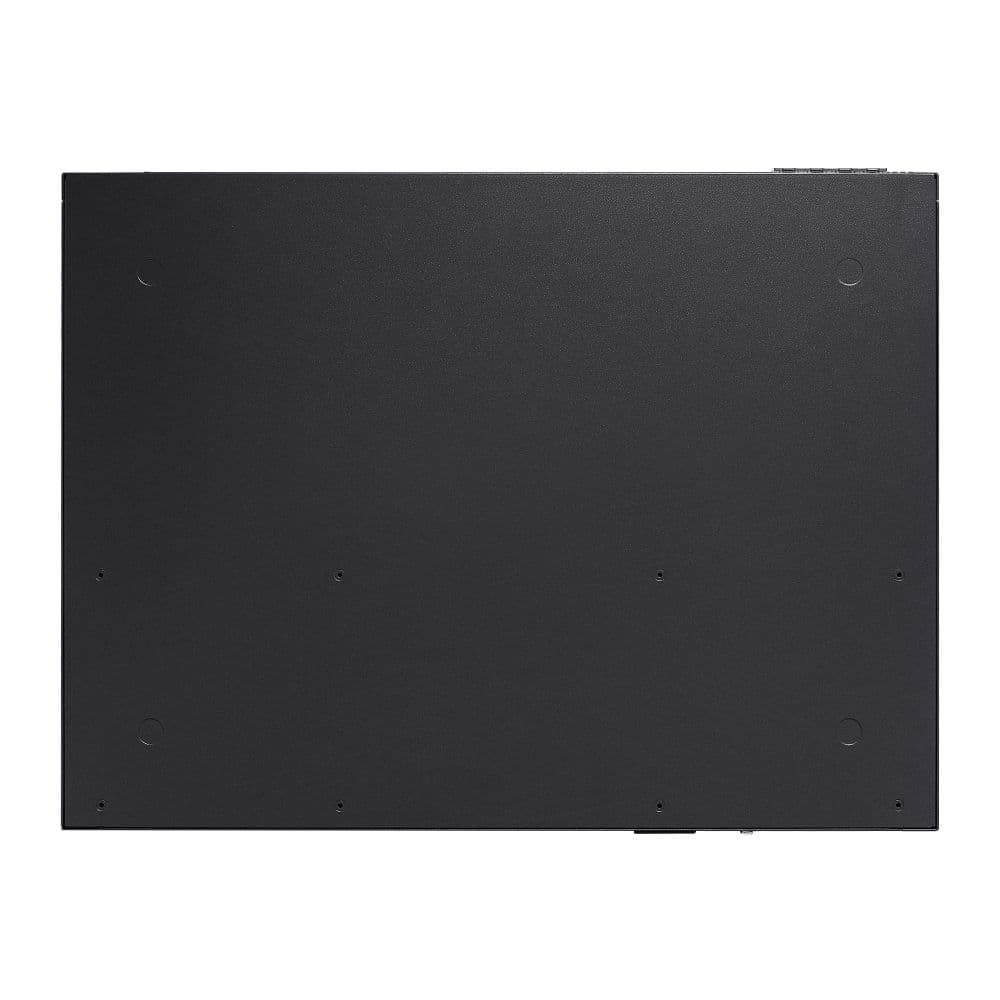

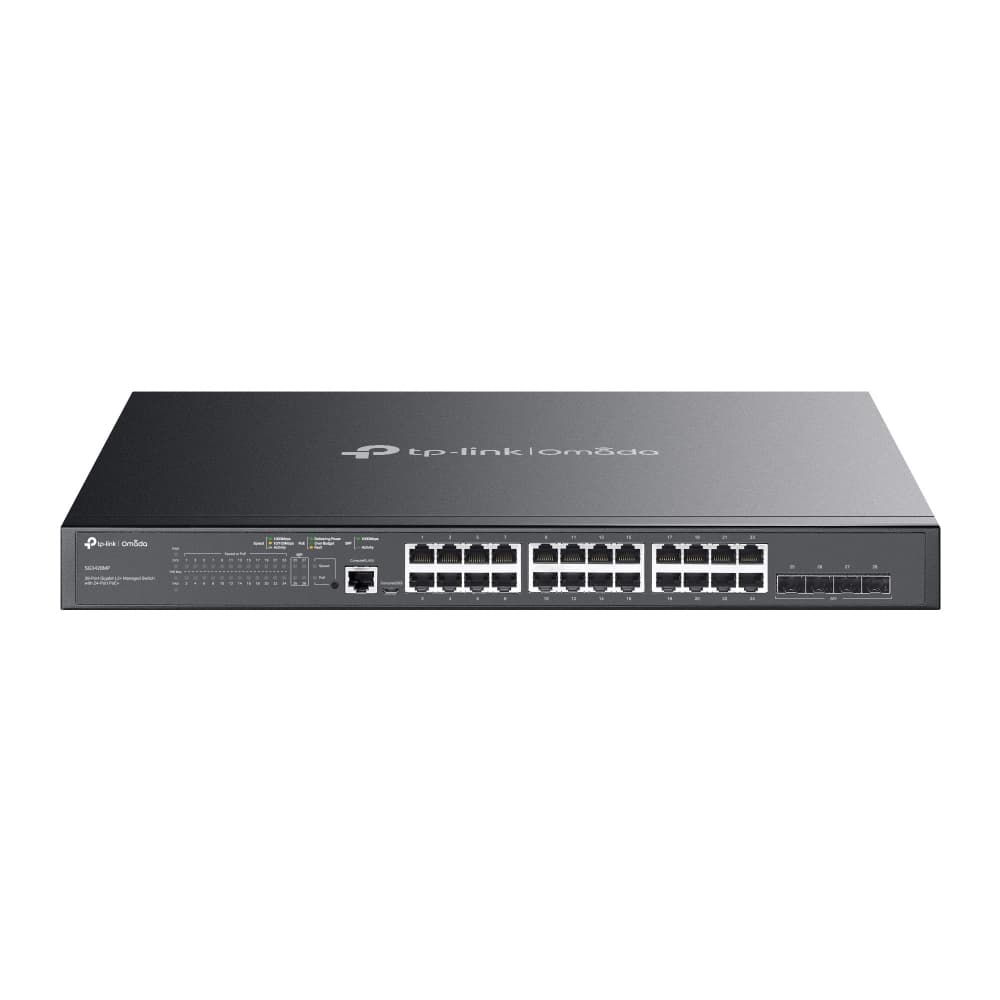

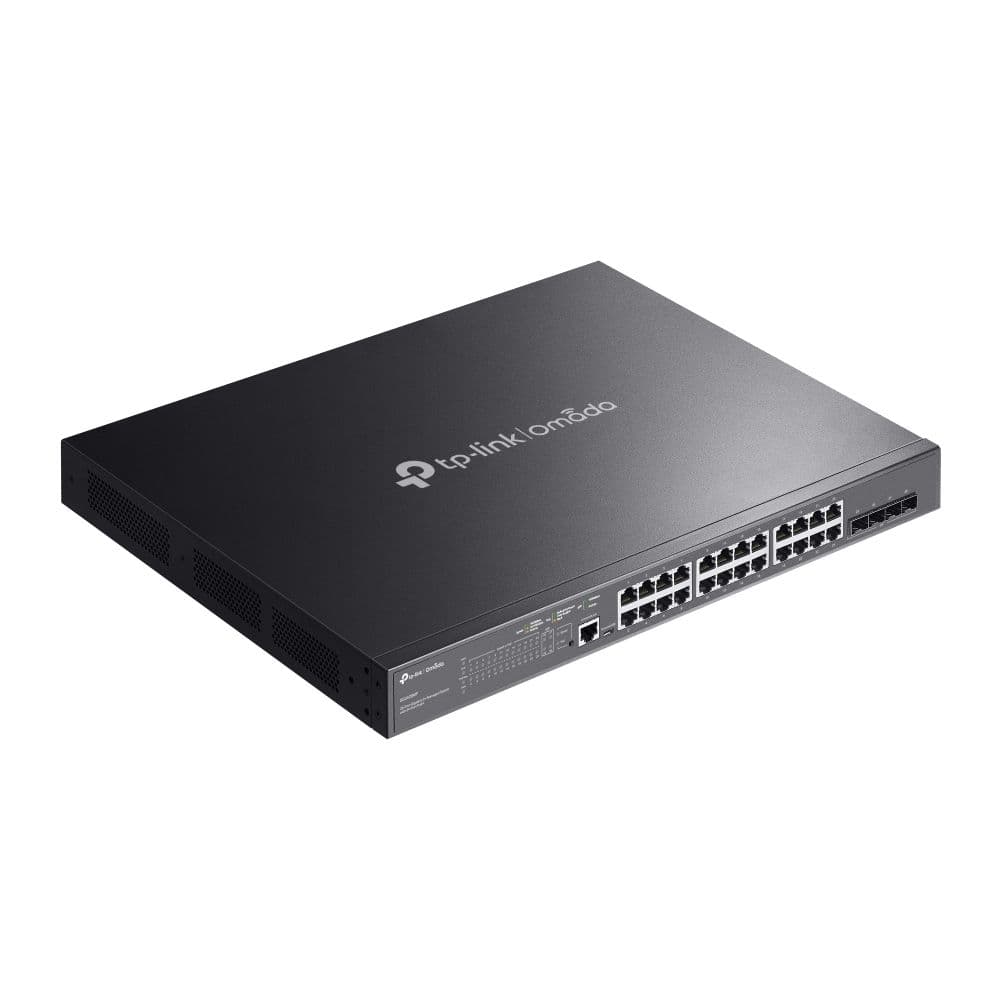

SG3428MP - Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+

HARDWARE FEATURES - Interface

• 24× 10/100/1000 Mbps RJ45 PoE+ Ports• 4× Gigabit SFP Slots• 1× RJ45 Console Port• 1× Micro-USB Console Port

HARDWARE FEATURES - Power Supply

100-240 V AC~50/60 Hz

HARDWARE FEATURES - Max. Power Consumption

480.1 W (110 V/60 Hz) (with 384 W PD connected)

HARDWARE FEATURES - Dimensions ( W x D x H )

17.3×13.0×1.7 in (440×330×44 mm)

HARDWARE FEATURES - Mounting

Rack Mountable

Management Features - Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

• SG3428MP Switch• Power Cord• Quick Installation Guide• Rackmount Kit• Rubber Feet

OTHERS - Environment

• Operating Temperature: 0–45 ℃ (32–113 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS - System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

HARDWARE FEATURES - Physical Security Lock

√

PERFORMANCE - Packet Buffer Memory

12 Mbit

PERFORMANCE - Jumbo Frame

9 KB

PERFORMANCE - Switching Capacity

56 Gbps

PERFORMANCE - Packet Forwarding Rate

41.66 Mpps

PERFORMANCE - MAC Address Table

16K

Management Features - Management Features

• Web-based GUI• Command Line Interface (CLI) through console port, telnet• SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP AutoInstall• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• Password Recovery• SNTP• System Log

HARDWARE FEATURES - Fan Quantity

2

HARDWARE FEATURES - Max. Heat Dissipation

1637.14 BTU/hr (110 V/60 Hz) (with 384 W PD connected)

SOFTWARE FEATURES - Quality of Service

• 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR• Bandwidth Control: Port/Flow based Rating Limiting• Smoother Performance• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)

SOFTWARE FEATURES - L2 and L2+ Features

• 128 IP Interfaces: Support IPv4/IPv6 Interface• Static Routing: 48 IPv4/IPv6 Static Routes• Static ARP: 128 static entries• 512 ARP Entries• Proxy ARP• Gratuitous ARP• DHCP Server• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay• DHCP L2 Relay• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring• Device Link Detect Protocol (DLDP)

SOFTWARE FEATURES - Advanced Features

• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†ISP Features**:• L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP)• PPPoE ID Insertion• ERPS• 802.3ah Ethernet Link OAM• DDM• sFlow

SOFTWARE FEATURES - VLAN

• VLAN Group: Max 4K VLAN Groups• 802.1q Tagged VLAN• MAC VLAN: 30 Entries• Protocol VLAN: Protocol Template 16, Protocol VLAN 16• Private VLAN• GVRP• VLAN VPN (QinQ): Port-Based QinQ; Selective QinQ• Voice VLAN

SOFTWARE FEATURES - Security

• IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries• IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 100 Entries• DoS Defend• DHCP Filter• Static/Dynamic Port Security: Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode• 802.1X- Port-based authentication- Mac-base authentication- VLAN Assignment- MAB- Guest VLAN- Radius authentication and accountability support • AAA (including TACACS+)• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control

HARDWARE FEATURES - PoE Ports (RJ45)

• Standard: 802.3at/af compliant• PoE+ Ports: 24 Ports (up to 30 W PoE Output per Port)• Power Budget: 384 W*

SOFTWARE FEATURES - L2 Multicast

• Supports 511 (IPv4, IPv6) IGMP groups• IGMP Snooping• IGMP Authentication• Multicast VLAN Registration (MVR)• MLD Snooping• Multicast Filtering: 256 profiles and 16 entries per profile

SOFTWARE FEATURES - Access Control List

• Time-based ACL• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority• Combined ACL• Packet Content ACL• IPv6 ACL• Policy: Mirroring, Redirect, Rate Limit, QoS Remark• ACL applies to Port/VLAN

SOFTWARE FEATURES - IPv6

• IPv6 Dual IPv4/IPv6• Multicast Listener Discovery (MLD) Snooping• IPv6 ACL• IPv6 Interface• Static IPv6 Routing• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

SOFTWARE FEATURES - MIBs

• MIB II (RFC1213)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIBs• RMON MIB(RFC1757, rmon 1,2,3,9)
