TP-Link

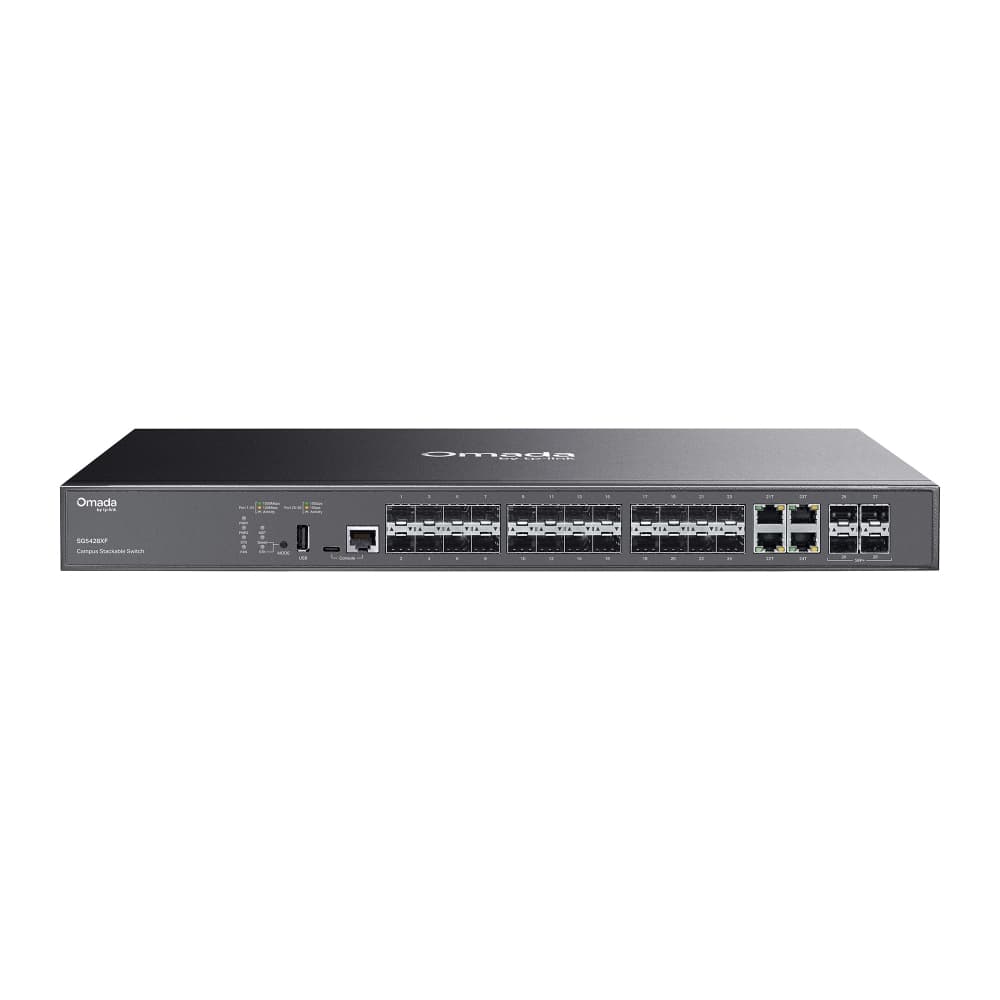

SG5428XF - Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots

0,00 ₼

20× Gigabit SFP slots and 4× Gigabit RJ45/SFP Combo ports
4× 10 Gbps SFP+ slots
128 Gbps switching capacity per unit
Dual internal power supplies provide mutual backup
Physical stacking up to 4 units for built-in redundancy and performance
L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
Security strategies: ACL, Port Security, DoS Defend, 802.1X
ERPS supports rapid protection and recovery in a ring topology
Centralized cloud management via the Omada SDN controller
Standalone management via web, CLI, SNMP, and RMON

Low stock

HARDWARE FEATURES - Interface

• 20× 100/1000 Mbps SFP Slots• 4× Gigabit RJ45/SFP Combo Ports• 4× 1/10 Gbps SFP+ Slots*• 1× USB 2.0 Port• 1× RJ45 Console Port• 1× USB Type-C Console Port

HARDWARE FEATURES - Power Supply

100-240 V~50/60 Hz

HARDWARE FEATURES - Max. Power Consumption

• 28.3 W (220V/50Hz @ 25 °C)• 28.98 W (110V/60Hz @ 25 °C)

HARDWARE FEATURES - Dimensions ( W x D x H )

17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

HARDWARE FEATURES - Mounting

Rackmountable

Management Features - Omada App

Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later)

Management Features - Cloud Access

Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Package Content

• SG5428XF Switch• Power Cords• Console Cable• Rackmount Kits• Rubber Feet• Quick Installation Guide

OTHERS - Environment

• Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F)• Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of the Omada Cloud-Based Controller.

OTHERS - System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

PERFORMANCE - Packet Buffer Memory

12 Mbit

PERFORMANCE - Jumbo Frame

9 KB

PERFORMANCE - Stacking

• Stacking Number: 4• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)• Stacking Bandwidth: Up to 80 Gbps (4 stacking ports)

PERFORMANCE - Switching Capacity

128 Gbps per Unit

PERFORMANCE - Packet Forwarding Rate

95.23 Mpps

PERFORMANCE - MAC Address Table

16 K

Management Features - Management Features

• Web-based GUI• Command Line Interface (CLI) through console port, telnet• SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP Auto Install• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• Password Recovery• SNTP• System Log• IEEE 802.3az Energy Efficient Ethernet (EEE)

HARDWARE FEATURES - Fan Quantity

1 Fan

HARDWARE FEATURES - Max. Heat Dissipation

• 96.503 BTU/hr (220V/50Hz @ 25 °C)• 98.822 BTU/hr (110V/60Hz @ 25 °C)

SOFTWARE FEATURES - Quality of Service

• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR)• Bandwidth Control - Rate Limit - Storm Control• Voice VLAN • User-Defined OUI • Smoother Performance• Action for Flows - QoS remark (802.1P Remark, DSCP Remark)

SOFTWARE FEATURES - L3 Features

• IP Interfaces:- IPv4: Max 128, IPv6: Max 128• ARP- Static Entries 512- Dynamic Entries 3,600• ND Dynamic Entries 3,600 • Static Route- IPv4: Max 512, IPv6: Max 128• Host Route- IPv4: Max 1,024, IPv6: Max 890• Network Route- IPv4: Max 1,796, IPv6: Max 450• RIP: Version v1/v2• RIPng• OSPF: Version V2/V3• Proxy ARP• DHCP Server:- Max 64 IP Pools- Max 8,000 Leases- Max 1,000 Manual Binding Entries• DHCP Relay:- Relayed Interface- Relayed VLAN

SOFTWARE FEATURES - L2 and L2+ Features

• Link Aggregation• Spanning Tree Protocol• Port-based and VLAN-based Loopback Detection• 802.3x Flow Control• ERPS• Mirroring• RSPAN• MAC Address Table • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table: Max 2,000 - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast Groups - Multicast Filtering

SOFTWARE FEATURES - Advanced Features

• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†ISP Features:• 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP)• DDM• sFlow

SOFTWARE FEATURES - VLAN

• Max 4K VLAN Group (802.1q VLAN)• 802.1Q Tagged VLAN• MAC VLAN Entries: 60• Multicast VLAN• Management VLAN• VLAN VPN (QinQ): Max 256 entries• GVRP• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries• Voice VLAN• Private VLAN

SOFTWARE FEATURES - Security

• Port Isolation• CPU-Defend• ARP Inspection (Dynamic ARP Inspection)• DoS Defend• IP-MAC-Port Binding-1,024 Entries- DHCP Snooping- ARP Scanning- ARP Detection- IPv4 Source Guard• IPv6-MAC-Port Binding-1,024 Entries- DHCPv6 Snooping- ND Snooping- ND Detection- IPv6 Source Guard• DHCP Filter• Static/Dynamic Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unknown-unicast Storm Control- kbps/ratio control mode• 802.1X- Port base authentication- Mac base authentication- VLAN Assignment- MAB- Guest VLAN- RADIUS authentication and accountability support• AAA (including TACACS+)• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv2• IP/Port/MAC-based access control
