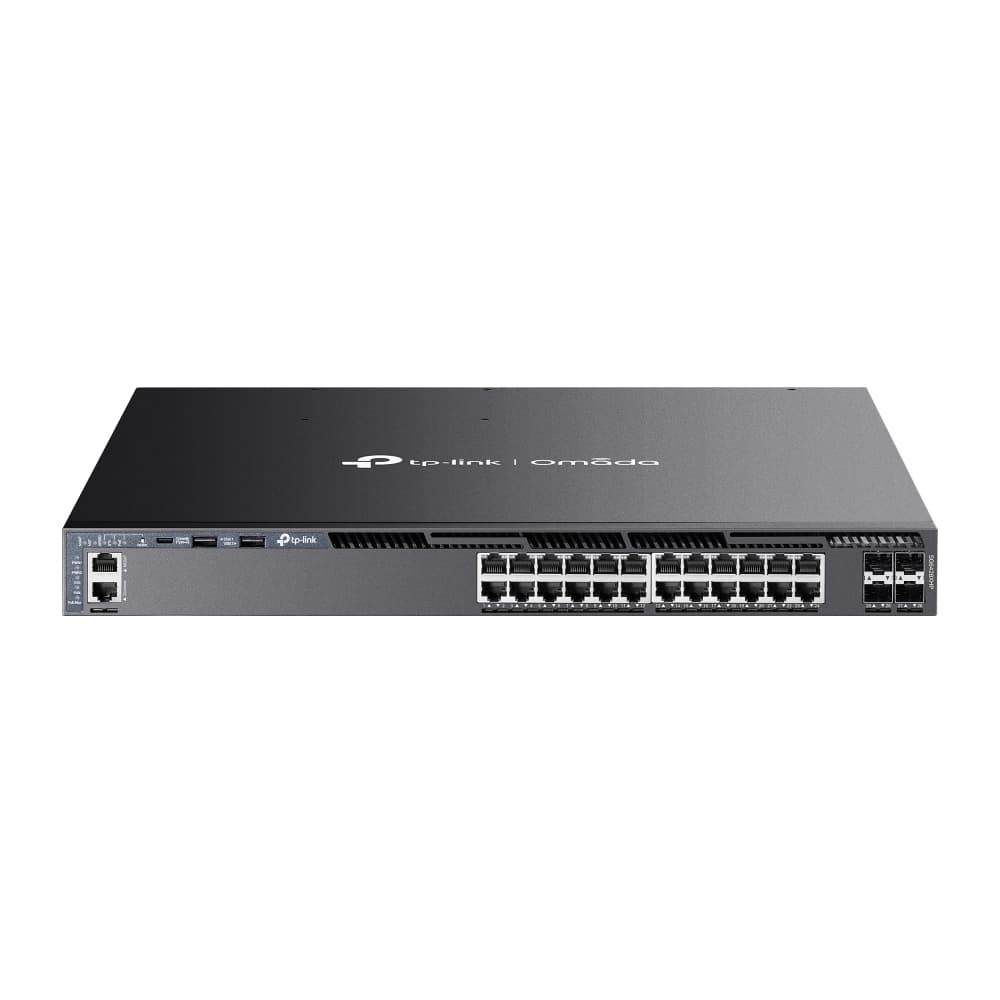

SG6428XHP - Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots

HARDWARE FEATURES - Interface

• 24× 10/100/1000 Mbps PoE+ RJ45 Ports• 4× 10G SFP+ Slots• 2× USB 2.0 Ports• 1× RJ45 Console Port• 1× USB Type-C Console Port• 1× RJ45 Management Port

HARDWARE FEATURES - Power Supply

Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)**Shipping with one PSM500-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.

HARDWARE FEATURES - Max. Power Consumption

• 42.9 W (110 V/60 Hz) (With no PD connected)• 916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC)

HARDWARE FEATURES - Dimensions ( W x D x H )

17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)

HARDWARE FEATURES - Mounting

Rackmountable

Management Features - Omada App

Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Management Features - Cloud Access

Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

OTHERS - Package Content

• SG6428XHP Switch• Power Cord• RJ45 Console Cable• Quick Installation Guide• Rackmount Kit• Rubber Feet

OTHERS - Environment

• Operating Temperature: 0–45 ℃ (32–113 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of the Omada Cloud-Based Controller.

OTHERS - System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

PERFORMANCE - Packet Buffer Memory

3 MB

PERFORMANCE - Jumbo Frame

9 KB

PERFORMANCE - Stacking

• Stacking Number: 4• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)• Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)

PERFORMANCE - Switching Capacity

128 Gbps per Unit

PERFORMANCE - Packet Forwarding Rate

95.2 Mpps

PERFORMANCE - MAC Address Table

32 K

Management Features - Management Features

• Web-based GUI• Command Line Interface (CLI) through console port, telnet• SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP Auto Install• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• Password Recovery• SNTP• System Log• EEE

HARDWARE FEATURES - Fan Quantity

Four Field-replaceable and Hot-swappable Fans

HARDWARE FEATURES - Max. Heat Dissipation

• 146.29 BTU/hr (110 V/60 Hz) (With no PD connected)• 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC)

SOFTWARE FEATURES - Quality of Service

• Class of Service - 8 Queues of Priority - Port Priority - IEEE 802.1p Priority - DSCP Priority - Queue Min-Bandwidth - Schedule Mode (SP, WRR, SP+WRR)• Bandwidth Control - Rate Limit - Storm Control• Voice VLAN • User-Defined OUI • Smoother Performance• Action for Flows - QoS remark (802.1P Remark, DSCP Remark)

SOFTWARE FEATURES - L3 Features

• IP Interfaces:- IPv4: Max 256, IPv6: Max 256• Static Routing- Max 1,024, IPv6: Max 512• Host Route Table: Max 6,100 entries• RIP: Version v1/v2, Max 8,190• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097• VRRP: Version v2/v3, Max 64 groups• ECMP: 256 entries, max 32 ECMP Nexthops per Destination• Static ARP: 512 static entries• Dynamic ARP: 7,680 dynamic entries• Proxy ARP• DHCP Server:- Max 8K IP Pools- Max 1,000 Manual Binding Entries• DHCP Relay:- Relayed Interface- Relayed VLAN

SOFTWARE FEATURES - L2 and L2+ Features

• Link Aggregation• Spanning Tree Protocol• Port-based and VLAN-based Loopback Detection• 802.3x Flow Control• Supports 2,048 IGMP groups• ERPS• Mirroring• RSPAN• MAC Address Table• PIM-DM (IPv4) • Multicast - IGMP Snooping - MLD Snooping - L2 Multicast Table - Fast Leave - Multicast VLAN Registration (MVR) - Static Multicast IP - Multicast Filtering

SOFTWARE FEATURES - Advanced Features

• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†ISP Features:• 802.3ah Ethernet Link OAM • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP)• DDM• sFlow

SOFTWARE FEATURES - VLAN

• Max 4K VLAN Group (802.1q VLAN)• 802.1Q Tagged VLAN• MAC VLAN Entries: 200• Multicast VLAN• Management VLAN• VLAN VPN (QinQ): Max 256 entries• GVRP• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries• VLAN VPN• Voice VLAN• Private VLAN

SOFTWARE FEATURES - Security

• Port Isolation• CPU-Defend• ARP Inspection (Dynamic ARP Inspection)• DoS Defend• IP-MAC-Port Binding-1,024 Entries- DHCP Snooping- ARP Inspection- IPv4 Source Guard• IPv6-MAC-Port Binding-1,024 Entries- DHCPv6 Snooping- ND Detection- ND Snooping- IPv6 Source Guard• DHCP Filter• Static/Dynamic Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unknown-unicast Storm Control- kbps/ratio control mode• 802.1X- Port base authentication- Mac base authentication- VLAN Assignment- MAB- Guest VLAN- RADIUS authentication and accountability support• AAA (including TACACS+)• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv2• IP/Port/MAC-based access control

HARDWARE FEATURES - PoE Ports (RJ45)

• Standard: 802.3at/af compliant• PoE+ Ports: 24 Ports, up to 30 W per port• PoE Power Budget: up to 720 W**The total PoE budget varies with the power supply modules.
