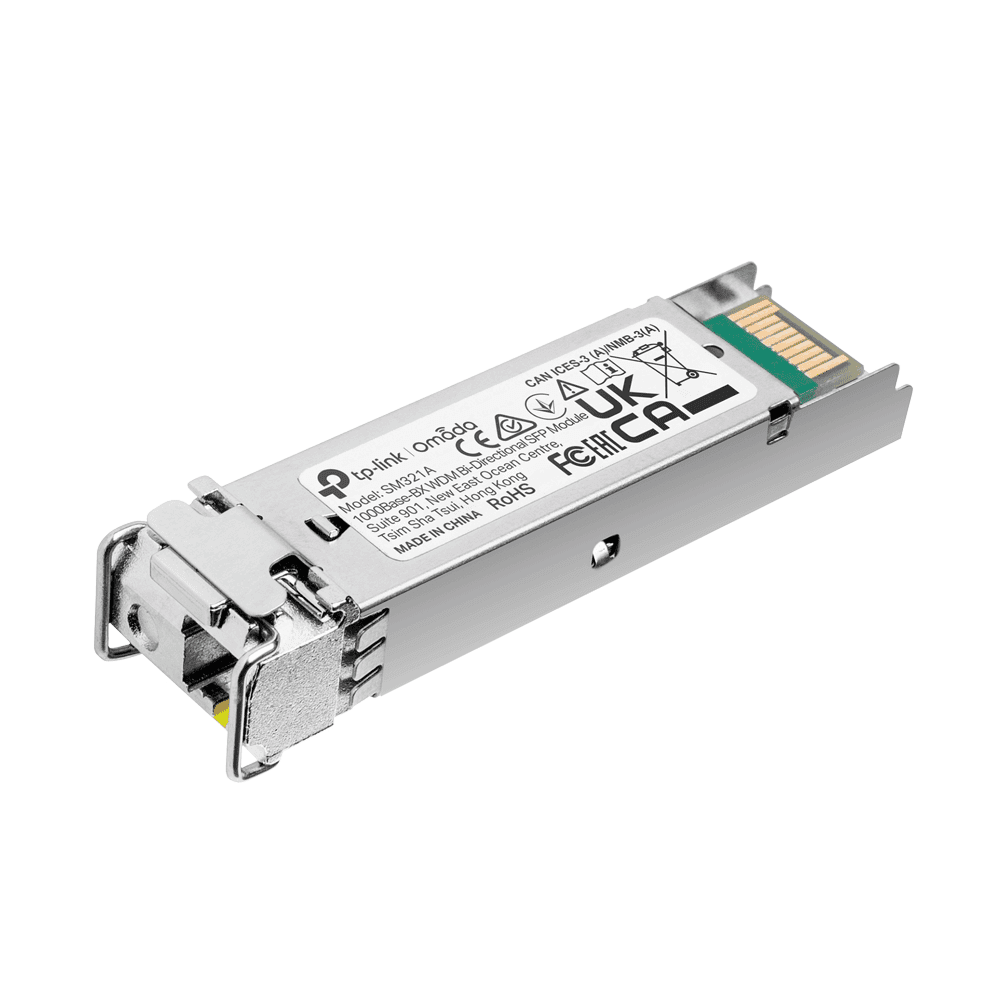

SM321A - Omada 1000Base-BX WDM Bi-Directional SFP Module

MEDIA CONVERTER & MODULE - Standards and Protocols

IEEE 802.3z, TCP/IP

MEDIA CONVERTER & MODULE - Wave Length

• TX: 1550 nm • RX: 1310 nm

MEDIA CONVERTER & MODULE - Dimensions ( W x D x H )

2.2*0.6*0.5 in (55.4*14.6*12.9 mm)

MEDIA CONVERTER & MODULE - Power Supply

3.3 V

MEDIA CONVERTER & MODULE - Safety & Emission

FCC, CE

MEDIA CONVERTER & MODULE - Package Content

• SM321A• Installation Guide

MEDIA CONVERTER & MODULE - Environment

• Operating Temperature: 0–70 °C (32–158 °F)• Storage Temperature: -40–85 °C ( -40–185 °F)• Operating Humidity: 10–90% RH, Non-Condensing• Storage Humidity: 5–90% RH, Non-Condensing

MEDIA CONVERTER & MODULE - Fiber Type

9/125 μm Single-Mode

MEDIA CONVERTER & MODULE - Cable

Single-Mode Fiber

MEDIA CONVERTER & MODULE - Max. Cable Length

20 KM

MEDIA CONVERTER & MODULE - Data Rate

1.25 Gbps

MEDIA CONVERTER & MODULE - Port Type

LC Simplex

MEDIA CONVERTER & MODULE - Hardware Features

• DDM• SFP-MSA• Hot Swappable
