TP-Link

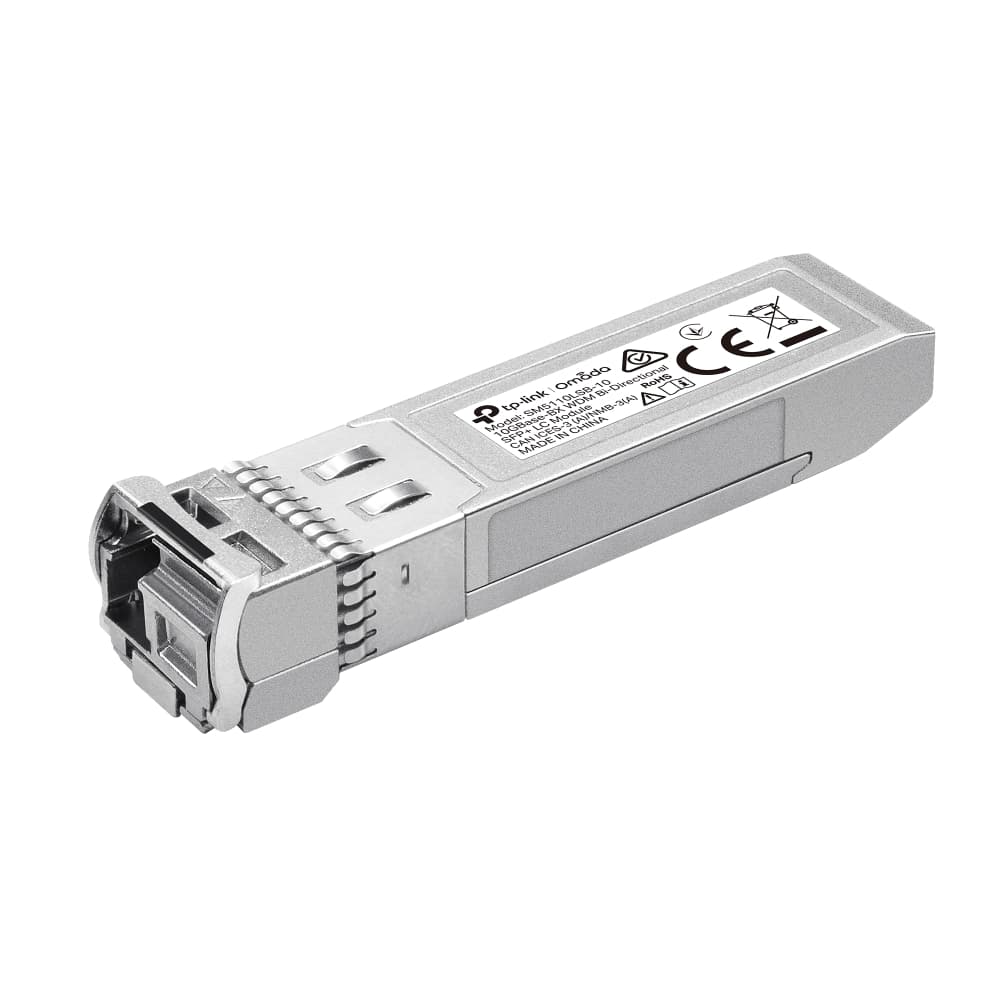

SM5110LSB 10 - Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module

0,00 ₼

Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
Single mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
Compatible with switches with 10G ports like SG3428X and SG3452X

Low stock

HARDWARE FEATURES - Dimensions ( W x D x H )

2.24*0.55*0.47 in (57*14*12.0 mm)

Transceiver - Standards and Protocols

• IEEE 802.3ae • SFF 8431, SFF 8432, SFF-8472

Transceiver - Wave Length

•TX: 1270nm•RX: 1330nm

Transceiver - Power Supply

3.3V

Transceiver - Fiber Type

9μm/125μm Single-Mode

Transceiver - Max. Cable Length

10km

Transceiver - Connector

LC/UPC

Transceiver - Regulatory Compliance

CE, FCC, RoHS

Transceiver - Environment

• Operating Temperature: 0°C to 70°C (32–158 ℉)• Storage Temperature: -40°C to 85°C (-40°F to 185°F)• Operating Humidity: 10% to 90% RH non-condensing• Storage Humidity: 5% to 90% RH non-condensing

HARDWARE FEATURES - DDM

Yes

HARDWARE FEATURES - Hot Swappable

Yes

Package Content - Package Content

• SM5110LSB-10• Installation Guide

Transceiver - Data Rate

10.3125 Gbps
