TP-Link

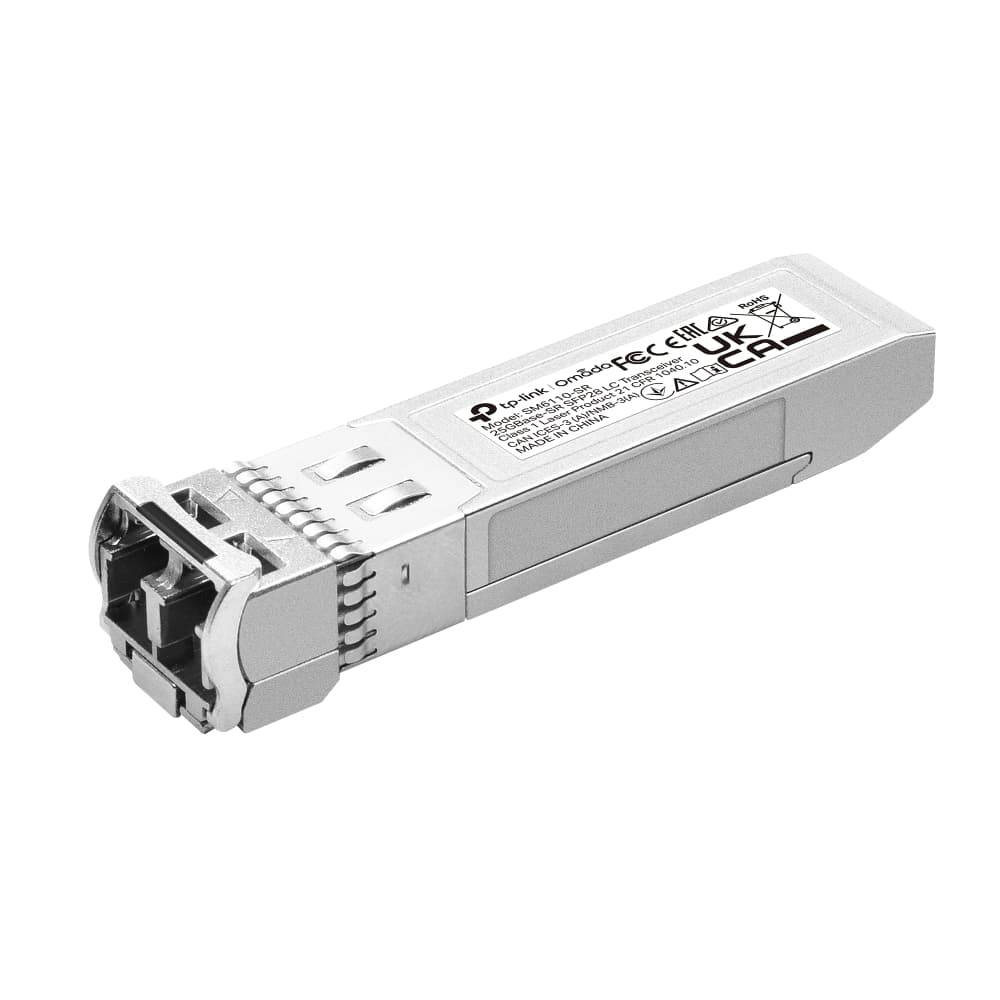

SM6110 SR - Omada 25GBase-SR SFP28 LC Transceiver

0,00 ₼

Multi-mode SFP+/SFP28 LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Low Power Consumption no more than 1 W
Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.

Low stock

HARDWARE FEATURES - Dimensions ( W x D x H )

2.24*0.55*0.53 in (57*14*13.45 mm)

Transceiver - Standards and Protocols

• IEEE 802.3ae, 802.3by• SFF-8402, SFF-8431, SFF-8432, SFF-8472• eCPRI, CPRI• TCP/IP

Transceiver - Wave Length

850nm

Transceiver - Power Supply

3.3V

Transceiver - Fiber Type

50/125um or 62.5/125um Multi-mode

Transceiver - Max. Cable Length

70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps

Transceiver - Connector

Duplex LC/UPC

Transceiver - Regulatory Compliance

CE, FCC, RoHS

Transceiver - Environment

• Operating Temperature: 0°C to 70°C (32–158 ℉)• Storage Temperature: -40°C to 85°C (-40°F to 185°F)• Operating Humidity: 10% to 90% RH non-condensing• Storage Humidity: 5% to 90% RH non-condensing

HARDWARE FEATURES - DDM

Yes

HARDWARE FEATURES - SFP-MSA

Yes

HARDWARE FEATURES - Hot Swappable

Yes

Package Content - Package Content

• SM6110-SR• Installation Guide

SFP28 Cable - Data Rate

Dual Rate 25.78 Gbps and 10.31 Gbps
