V1%20(5 PACK) - AX1800 Wall Plate WiFi 6 Access Point

HARDWARE FEATURES - Interface

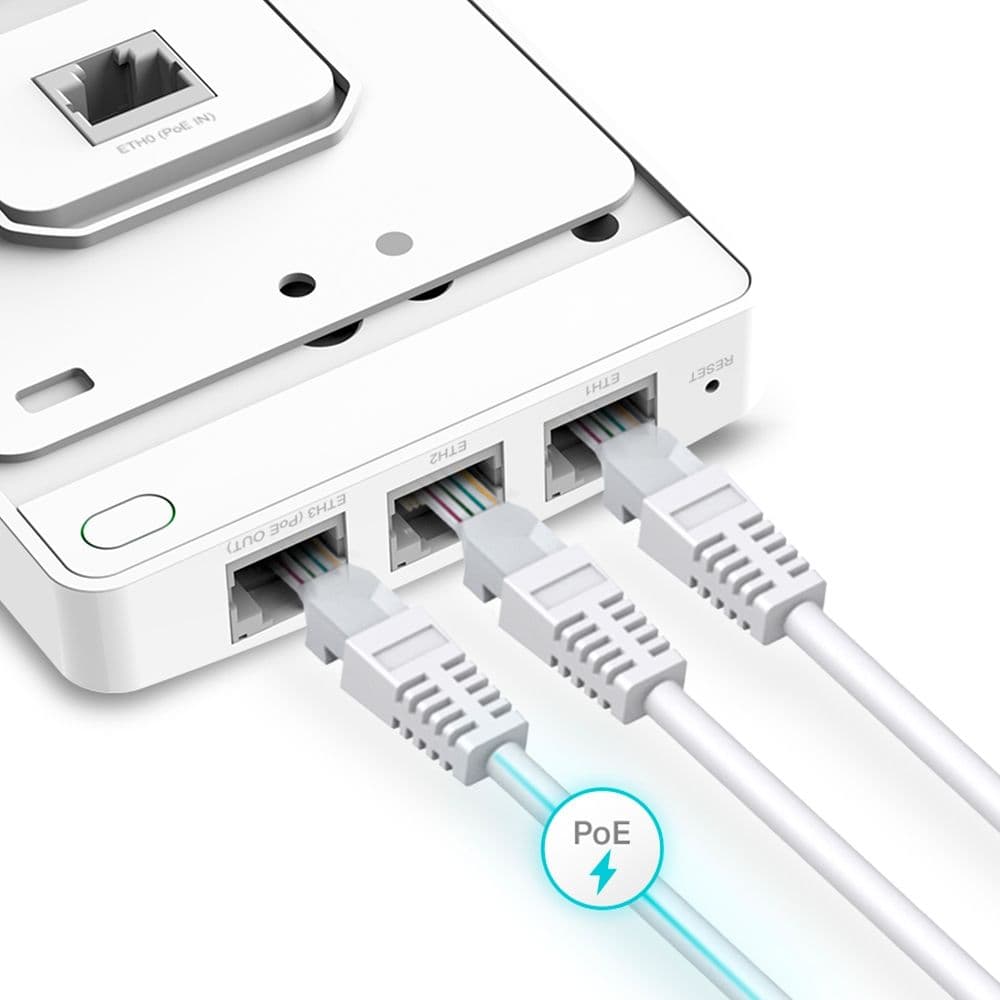

• Uplink: 1× 10/100/1000 Mbps Ethernet Port• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)

HARDWARE FEATURES - Button

Reset

HARDWARE FEATURES - Power Supply

802.3af/at PoE

HARDWARE FEATURES - Max. Power Consumption

• EU: 10W (802.3at PoE, PoE Out off) • US: 11.5W (802.3at PoE, PoE Out off)

HARDWARE FEATURES - Dimensions ( W x D x H )

143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

HARDWARE FEATURES - Antenna

2 Dual-Band Antennas• 2.4 GHz: 2× 3 dBi• 5 GHz: 2× 4 dBi

HARDWARE FEATURES - Mounting

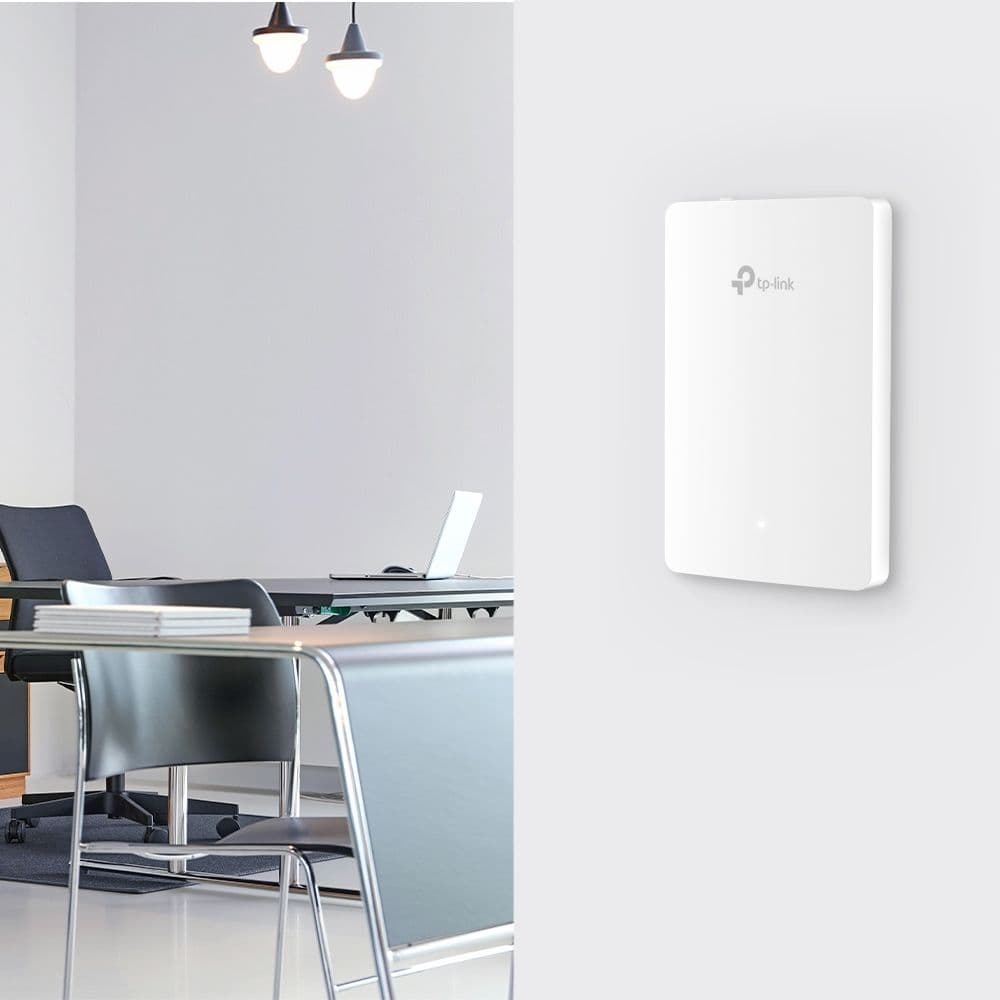

Wall Plate Mounting

WIRELESS FEATURES - Coverage

50㎡(600 ft²)△

WIRELESS FEATURES - Concurrent Clients

120+△

WIRELESS FEATURES - Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

WIRELESS FEATURES - Frequency

2.4 GHz and 5 GHz

WIRELESS FEATURES - Signal Rate

• 5 GHz: Up to 1201 Mbps• 2.4 GHz: Up to 574 Mbps

WIRELESS FEATURES - Wireless Functions

• 16 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Omada Mesh†• Seamless Roaming(802.11k/v/r)†• Beamforming• MU-MIMO• Rate Limit• Load Balance• Airtime Fairness• Band Steering• Reboot Schedule• Wireless Schedule• RADIUS Accounting• MAC Authentication• Wireless Statistics• Static IP/Dynamic IP

WIRELESS FEATURES - Wireless Security

• Captive Portal Authentication†• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

WIRELESS FEATURES - Transmission Power

• CE:< 20 dBm (2.4 GHz, EIRP)< 23 dBm (5 GHz, Band1, EIRP)• FCC:< 21 dBm (2.4 GHz)< 21 dBm (5 GHz, Band1)< 21 dBm（5Ghz, Band4）

Management Features - Omada App

Yes

Management Features - Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller

Management Features - Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Management Features - Email Alerts

Yes

Management Features - LED ON/OFF Control

Yes

Management Features - Management MAC Access Control

Yes

Management Features - SNMP

v1, v2c, v3

Management Features - System Logging Local/Remote Syslog

Local/Remote Syslog

Management Features - Web-based Management

HTTP/HTTPS

OTHERS - Certification

CE, FCC, RoHS

OTHERS - Package Content

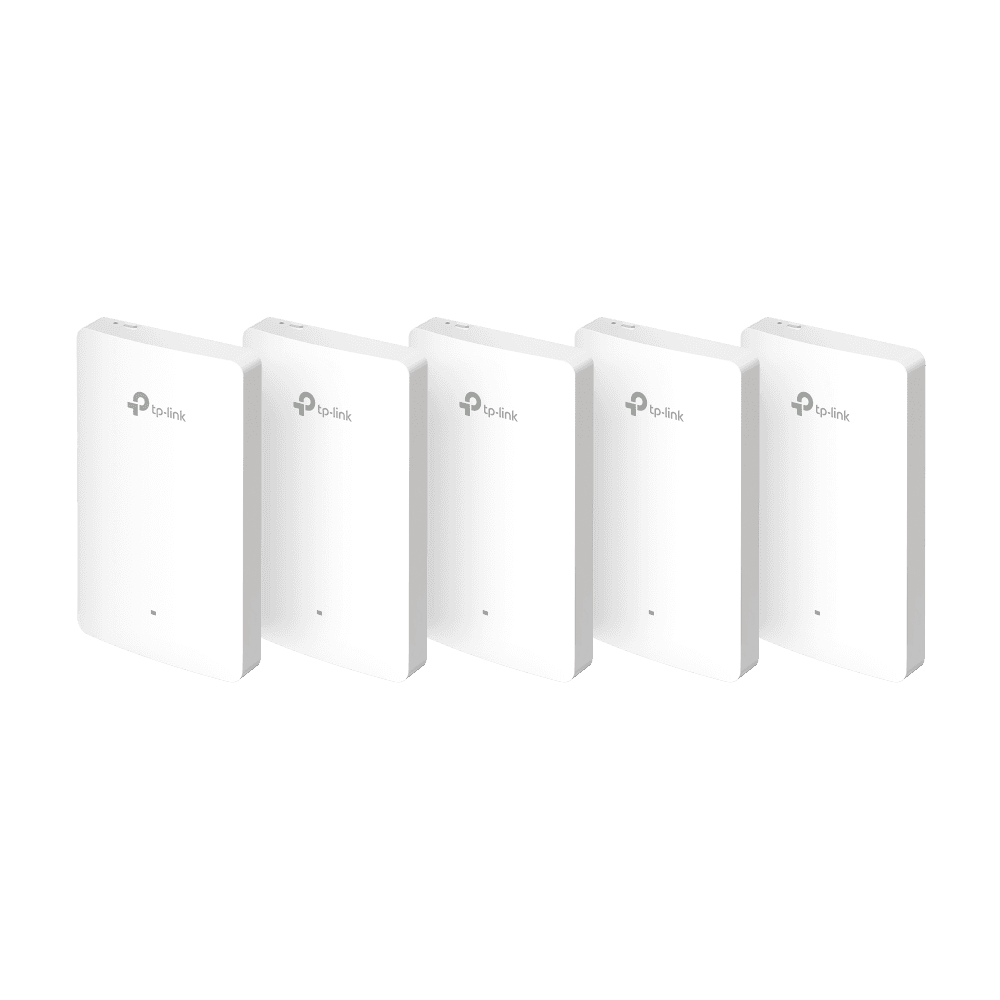

• EAP615-Wall(5-Pack)• Installation Guide• Mounting Kit

OTHERS - Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Management Features - SSH

Yes

Management Features - L3 Management

Yes

Management Features - Multi-site Management

Yes

Management Features - Management VLAN

Yes

Management Features - Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS - System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux

HARDWARE FEATURES - Physical Security Lock

Yes
