PGW2440 KIT - G.hn2400 Powerline AX1800 Wi-Fi 6 Kit

Standards and Protocols

• G.hn MIMO• IEEE 802.3• IEEE 802.3u• IEEE 802.3ab• IEEE 802.11b/g/n/ax (2.4GHz)• IEEE 802.11a/n/ac/ax (5GHz)

Management Features

TP-Link tpPLC App, or download new tpPLC Utility on PCs.Download>.

Dimensions (W×D×H)

• PGW2440: 3.15 × 1.38 × 6.18 in (80 × 35 × 157 mm)• PG2400P: 2.68 × 1.65 × 5.43 in (68 × 42 × 138 mm)

Package Content

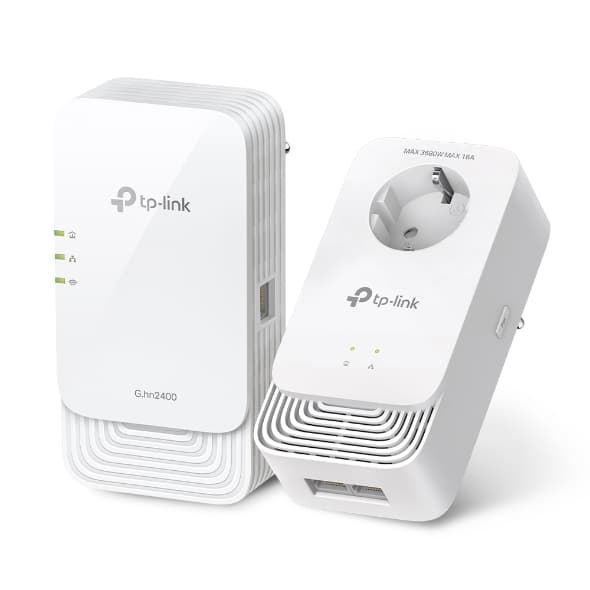

• 1× G.hn2400 Powerline Wi-Fi Extender PGW2440• 1× G.hn2400 Passthrough Powerline Adapter PG2400P• 2× Ethernet Cables• Quick Installation Guide

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)• Operating Humidity: 10%~90% non-condensing

System Requirements

Windows 11/10/8.1/8/7/Vista/XP, Mac OS, Linux

Interface

• PGW2440: 1 Gigabit Port• PG2400P: 2 Gigabit Ports

Button

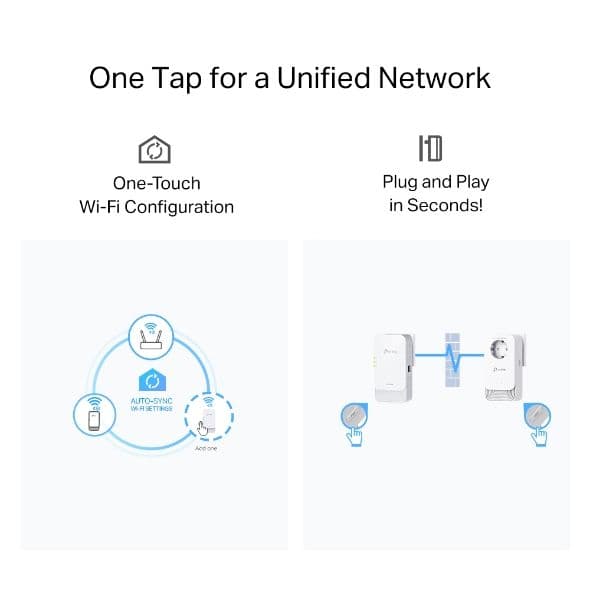

• PGW2440: Pair/Reset Button, Wi-Fi Button• PG2400P: Pair/Reset Button

Certification

CE, RoHS

Wireless Standards

• PGW2440: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz• PG2400P: N/A

Frequency

• PGW2440: 2.4 GHz and 5 GHz• PG2400P: N/A

Signal Rate

• PGW2440: 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz• PG2400P: N/A

Security

• Wireless: WEP, WPA, WPA2, WPA3• Powerline: 128-bit AES Encryption

Max. Power Consumption

• PGW2440: Maximum: 15.9W, Typical: 9.2W• PG2400P: Maximum: 6.32W, Standby: 0.98W

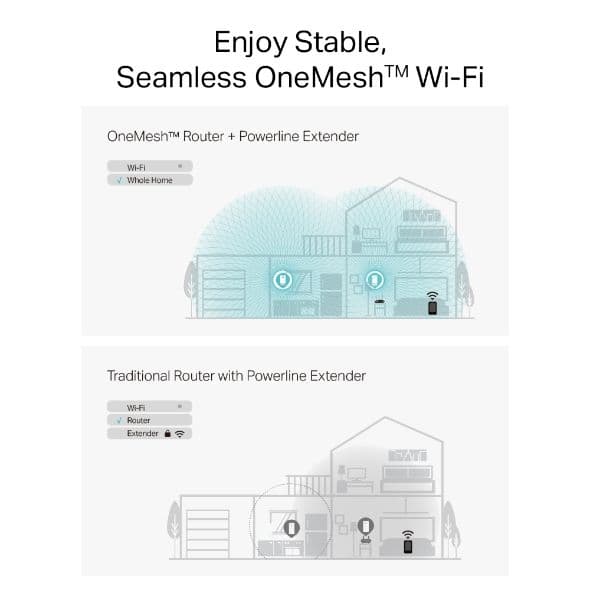

Mesh Technology

OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products>

Plug Type

EU

Transmission Speeds

• Powerline: Up to 1428 Mbps• Ethernet: 10/100/1000 Mbps

Transmission Distance

Up to 300 meters/1000 feet over existing electrical wiring

Compatibility

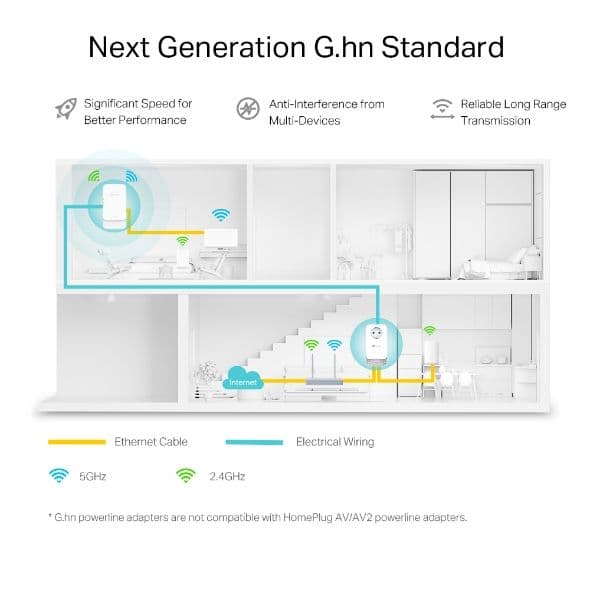

Compatible with all routers and G.hn Powerline adapters.Not compatible with HomePlug AV/AV2 Powerline adapters.

LED

• PGW2440: Powerline, Ethernet, Wi-Fi• PG2400P: Powerline, Ethernet

Modulation Technology

OFDMA
